Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Compliance

  • EN 50121-4 certified for railway applications
  • NEMA TS2 rated
  • UL certified for safety

Management/Security Features

  • Port control
  • 802.1x port-based network access control and remote authentication through RADIUS and TACACS+
  • Configure and monitor with eVue™ and eLite™

Support

  • Complimentary Technical Support
  • Free Firmware Upgrades
  • Limited Lifetime Warranty

EtherWAN’s EX71000 Series is a hardened DIN-rail mounted managed Ethernet switch platform. Equipped with up to 8 10/100BASE-TX and 2 fiber ports, the EX71000 Series provides flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, and other areas where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

Interface

  • CLI, Telnet, Web GUI
  • SNMP v1/v2c/v3

Management

  • Firmware upgrade
  • Configuration backup via TFTP
  • DHCP Server/Client
  • RMON (Remote Monitoring): group 1, 2, 3, 9
  • Port Mirroring: TX/RX and both
  • NTP (Network Time Protocol) synchronization
  • IEEE 802.1ab LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6

Security

  • MAC Address Filtering
  • Enable/Disable port
  • Storm control (Broadcast and multicast types)
  • IEEE 802.1x LAN Access control
  • Remote authentication through RADIUS and TACACS+
  • SSH for CLI and Telnet security
  • SSL for web security
  • System log (Remote/Local)
  • Multi-level user account/password against unauthorized configuration

Quality of Service (QoS)

  • Priority Queues: 4 queues per port
  • Traffic classification based on IEEE 802.1p CoS, DSCP, WRR and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Auto-negotiation for port speed and duplex
    • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-Pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP

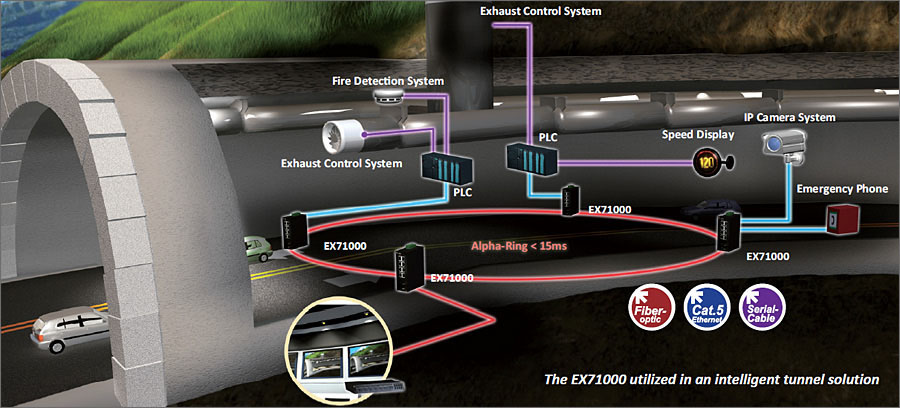

    • EtherWAN's Alpha-Ring network fault recovery (<15ms)
  • VLANs
    • Port-based VLANs
    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
    • GVRP
    • GMRP
  • Link Aggregation
    • Static Trunk (2 groups, support MAC base)
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2/v3


Interface

  • Ethernet
    • 4, 6 or 8 x 10/100BASE-T(X)
    • 0 or 4 x 100BASE-FX
    • 0, 1 or 2 x Gigabit
  • Console
    • 1 x DB9 RS-232
  • Alarm Contact
    • 1 x Relay output, current capacity 0.6A/30VDC
  • LED Indicators
    • Per Unit: Power 1, Power 2, Alarm
    • Per Port: Link/Activity, Speed

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x Full duplex and flow control
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1w RSTP
    • IEEE 802.1x PNAC
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Packet Buffer Memory
    • 12M bits
  • Processing Type
    • Store-and-Forward
    • Auto-negotiation
    • Half-duplex back-pressure and IEEE 802.3x Full-duplex flow control
    • Auto MDI/MDIX
  • Address Table Size
    • 16K MAC Addresses

Power

  • Input
    • 12-48VDC Redundant (Terminal block)
  • Power Consumption
    • 7.5W Max. 0.31A@24VDC
  • Protection
    • Reverse Polarity Protection

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30

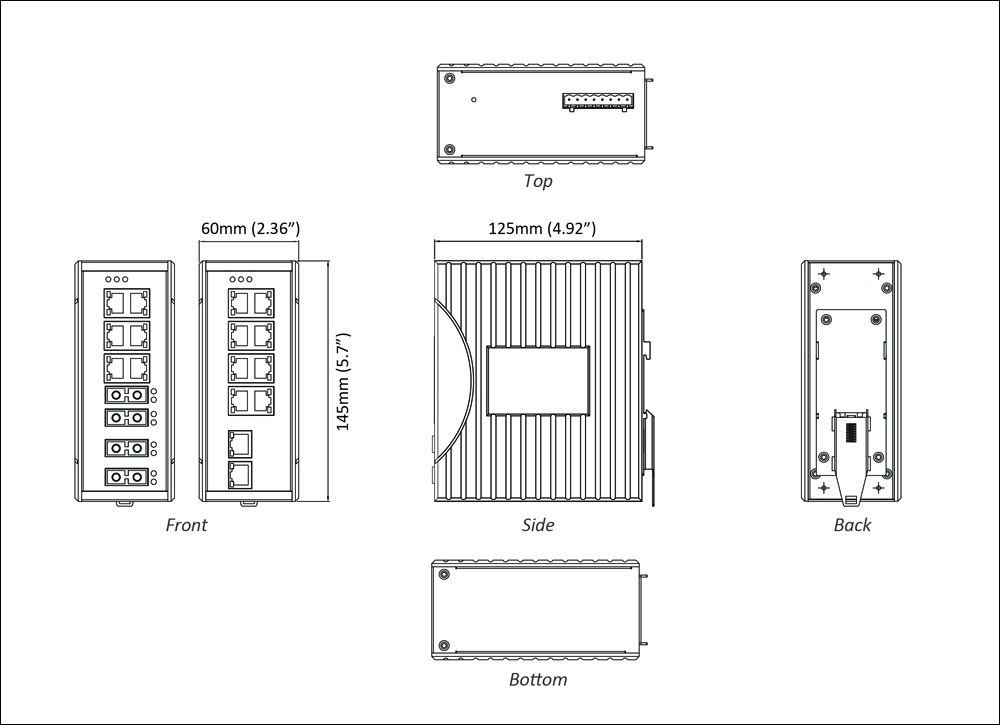

  • Dimensions
    • 60 x 125 x 145mm (W x D x H)
      2.36" x 4.92" x 5.7"
  • Weight
    • 1.05kg

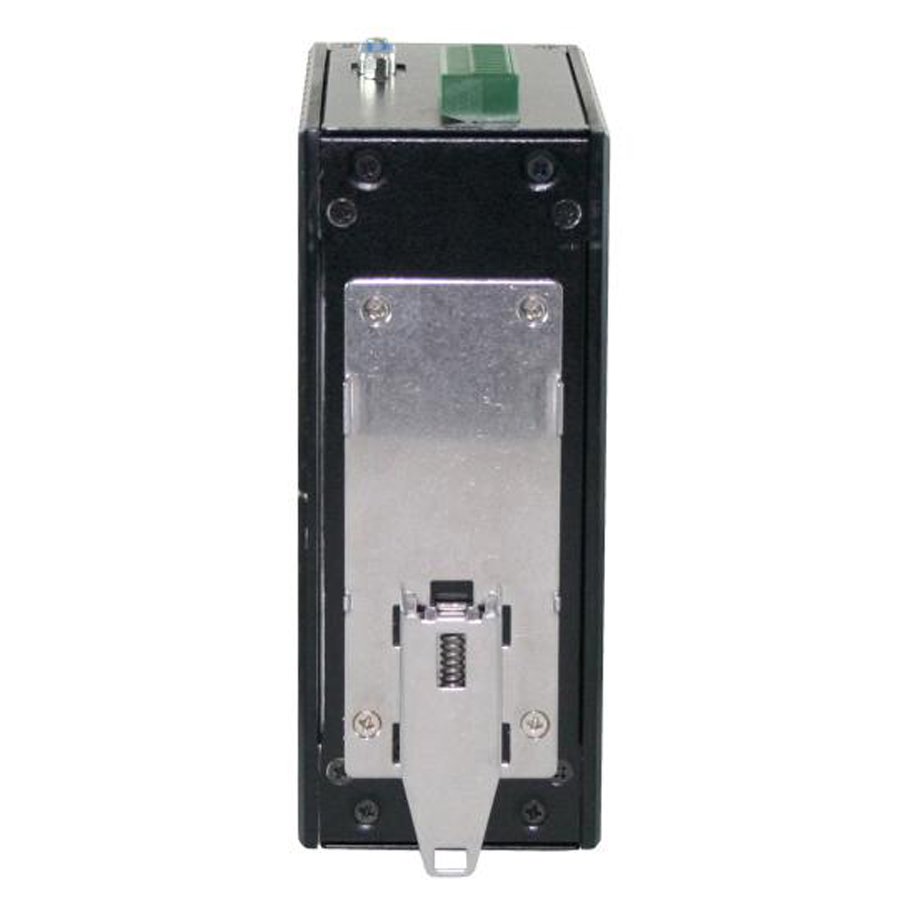

  • Installation Type
    • DIN-rail mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
      Tested @ -40 to 85°C (-40 to 185°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • EN 55032
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
  • EMS
    • EN 61000-6-2
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic Field)
  • Safety
    • UL 61010
    • ISA 12.12.01
  • Vibration
    • IEC 60068-2-6 Fc
  • Shock
    • IEC 60068-2-27 Ea
  • Free Fall
    • FED STD 101C Method 5007.1
  • Industrial Compliance
    • NEMA TS2
    • EN 50121-4

Warranty

What's Included

  • Device
    • Ethernet Switch
  • Cables
    • 1 Console Cable
  • Documentation
    • Quick Install Guide

Model

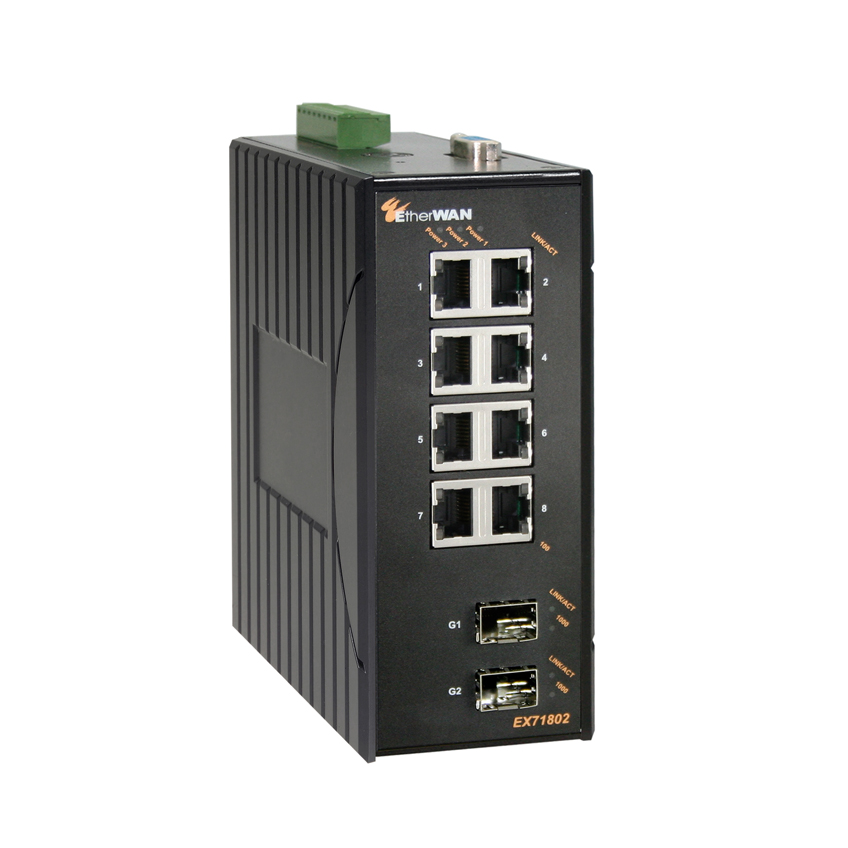

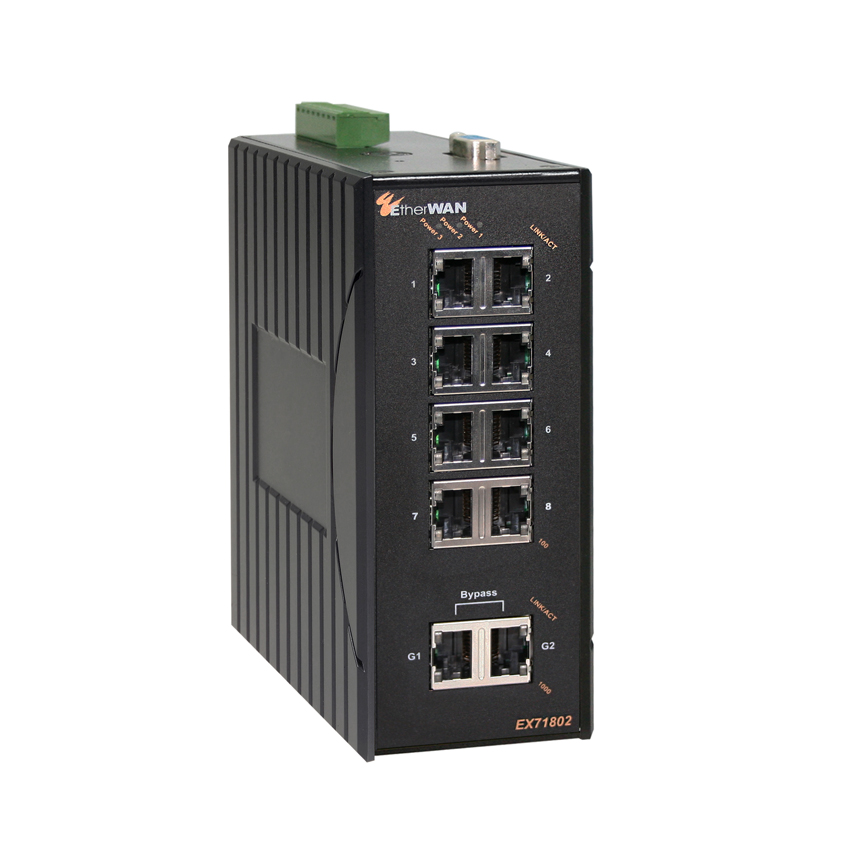

EX71802-0YB 8-port 10/100BASE-TX + 2-port Gigabit
EX71620-X0B 6-port 10/100BASE-TX + 2-port 100BASE-FX

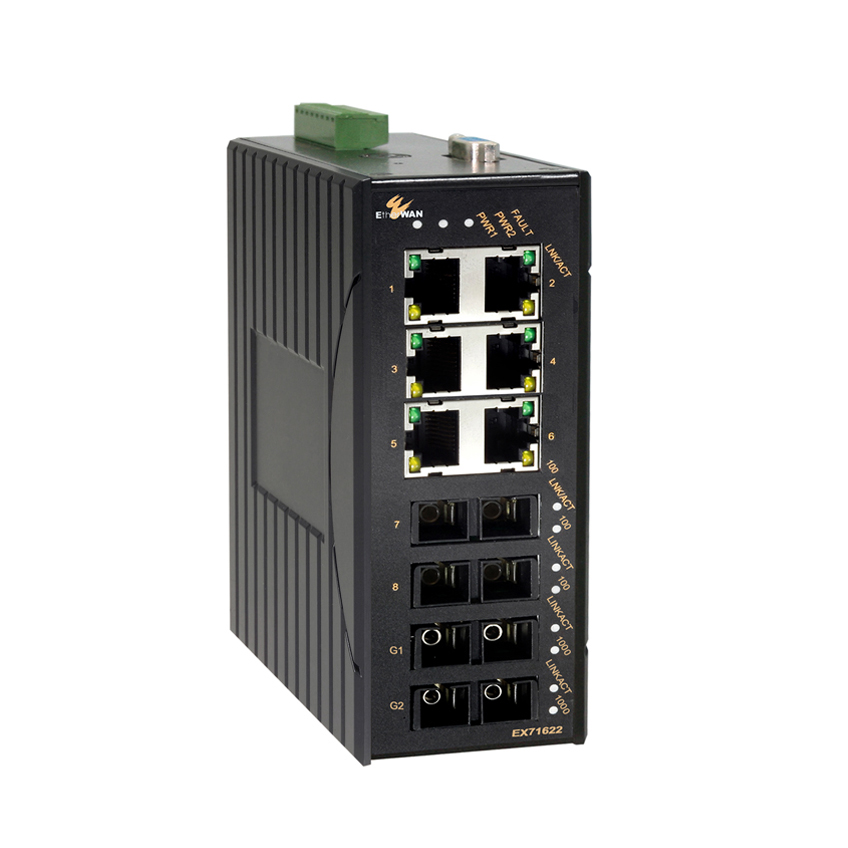

EX71622-XYB 6-port 10/100BASE-TX + 2-port 100BASE-FX +2-port Gigabit
EX71440-X0B 4-port 10/100BASE-TX + 4-port 100BASE-FX

* DIN-Rail mounting kit included.

100FX Fiber Options (X)

1 Multi Mode (SC) - 2Km
2 Multi Mode (ST) - 2Km
A Single Mode (SC) - 20Km
B Single Mode (SC) - 40Km
V 100BASE SFP (DDM)

* More 100FX Fiber options also available upon request.

Gigabit Port Options (Y)

1 10/100/1000BASE-TX
3 1000BASE-SX (SC) - 550m
4 1000BASE-SX (SC) - 2Km
5 1000BASE-SX (ST) - 550m
A 1000BASE-LX (SC) - 10Km
B 1000BASE-LX (SC) - 20Km
R 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
V 100/1000BASE SFP (DDM)

* More Gigabit options also available upon request.

Accessories

Hardened SFP Modules www.etherwan.com/products/sfp-fiber-transceiver
DIN-Rail Power Supplies www.etherwan.com/products/din-rail-power-supply (*)
*Recommended Power Supply HDR-30-24 30W 24VDC DIN-Rail Power Supply
EB-232 Configuration Backup and Restoration Tool
