EX43000 Series

Industrial Unmanaged 6 to 8-port 10/100BASE-TX and 1 to 2-port 100BASE-FX Ethernet Switch
UL 60950
Broadcast storm protection
Two fiber ports (SC/ST/WDM/SFP) for long distance connectivity
Alarms for power and link failure

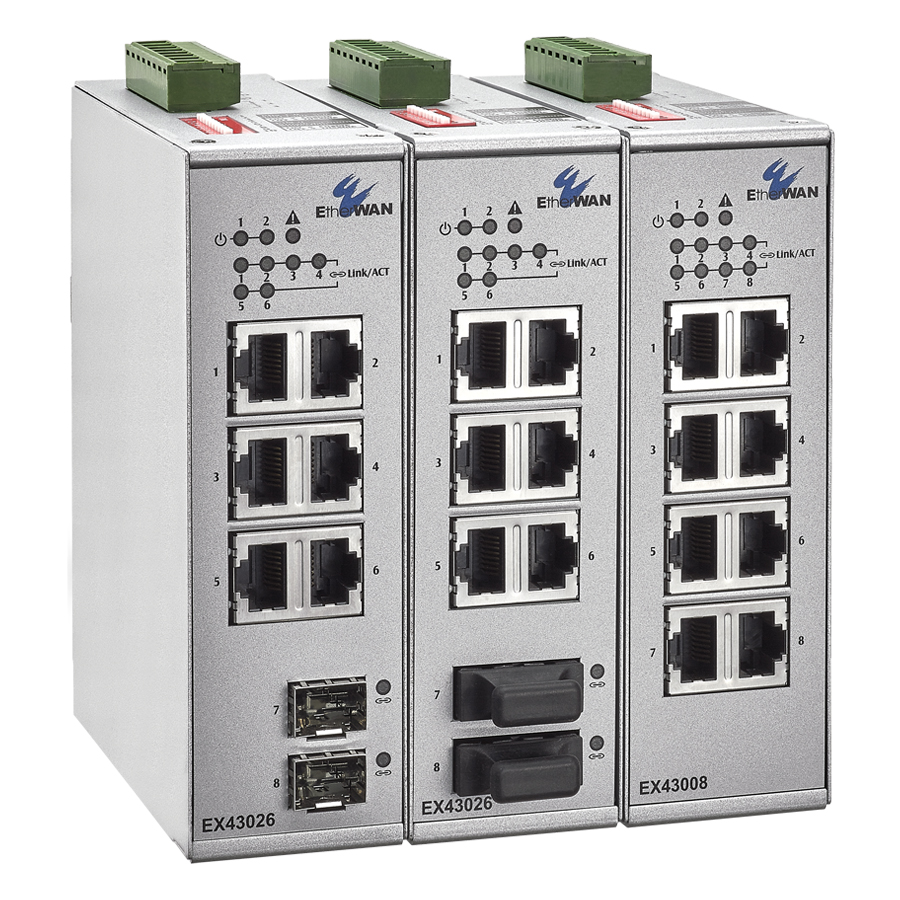

EtherWAN's EX43000 Series is an industrial unmanaged Fast Ethernet switching platform, designed for easy deployment in industrial environments.

The EX43000 Series is equipped with eight Fast Ethernet ports, or a combination of Fast Ethernet copper ports and two 100FX ports for long distance connectivity. This versatile switch features 10/100Mbps transfer speeds, full/half-duplex auto-negotiation and auto MDI/MDIX operation allowing you to connect your network devices without hassles.

The EX43000 is feature-rich with full wire speed Fast Ethernet throughput, QoS (Quality of Service), IEEE802.3az EEE (Energy Efficient Ethernet) and Broadcast storm protection. The EX43000 Series is built with relay alarm to notify users when power fails or link down occurs. It also supports Broadcast storm protection by enabling the DIP switch. The EX43000 Series is housed with a DIN rail mountable metal compact case which is an ideal solution for network applications in harsh environments.

EtherWAN — "When Connectivity is Crucial."

Industrial Grade

  • Supports -20 to 60°C (-4 to 140°F) operating temperature

Port Failure Alarm and Broadcast Storm Protection

  • Provide relay alarm to notify users when power fails or link down occurs by DIP switch
  • PSelectable DIP switch to set a threshold level to prevent from performance degradation or network choking

Fiber Connectivity

  • Up to two 100BASE-FX ports with SC, ST, WDM and SFP options

Energy Efficient Ethernet (EEE)

  • Supports IEEE802.3az standard

High Reliability

  • Fanless design
  • No moving parts


  • Standards
    • IEEE 802.3u 100BASE-TX/FX
    • IEEE 802.3x full-duplex flow control
    • IEEE 802.3az Energy Efficient Ethernet
    • IEEE 802.1p Quality of Service (QoS)
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
  • Packet Buffer Memory
    • 448K bits
  • Processing Type
    • Store-and-Forward
    • Auto Negotiation
    • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
    • Auto MDI/MDIX
  • Address Table Size
    • 1K MAC addresses



  • Casing
    • Aluminum Case
  • IP Rating
    • IP30

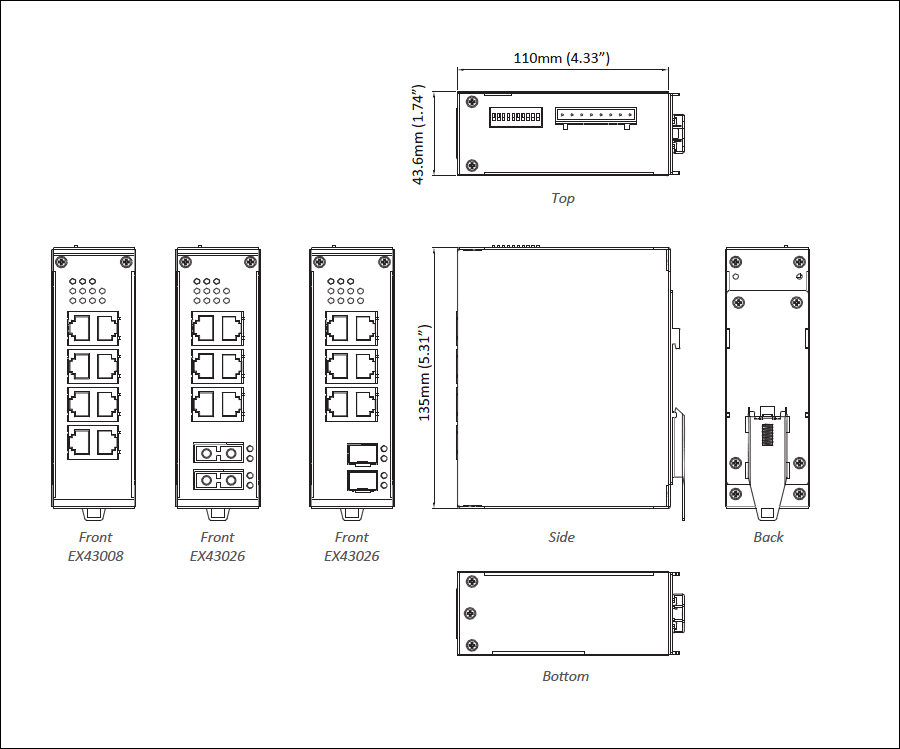

  • Dimensions
    • 43.6 x 110 x 135mm (W x D x H) (1.74" x 4.33" x 5.31")
  • Weight
    • 0.51Kg (1.12lbs)
  • Installation

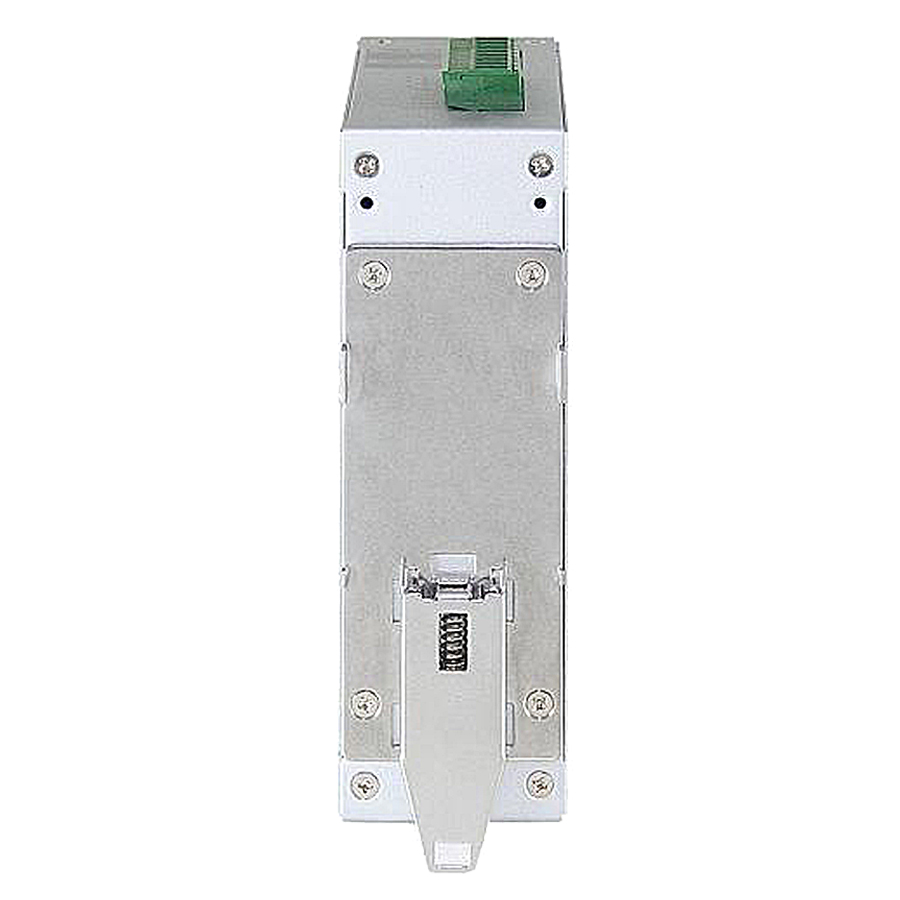

    • DIN-Rail (Top hat type 35mm), Panel, or Rack mounting


  • Ethernet Ports
    • 10/100BASE-TX: 8 or 6 ports
    • 100BASE-FX: 0 or 2 ports
  • LED Indicators
    • Per Unit: Power 1 (Green), Power 2 (Green)
    • Per Port: Link/Activity (Green)

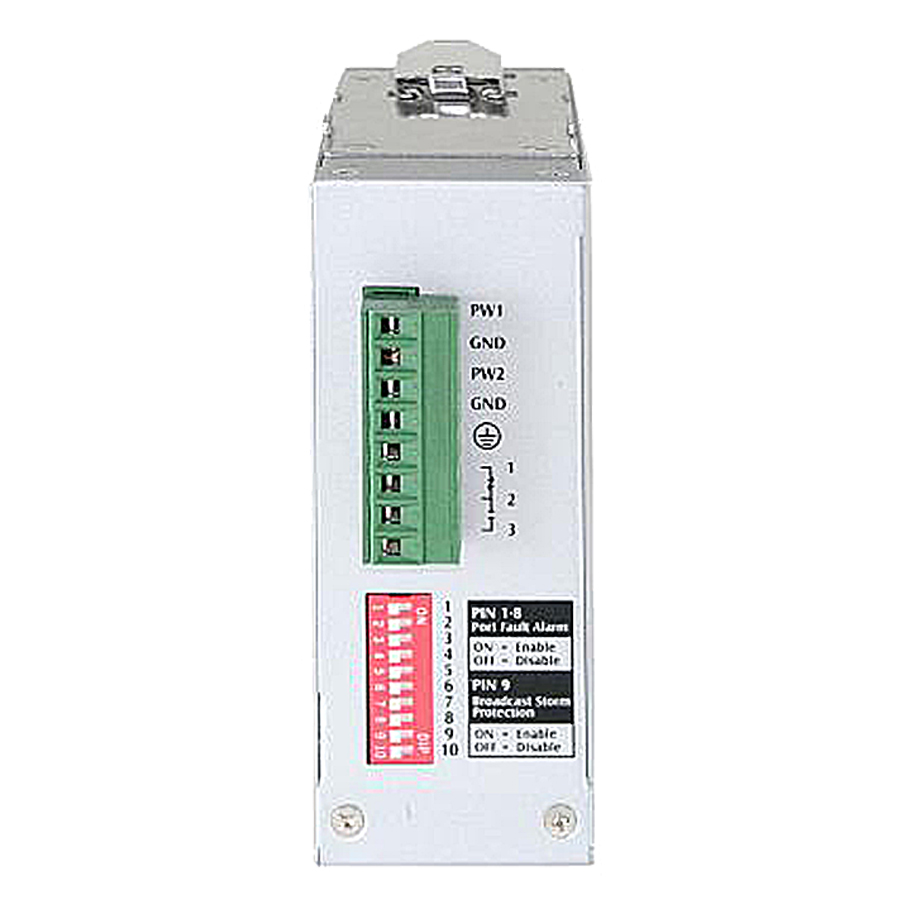

  • DIP Switches
    • Enable/Disable Port fault alarm
    • Enable/Disable Broadcast Storm Protection
  • Alarm Contact
    • One relay output with current 1A@250VAC
    • Supports normal close and normal open


  • Operating Temperature
    • -10 to 60°C (14 to 140°F)
      Tested @ -20 to 70°C (-4 to 158°F)
  • Storage Temperature
    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory Approvals

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
    • EN 55022 Class A
  • EMS
    • EN 61000-6-2
      • - EN 61000-4-2 (ESD)
      • - EN 61000-4-3 (Radiated RFI)
      • - EN 61000-4-4 (Burst)
      • - EN 61000-4-5 (Surge)
      • - EN 61000-4-6 (Induced RFI)
      • - EN 61000-4-8 (Magnetic field)
  • Safety
    • UL 60950
    • UL 62368
  • Environmental Test Compliance
    • IEC 60068-2-6 Fc (Vibration)
    • IEC 60068-2-27 Ea (Shock)
    • FED STD 101C Method 5007.1 (Free fall w/package)


EX43008-00-1-AA8-port 10/100BASE-TX Industrial Unmanaged Ethernet Switch
EX43026-XY-1-AA6-port 10/100BASE-TX +2-port 100BASE-FX Industrial Unmanaged Ethernet Switch

* DIN-Rail mounting kit included.

100FX Fiber Options (XY)

1AMulti Mode (SC) - 2Km
1BMulti Mode (ST) - 2Km
2ASingle Mode (SC) - 20Km
2DSingle Mode (ST) - 20Km
2ESingle Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
2GSingle Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km

* More 100FX Fiber options also available upon request.

Optional Accessories

KP-AA96-480Panel Mounting Kit
KR-BKEL900Rack Mounting Kit
HDR-30-2430W/1.5A DIN-Rail 24VDC Industrial Power Supply
HDR-60-2460W/2.5A DIN-Rail 24VDC Industrial Power Supply
EDR-75-2475W/3.2A DIN-Rail 24VDC Industrial Power Supply
