EX41-145044

Power Supply 45W 12VDC with Latch

UL 60950
DoeVI
EX41-145044 Power Supply 45W 12VDC with Latch
EX41-145044 Power Supply 45W 12VDC with Latch

Downloads

Features
Specifications

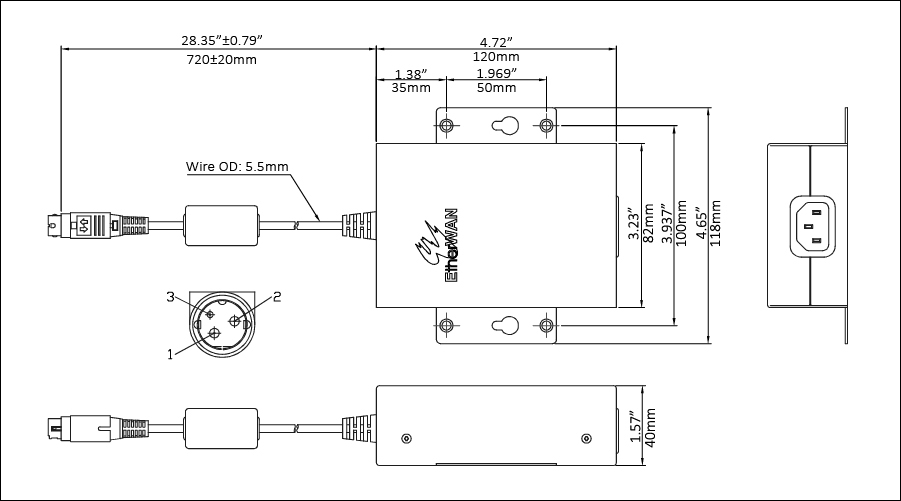

Dimensions
Ordering Info

Complies with NEMA TS1 & TS2 environmental requirements for traffic control equipment

Power

Input Rating

  • • 90-264VAC (47-63Hz)

Output Rating
  • • 45W, 12VDC, 0-3.7A


Mechanical

Casing

  • • Aluminum case

Operating Temperature
  • • -40 to 75°C (-40 to 167°F)

Output Connector
  • • DC jack with latch


Model

EX41-145044-X Power Supply 45W 12VDC with Latch

Input Plug Options (X)

1 US
2 EU
3 UK
4 AU
5 JP
6 SA

Features

Complies with NEMA TS1 & TS2 environmental requirements for traffic control equipment

Specifications

Power

Input Rating

  • • 90-264VAC (47-63Hz)

Output Rating
  • • 45W, 12VDC, 0-3.7A


Mechanical

Casing

  • • Aluminum case

Operating Temperature
  • • -40 to 75°C (-40 to 167°F)

Output Connector
  • • DC jack with latch


Dimensions
Ordering Info

Model

EX41-145044-X Power Supply 45W 12VDC with Latch

Input Plug Options (X)

1 US
2 EU
3 UK
4 AU
5 JP
6 SA
