EX35000 Series

EtherWAN's EX35000 Series is an industrial unmanaged Gigabit switching platform, designed for easy deployment in harsh environments.

The EX35000 Series is equipped with eight Gigabit Ethernet ports, or a combination of Gigabit copper ports and two Gigabit fiber ports for long distance connectivity. Although unmanaged, the EX35000 is feature rich with full wire speed Gigabit throughput, making the EX35000 Series a powerful network switch.

EtherWAN — "When Connectivity is Crucial."

Industrial Grade

» Supports -20°C to 60°C (-4°F to 140°F) operating temperature

Versatile mounting Options

» DIN-Rail or panel mounting

Fiber Connectivity

» Up to two 1000BASE ports with SC, ST and SFP options

Technology

Standards

• • IEEE802.3 10BASE-T
• • IEEE802.3u 100BASE-TX/100BASE-FX
• • IEEE802.3ab 100BASE-T
• • IEEE802.3az 1000VASE-SX/LX
• • IEEE802.3x Full duplex and flow control

• • 14,880pps for 10Mbps
• • 148,810pps for 100Mbps
• • 1,488,100pps for 1000Mbps

• • 1.125M bits

• • Store-and-Forward
• • Auto Negotiation
• • Half-duplex back-pressure and IEEE802.3x full-duplex flow control
• • Auto MDI/MDIX

• • 8192 MAC addresses

• • 9K

Power

Input

• • Redundant power inputs:
  •   9 to 32VDC (Terminal Block); 12VDC (DC Jack)

• • 6.7W Max. 0.52A @ 12VDC, 0.26A @ 24VDC

• • Reverse polarity protection

Mechanical

Casing

• • Aluminum Case
• • IP30

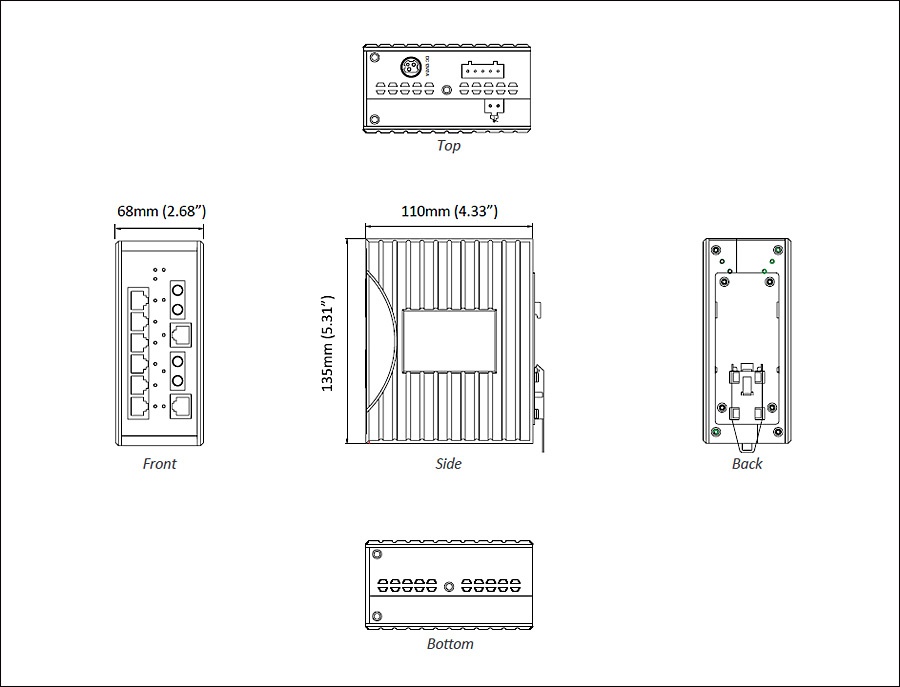

• • 68mm (W) x 110mm (D) x 135mm (H)
    (2.68" (W) x 4.33" (D) x 5.31" (H))

• • 0.8Kg (1.76lbs.)

• • DIN-Rail (Top hat type 35mm) or Panel mounting

Interface

Ethernet Ports

• • Gigabit: 8 ports (2 Fiber combo ports included)

• • Per Unit: Power 1 (Green)
    Power 2 (Green)
    Power 3 (Green)
    10/100M (Green)
    1000M (Orange)

• • One relay output with current 1A @ 24VDC

Environment

Operating Temperature

• • -20°C to 60°C (-4°F to 140°F)
    Tested @ -30°C to 70°C (-22°F to 158°F)

• • -40°C to 85°C (-40°F to 185°F)

• • 5% to 95% (non-condensing)

Regulatory Approvals

ISO

• • Manufactured in an ISO9001 facility

• UL 508

• FCC Part 15B Class A, VCCI Class A
• VCCI Class A
• EN 61000-3-2
• EN 61000-3-3
• EN 61000-6-4
• EN 55022 Class A

• EN 61000-6-2
  • • EN 61000-4-2 (ESD Standards)
  • • EN 61000-4-3 (Radiated FRI Standards)
  • • EN 61000-4-4 (Burst Standards)
  • • EN 61000-4-5 (Surge Standards)
  • • EN 61000-4-6 (Induced RFI Standards)
  • • EN 61000-4-8 (Magnetic Field Standards)

• IEC 60068-2-6 Fc (Vibration)
• IEC 60068-2-27 Ea (Shock)
• FED STD 101C Method 5007.1 (Free fall w/ package)

Model

* DIN-Rail mounting kit included.

Gigabit Port Options (Y)

*More 1000 Fiber options also available upon request.

Optional Accessories
