EL900 Series

Hardened 10/100BASE-TX to 100BASE-FX Media Converter

UL 60950
Wide Temperature
NEMA-TS2
UL Class 1 Division 2
EL900 Series Hardened 10/100BASE-TX to 100BASE-FX Media Converter
EL900 Series Hardened 10/100BASE-TX to 100BASE-FX Media Converter
EL900 Series Hardened 10/100BASE-TX to 100BASE-FX Media Converter
Design and certified for Class I, Division 2 electrical equipment
Link Fault Pass Through (LFPT)
Alarms for power and link failure
EL900 Series Hardened 10/100BASE-TX to 100BASE-FX Media Converter
EL900 Series Hardened 10/100BASE-TX to 100BASE-FX Media Converter
EL900 Series Hardened 10/100BASE-TX to 100BASE-FX Media Converter
Overview
Spotlight
Specifications
Dimensions
Ordering Info

The EL900 Series provides media conversion between 10/100BASE-T and 100BASE-SX-LX Fiber. Built specifically for mission-critical applications in harsh environments, the EL900's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL900 is the ideal media converter for harsh environments.

EtherWAN — "When Connectivity is Crucial."

ISA 12.12.01 Certification

» Highly qualified for explosive environmental applications and certified by UL with ISA12.12.01 Class I, Division 2 classified for use in hazardous locations

Wide Operating Temperature

» -40°C to 75°C wide operating temperature range design is suitable for installation in outdoor cabinet

Link-Fault-Pass-Through (LFPT)

» LFPT function let network operators be aware of network connection status
» When fiber link is down, LFPT function will turn down Ethernet port to inform connected device that the link is down and vise versa

Technology

Standards

  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX and 100BASE-FX
  • • IEEE802.3x Full duplex and flow control

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps

Packet Buffer Memory
  • • 128K bits

Processing Type
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE802.3x full-duplex flow control
  • • Auto MDI/MDIX




Power

Input Voltage

  • • 10 to 48VDC (DC Terminal Block)
  • • 12VDC (DC Jack) or 24VAC, 0.185A (AC Terminal Block)

Power Consumption
  • • 4.32W MAX. 0.36A @ 12VDC, 0.09A @ 48VDC

Protection
  • • Overload current protection
  • • Reverse polarity protection




Mechanical

Casing

  • • Aluminum Case
  • • IP30

Dimensions
  • • 50mm (W) x 110mm (D) x 135mm (H)
      (1.97" (W) x 4.33" (D) x 5.31" (H))

Weight
  • • 0.8Kg (1.76lbs.)

Installation
  • • DIN-Rail (Top hat type 35mm), Panel, or Rack mounting




Interface

Ethernet Port

  • • 10/100BASE-TX: 1 port
  • • 100BASE-FX: 1 port

LED Indicators
  • • Per Unit: Power, LFPT
  • • Per 10/100TX Port: Link/Activity, Full-duplex/Collision, Speed
  • • Per 100FX port: Link/Activity, Full-duplex/Collision

Relay Contact
  • • Relay contact rating with current 1A @ 30VDC, 0.5A @ 120VAC




Environment

Operating Temperature

  • • -40°C to 75°C (-40°F to 167°F)
      Tested @ -40°C to 85°C (-40°F to 185°F)

Storage Temperature
  • • -40°C to 85°C (-40°F to 185°F)

Ambient Relative Humidity
  • • 5% to 95% (non-condensing)




Regulatory Approvals

ISO

  • • Manufactured in an ISO 9001 facility

Safety
  • ISA 12.12.01
    • • Class 1, Division 2 group A, B, C &D for hazardous locations
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1

EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 55022
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-3

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance
  • IEC 60068-2-6 Fc (Vibration Resistance)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/ package)
  • NEMA TS1/2
    • • Environmental requirements for traffic control equipment




Model

EL900-A-Y-1-P Hardened 10/100BASE-TX to 100BASE-FX Media Converter

* DIN-Rail mounting kit included.


100FX Fiber Options (Y)

B Multi Mode (SC) - 2Km (1310nm)
C Multi Mode (ST) - 2Km (1310nm)
D Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-2Km
E Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-2Km
F Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-5Km
G Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-5Km
Q Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
R Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
S Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-40Km
T Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-40Km
M Single Mode (ST) - 20Km (1310nm)
N Single Mode (SC) - 20Km (1310nm)
O Single Mode (SC) - 40Km (1310nm)

Power Connector Options (P)

A DC Terminal Block
B DC Jack
C 24VAC Terminal Block

Optional Accessories

KP-AA96-480 Panel mounting Kit
DR-30-24 30W/1.5A DIN-Rail 24VDC Industrial Power Supply (Optional, For Terminal Block)
DR-60-24 60W/2.5A DIN-Rail 24VDC Industrial Power Supply (Optional, For Terminal Block)
DR-75-24 75W/3.2A DIN-Rail 24VDC Industrial Power Supply (Optional, For Terminal Block)
41-136046-X 36W/3A 12VDC hardened power adapter with open wire in aluminum housing (Optional, For Terminal Block);
(X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA
41-136044-X 36W/3A 12VDC hardened power adapter with latched DC jack in aluminum housing (Optional, For DC Jack);
(X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA

Overview

The EL900 Series provides media conversion between 10/100BASE-T and 100BASE-SX-LX Fiber. Built specifically for mission-critical applications in harsh environments, the EL900's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL900 is the ideal media converter for harsh environments.

EtherWAN — "When Connectivity is Crucial."

Spotlight

ISA 12.12.01 Certification

» Highly qualified for explosive environmental applications and certified by UL with ISA12.12.01 Class I, Division 2 classified for use in hazardous locations

Wide Operating Temperature

» -40°C to 75°C wide operating temperature range design is suitable for installation in outdoor cabinet

Link-Fault-Pass-Through (LFPT)

» LFPT function let network operators be aware of network connection status
» When fiber link is down, LFPT function will turn down Ethernet port to inform connected device that the link is down and vise versa

Specifications

Technology

Standards

  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX and 100BASE-FX
  • • IEEE802.3x Full duplex and flow control

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps

Packet Buffer Memory
  • • 128K bits

Processing Type
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE802.3x full-duplex flow control
  • • Auto MDI/MDIX




Power

Input Voltage

  • • 10 to 48VDC (DC Terminal Block)
  • • 12VDC (DC Jack) or 24VAC, 0.185A (AC Terminal Block)

Power Consumption
  • • 4.32W MAX. 0.36A @ 12VDC, 0.09A @ 48VDC

Protection
  • • Overload current protection
  • • Reverse polarity protection




Mechanical

Casing

  • • Aluminum Case
  • • IP30

Dimensions
  • • 50mm (W) x 110mm (D) x 135mm (H)
      (1.97" (W) x 4.33" (D) x 5.31" (H))

Weight
  • • 0.8Kg (1.76lbs.)

Installation
  • • DIN-Rail (Top hat type 35mm), Panel, or Rack mounting




Interface

Ethernet Port

  • • 10/100BASE-TX: 1 port
  • • 100BASE-FX: 1 port

LED Indicators
  • • Per Unit: Power, LFPT
  • • Per 10/100TX Port: Link/Activity, Full-duplex/Collision, Speed
  • • Per 100FX port: Link/Activity, Full-duplex/Collision

Relay Contact
  • • Relay contact rating with current 1A @ 30VDC, 0.5A @ 120VAC




Environment

Operating Temperature

  • • -40°C to 75°C (-40°F to 167°F)
      Tested @ -40°C to 85°C (-40°F to 185°F)

Storage Temperature
  • • -40°C to 85°C (-40°F to 185°F)

Ambient Relative Humidity
  • • 5% to 95% (non-condensing)




Regulatory Approvals

ISO

  • • Manufactured in an ISO 9001 facility

Safety
  • ISA 12.12.01
    • • Class 1, Division 2 group A, B, C &D for hazardous locations
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1

EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 55022
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-3

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance
  • IEC 60068-2-6 Fc (Vibration Resistance)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/ package)
  • NEMA TS1/2
    • • Environmental requirements for traffic control equipment

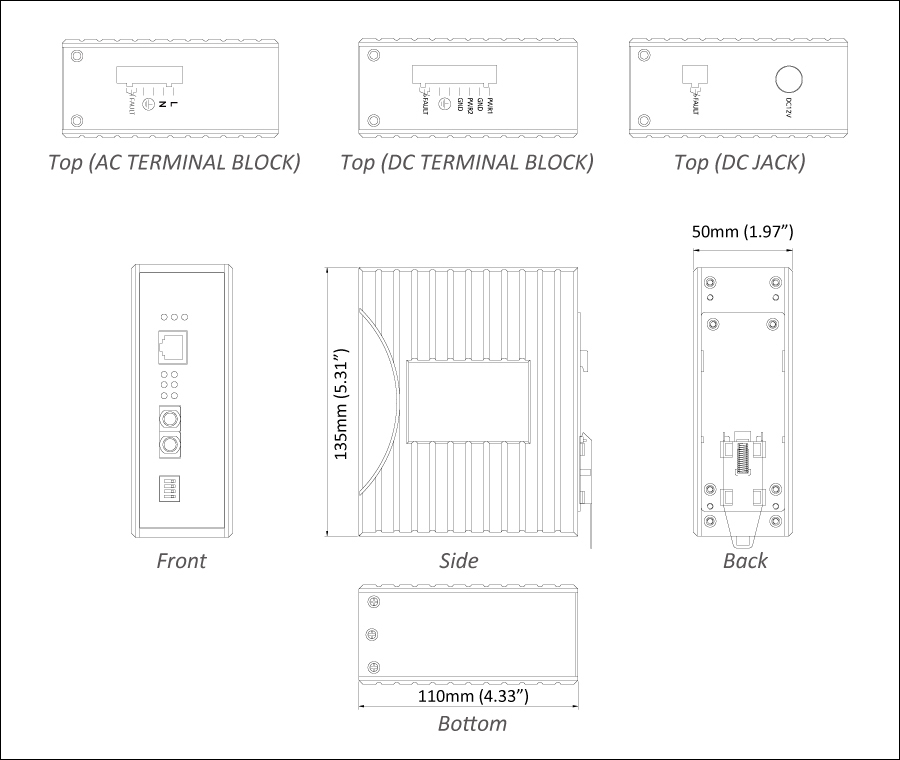

Dimensions
