EDGE 3 Series

Industrial IoT Wi-Fi HaLow Data transmission device
Halow
Sub-GHz
wifi5
Modbus
RS485_T
12Bit-ADC
ATEX
UL Class 1 Division 2
Achieving high-bandwidth data transmission across long-range links
Reduced Complexity and Rapid Deployment
Industrial explosion-proof certificated
Downloads
QIG
Inquiry

What’s Wi-Fi HaLow?


A Wi-Fi standard IEEE 802.11ah also known as Wi-Fi HaLow. It complements traditional Wi-Fi to expand WLAN and Ethernet network with its long-range and secure Wi-Fi connection to support long-range applications and large-scale IoT networks.


EtherWAN’s industrial Wi-Fi HaLow solutions – EDGE 3 series is an industrial-grade long-range wireless data transmission device for IIoT deployments. Based on IEEE 802.11ah technology, it provides miles level coverage with strong signal penetration, enabling reliable data transmission in large-scale environments. Designed for 4 core value points – effortless deployment, ultra-stable transmission, robust security, and outstanding cost efficiency. It dramatically reduce on-site installation time and labor costs.


Reduced Complexity and Rapid Deployment, this is the easy way for your existing or a new IoT field deployment.


**Wireless transmission performance will be different at each different environment. Please do a suit survey before you deploy the device.


EtherWAN — "When Connectivity is Crucial."

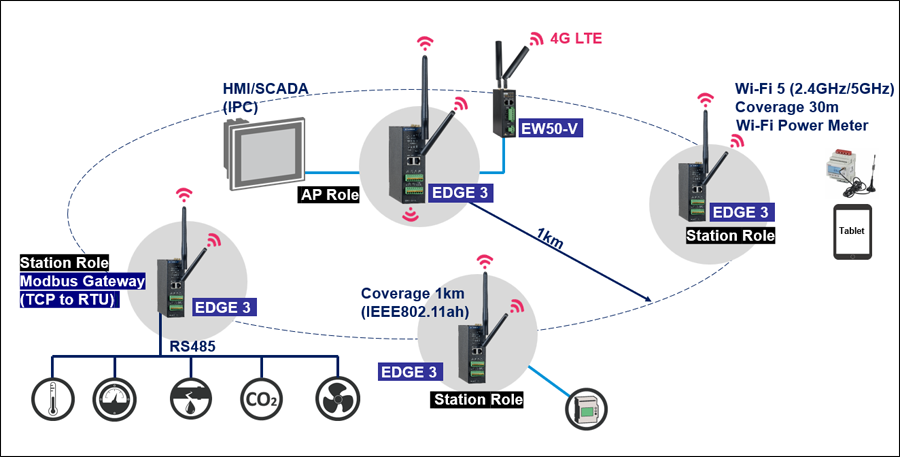

KM-level wireless data transmission coverage

    • IEEE 802.11ah Wi-Fi HaLow technology works in Sub-GHz band, achieving high signal penetration
    • 1 access point: 50 station / clients network architecture with multiple connects

Reduced complexity, rapid deployment

    • Over 50% off in cost
    • Reduce 80% deployment time that compare with traditional cabling.

Fully industrial I/O supported

    • Ethernet + RS485 + Analog input + DIDO

Equipped with Modbus gateway functionality

    • Analog inputs, DIDO signal detection converted to Modbus protocol

Equipped with Wi-Fi 5 (IEEE 802.11ac)

    • Support Wi-Fi connectivity within 2.4GHz or 5GHz.
    • For Wi-Fi sensor, meter connectivity
    • For remote configurations

Robust Industrial design

    • Wide operating temperature
    • Dual power inputs
    • Certificated industrial explosion-proof ATEX and C1D2

I/O & Expansion

  • Analog Input
    • 2 x AI (Voltage: 0-10V ; Current: 4-20mA) 12 bit resolution ; precision 100mV, or 200uA
  • Digital Input
    • 1 × DI ("Logic 0": 0–2 V; "Logic 1": 5–30 V)
  • Digital Output
    • 1 × DO (Non-relay output, 30 V / 0.5 A)

Power

  • Input
    • DC 12–24 V × 2 (dual power inputs)
  • Power Consumption
    • (3W Max.)

Environmental Limits

  • Operating Temperature
    • -30 to 75 °C (-22 to 167 °F)
  • Storage Temperature
    • -40 to 85 °C (-40 to 185 °F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Communications

  • RF
    • IEEE 802.11ah Wi-Fi HaLow
      US 902-928MHz; 32Mbps max bit rate; Bandwidth @ 8MHz : 15Mbps
      Taiwan 920-925MHz ; Bandwidth@ 4MHz : 8Mbps
      Antenna connector : 1 x SMA Female
      Encryption Security: WPA3-SAE
    • IEEE 802.11ac Wi-Fi 5
      Antenna connector : 1 x RPSMA
      Encryption Security: WPA3 / WPA 2
  • Ethernet
    • IEEE 802.3 10BASE-T
      IEEE 802.3u 100BASE-TX/100BASE-FX
      2 x RJ45
      10/100BASE-T physical layer
  • Serial
    • 1 × RS-485 (supports up to 30 slave devices)

Regulatory Approvals

  • Safety
    • UL61010
  • Emissions/Immunity
    • EDGE-3-A-US : FCC
      EDGE 3-A-TA : NCC BSMI
  • Industrial Explosion proof
    • ATEX / C1D2 / IECEx

Mechanical & Protection

    • Casing: Metal
    • IP Rating: IP30

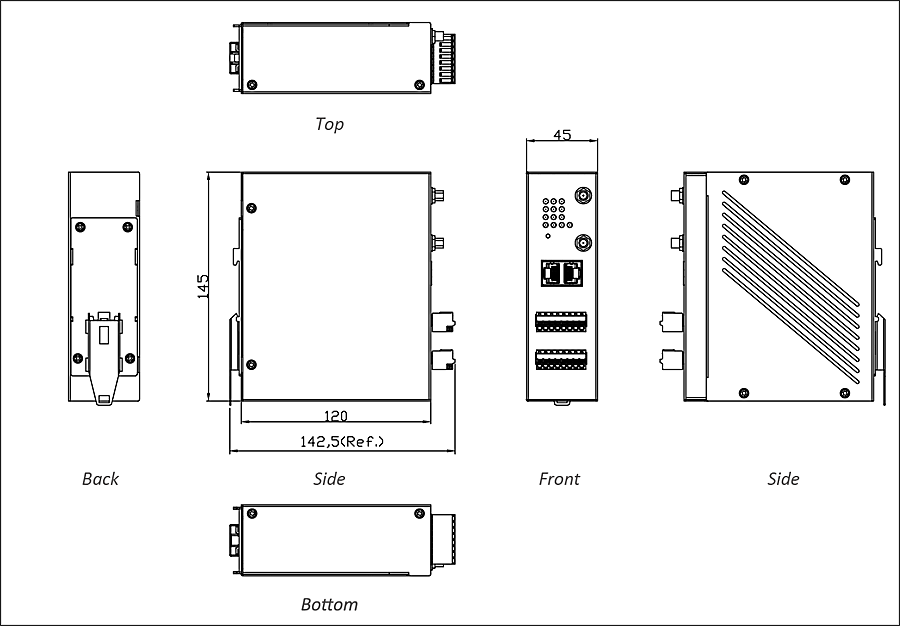

    • Dimensions: 45 × 145 × 120 mm (W / H / D)
    • Weight: 750g (1.65lb)
    • Installation: DIN-rail


Frequency Bands

Sku CodeBand ModeFrequency RangeOperating ChannelsRegion
EDGE 3-A-USSub-1 GHz frequency operation902–928 MHz for USA

Sub1G:
1MHz
1, 3, 5, 7, 9, 11, 13, 15, 17, 19, 21, 23, 25, 27, 29, 31, 33, 35, 37, 39, 41, 43, 45, 47, 49, 51 (Channels)
2MHz
2,6,10,14,18,22,26,30,34,38,42,46,50 (Channels)
4MHz
8,16,24,32,40,48 (Channels)
8MHz
12,28,44 (Channels)

US
EDGE 3-A-TASub-1 GHz frequency operation920–925 MHz for Taiwan & APAC

1MHz
37,39,41,43,45 (Channels)
2MHz
38,42 (Channels)
4MHz
40 (Channel)

TW & APAC

Wi-Fi vs. Wi-Fi HaLow Comparison

Comparison ItemCurrent Wi-Fi (Wi-Fi 5/6/6E/7)Wi-Fi HaLow (IEEE 802.11ah )
Design PositioningHigh bandwidth, real-time connectionLong range, low power consumption, stable connection
Main ApplicationsNavigation, real-time control, video streaming status reporting, OT communication
Operating Frequency2.4 / 5 / 6 GHzSub-1 GHz
Coverage DistanceShort to medium range✓ Long range (hundreds of meters to kilometer-scale)
Penetration CapabilityAverage✓ Strong (walls, floors, back-of-house)
Bandwidth✓ High (Mbps ~ Gbps)Low to medium (kbps ~ Mbps)
Latency✓ LowMedium
Interference SensitivityHigh (frequency congestion)✓ Low
Power ConsumptionHigh✓ Low

Model

EDGE 3-A-USIndustrial IoT Wi-Fi HaLow Data Transmission Device-US
EDGE 3-A-TAIndustrial IoT Wi-Fi HaLow Data Transmission Device- Taiwan & APAC

Optional Accessories

ImageP/N.ItemAmountFrequencyDescriptionNote
W96G-GY113HT46W96G-T00B-A1A3Magnetic Antenna Base1-For IEEE 802.11ah, cable length is 2MNot IP67
