ED3541 Series

Hardened 10/100BASE-TX Ethernet Extender

Fanless
UL 60950
Wide Temperature
UL Class 1 Division 2

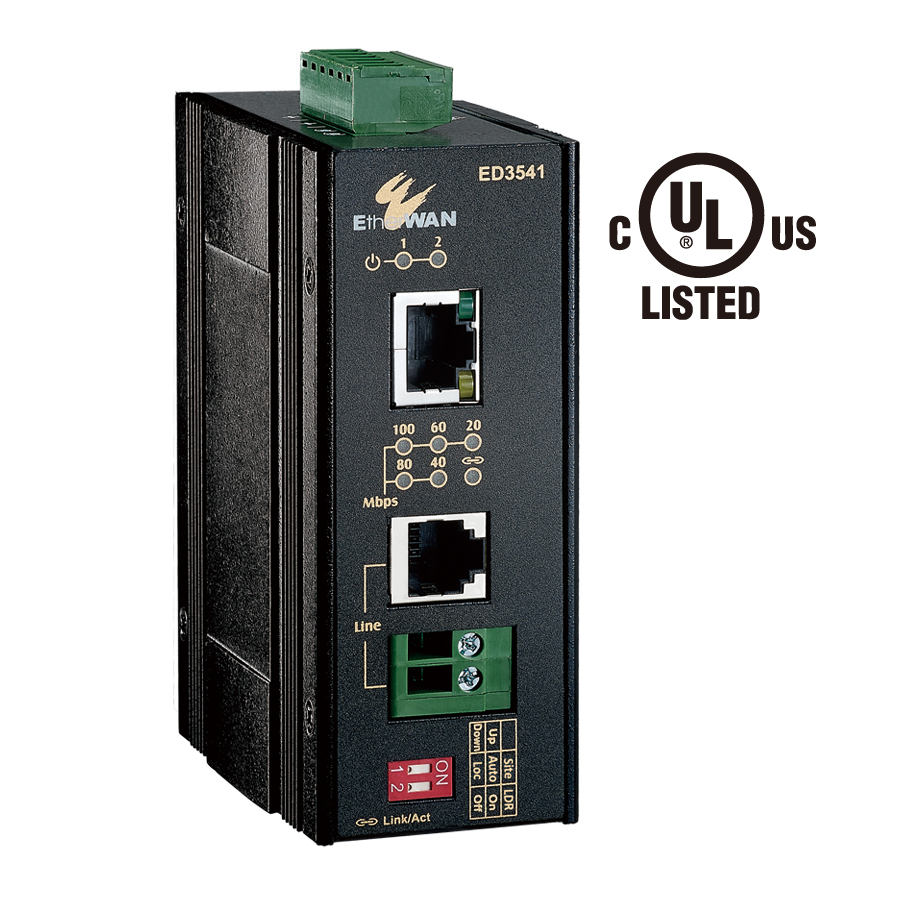

ED3541 Series : Hardened 10/100BASE-TX Ethernet Extender

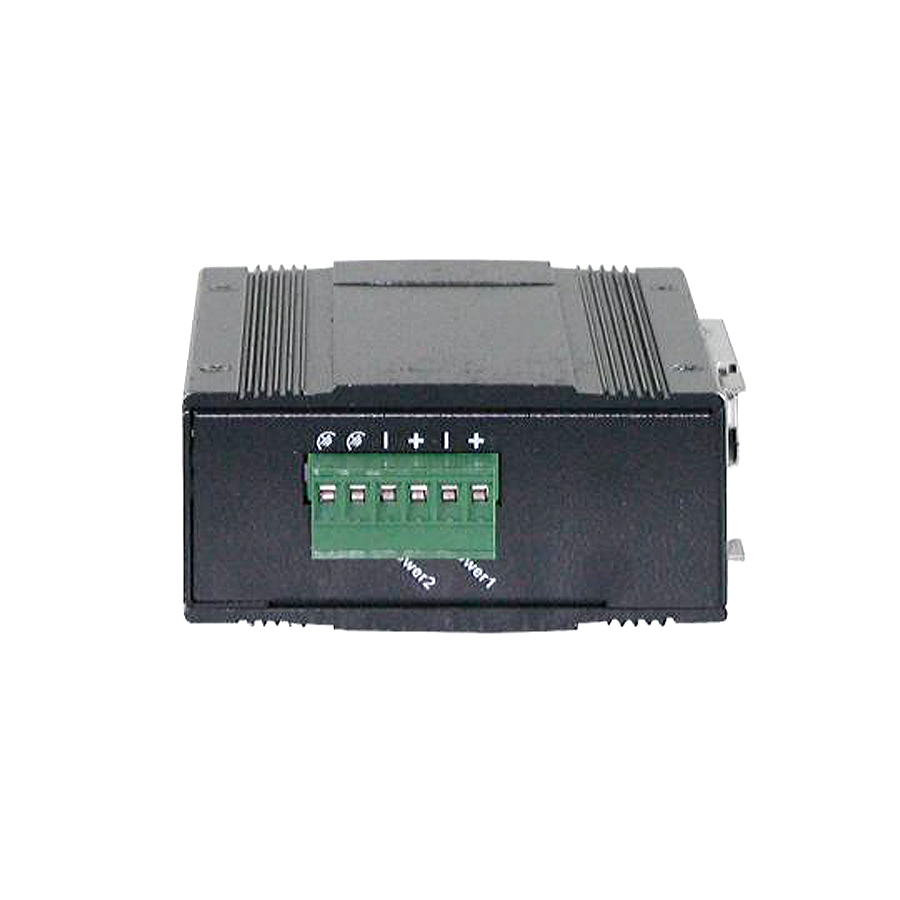

ED3541 Series : Hardened 10/100BASE-TX Ethernet Extender_top

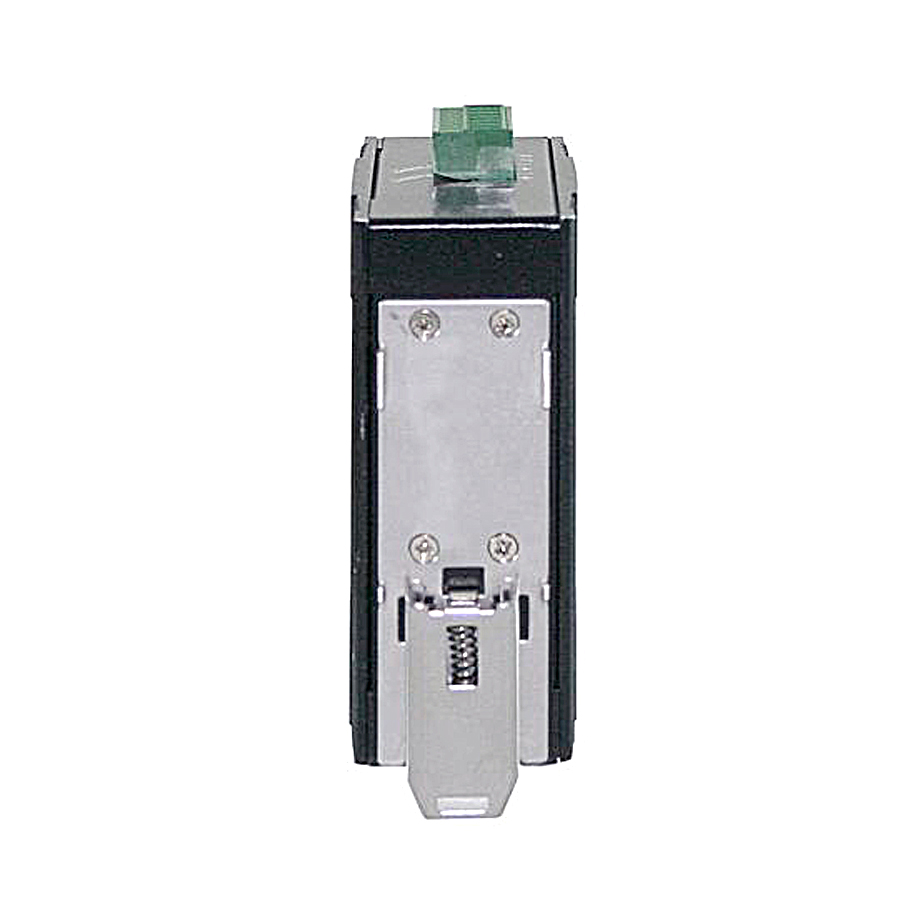

ED3541 Series : Hardened 10/100BASE-TX Ethernet Extender_back
Long distance transmission of 100Mbps rate at 300 meters, or 1Mbps at 2600 meters
LEDs display transmission rate on front panel
Redundant power input
ED3541 Series : Hardened 10/100BASE-TX Ethernet Extender
ED3541 Series : Hardened 10/100BASE-TX Ethernet Extender_top
ED3541 Series : Hardened 10/100BASE-TX Ethernet Extender_back
Overview
Spotlight
Specifications
Application
Dimensions
Ordering Info

The ED3541 Ethernet extender allows the extension of IP services beyond normal Ethernet distance limitations without changing cables, breaking the 100-meter Ethernet barrier.

The ED3541’s hardened design features high shock and vibration, electrical noise immunity, a wide operating temperature range from -40 to 75°C, and ruggedized aluminum housing. The ED3541 is the ideal Ethernet extender for environments where connectivity is crucial.

EtherWAN — "When Connectivity is Crucial."

High Speed Performance

» Up to 100Mbps at 200 meters distance
» Up to 1Mbps at 2200 meters distance

Wide Operating Temperature

» -40 to 75°C wide operating temperature range design is suitable for installation in outdoor cabinets

UL 60950 Certification

» Certified by UL 60950-1 standard, providing protections to installers from risk of injury or damage

Technology

Standards

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX
  • • IEEE 802.3x full duplex and flow control

Processing Type
  • • Half-duplex back-pressure and IEEE 802.3x Full-duplex flow control
  • • Auto Negotiation
  • • Auto MDI/MDIX


Power

Input Voltage

  • • 12-48VDC (Terminal Block)

Power Consumption
  • • 4.56W max. 0.38A@12VDC, 0.07A@48VDC

Protection
  • • Over current protection
  • • Reverse polarity protection


Mechanical

Casing

  • • Aluminum case
  • • IP30

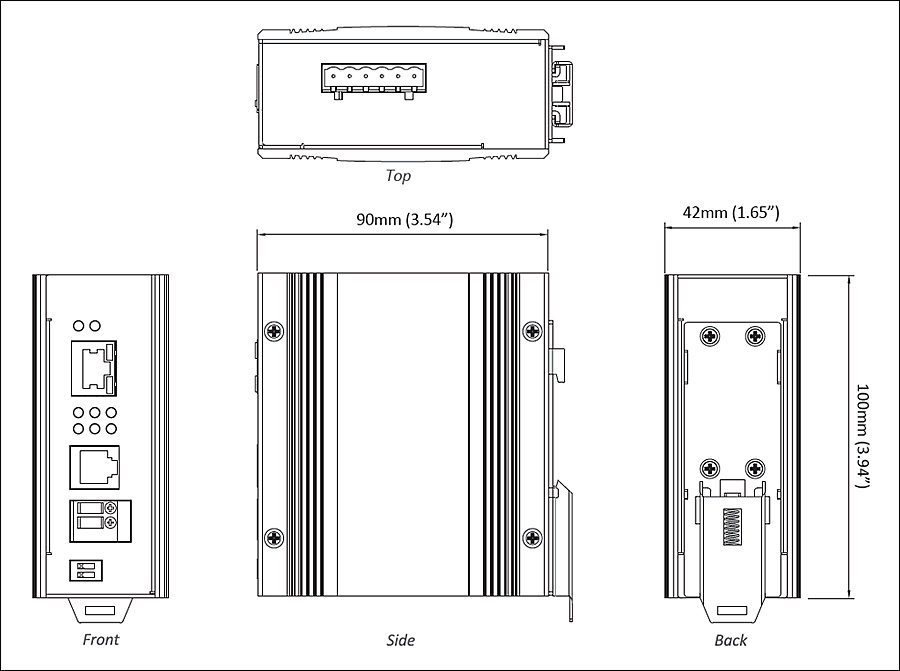

Dimensions
  • • 42 x 90 x 100mm (W x D x H)
      (1.65" x 3.54" x 3.94")

Weight
  • • 0.41Kg (0.9lbs.)

Installation
  • • DIN-Rail (Top hat type 35mm) mounting


Interface

Ethernet Port

  • • Port: One RJ-45 port
  • • Speed: 10/100Mbps
  • • Distance: 100 meters (328ft.)
  • • Cable: 10BASE-T: UTP CAT. 3, 4, 5 (2-pair wire), 100BASE-TX: UTP CAT. 5 (4-pair wire)

Ethernet Extender Port
  • • Port: One RJ-11/Terminal Block port
  • • Speed: Up to 100Mbps
  • • Distance: 2200 meters (7217ft.)
  • • Cable: Telephone wire 24AWG (0.5mm diameter, 1-pair wire) or larger

DIP Switch
  • • DIP 1 Site: Auto/Loc
  • • DIP 2 LDR: On/Off

LED Indicators
  • • Per Unit: Power 1, Power 2
  • • Per 10/100TX Port: Link/Activity, Full-duplex
  • • Line Speed: 100/80/60/40/20Mbps and Link below 20Mbps

Speed/Distance Reference

Distance Data rate
200m 100Mbps
400m 80Mbps
600m 60Mbps
800m 40Mbps
... ...
2200m 1Mbps

  • • All speed selections are Symmetrical on the DSL and Fullduplex on the Ethernet
  • • The data rate will vary according to line quality


Environment

Operating Temperature

  • • -40 to 75°C (-40 to 167°F)
      Tested @ -40 to 85°C (-40 to 185°F)

Storage Temperature
  • • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
  • • 5% to 95% (non-condensing)


Regulatory Approvals

ISO

  • • Manufactured in an ISO 9001 facility

Safety
  • UL 60950-1
  • EN 60950-1
  • IEC 60950-1
  • ISA 12.12.01
    • • Class 1, Division 2 group A, B, C &D for hazardous locations

EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance
  • IEC 60068-2-6 Fc (Vibration Resistance)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)


Model

ED3541 Hardened 10/100BASE-TX Ethernet Extender

* DIN-Rail mounting kit included.


Optional Accessories

HDR-30-24 30W/1.5A DIN-Rail 24VDC Industrial Power Supply
