AiR PACE CX Series

NEW
Industrial Smart IoT Edge Computing Gateway (Project base with quantity requirement)
4G LTE
Modbus
MQTT
Python
Converter A/D
Edge Computing
GNSS
Node-RED
Not available in North America
Edge computing
AWS Greengrass and Azure IoT Edge enablement
Supports Python and Node-RED for user application customization
Industrial protocols

Highly-reliable network connection

  • » Offers multiple Internet access methods: Gigabit Ethernet, Global 3G/LTE Cat. 4 networks
  • » With support of Dual-SIM, redundant link backup, and VRRP hot standby, the gateway ensures continuous connection by seamless transition to a backup link when main link fails


Powerful edge computing capabilities

  • » ARM Cortex-A53 processor, 1GHz main frequency, up to 1GB DDR3 RAM and 8GB eMMC FLASH give the gateway powerful Edge computing capabilities to perform data optimization, real-time response, agile connection, smart applications, security and privacy protection at the IoT Edge


Compatible with multiple industrial protocols

  • » Modbus RTU, Modbus TCP
  • » MQTT

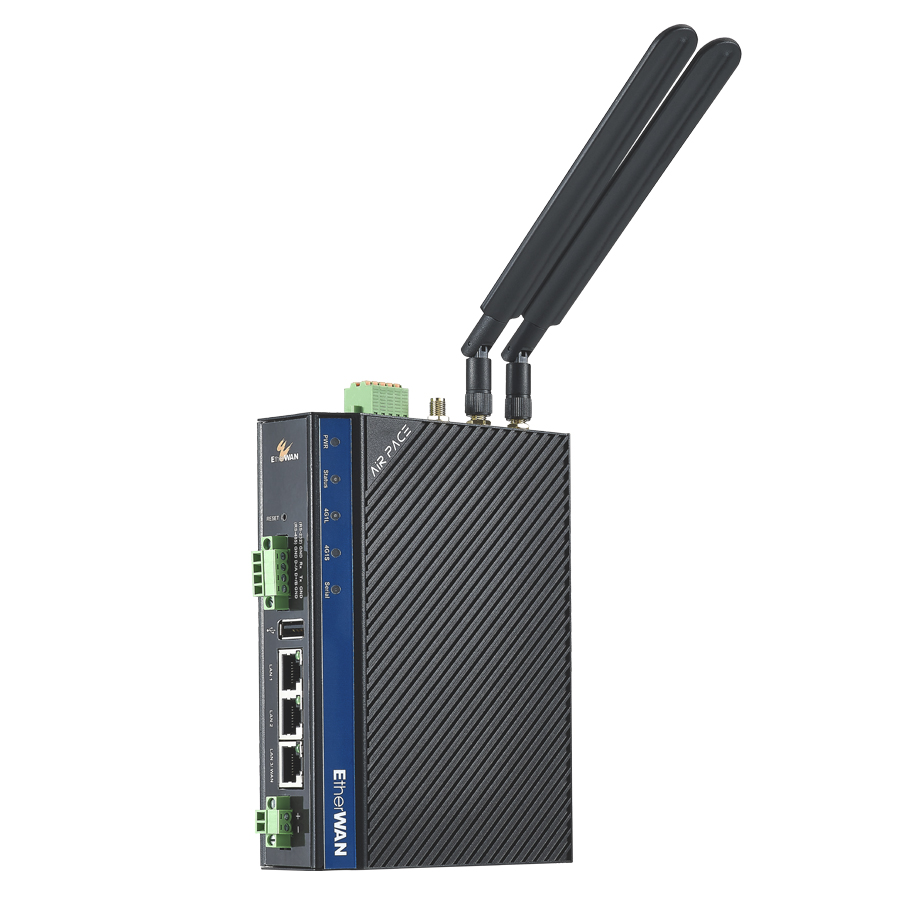

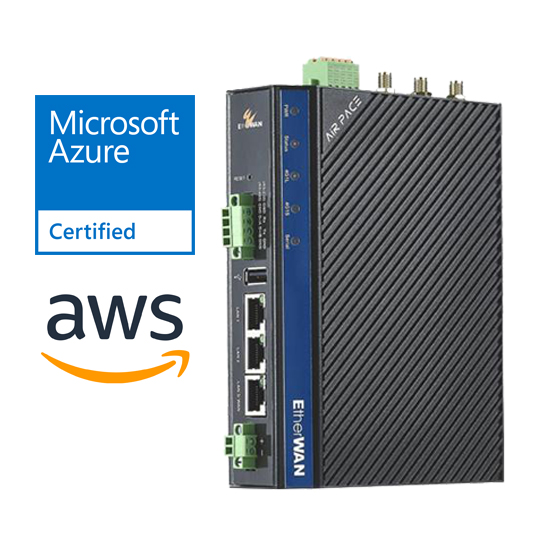

AiR PACE, the EtherWAN Industrial Smart IoT Edge Computing Gateway for Internet of Things (IoT), is a configurable and manageable wireless gateway. The AiR PACE features various interfaces and supports useful user application tools to meet IoT applications. It provides real-time data analysis and intelligent processing at the fieldbus edge, which is more effective and secure. The AiR PACE is both Microsoft Azure IoT edge certified and AWS IoT Greengrass qualified. Quick-to-deploy, the AiR PACE smart gateway can be tailored to any IoT application needs.

EtherWAN — "When Connectivity is Crucial."

Cellular (*AiR PACE 1-XX-CX Series)

 4G LTE3G2GRegion
Sku CodeFDD LTETDD LTEWCDMAGSM/EDGE
TAB1(2100)/ 3(1800)/ 4(AWS)/ 5(850)/ 7(2600)/ 8(900)/ 28(700 APT)B40(2300)B1(2100)/ 2(1900)/ 5(850)/ 8(900)B2(1900)/ 3(1800)/ 5(850)/ 8(900)Taiwan & Australia
EAB1(2100)/ 3(1800)/ 7(2600)/ 8(900)/ 20(800) /B28A (700)B38(TD 2600)/ 40(TDV 2300)/ 41(TD 2500)B1(2100)/ 8(900)B3(1800)/ 8(900)EU & APAC


Functions

  • Cellular
    • 3GPP, 3G/4G, IP Pass-through, IPv4
    • Band management for band lock
  • Ether-WAN
    • Dynamic IP, Static IP, PPPoE, PPTP, L2TP
  • Protocols
    • DHCP Server/Relay
    • Port-based, Tag-based VLAN
    • QoS
    • LLDP
  • Port Forwarding
    • NAT 1-1, 1-Many, transversal, Virtual Server/Computer, DMZ, VPN Pass-through

Network Management

  • Configuration
    • Web Console, CLI, Command Script, Python
  • Management
    • SNMP v1/v2c/v3, AiR PACE MIB
  • System
    • Upgrade, Backup & Restore, Reboot & Reset, SysLog
  • Diagnostic
    • Ping, Traceroute, Packet Analyzer, Sniffer (Field communicating data logging), Diagnostic tool

Security

  • VPN
    • IPSec (Up to 16 Tunnels), OpenVPN, PPTP, L2TP, GRE
  • Firewall
    • SPI Firewall with Stealth Mode, IPS
  • Access Control
    • URL Blocking, URL Blocking, MAC Filter

Field Communication

  • Virtual COM
    • RFC2217, TCP Client, TCP Server, UDP
  • Modbus
    • Gateway for Modbus TCP, Modbus RTU/ASCII Master/Slave Access
    • Slave for Device Status/Information Access
  • Data Interchange
    • MQTT Broker, MQTT Client
  • Data Logging
    • Sniffer, Off-line/Full-time Proxy, Mixed modes

Service

  • Cellular Toolkit
    • Data Usage, SMS, SIM PIN, USSD, Network Scan
  • Event Handling
    • User Defined Manage/Notify Event; Action & Trigger by SMS, Mail, Syslog, SNMP Trap, Modbus, I/O
  • Development Platform
    • Python Customization Development
    • Amazon AWS Greengrass
    • Microsoft Azure IoT Edge
  • User Application Tool
    • Node-RED


Platform

    • CPU: ARM Cortex A53 1.35GHz Dual Core
    • DRAM: 1GB DDR3 Memory
    • Storage Pre-installed: 8GB eMMC
    • Storage Slot: MicroSD Slot x 1 for SD 3.0 (SDXC) Compliant Storage Expansion

Cellular

  • Standards
    • 4G LTE: FDD-LTE, TDD-LTE, Transfer rate (max): LTE FDD: 150Mbps down; 50Mbps up; LTE TDD: 130Mbps down; 35Mbps up
    • 3G: WCDMA, Transfer rate (max): 42Mbps down; 5.76Mbps up
    • 2G: GSM/EDGE, Edge Transfer rate (max): 236.8Kbps down & up
  • SIM Slot
    • 2 x microSIM card slots

Ethernet

  • Standards
    • IEEE 802.3 10/100/1000BASE-T
    • IEEE 802.3u 100BASE-T(X)
    • IEEE 802.3ab 1000BASE-T(X)
    • IEEE 802.1x Flow control
    • Full/Half duplex mode
    • Auto MDI/MDI-X connection
    • Auto negotiation speed
  • Ports
    • 1 x RJ-45 GbE (WAN/LAN Configurable) +2 x RJ-45 GbE

Serial

  • Ports
    • 1 x RS-232/RS485 (4-pin Terminal Block)
  • Signal
    • RS-232: TxD, RxD, GND
    • RS-485: D-/A, D+/B, GND

I/O

  • Analog Input
    • 2 x AI
    • Conversion: 12bit ADC
    • Input Range: 0-10V
    • Resolution: 2.5mV
  • Digital Input
    • 2 x DI (Isolated, "Logic 0": 0-2V, "Logic 1": 5-30V)
  • Digital Output
    • 2 x DO (Isolated, Non-Relayed Output, 24V/300mA for each port)
  • Connector
    • 10-pin Terminal Block

USB

  • Standards
    • USB 2.0 Host
  • Ports
    • 1 x USB Type A

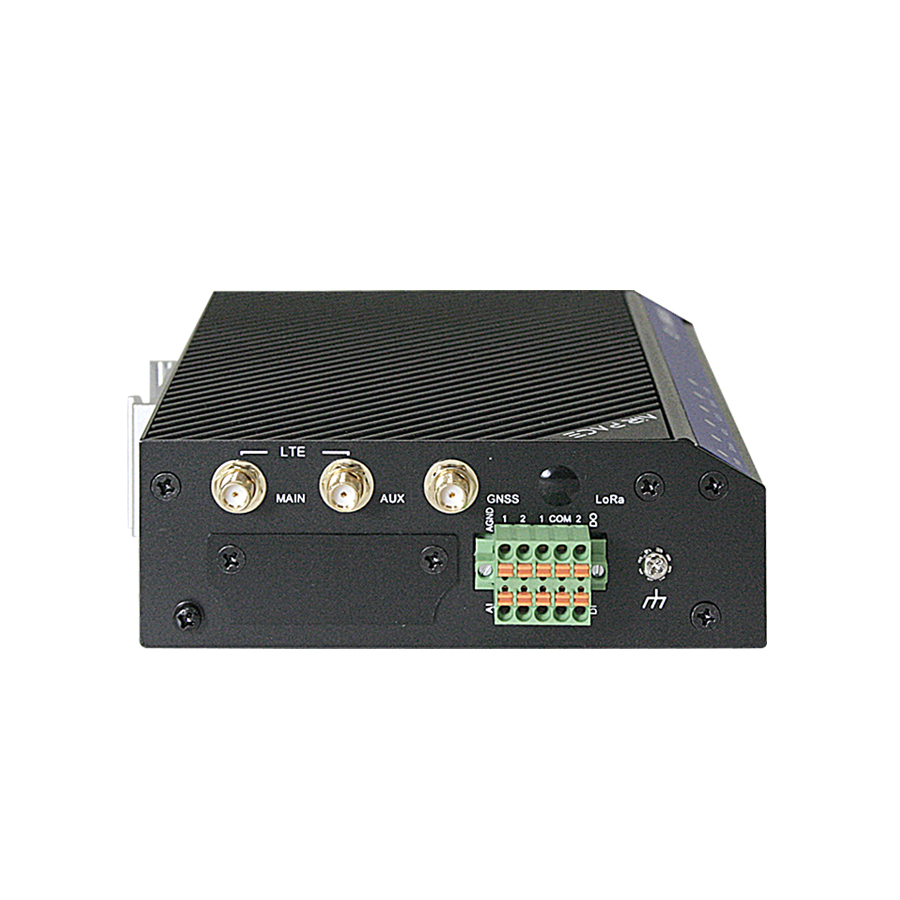

Antennas

  • Cellular
    • 2 x SMA Female (Main & Aux.)

LED Indicators

  • System
    • PWR x 1; Status x 1
  • Data
    • LAN1, LAN2, LAN3/WAN, 4G1L, Serial, LoRa* (*LoRa Model Only)
  • Cellular Signal
    • 4G1S

Power

  • Input
    • 9-36VDC
    • AiR PACE 1-XX-CX: 14.5Watts (Max.), 8.5Watts (Typical)
    • AiR PACE 1-XX-CL: 17Watts (Max.), 11Watts (Typical)

Physical

  • Casing Material
    • Metal Case
  • IP Rating
    • IP30
  • Dimension
    • 40 x 117.8 x 161.3mm (W x D x H)
    • 40 x 127.4 x 161.3mm with DIN-Rail kit (W x D x H)
  • Weight
    • 0.76kg (1.67lbs)
  • Installation Type
    • DIN-Rail mounting
    • Wall mounting Bracket* (*Optional)

Environment Limits

  • Operating Temp.
    • -30 to 70°C (-22 to 158°F)
  • Storage Temp.
    • -40 to 85°C (-40 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory Approvals

  • Safety
    • EN 60950-1
    • EN 62368-1: 2014
  • Emissions/Immunity
    • CE/NCC BSMI

4G LTE Gateway

ModelDescriptionRFRegion
AiR PACE 1-TA-CXIndustrial Smart IoT Edge Computing GatewayCellular LTE Cat. 4Taiwan & Australia
AiR PACE 1-EA-CXIndustrial Smart IoT Edge Computing GatewayCellular LTE Cat. 4EU & APAC
