OttoE Series

NEW

Industrial Unmanaged 8-port Fast/Gigabit Ethernet Switch

EN 50121-4
UL 61010
Fanless
Industrial Unmanaged 8-port Fast/Gigabit Ethernet Switch
Industrial Unmanaged 8-port Fast/Gigabit Ethernet Switch
Industrial Grade
SFP Connectivity
High Reliability
Quality of Service
Industrial Unmanaged 8-port Fast/Gigabit Ethernet Switch
Highlight
Overview
Features
Dimensions
Application
Ordering Info
Video

Industrial Grade

  • Supports -10 to 60°C (14 to 140°F) operating temperature

SFP Connectivity

  • Up to two 100/1000BASE SFP option

High Reliability

  • Fanless design

Quality of Service

  • PROFINET (TG100), EtherNet/IP

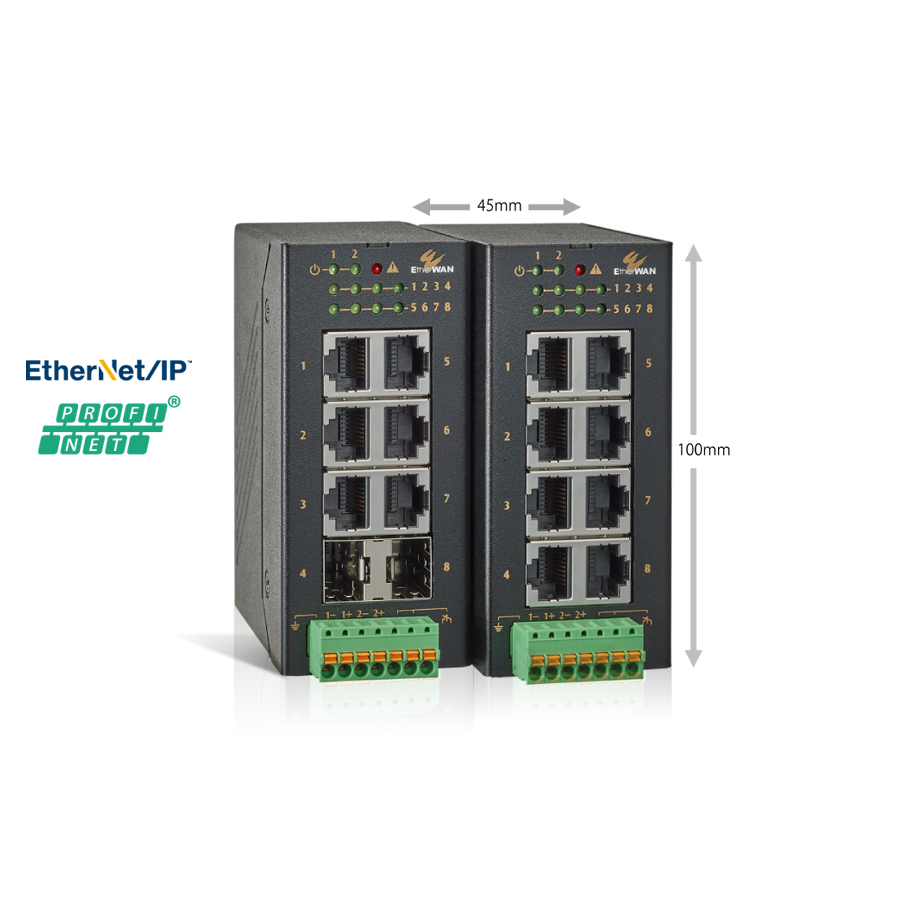

EtherWAN's OttoE Series is an industrial unmanaged Gigabit Ethernet switching platform, designed for easy deployment in harsh environments with limited space. The OttoE Series is an economic easy-to-use device, which provides essential industrial Ethernet networking functionality

It supports 9 to 55VDC redundant power input, and also provides relay alarm for power failure. The OttoE is equipped with eight Fast/Gigabit Ethernet ports, or a combination of Fast/Gigabit Ethernet copper ports and two 100 or 100/1000 Mbps dual rate SFP ports for long distance connectivity.

This versatile switch features full/half-duplex auto-negotiation and auto MDI/MDIX operation, allowing for convenient connection of a variety of network devices. QoS (Quality of Service) support allows for traffic prioritization and effective management of resources. A rugged, DIN rail mountable metal housing provides security and easy installation (mounting kit is included).

EtherWAN — "When Connectivity is Crucial."



Interface

  • Ethernet
    • 10/100BASE-TX: 8 or 6ports
    • 10/100/1000BASE-TX: 8 or 6 ports
    • 100BASE-SFP: 0 or 2 ports
    • 100/1000BASE-SFP: 0 or 2 ports
  • Alarm Contact
    • One relay output with current 0.5A@30V
  • LED Indicators
    • Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red)
    • Per Port: Link/Activity (Green)

Technology

  • Standards
    • IEEE 802.3u 100BASE-TX/FX
    • IEEE 802.3x full-duplex flow control
    • IEEE 802.3az Energy Efficient Ethernet
    • IEEE 802.1p Quality of Service (QoS)
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
  • Packet Buffer Memory
    • 768K bits (TF100)
    • 1.5M bits (TG100)
  • Processing Type
    • Store-and-Forward
    • Auto Negotiation
    • Half-duplex back-pressure and IEEE
    • 802.3x full-duplex flow control
    • Auto MDI/MDIX
  • Address Table Size
    • 2K MAC (TF100)
    • 4K MAC (TG100)

Power

  • Input
    • 12-48VDC (9-55VDC) (Terminal Block)
  • Power Consumption
    • 3.4W max. (TF100)
    • 5.55W max. (TG100)
  • Protection
    • Reverse Polarity Protection

Physical

  • Casing Material
    • Metal
  • IP Rating
    • IP40
  • Dimensions
    • 45x75x100mm (W x D x H) (1.77"x2.95"x3.94")
  • Weight
    • 336g (0.74lbs)
  • Installation Type
    • DIN-Rail (Top hat type 35mm) mounting

Environmental

  • Operating Temp.
    • -10 to 60°C (14 to 140°F)
  • Storage Temp.
    • -40 to 85°C (-40 to 185°F
  • Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15 Class A
    • VCCI Class A
    • EN 61000-6-4
    • ICES-003
    • EN 55032
  • EMS
    • EN 61000-6-2
      • - EN 61000-4-2 (ESD)
      • - EN 61000-4-3 (Radiated RFI)
      • - EN 61000-4-4 (Burst)
      • - EN 61000-4-5 (Surge)
      • - EN 61000-4-6 (Induced RFI)
      • - EN 61000-4-8 (Magnetic field)
  • Safety
    • UL 61010
  • Environmental Test Compliance
    • IEC 60068-2-6 Fc (Vibration)
    • IEC 60068-2-27 Ea (Shock)
    • FED STD 101C Method 5007.1 (Free fall w/package)
  • Industrial
    • EN 50121-4

Warranty

What's Included

  • Device
    • Ethernet switch
  • Installation
    • Mounting brackets, screws
  • Documentation
    • Quick install guide

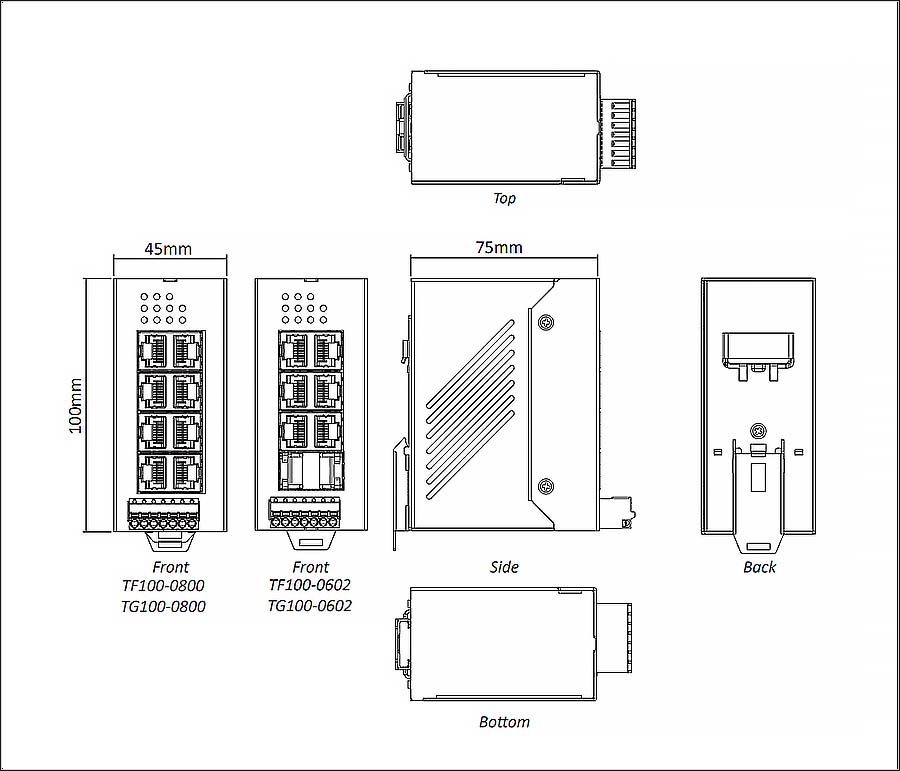

Hardened Lite Managed 5 to 16-Port Fast/Gigabit Ethernet Switch_dimensions



Model

Fast Ethernet Models

TF100-0800 8-port 10/100BASE-TX Industrial Unmanaged Ethernet Switch
TF100-0602 6-port 10/100BASE-TX+2-port 100BASE SFP Industrial Unmanaged Ethernet Switch

Gigabit Ethernet Models

TG100-0800 8-port 10/100/1000BASE-TX Industrial Unmanaged Ethernet Switch
