EL200 系列

10/100BASE-TX-100BASE-BX WDM 光電轉換器

UL 60950

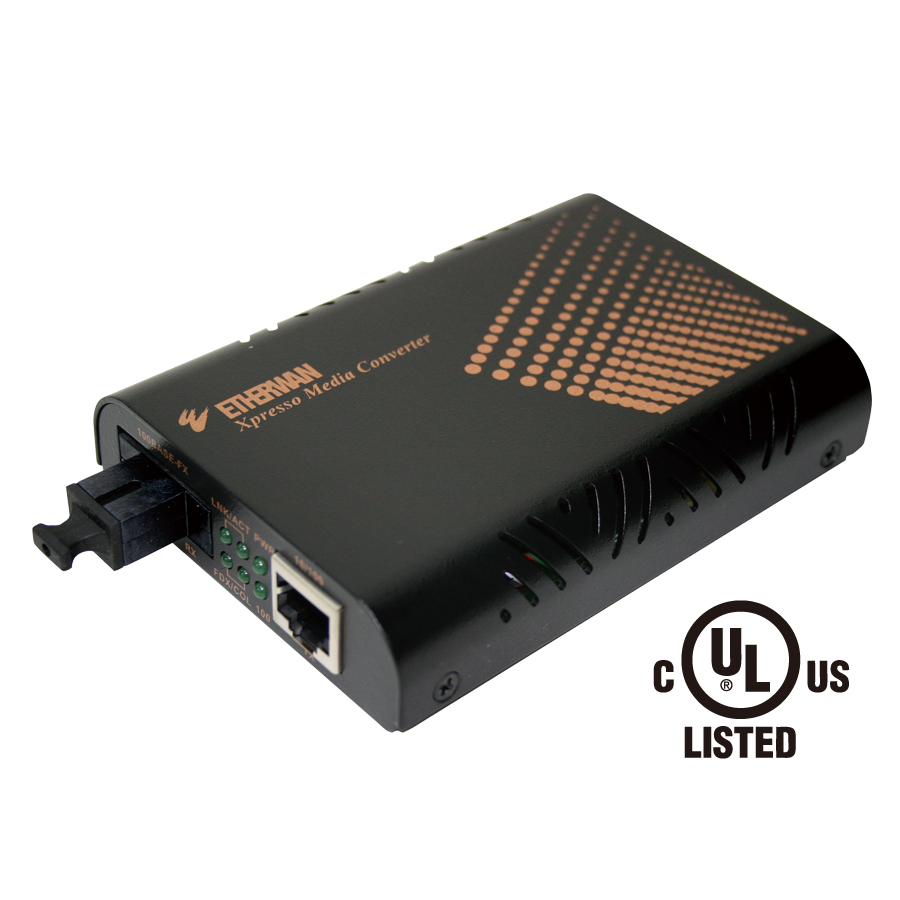

EL200 Series 10/100BASE-TX to 100BASE-BX WDM Media Converter
支援Link-Fault-Pass-Through (LFPT)
支援EtherWAN EMC1600 chassis收容式機箱安裝
支援雙備援電源輸入
EL200 Series 10/100BASE-TX to 100BASE-BX WDM Media Converter
產品亮點
產品介紹
產品規格

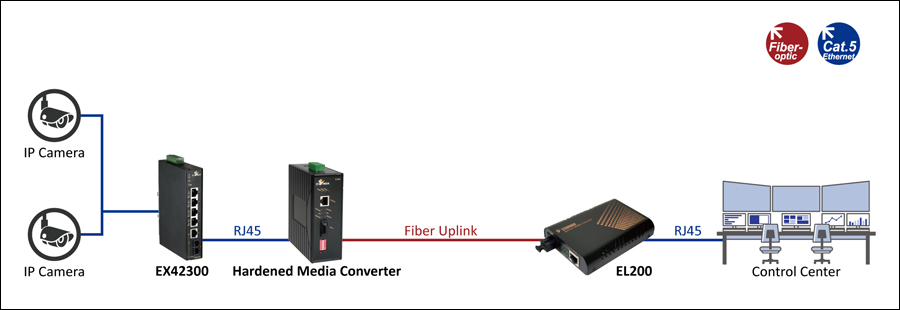

產品應用圖

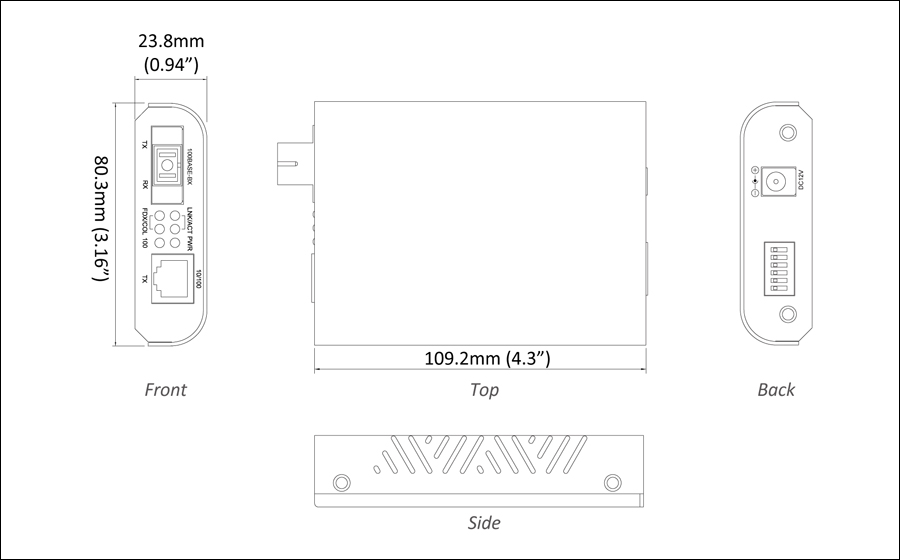

產品尺寸圖
訂購型號

WDM接頭光電轉換器

  • 支援多模、單模光纖規格,搭配WDM光纖接頭

指撥開關設定

  • 是否啟動Link-fault-pass-through功能
  • 是否啟動Ethernet埠Full-duplex或Half-duplex功能
  • 是否啟動光纖埠Full-duplex或Half-duplex功能

支援Link-Fault-Pass-Through (LFPT)

  • 針對光電轉換器連線狀態提供持續的監控
  • 當連線的其中一端光纖中斷訊,LFPT會中斷乙太網路(RJ-45)埠之連線,以告知連線之設備網路連線已中斷

EL200系列具備1個10/100BASE-RJ45乙太網路連接埠搭配1個100BASE-FX光纖埠。支援熱插拔功能並可透過指撥式開關可彈性選擇Link-Fault-Pass-Through (LFPT)功能是否開啟。EL200系列專為WDM光纖應用解決方案所設計,可安裝於EtherWAN EMC1600/EMC400收容式機箱,最多可擴充達16組,適用於各種室內解決方案。

EtherWAN — "When Connectivity is Crucial."



介面

  • 乙太網路埠
    • 10/100BASE-TX: 1 port
    • 100BASE-FX: 1 port
  • LED 指示燈號
    • Per Unit: Power
    • Per Port: 10/100TX: Link/Activity, Full duplex/Collision, Speed
    • Per Port 100FX: Link/Activity, Full duplex/Collision

技術

  • 標準
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/FX
    • IEEE 802.3x Full duplex and flow control
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
  • 傳輸型式
    • Store-and-Forward
    • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
    • Auto MDI/MDIX

電源

機構

  • 機殼
    • Aluminum
  • 尺寸
    • 80.3 x 109.2 x 23.8mm (W x D x H)
      3.16" x 4.30" x 0.94"
  • 重量
    • 0.15kg (0.33lbs)
  • 安裝方式
    • Wall mounting, or in EMC1600 Chassis System

環境

  • 工作溫度
    • 0 to 45°C (32 to 113°F)
  • 儲存溫度
    • -10 to 70°C (-14 to 158°F)
  • 工作濕度
    • 5% to 95% (無凝結)

通過認證

  • ISO
    • Manufactured in ISO-9001 facility
  • Safety
    • UL 60950-1
  • Emission Compliance
    • CE Mark Class A
    • FCC Part 15B Class A
    • VCCI Class A

保固

What's Included

  • Device
    • Media Converter
  • Power
    • 12VDC Power Adapter
  • Documentation
    • Quick Install Guide

型號

EL200CA-2 10/100BASE-TX to 100BASE-BX Multi Mode (SC) WDM - TX: 1310nm/RX: 1550nm-2Km Media Converter
EL200CB-2 10/100BASE-TX to 100BASE-BX Multi Mode (SC) WDM - TX: 1550nm/RX: 1310nm-2Km Media Converter
EL200CA-5 10/100BASE-TX to 100BASE-BX Multi Mode (SC) WDM - TX: 1310nm/RX: 1550nm-5Km Media Converter
EL200CB-5 10/100BASE-TX to 100BASE-BX Multi Mode (SC) WDM - TX: 1550nm/RX: 1310nm-5Km Media Converter
EL200CA-20 10/100BASE-TX to 100BASE-BX Single Mode (SC) WDM - TX: 1310nm/RX: 1550nm-20Km Media Converter
EL200CB-20 10/100BASE-TX to 100BASE-BX Single Mode (SC) WDM - TX: 1550nm/RX: 1310nm-20Km Media Converter
EL200CA-40 10/100BASE-TX to 100BASE-BX Single Mode (SC) WDM - TX: 1310nm/RX: 1550nm-40Km Media Converter
EL200CB-40 10/100BASE-TX to 100BASE-BX Single Mode (SC) WDM - TX: 1550nm/RX: 1310nm-40Km Media Converter

* EMC1600, proprietary 19" chassis system, can house up to 16 x EL200 Series Converters.
* EMC1600 Chassis System is available separately.
* More 100FX fiber options are also available upon request.
