EG97244 シリーズ

High Bandwidth and Highly Flexible Ports

• • 16 x 100/1000M dual-rate SFP ports for multiple fiber connections
  • 4 x 1G/2.5G/10G dual-rate SFP+ ports for connections into the hub/core
  • 8 x 10/100/1000BASE-T RJ45 ports

Compliant Products

• • TAA Compliant for government projects
  • NEMA TS2 rated
  • UL certified for safety

Hardened-Grade for Non-Ventilated & Harsh Environments

• • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fan-less operation
  • High impact, thermal shock, and electrical noise resistance

Management/Security Features

• • Port control
  • Storm detection and control
  • Configure and monitor with eVue™ and eLite™

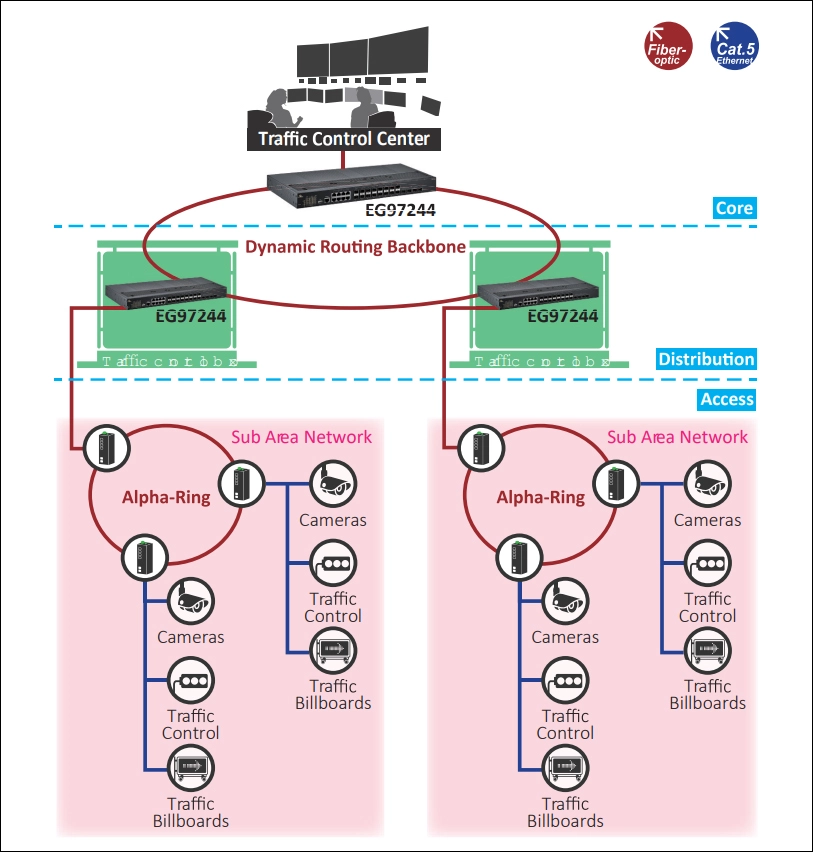

Full Layer 3 Functionality

• • Optimized routing at hardware level
  • Improved fault isolation
  • Layer 3 capability connects networks together

Lifetime Warranty

• • Complimentary Technical Support
  • Free Firmware Upgrades
  • Includes ECN and EOL notices

Interface

• • CLI, Telnet, Web GUI

Management

• • Firmware upgrade
  • Configuration backup
  • DHCP Server/Client
  • RMON (Remote Monitoring)
  • Port Mirroring
  • NTP (Network Time Protocol) synchronization
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • SNMP v1/v2c/v3

Layer 3 Features IPv4

• Unicast Routing
  • Static Routing (1K)
  • RIP v1/v2
  • OSPF v2
• Multicast Routing
  • PIM-DM
  • PIM-SM
  • PIM-SSM
• Routing Redundancy
  • VRRP

Security

• • MAC Address filtering
  • Enable/Disable port
  • Storm control
  • System logging
  • Remote authentication through RADIUS and TACACS+
  • Complex password support
  • Multi-user login and privileged access management
  • SSH for CLI and Telnet security
  • SSL and HTTPS for web security
  • ACL (Access Control List, up to 4096 entries)

Layer 3 Features IPv6

• IPv6 Unicast Routing
  • RIPng
  • OSPF v3
• IPv6 Multicast Routing
  • PIM6-DM
  • PIM6-SM
• IPv6 Routing Redundancy
  • VRRP v3

Quality of Service (QoS)

• • Priority Queues: 8 queues per port
  • Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

• Auto-negotiation for port speed and duplex
  • Flow Control
  • IEEE 802.3x full duplex mode
  • Back-pressure half duplex mode
• Redundant Protocols
  • IEEE 802.1D STP
  • IEEE 802.1w RSTP
  • IEEE 802.1s MSTP
  • ITU-T G.8032 Ethernet Ring
  • Protection Switch (ERPS)
• VLANs
  • IEEE 802.1Q Tag VLANs
  • GVRP
  • GMRP
• Link Aggregation
  • Static Trunk
  • IEEE 802.3ad LACP
• IGMP Snooping v1/v2/v3

Software Properties and Performance

• Switch IC Capability
  • 320Gbps
• Forwarding Rate
  • 238.08Mpps
• Total VLAN Entries
  • 256 (4096 VID)
• Jumbo Frame Size
  • 12KB
• MAC Table Size
  • 24K
• Packet Buffer Memory
  • 32M bits
• L2 Routes
  • Up to 24,000 unicast and 1,000 multicast routes
• L3 IPv4 Routes
  • Up to 8,000 unicast and 8,000 multicast routes
• L3 IPv6 routes
  • Up to 2,000 unicast routes

Interface

• Ethernet
  • 8 x 10/100/1000BASE-T
  • 16 x 100/1000BASE SFP
  • 4 x 1G/2.5G/10G SFP+
• Console
  • 1 x RJ45
• Config Backup
  • 1 x USB (Type A Connector)
• Alarm Contact
  • Relay output, current capacity 0.6A/30VDC
• LED Indicators
  • Per Unit: Power 1, Power 2, Alarm
  • Per Port: Link/Activity

Power

• Input
  • VTR: ±48VDC Redundant (Terminal block)
  • VWR: 100-240VAC Redundant (Terminal block)
  • VCR: 100-240VAC Redundant (AC Inlet)
• Power Consumption
  • 75W Max

Physical

• Casing Material
  • Aluminum
• Dimensions
  • 442 x 325 x 44mm (W x D x H)
    17.4" x 12.8" x 1.73"
• Weight
  • 5.6kg (12.3lbs)
• Installation Type
  • Rack mounting
• IP Rating
  • IP30

Environmental

• Operating Temp.
  • -40 to 75°C (-40 to 167°F)
• Storage Temp.
  • -45 to 85°C (-49 to 185°F)
• Relative Humidity
  • 5% to 95% (non-condensing)
• MTBF
  • 1,143,890 hours

Warranty

• Length
  • Limited Lifetime
• Details
  • www.etherwan.com/support/warranty-policy

What's Included

• Device
  • Ethernet Switch
• Cables
  • 1 Console Cable
• Power
  • 1 AC Power Cord
• Installation
  • Mounting brackets, screws
• Documentation
  • Quick install guide

Technology

• Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3ad link aggregation control
  • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • IEEE 802.3x full duplex and flow control
  • IEEE 802.1D STP
  • IEEE 802.1p QoS
  • IEEE 802.1Q Tag VLANs
  • IEEE 802.1s MSTP
  • IEEE 802.1w RSTP
  • IEEE 802.1x PNAC
  • IEEE 802.1ab LLDP
• Forward/Filtering Rate
  • 14,880pps for 10Mbps
  • 148,810pps for 100Mbps
  • 1,488,100pps for 1000Mbps
  • 14,881,000pps for 10Gbps
• Processing Type
  • Store-and-forward
  • Auto-negotiation
  • Half-duplex back-pressure and full-duplex flow control
  • Auto MDI/MDIX
• System Memory
  • 4Gb DDR3 SDRAM
• Flash Storage
  • 2GB

Regulatory

• ISO
  • Manufactured in ISO-9001 facility
• EMC
  • EN 55032
• EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
• EMS
  • EN 61000-4-2 (ESD)
  • EN 61000-4-3 (Radiated RFI)
  • EN 61000-4-4 (Burst)
  • EN 61000-4-5 (Surge)
  • EN 61000-4-6 (Induced RFI)
  • EN 61000-4-8 (Magnetic field)
• Safety
  • UL 62368
• Traffic
  • NEMA TS2
• Rail
  • EN 50121-4
• Vibration
  • IEC 60068-2-6
• Shock
  • IEC 60068-2-27
• Free Fall
  • FED STD 101C Method 5007.1
