GE3100 系列

PCI Express Gigabit 乙太網路介面卡

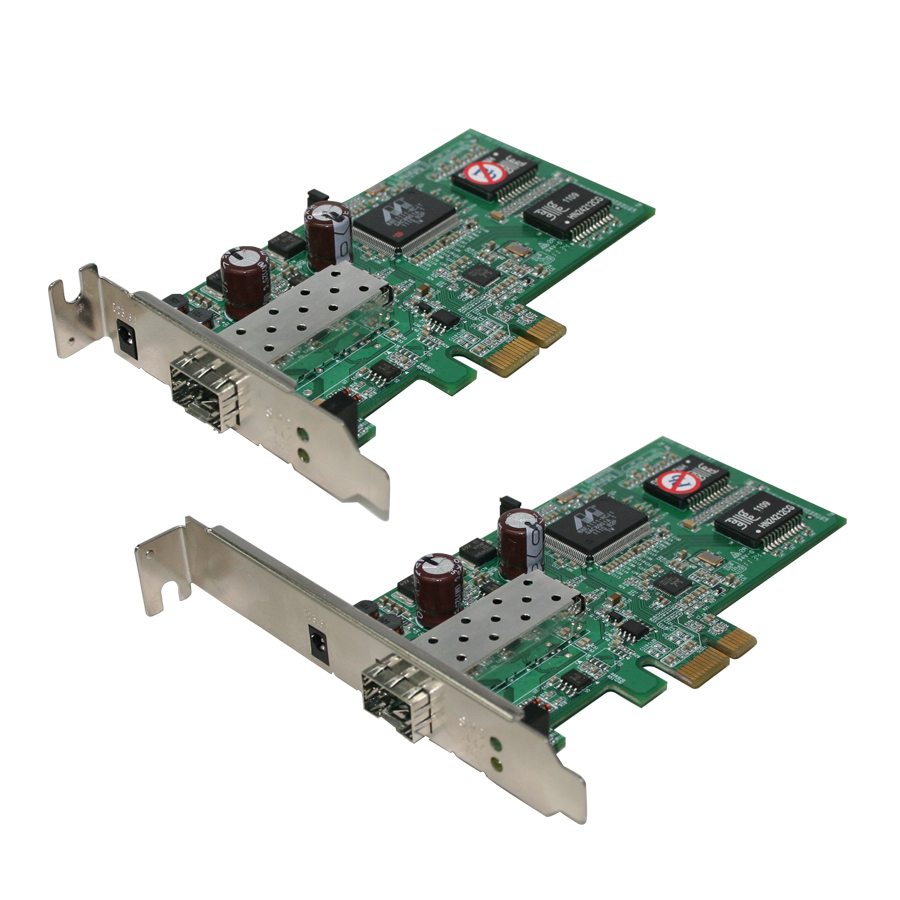

GE3100 Series PCI Express Gigabit Ethernet Adapter
Versatile optical interfaces (SFP/SC/ST/WDM) for long distance connectivity
PCIe v1.1 adapter
Compatible with low profile form factor devices
GE3100 Series PCI Express Gigabit Ethernet Adapter
產品特色
產品規格
產品尺寸圖
訂購型號
  • » Compliant to IEEE 802.3z 1000BASE-SX/LX/SFP
  • » Supports PCI Express 1.1
  • » Supports low profile
  • » 0 to 45°C operating temperature range
  • » Supports power down/link down power saving
  • » Plug-and-Play Support
  • » Jumbo Frame up to 9K Bytes
  • » RFC 1157 SNMP v1 compliant
  • » Preboot Execution Environment (PXE) 2.1
  • » Supports PCI Message Signaled Interrupt (MSI)
  • » IEEE 802.1P Layer 2 Priority Encoding
  • » IEEE 802.1Q VLAN tagging
  • » Supports ASF (Alert Standard Format) 2.0

Technology

  • Standards
  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/LX/SFP
  • • IEEE 802.3Q VLAN tagging
  • • IEEE 802.3p Priority Encoding
  • • IEEE 802.3x Full duplex flow control
  •
  • Jumbo Frame
  • • 9K bytes
  •
  • Driver
  • • Windows Vista, Windows 2003, Windows XP, Windows 2000, Windows 7/8, and Windows 10
  • • Linux 2.4/2.6/3.x
  • • MacOS 10.4, 10.5, 10.6, and 10.7 (Intel-based)

Power

  • Power Consumption
  • • 3.2W Max.

Mechanical

  • Dimensions
  • • Low Profile:
      80 x 117.6mm (W x D)
      (3.2" x 4.7")
  • • 117.5 x 117.6mm (W x D)
      (4.7" x 4.7")
  •
  • Weight
  • • 52g (1.8oz.)

Interface

  • Ethernet Port
  • • Gigabit: 1 port
  •
  • LED Indicators
  • • LED Connector: Per Unit: Link/Activity, SPD

Environment

  • Operating Temperature
  • • 0 to 45°C (32 to 113°F)
      Tested @ -10 to 55°C (14 to 131°F)
  •
  • Storage Temperature
  • • -20 to 70°C (-4 to 158°F)
  •
  • Ambient Relative Humidity
  • • 5% to 95% (non-condensing)

Regulatory Approvals

  • ISO
  • • Manufactured in an ISO 9001 facility
  •
  • Emission Compliance
  • • FCC Part 15 Class B
  • • CE VCCI Class B

Model

GE3100PSC 1000BASE-SX (SC) Multi-Mode Fiber Gigabit Ethernet Adapter (Low Profile)
GE3100PSFP 1000BASE SFP Gigabit Ethernet Adapter (Low Profile)
GE3100SC 1000BASE-SX (SC) Multi-Mode Fiber Gigabit Ethernet Adapter
GE3100SFP 1000BASE SFP Gigabit Ethernet Adapter
GE3100PTX 10/100/1000BASE-T Gigabit Ethernet Adaptor (Low profile)

* More Gigabit options also available upon request.


產品特色
  • » Compliant to IEEE 802.3z 1000BASE-SX/LX/SFP
  • » Supports PCI Express 1.1
  • » Supports low profile
  • » 0 to 45°C operating temperature range
  • » Supports power down/link down power saving
  • » Plug-and-Play Support
  • » Jumbo Frame up to 9K Bytes
  • » RFC 1157 SNMP v1 compliant
  • » Preboot Execution Environment (PXE) 2.1
  • » Supports PCI Message Signaled Interrupt (MSI)
  • » IEEE 802.1P Layer 2 Priority Encoding
  • » IEEE 802.1Q VLAN tagging
  • » Supports ASF (Alert Standard Format) 2.0
產品規格

Technology

  • Standards
  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/LX/SFP
  • • IEEE 802.3Q VLAN tagging
  • • IEEE 802.3p Priority Encoding
  • • IEEE 802.3x Full duplex flow control
  •
  • Jumbo Frame
  • • 9K bytes
  •
  • Driver
  • • Windows Vista, Windows 2003, Windows XP, Windows 2000, Windows 7/8, and Windows 10
  • • Linux 2.4/2.6/3.x
  • • MacOS 10.4, 10.5, 10.6, and 10.7 (Intel-based)

Power

  • Power Consumption
  • • 3.2W Max.

Mechanical

  • Dimensions
  • • Low Profile:
      80 x 117.6mm (W x D)
      (3.2" x 4.7")
  • • 117.5 x 117.6mm (W x D)
      (4.7" x 4.7")
  •
  • Weight
  • • 52g (1.8oz.)

Interface

  • Ethernet Port
  • • Gigabit: 1 port
  •
  • LED Indicators
  • • LED Connector: Per Unit: Link/Activity, SPD

Environment

  • Operating Temperature
  • • 0 to 45°C (32 to 113°F)
      Tested @ -10 to 55°C (14 to 131°F)
  •
  • Storage Temperature
  • • -20 to 70°C (-4 to 158°F)
  •
  • Ambient Relative Humidity
  • • 5% to 95% (non-condensing)

Regulatory Approvals

  • ISO
  • • Manufactured in an ISO 9001 facility
  •
  • Emission Compliance
  • • FCC Part 15 Class B
  • • CE VCCI Class B

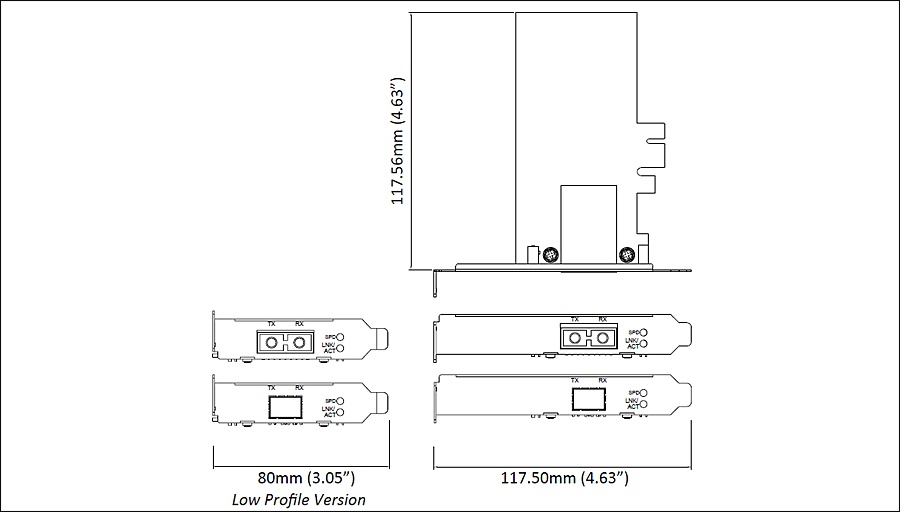

產品尺寸圖

訂購型號

Model

GE3100PSC 1000BASE-SX (SC) Multi-Mode Fiber Gigabit Ethernet Adapter (Low Profile)
GE3100PSFP 1000BASE SFP Gigabit Ethernet Adapter (Low Profile)
GE3100SC 1000BASE-SX (SC) Multi-Mode Fiber Gigabit Ethernet Adapter
GE3100SFP 1000BASE SFP Gigabit Ethernet Adapter
GE3100PTX 10/100/1000BASE-T Gigabit Ethernet Adaptor (Low profile)

* More Gigabit options also available upon request.
