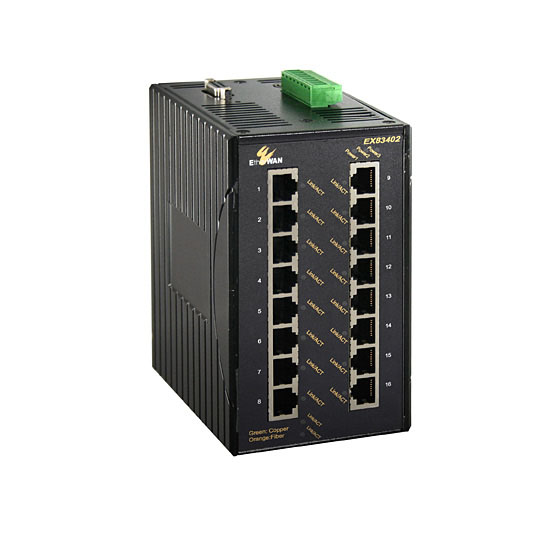

EX83000 系列

IEC 61850/IEEE 1613 強固級網管型 16埠10/100BASE +2埠Gigabit combo 乙太網路交換器

SFP
Fanless
Wide Temperature
IEC 61850
IEEE 1613
EX83000 Series IEC 61850/IEEE 1613 Hardened Managed 8 to 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch
EX83000 Series IEC 61850/IEEE 1613 Hardened Managed 8 to 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch
EX83000 Series IEC 61850/IEEE 1613 Hardened Managed 8 to 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch
EX83000 Series IEC 61850/IEEE 1613 Hardened Managed 8 to 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch
Gigabit combo埠可搭配多元介面選擇:SC、ST、WDM和SFP
抗ESD及電磁突波保護機制
EX83000 Series IEC 61850/IEEE 1613 Hardened Managed 8 to 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch
EX83000 Series IEC 61850/IEEE 1613 Hardened Managed 8 to 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch
EX83000 Series IEC 61850/IEEE 1613 Hardened Managed 8 to 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch
EX83000 Series IEC 61850/IEEE 1613 Hardened Managed 8 to 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch
產品介紹
產品亮點
產品特色
產品規格
產品應用圖
產品尺寸圖
訂購型號

EX83000系列為網管型鋁軌式安裝設計機型,具備16個10/100BASE乙太網路連接埠及2個Gigabit光纖埠(可彈性搭配固定式光纖或SFP combo光纖插槽)。

具備完整管理功能,包含port security、IGMP snooping、VLANs、GARP 協定、LACP和GOOSE;使用者可透過網頁瀏覽telnet、SNMP、RMON、TFTP和RS-232 console 管理介面,支援益網獨家技術Alpha-Ring環狀網路備援機制,可在網路發生斷線時迅速啟動備援機制,小15毫秒內便可快速恢復連線通訊。

EX83000系列為工業等級設計交換器,符合IEC 61850 & IEEE 1613標準,同可在高EMI環境及-40 到 75℃ 寬溫環境下穩定運作。

EtherWAN — "When Connectivity is Crucial."

強固等級設計

» 寬溫操作(-40 到75°C)
» 無風扇和堅固的金屬外殼設計,可有效避免高溫及高濕度環境導致材質老化
» 抗震動及抗電磁波干擾
» 通過電廠認證IEC 61850-3 & IEEE 1613標準

多元彈性介面組合

» 支援16個10/100base-TX/FX/BX/SFP加2埠Gigabit SX/LX/BX/SFP

Management

  • » Interface
    •    • CLI, Telnet and Web Browser
    •    • SNMP v1/v2c/v3
  • » Firmware and configuration upgrade and backup via TFTP
  • » Supports DHCP Server/Client
  • » RMON (Remote monitoring): group 1, 2, 3, 9
  • » Port mirroring: TX/RX and both
  • » NTP (Network Time Protocol) time synchronization
  • » IEEE 802.1ab LLDP (Link Layer Discovery Protocol)

Security

  • » MAC address filtering
  • » Enable/disable port
  • » Storm control (broadcast and multicast types)
  • » IEEE 802.1x LAN access control
  • » Remote authentication through RADIUS
  • » SSH for CLI and Telnet security
  • » SSL for web security
  • » Multi-level user account/password against unauthorized configuration
  • » System log (remote/local)

Quality of Service (QoS)

  • » Priority Queues: 4 queues per port
  • » Traffic classification based on IEEE 802.1p CoS, DSCP, WRR (Weighted round robin) and strict mode
  • » Rate Limiting (Ingress/Egress)

Layer 2 Features

  • » Auto-negotiation for port speed and duplex mode
  • » Flow Control
    •    • IEEE 802.3x full duplex mode
    •    • Back-Pressure half duplex mode
  • » Redundant Protocol
    •    • IEEE 802.1D Spanning Tree Protocol (STP)
    •    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    •    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    •    • EtherWAN’s Alpha-Ring network fault recovery (<15ms)
  • » VLANs
    •    • Port-based VLANs
    •    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
    •    • GVRP (GARP VLAN Registration Protocol)
    •    • GMRP (GARP Multicast Registration Protocol)
  • » Link Aggregation
    •    • Static Trunk (2 groups, support MAC base)
    •    • IEEE 802.3ad Link Aggregation Control Protocol
  • » IGMP Snooping
    •    • IGMP snooping v1/v2/v3

Performance

  • » Switching Capability: 7.2Gbps
  • » Packet Buffer Size: 2M bits
  • » MAC Address Table: 8192

技術

標準

  • • IEEE 802.3, 10BASE-T
  • • IEEE 802.3u 100BASE-TX/100BASE-FX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex and flow control
  • • IEEE 802.1p QoS
  • • IEEE 802.1Q Tag VLANs
  • • IEEE 802.1w RSTP
  • • IEEE 802.1x Port-based Network Access Control

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

緩衝記憶體封包
  • • 2M bits

傳輸形式
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto MDI/MDIX

MAC地址表
  • • 8192 MAC addresses


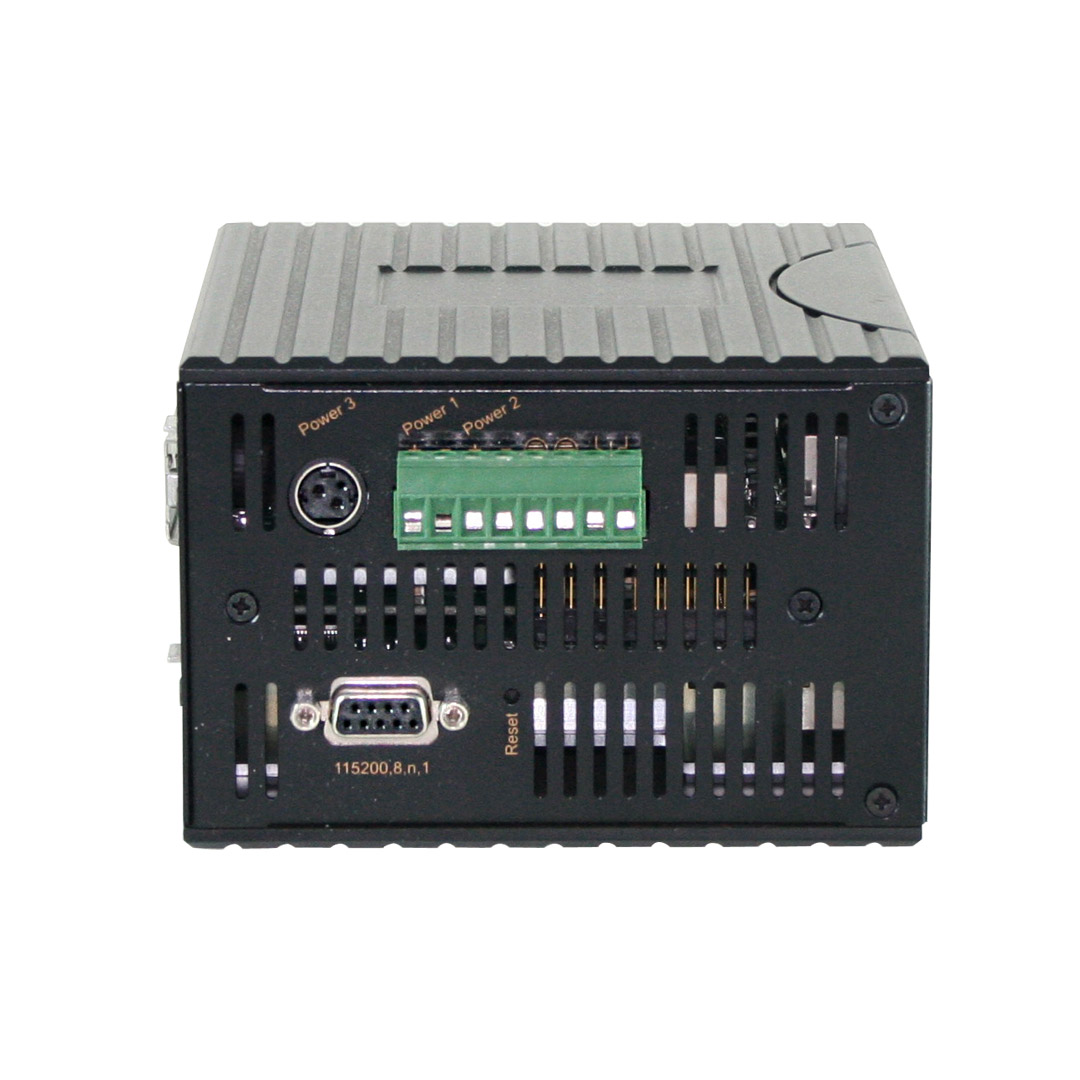

電源

輸入電壓

  • • 12-48VDC (Terminal Block)
  • • 12VDC (DC Jack)

電力供耗
Protection
  • • Reverse polarity protection


機構

機殼

  • • Aluminum Case
  • • IP30

尺寸
  • • 84 x 125 x 145mm (W x D x H)
      (3.3" x 4.92" x 5.71")

重量
  • • 1.4Kg (3.08lbs.)

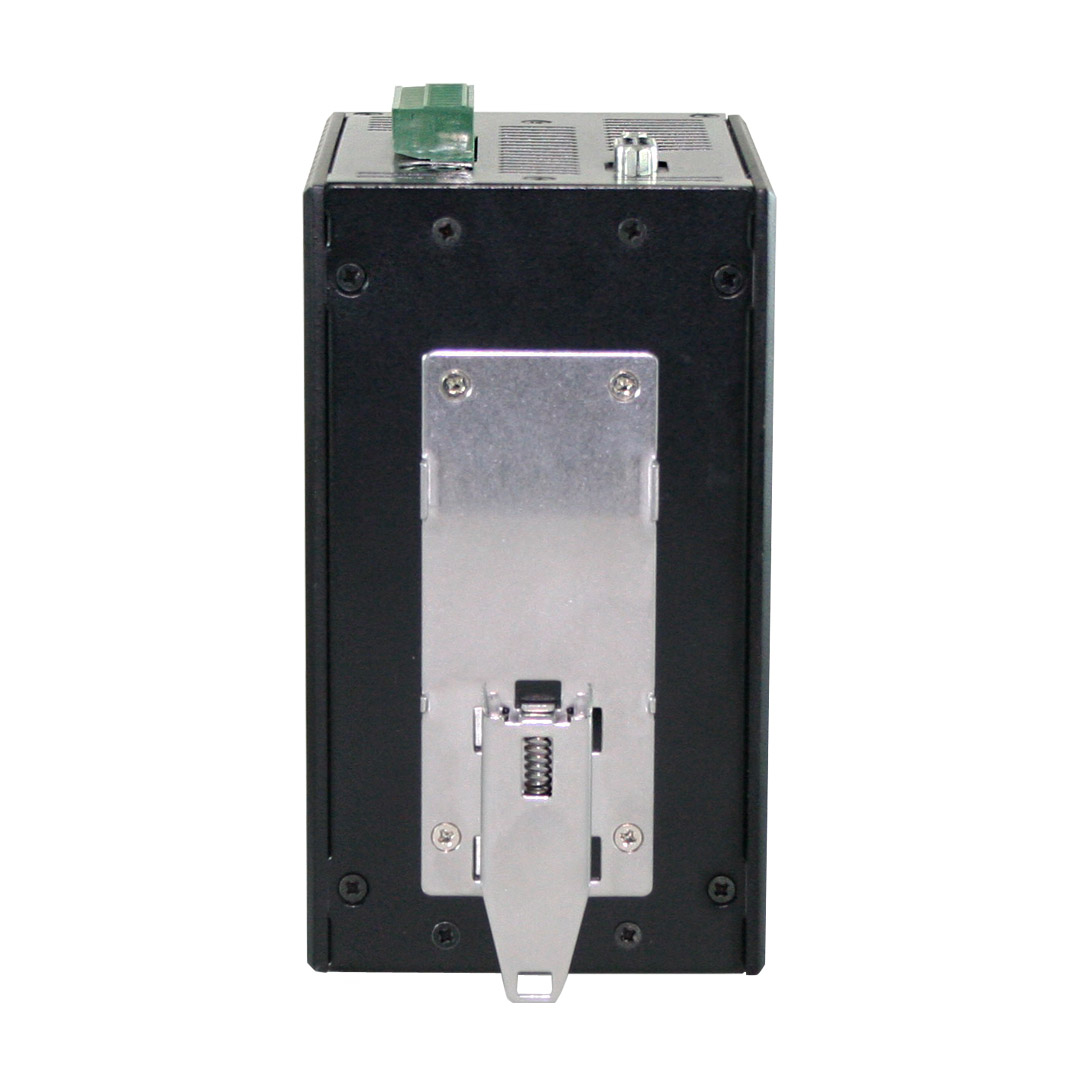

安裝方式
  • • DIN-Rail (Top hat type 35mm) or Wall mounting


介面

乙太網路埠

  • • 10/100BASE-TX: 16, 12 or 8 ports
  • • 100BASE-FX: 0, 1, 2 or 4 ports
  • • Gigabit: 0, 1 or 2 ports

Console Port
  • • Port: One DB9 RS-232 port

LED 指示燈號
  • • Per Unit: Power 1, Power 2, Power 3
  • • Per Port: Link/Activity (Green: Copper, Orange: Fiber)

Alarm Contact


環境

工作溫度

  • • -40 to 75°C (-40 to 167°F)
      Tested @ -40 to 80°C (-40 to 176°F)

儲存溫度
  • • -45 to 85°C (-49 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)


通過認證

ISO

  • • Manufactured in an ISO 9001 facility

EMI
  • FCC Part 15B Class A
  • EN 61000-6-4
  • EN 55022
  • EN 61000-3-2
  • EN 61000-3-3

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)
    • • IEC 61000-4-10 (Oscillatory wave magnetic field test)
    • • IEC 61000-4-16 (Power frequency immunity test)
    • • IEC 61000-4-18 (Oscillatory wave immunity test)

Environmental Test Compliance
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)

Industrial Compliance
  • IEEE 61850-3/IEEE 1613


型號

EX83400-00B 16-port 10/100BASE-TX Hardened Managed Ethernet Switch
EX83402-0YB 16-port 10/100BASE-TX +2-port Gigabit Hardened Managed Ethernet Switch
EX83322-XYB 12-port 10/100BASE-TX +2-port 100BASE-FX +2-port Gigabit Hardened Managed Ethernet Switch
EX83200-00B 8-port 10/100BASE-TX Hardened Managed Ethernet Switch
EX83202-0YB 8-port 10/100BASE-TX +2-port Gigabit Hardened Managed Ethernet Switch
EX83240-X0B 8-port 10/100BASE-TX +4-port 100BASE-FX Hardened Managed Ethernet Switch
EX83242-XYB 8-port 10/100BASE-TX +4-port 100BASE-FX +2-port Gigabit Hardened Managed Ethernet Switch

* DIN-Rail mounting kit included.


100FX Fiber Options (X)

1 Multi Mode (SC) - 2Km
2 Multi Mode (ST) - 2Km
6 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-2Km
7 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-2Km
8 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-5Km
9 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-5Km
A Single Mode (SC) - 20Km
B Single Mode (SC) - 40Km
H Single Mode (ST) - 20Km
P Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
Q Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
R Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-40Km
S Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-40Km
V 100BASE SFP

Gigabit Port Options (Y)

1 10/100/1000BASE-TX (No Gigabit Fiber port supported)
3 Combo port: 10/100/1000BASE-TX with 1000BASE-SX (SC) - 550m
4 Combo port: 10/100/1000BASE-TX with 1000BASE-SX (SC) - 2Km
5 Combo port: 10/100/1000BASE-TX with 1000BASE-SX (ST) - 550m
A Combo port: 10/100/1000BASE-TX with 1000BASE-LX (SC) - 10Km
B Combo port: 10/100/1000BASE-TX with 1000BASE-LX (SC) - 20Km
R Combo port: 10/100/1000BASE-TX with 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S Combo port: 10/100/1000BASE-TX with 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
V Combo port: 1000BASE-SFP with 10/100/1000BASE-TX

Optional Accessories

KP-AA96-480 Panel mounting Kits
HDR-30-24 30W/1.5A DIN-Rail 24VDC Industrial Power Supply
HDR-60-24 60W/2.5A DIN-Rail 24VDC Industrial Power Supply
EX41-145046-X Power Supply 45W 12VDC with Open Wire
(X)= 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA
EX41-145044-X Power Supply 45W 12VDC with Latch
(X)= 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA

產品介紹

EX83000系列為網管型鋁軌式安裝設計機型,具備16個10/100BASE乙太網路連接埠及2個Gigabit光纖埠(可彈性搭配固定式光纖或SFP combo光纖插槽)。

具備完整管理功能,包含port security、IGMP snooping、VLANs、GARP 協定、LACP和GOOSE;使用者可透過網頁瀏覽telnet、SNMP、RMON、TFTP和RS-232 console 管理介面,支援益網獨家技術Alpha-Ring環狀網路備援機制,可在網路發生斷線時迅速啟動備援機制,小15毫秒內便可快速恢復連線通訊。

EX83000系列為工業等級設計交換器,符合IEC 61850 & IEEE 1613標準,同可在高EMI環境及-40 到 75℃ 寬溫環境下穩定運作。

EtherWAN — "When Connectivity is Crucial."

產品亮點

強固等級設計

» 寬溫操作(-40 到75°C)
» 無風扇和堅固的金屬外殼設計,可有效避免高溫及高濕度環境導致材質老化
» 抗震動及抗電磁波干擾
» 通過電廠認證IEC 61850-3 & IEEE 1613標準

多元彈性介面組合

» 支援16個10/100base-TX/FX/BX/SFP加2埠Gigabit SX/LX/BX/SFP

產品特色

Management

  • » Interface
    •    • CLI, Telnet and Web Browser
    •    • SNMP v1/v2c/v3
  • » Firmware and configuration upgrade and backup via TFTP
  • » Supports DHCP Server/Client
  • » RMON (Remote monitoring): group 1, 2, 3, 9
  • » Port mirroring: TX/RX and both
  • » NTP (Network Time Protocol) time synchronization
  • » IEEE 802.1ab LLDP (Link Layer Discovery Protocol)

Security

  • » MAC address filtering
  • » Enable/disable port
  • » Storm control (broadcast and multicast types)
  • » IEEE 802.1x LAN access control
  • » Remote authentication through RADIUS
  • » SSH for CLI and Telnet security
  • » SSL for web security
  • » Multi-level user account/password against unauthorized configuration
  • » System log (remote/local)

Quality of Service (QoS)

  • » Priority Queues: 4 queues per port
  • » Traffic classification based on IEEE 802.1p CoS, DSCP, WRR (Weighted round robin) and strict mode
  • » Rate Limiting (Ingress/Egress)

Layer 2 Features

  • » Auto-negotiation for port speed and duplex mode
  • » Flow Control
    •    • IEEE 802.3x full duplex mode
    •    • Back-Pressure half duplex mode
  • » Redundant Protocol
    •    • IEEE 802.1D Spanning Tree Protocol (STP)
    •    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    •    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    •    • EtherWAN’s Alpha-Ring network fault recovery (<15ms)
  • » VLANs
    •    • Port-based VLANs
    •    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
    •    • GVRP (GARP VLAN Registration Protocol)
    •    • GMRP (GARP Multicast Registration Protocol)
  • » Link Aggregation
    •    • Static Trunk (2 groups, support MAC base)
    •    • IEEE 802.3ad Link Aggregation Control Protocol
  • » IGMP Snooping
    •    • IGMP snooping v1/v2/v3

Performance

  • » Switching Capability: 7.2Gbps
  • » Packet Buffer Size: 2M bits
  • » MAC Address Table: 8192

產品規格

技術

標準

  • • IEEE 802.3, 10BASE-T
  • • IEEE 802.3u 100BASE-TX/100BASE-FX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex and flow control
  • • IEEE 802.1p QoS
  • • IEEE 802.1Q Tag VLANs
  • • IEEE 802.1w RSTP
  • • IEEE 802.1x Port-based Network Access Control

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

緩衝記憶體封包
  • • 2M bits

傳輸形式
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto MDI/MDIX

MAC地址表
  • • 8192 MAC addresses


電源

輸入電壓

  • • 12-48VDC (Terminal Block)
  • • 12VDC (DC Jack)

電力供耗
Protection
  • • Reverse polarity protection


機構

機殼

  • • Aluminum Case
  • • IP30

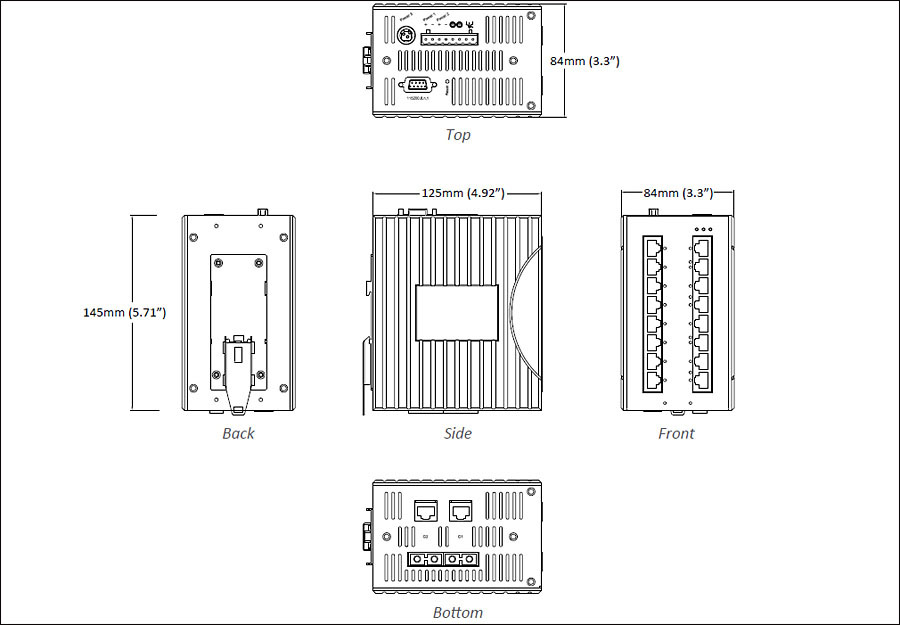

尺寸
  • • 84 x 125 x 145mm (W x D x H)
      (3.3" x 4.92" x 5.71")

重量
  • • 1.4Kg (3.08lbs.)

安裝方式
  • • DIN-Rail (Top hat type 35mm) or Wall mounting


介面

乙太網路埠

  • • 10/100BASE-TX: 16, 12 or 8 ports
  • • 100BASE-FX: 0, 1, 2 or 4 ports
  • • Gigabit: 0, 1 or 2 ports

Console Port
  • • Port: One DB9 RS-232 port

LED 指示燈號
  • • Per Unit: Power 1, Power 2, Power 3
  • • Per Port: Link/Activity (Green: Copper, Orange: Fiber)

Alarm Contact


環境

工作溫度

  • • -40 to 75°C (-40 to 167°F)
      Tested @ -40 to 80°C (-40 to 176°F)

儲存溫度
  • • -45 to 85°C (-49 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)


通過認證

ISO

  • • Manufactured in an ISO 9001 facility

EMI
  • FCC Part 15B Class A
  • EN 61000-6-4
  • EN 55022
  • EN 61000-3-2
  • EN 61000-3-3

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)
    • • IEC 61000-4-10 (Oscillatory wave magnetic field test)
    • • IEC 61000-4-16 (Power frequency immunity test)
    • • IEC 61000-4-18 (Oscillatory wave immunity test)

Environmental Test Compliance
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)

Industrial Compliance
  • IEEE 61850-3/IEEE 1613

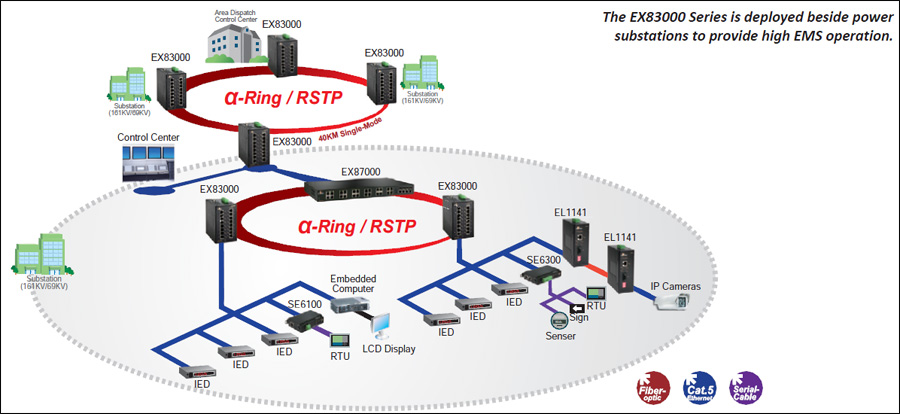

產品應用圖

產品尺寸圖

訂購型號

型號

EX83400-00B 16-port 10/100BASE-TX Hardened Managed Ethernet Switch
EX83402-0YB 16-port 10/100BASE-TX +2-port Gigabit Hardened Managed Ethernet Switch
EX83322-XYB 12-port 10/100BASE-TX +2-port 100BASE-FX +2-port Gigabit Hardened Managed Ethernet Switch
EX83200-00B 8-port 10/100BASE-TX Hardened Managed Ethernet Switch
EX83202-0YB 8-port 10/100BASE-TX +2-port Gigabit Hardened Managed Ethernet Switch
EX83240-X0B 8-port 10/100BASE-TX +4-port 100BASE-FX Hardened Managed Ethernet Switch
EX83242-XYB 8-port 10/100BASE-TX +4-port 100BASE-FX +2-port Gigabit Hardened Managed Ethernet Switch

* DIN-Rail mounting kit included.


100FX Fiber Options (X)

1 Multi Mode (SC) - 2Km
2 Multi Mode (ST) - 2Km
6 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-2Km
7 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-2Km
8 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-5Km
9 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-5Km
A Single Mode (SC) - 20Km
B Single Mode (SC) - 40Km
H Single Mode (ST) - 20Km
P Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
Q Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
R Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-40Km
S Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-40Km
V 100BASE SFP

Gigabit Port Options (Y)

1 10/100/1000BASE-TX (No Gigabit Fiber port supported)
3 Combo port: 10/100/1000BASE-TX with 1000BASE-SX (SC) - 550m
4 Combo port: 10/100/1000BASE-TX with 1000BASE-SX (SC) - 2Km
5 Combo port: 10/100/1000BASE-TX with 1000BASE-SX (ST) - 550m
A Combo port: 10/100/1000BASE-TX with 1000BASE-LX (SC) - 10Km
B Combo port: 10/100/1000BASE-TX with 1000BASE-LX (SC) - 20Km
R Combo port: 10/100/1000BASE-TX with 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S Combo port: 10/100/1000BASE-TX with 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
V Combo port: 1000BASE-SFP with 10/100/1000BASE-TX

Optional Accessories

KP-AA96-480 Panel mounting Kits
HDR-30-24 30W/1.5A DIN-Rail 24VDC Industrial Power Supply
HDR-60-24 60W/2.5A DIN-Rail 24VDC Industrial Power Supply
EX41-145046-X Power Supply 45W 12VDC with Open Wire
(X)= 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA
EX41-145044-X Power Supply 45W 12VDC with Latch
(X)= 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA
