EX45900 系列

強固級非網管 5埠10/100/1000BASE (4 x PoE) +1埠1000BASE-X Gigabit 乙太網路交換器

SFP
PoE_30W
Fanless
UL 60950
Wide Temperature

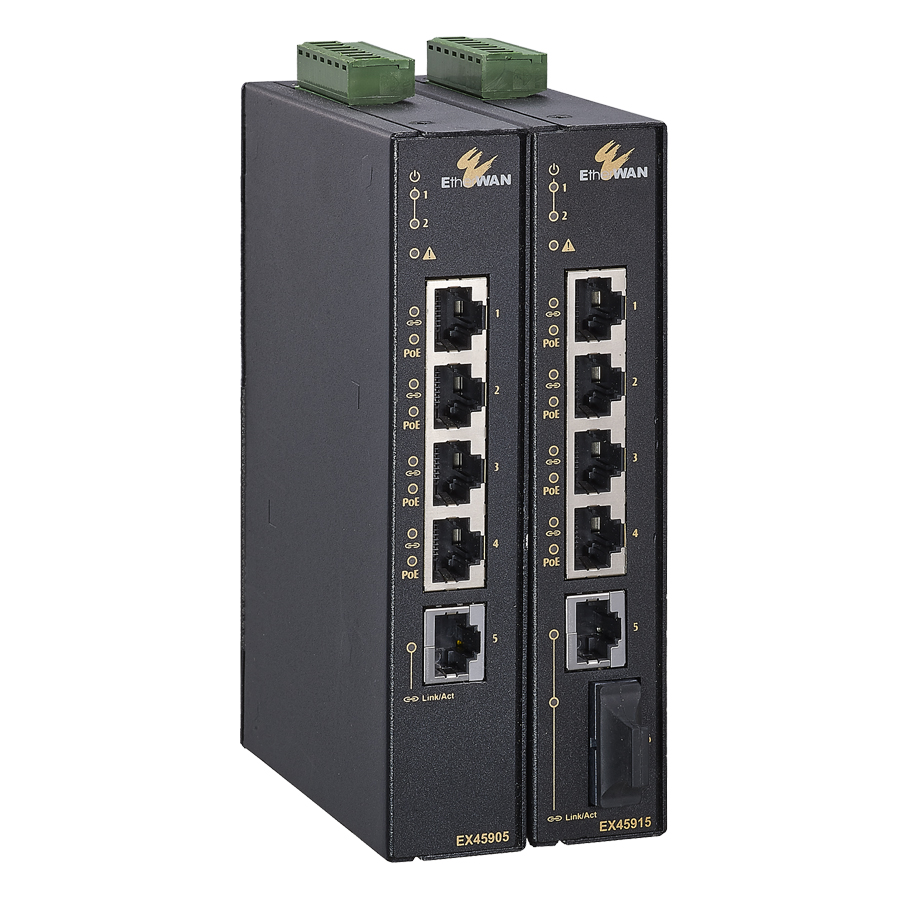

EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
PoE供電每埠最高可達30W,總供電瓦數120W
電源輸入範圍18V-57VDC
彈性光纖介面選擇(SFP/SC/ST/WDM)以支援遠距離傳輸
EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
EX45900 Series Hardened Unmanaged 5-port 10/100/1000BASE (4 x PoE) +1-port 1000BASE-X Gigabit Ethernet Switch
產品介紹
產品亮點
產品規格
產品尺寸圖
訂購型號

EX45900系列為強固級非網管PoE鋁軌式安裝乙太網路交換器,4埠支援PoE(IEEE 802.3at)及1個Gigabit光纖埠,支援遠距離傳輸。

EX45900系列屬非網管機型,支援10K Jumbo Frame、full wire Gigabit throughput、QoS,並符合eco-friendly IEEE 802.3az EEE (Energy Efficient Ethernet)標準。支援IEEE 802.3x自動協商功能、全雙工/半雙工流量控制、自動MDI/MDI-X跳線偵測、線性、無阻塞傳輸,無風扇設計。當電源故障或通訊中斷,可經由繼電器輸出警報,幫助現場人員快速診斷並排除異常。

其PoE網路埠,每埠最高可支援30W,總供電瓦數為120W,可廣泛應用於許多終端受電(PD)設備,例如PTZ球型攝影機、無線基地台及軌旁通訊設備等。EX45900系列專為嚴苛戶外環境設計打造,可在-40到75℃寬溫環境下穩定運作,於嚴苛的專案規劃佈局中扮演致勝的關鍵角色。

EtherWAN — "When Connectivity is Crucial."

PoE連接

» 1-4埠支援IEEE 802.3at PoE供電標準,每埠最高可達30W

符合Energy Efficient Ethernet (EEE)

» 支援IEEE 802.3az標準

光纖介面連接

» 最高支援1個1000BASE-FX埠,彈性搭配SC、ST或SFP組合

技術

標準

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX/100BASE-FX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex flow control
  • • IEEE 802.3az Energy Efficient Ethernet
  • • IEEE 802.1p Quality of Service(QoS)
  • • IEEE 802.3af/at Power over Ethernet (PoE)

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

緩衝記憶體封包
  • • 1M bits

傳輸形式
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto MDI/MDIX

巨大封包
  • • 10K bytes

MAC地址表
  • • 8192 MAC addresses


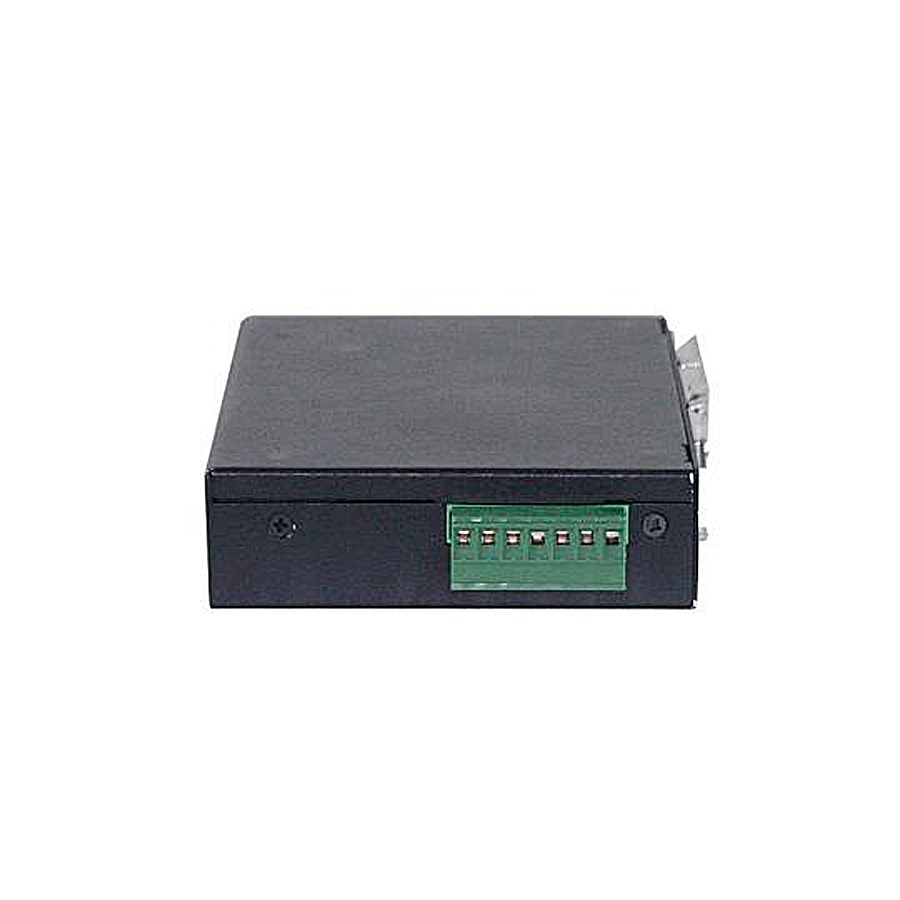

電源

輸入電壓

  • • 18 to 57VDC

電力供耗
  • • Device: Max. 7W (without PoE)
  • • PoE Power budget: 120W

PoE Technology
  • • Alternative A
      Pins 1/2(+), 3/6(-)

Protection
  • • Reverse polarity protection


機構

機殼

  • • 金屬材質
  • • IP30

尺寸
  • • 30 x 100 x 149mm (W x D x H)
      (1.18" x 4" x 5.96")

重量
  • • 0.34Kg (0.75lb.)

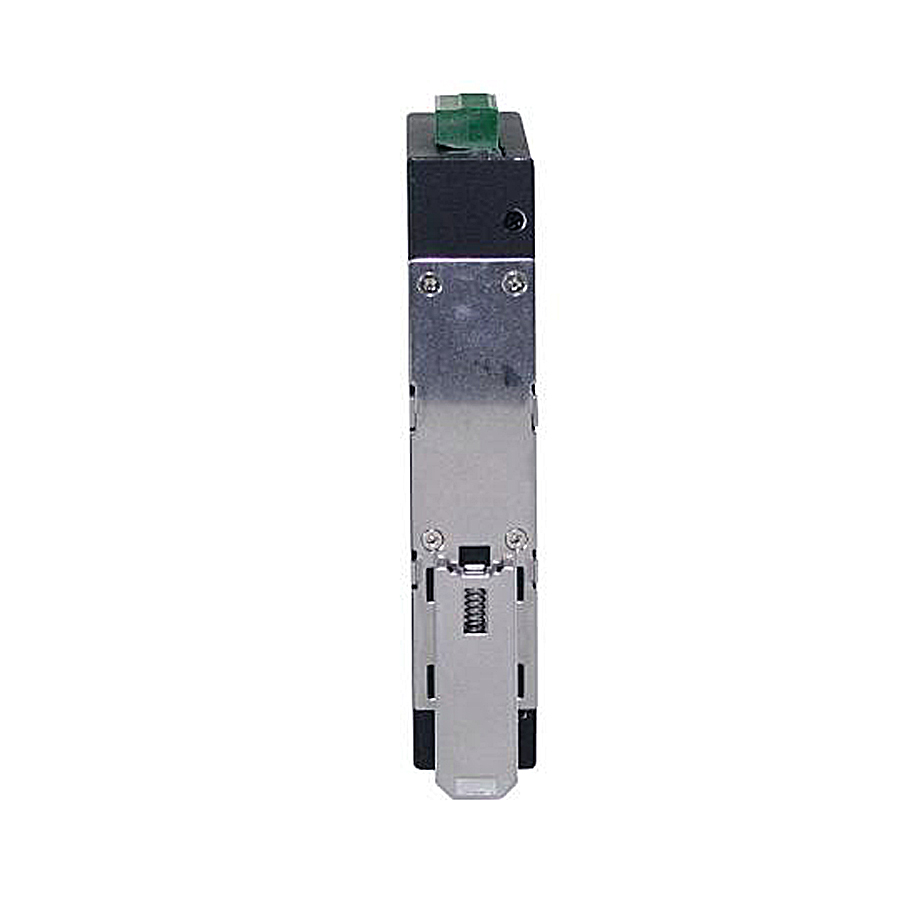

安裝方式
  • • DIN-Rail


介面

乙太網路埠

  • • 10/100/1000BASE-T: 5 ports
  • • 1000BASE-X: 0 or 1 ports

LED 指示燈號
  • • Per Unit: Power 1 (Green), Power 2 (Green), Alarm (Red)
  • • Per Port: 10/100M (Green), 1000M (Amber)
  • • Per PoE Port: PoE status (Amber)

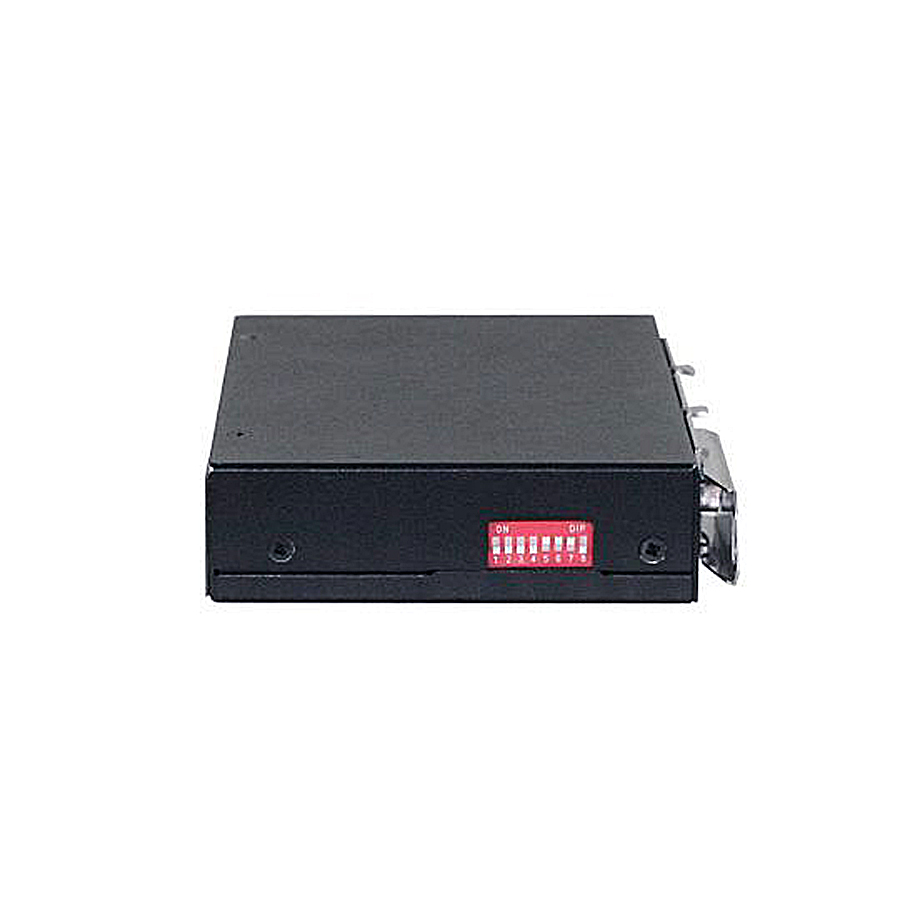

DIP Switches
  • • Enable/Disable Port fault alarm
  • • Enable/Disable Broadcast Storm Protection
  • • Enable/Disable Jumbo Frame

Alarm Contact
  • • One relay output with current 1A@250VAC
  • • Supports normal open


環境

工作溫度

  • • -40 to 75°C (-40 to 167°F);
      Tested @ -40 to 85°C (-40 to 185°F)

儲存溫度
  • • -40 to 85°C (-40 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)


通過認證

ISO

  • • Manufactured in an ISO 9001 facility

Safety
  • UL 60950

EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 55022 Class A

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliances
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)


型號

EX45905 5-port 10/100/1000BASE-T (4 x PoE) Gigabit Hardened Unmanaged Ethernet Switch
EX45915-X 5-port 10/100/1000BASE-T (4 x PoE) +1-port 1000BASE-X Gigabit Hardened Unmanaged Ethernet Switch

* DIN-Rail mounting kit included.


Optical Port Options (X)

3 1000BASE-SX (SC) - 550m
5 1000BASE-SX (ST) - 550m
A 1000BASE-LX (SC) - 10km
R 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
V 1000BASE SFP

Optional Accessories

SDR-240-48 240W/5A DIN-Rail 48VDC Industrial Power Supply (for terminal block)

產品介紹

EX45900系列為強固級非網管PoE鋁軌式安裝乙太網路交換器,4埠支援PoE(IEEE 802.3at)及1個Gigabit光纖埠,支援遠距離傳輸。

EX45900系列屬非網管機型,支援10K Jumbo Frame、full wire Gigabit throughput、QoS,並符合eco-friendly IEEE 802.3az EEE (Energy Efficient Ethernet)標準。支援IEEE 802.3x自動協商功能、全雙工/半雙工流量控制、自動MDI/MDI-X跳線偵測、線性、無阻塞傳輸,無風扇設計。當電源故障或通訊中斷,可經由繼電器輸出警報,幫助現場人員快速診斷並排除異常。

其PoE網路埠,每埠最高可支援30W,總供電瓦數為120W,可廣泛應用於許多終端受電(PD)設備,例如PTZ球型攝影機、無線基地台及軌旁通訊設備等。EX45900系列專為嚴苛戶外環境設計打造,可在-40到75℃寬溫環境下穩定運作,於嚴苛的專案規劃佈局中扮演致勝的關鍵角色。

EtherWAN — "When Connectivity is Crucial."

產品亮點

PoE連接

» 1-4埠支援IEEE 802.3at PoE供電標準,每埠最高可達30W

符合Energy Efficient Ethernet (EEE)

» 支援IEEE 802.3az標準

光纖介面連接

» 最高支援1個1000BASE-FX埠,彈性搭配SC、ST或SFP組合

產品規格

技術

標準

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX/100BASE-FX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex flow control
  • • IEEE 802.3az Energy Efficient Ethernet
  • • IEEE 802.1p Quality of Service(QoS)
  • • IEEE 802.3af/at Power over Ethernet (PoE)

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

緩衝記憶體封包
  • • 1M bits

傳輸形式
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto MDI/MDIX

巨大封包
  • • 10K bytes

MAC地址表
  • • 8192 MAC addresses


電源

輸入電壓

  • • 18 to 57VDC

電力供耗
  • • Device: Max. 7W (without PoE)
  • • PoE Power budget: 120W

PoE Technology
  • • Alternative A
      Pins 1/2(+), 3/6(-)

Protection
  • • Reverse polarity protection


機構

機殼

  • • 金屬材質
  • • IP30

尺寸
  • • 30 x 100 x 149mm (W x D x H)
      (1.18" x 4" x 5.96")

重量
  • • 0.34Kg (0.75lb.)

安裝方式
  • • DIN-Rail


介面

乙太網路埠

  • • 10/100/1000BASE-T: 5 ports
  • • 1000BASE-X: 0 or 1 ports

LED 指示燈號
  • • Per Unit: Power 1 (Green), Power 2 (Green), Alarm (Red)
  • • Per Port: 10/100M (Green), 1000M (Amber)
  • • Per PoE Port: PoE status (Amber)

DIP Switches
  • • Enable/Disable Port fault alarm
  • • Enable/Disable Broadcast Storm Protection
  • • Enable/Disable Jumbo Frame

Alarm Contact
  • • One relay output with current 1A@250VAC
  • • Supports normal open


環境

工作溫度

  • • -40 to 75°C (-40 to 167°F);
      Tested @ -40 to 85°C (-40 to 185°F)

儲存溫度
  • • -40 to 85°C (-40 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)


通過認證

ISO

  • • Manufactured in an ISO 9001 facility

Safety
  • UL 60950

EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 55022 Class A

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliances
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)

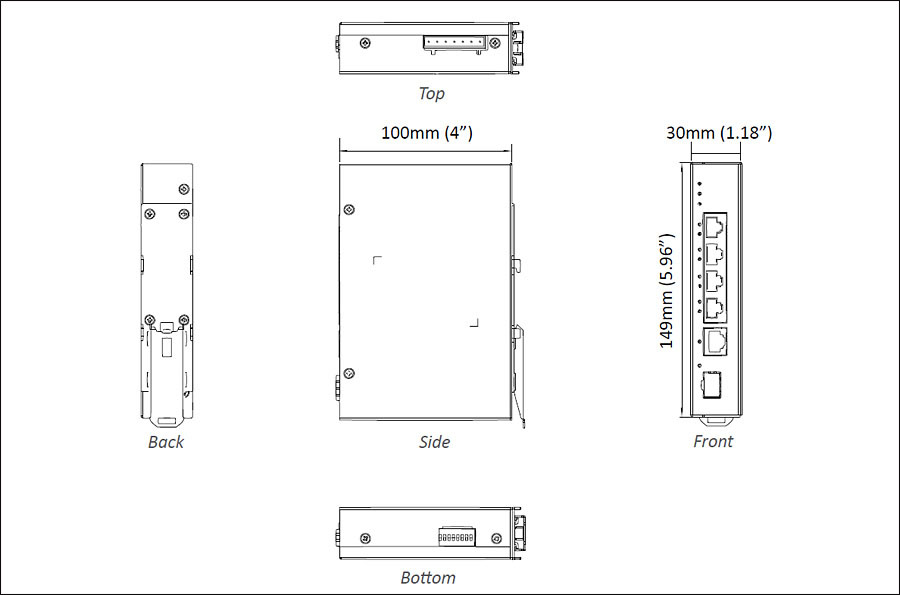

產品尺寸圖
