EX16926 系列

非網管26埠Gigabit乙太網路交換器:24 RJ45 Gigabit埠+2 Gigabit SFP 插槽

SFP
Fanless
EX16926 Series Unmanaged 26 Port Gigabit Switch with 24 RJ45 Gigabit Ports and 2 Gigabit SFP Slots
Up to 26 ports, full gigabit switch
Two SFP slots for long distance connectivity
EX16926 Series Unmanaged 26 Port Gigabit Switch with 24 RJ45 Gigabit Ports and 2 Gigabit SFP Slots
產品介紹
產品亮點
產品規格
產品應用圖
產品尺寸圖
訂購型號

The EX16926 provides 24 Gigabit Ethernet RJ45 ports and 2 SFP ports supporting Gigabit fiber for long distance connectivity. The EX16926 is feature rich with 10K Jumbo Frame support, full wire speed Gigabit throughput, QoS support and eco-friendly IEEE802.3az EEE (Energy Efficient Ethernet) compliant, making the EX16926 Series a powerful yet energy efficient network switch.

EtherWAN — "When Connectivity is Crucial."

Jumbo Frame Support

» Up to 10K bytes

Fiber Connectivity

» Two 1000BASE SFP ports

High Reliability

» Fanless design
» No moving parts

Eco-friendly support

» IEEE802.3az EEE (Energy Efficient Ethernet) allow less consumption during periods of low data activity

QoS

» Traffic classification based on IEEE802.1p CoS

Technology

Standards

  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX/100BASE-FX
  • • IEEE802.3ab 1000BASE-T
  • • IEEE802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE802.3x Full duplex flow control
  • • IEEE802.3az Energy Efficient Ethernet
  • • IEEE802.1p Quality of Service (QoS)

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

Packet Buffer Memory
  • • 4.1MB

Processing Type
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE802.3x full-duplex flow control
  • • Auto MDI/MDIX

Jumbo Frame
  • • 10K bytes

Address Table Size
  • • 4K MAC addresses




Power

Input Voltage

  • • 100 to 240VAC

Power Consumption
  • • 14.6W Max. 0.15A




Mechanical

Casing

  • • Metal case
  • • IP30

Dimensions
  • • 44mm (H) x 441mm (W) x 131mm (D)
      (1.76" (H) x 17.64" (W) x 5.24" (D))

Weight
  • • 1.9Kg (4.18lbs.)

Installation
  • • Rack-mount (rack mounting kit included




Interface

Ethernet Port

  • • 10/100/1000BASE-T: 24 ports
  • • 1000BASE SFP: 2 ports

LED Indicators
  • • Per Unit: Power (Green)
  • • Per Port: Link & Activity (Green)




Environment

Operating Temperature

  • • 0°C to 50°C (32°F to 122°F)

Storage Temperature
  • • -40°C to 70°C (-40°F to 158°F)

Ambient Relative Humidity
  • • 10% to 95% (non-condensing)




Regulatory Approvals

ISO

  • • Manufactured in an ISO9001 facility

EMI
  • FCC Class B, CE Class B and LVD EN60950-1

Model

EX16926 Unmanaged 26 Port Gigabit Switch with 24 RJ45 Gigabit Ports and 2 Gigabit SFP Slots

產品介紹

The EX16926 provides 24 Gigabit Ethernet RJ45 ports and 2 SFP ports supporting Gigabit fiber for long distance connectivity. The EX16926 is feature rich with 10K Jumbo Frame support, full wire speed Gigabit throughput, QoS support and eco-friendly IEEE802.3az EEE (Energy Efficient Ethernet) compliant, making the EX16926 Series a powerful yet energy efficient network switch.

EtherWAN — "When Connectivity is Crucial."

產品亮點

Jumbo Frame Support

» Up to 10K bytes

Fiber Connectivity

» Two 1000BASE SFP ports

High Reliability

» Fanless design
» No moving parts

Eco-friendly support

» IEEE802.3az EEE (Energy Efficient Ethernet) allow less consumption during periods of low data activity

QoS

» Traffic classification based on IEEE802.1p CoS

產品規格

Technology

Standards

  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX/100BASE-FX
  • • IEEE802.3ab 1000BASE-T
  • • IEEE802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE802.3x Full duplex flow control
  • • IEEE802.3az Energy Efficient Ethernet
  • • IEEE802.1p Quality of Service (QoS)

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

Packet Buffer Memory
  • • 4.1MB

Processing Type
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE802.3x full-duplex flow control
  • • Auto MDI/MDIX

Jumbo Frame
  • • 10K bytes

Address Table Size
  • • 4K MAC addresses




Power

Input Voltage

  • • 100 to 240VAC

Power Consumption
  • • 14.6W Max. 0.15A




Mechanical

Casing

  • • Metal case
  • • IP30

Dimensions
  • • 44mm (H) x 441mm (W) x 131mm (D)
      (1.76" (H) x 17.64" (W) x 5.24" (D))

Weight
  • • 1.9Kg (4.18lbs.)

Installation
  • • Rack-mount (rack mounting kit included




Interface

Ethernet Port

  • • 10/100/1000BASE-T: 24 ports
  • • 1000BASE SFP: 2 ports

LED Indicators
  • • Per Unit: Power (Green)
  • • Per Port: Link & Activity (Green)




Environment

Operating Temperature

  • • 0°C to 50°C (32°F to 122°F)

Storage Temperature
  • • -40°C to 70°C (-40°F to 158°F)

Ambient Relative Humidity
  • • 10% to 95% (non-condensing)




Regulatory Approvals

ISO

  • • Manufactured in an ISO9001 facility

EMI
  • FCC Class B, CE Class B and LVD EN60950-1

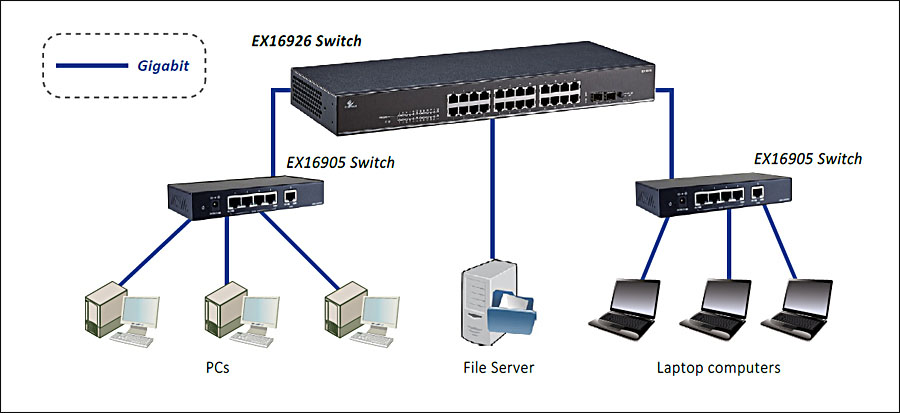

產品應用圖

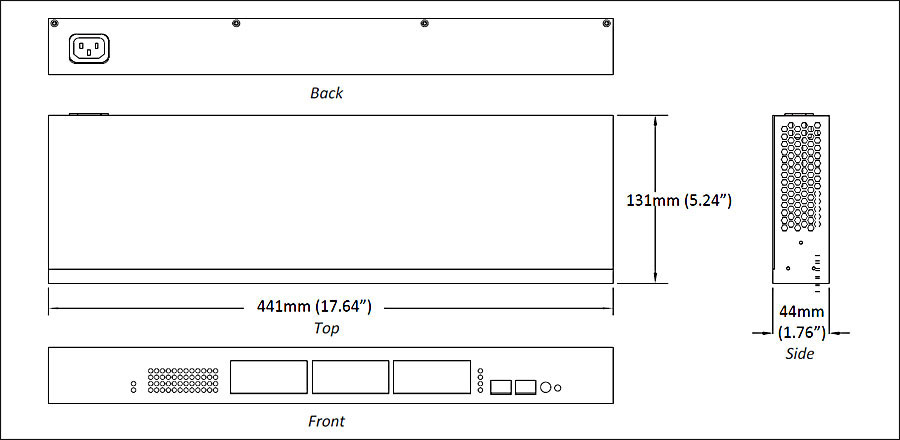

產品尺寸圖
