EL8000 Series - Hardened 1000BASE-TX to 1000BASE-SX/LX/BX/SFP Media Converter

If you can't see the content, please view the online version here. May 2018

New Product Release

EL8000 Series - Hardened 1000BASE-TX to 1000BASE-SX/LX/BX/SFP Media Converter


The EL8000 Series provides media conversion between 1000BASE-TX and 1000BASE-SX/LX/BX/SFP Fiber. Built specifically for mission critical applications in harsh environments, the EL8000’s hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40 to 75°C, and thermal dissipation optimized aluminum mechanical design. With redundant power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL8000 is the ideal media converter for environments where connectivity is crucial.


  • Full Gigabit bandwidth and Jumbo frames
    • 1000BASE-T and 1000BASE-SX/LX/BX/SFP Ethernet transmission conversion
    • 1000Mbps Full duplex and full wire-speed forwarding rate
    • Jumbo frames up to 10K bytes to increase throughput and transmission efficiency
  • Port Failure Alarm
    • Relay alarm configured by DIP switch to notify users when power fails or link is down
  • Hardened Grade
    • Supports -40 to 75°C (-40 to 167°F) operating temperature
    • Redundant power inputs on terminal block connector
    • Supports DIN-Rail mounting
  • Link-Fault-Pass-Through (LFPT)
    • Provides constant monitoring of the links connected to the media converters
    • If a copper link fails, the media converter will pass the fail state on throughout the link, disabling the fiber link and the copper link on the opposite end

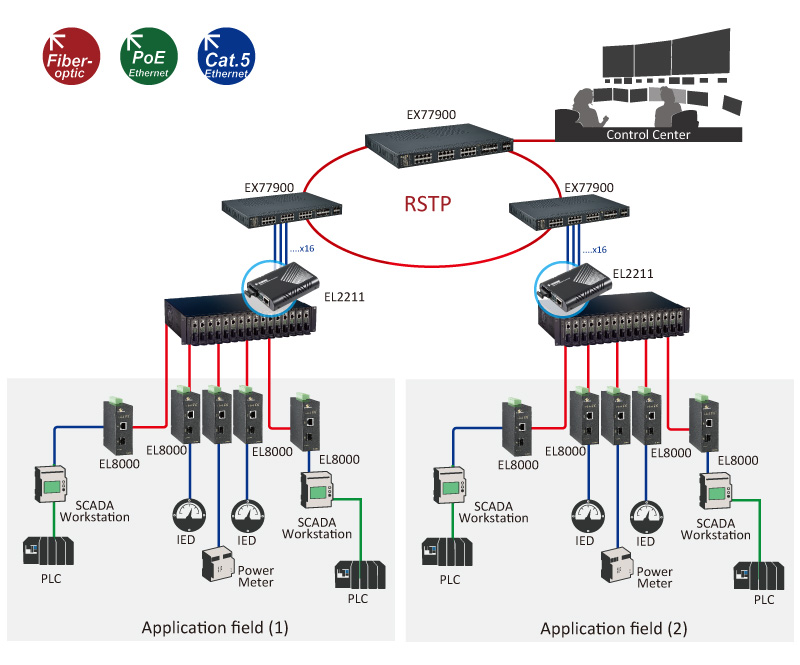

Application Example

Related products


EX77900 Series

IEC 61850-3/IEEE 1613 Lite L3 Hardened Managed 24-port Gigabit and 4-port 1G/10G SFP+ Ethernet Switch

EMC1600 Series

16-Bay Media Converter and Ethernet Extender Chassis

EL2211 Series

10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter

Field-proven Reliability

Hardened Ethernet equipment with superior reliability, long MBTF, redundant power support, wide operating temperature range, EDI, EMI, RFI and surge protection.

Full Product Testing

Our hardened products are required to pass stringent real-time data transfer testing at temperatures from -40 to +85°C for up to 72 hours.

Customer-centered Services

EtherWAN has a professional support crew, with domain know-how and hands-on experience working with system integrators and solution providers.
