High Bandwidth and Versatility

  • 8 or 12 10/100/1000BASE-T(X) ports for high bandwidth connections
  • Up to 4 dual-rate 1/10G SFP+ uplink ports for fiber connections
  • Full capacity switching running at full duplex

Hardened-Grade for Non-Ventilated & Harsh Environments

  • Wide operating temperature range -40 to 75°C (-40 to 167°F)
  • Fanless operation
  • High impact, thermal shock, and electrical noise resistance

Lite Layer 3 Functionality

  • Static routing, RIP v1/v2, and OSPF support
  • Redundancy with VRRP
  • Reduces amount of broadcast traffic

Compliance

  • IEC 61850-3/IEEE 1613 certified for power substation
  • NEMA TS2 rated
  • UL certified for safety

Management/Security Features

  • Port control, SFTP
  • Dying gasp feature provides SNMP trap upon power off
  • Configure and monitor with eVue™ and eLite™

Support

  • Complimentary Technical Support
  • Free Firmware Upgrades
  • Limited Lifetime Warranty

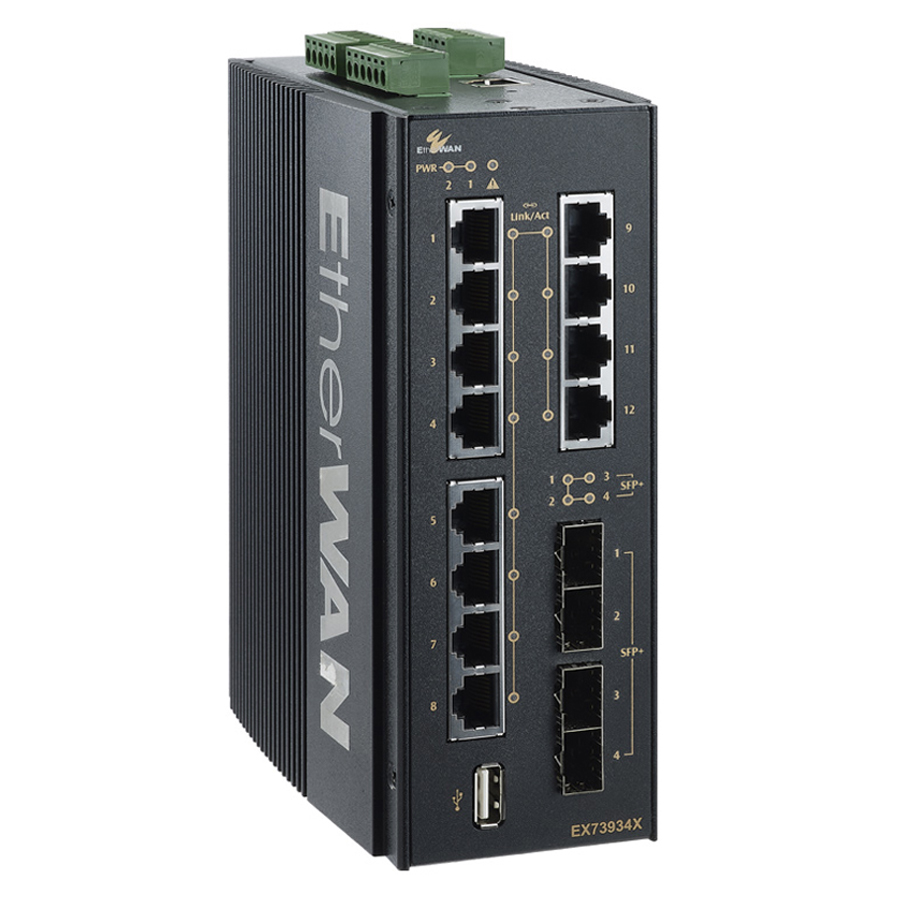

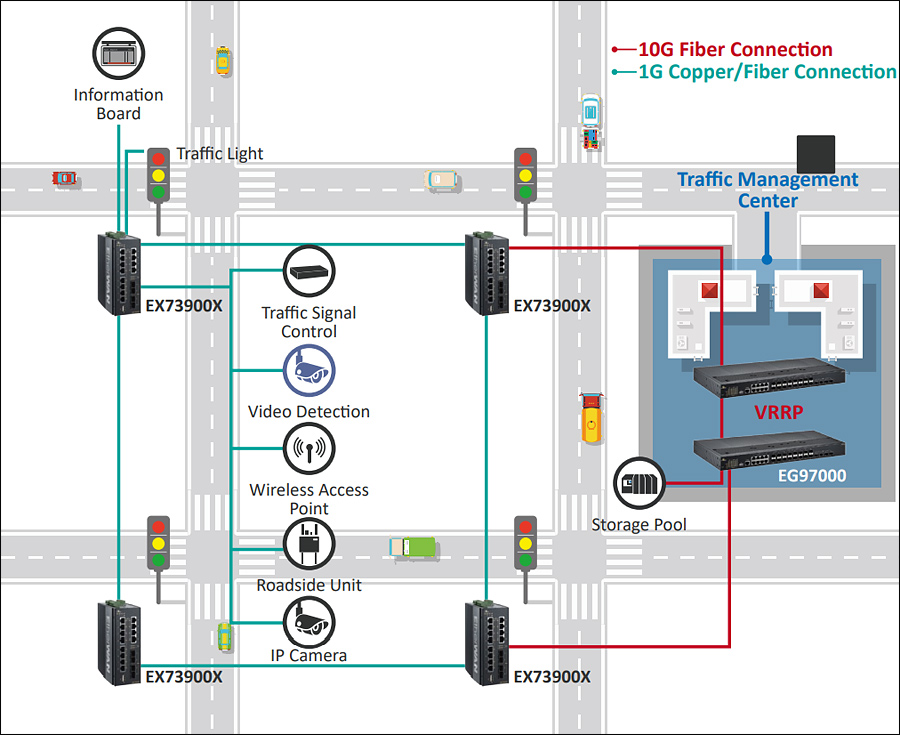

EtherWANのEX73900Xシリーズは、堅牢なDINレールマウント型のマネージドイーサネットスイッチプラットフォームです。EX73900Xシリーズは、最大12ギガビットイーサネットと4デュアルレート10ギガビットSFP +ポートを備えており、都市インフラストラクチャ、輸送、セキュリティ、変電所など、接続性が重要な分野のネットワークをサポートする柔軟性、速度、と信頼性を提供します。

EtherWAN — "When Connectivity is Crucial."

Interface

  • CLI, Telnet, Web GUI, SSH

Management

  • Firmware upgrade
  • SFTP (Secured FTP) support
  • Configuration backup
  • DHCP Server/Client
  • RMON (Remote Monitoring
  • Port Mirroring
  • NTP (Network Time Protocol) synchronization
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • SNMP v1/v2c/v3

Security

  • MAC Address filtering
  • Enable/Disable port
  • Storm Control
  • System Logging
  • IEEE 802.1x LAN Access Control
  • Remote authentication through RADIUS and TACACS+
  • Complex password support
  • Multi-user login and privileged access management
  • SSH for CLI and Telnet security
  • TLS and HTTPS for Web security
  • ACL (Access Control List, up to 4096 entries)
  • Storm Detection Support

Quality of Service (QoS)

  • Priority Queues: 8 queues per port
  • Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
  • Rate Limiting (Ingress/Egress)

Layer 2 Features

  • Auto-negotiation for port speed and duplex
    • Flow Control
    • IEEE 802.3x full duplex mode
    • Back-pressure half duplex mode
  • Redundant Protocols
    • IEEE 802.1D STP
    • IEEE 802.1w RSTP
    • IEEE 802.1s MSTP
    • EtherWAN's Alpha-Ring network fault recovery
  • VLANs
    • IEEE 802.1Q Tag VLANs
    • GVRP
    • GMRP
  • Link Aggregation
    • Static Trunk (4 groups)
    • IEEE 802.3ad LACP
  • IGMP Snooping v1/v2/v3

Layer 3 Features

  • IP Packet Routing
    • Maximum number of routes in hardware: 64 entries
    • Static Routing
    • RIP v1/v2
    • OSPF v2
  • Routing Redundancy
    • VRRP

Software Properties and Performance

  • Switching Fabric
    • 104Gbps
  • Forwarding Rate
    • 75.29Mpps
  • Max VLANs
    • 256 (4096 VID)
  • Jumbo Frame Size
    • 9KB
  • MAC Table Size
    • 16K
  • Packet Buffer Memory
    • 12M bits


Interface

  • Ethernet
    • 8 or 12 x 10/100/1000BASE-T(X)
    • 2 or 4 x 1/10G SFP+
  • Console
    • 1 x RJ45
  • Config Backup
    • 1 x USB (Type A Connector)

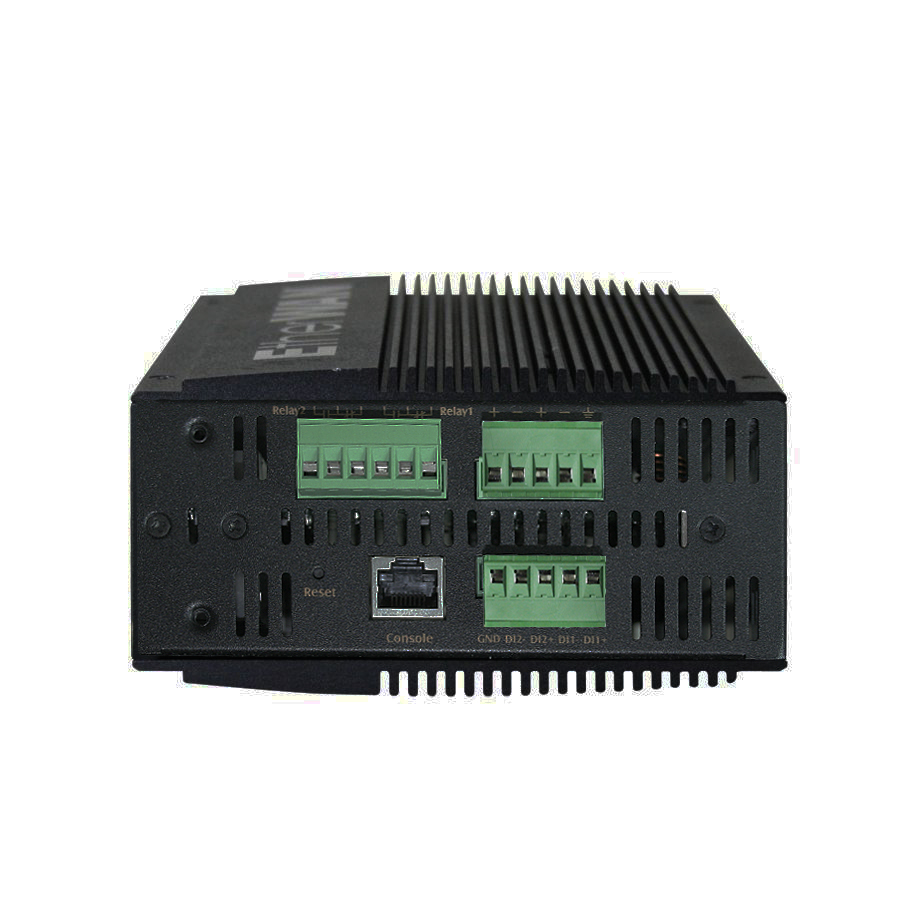

  • Digital Input
    • 2 x Digital Input
    • Wet Contact: 0-3V for State 0; 13-30V for State 1; max input current: 8mA
    • Dry Contact: Logic Level 1-Close to GND; Logic Level 0-Open
  • Alarm Contact
    • 2 x Relay output, current capacity; 0.6A/30VDC
  • LED Indicators
    • Per Unit: Power 1, Power 2, Alarm
    • Per Port: Link/Activity

Technology

  • Standards
    • IEEE 802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX/100BASE-FX
    • IEEE 802.3ab 1000BASE-T
    • IEEE 802.3ad link aggregation control
    • IEEE 802.3z 1000BASE-SX/1000BASE-LX
    • IEEE 802.3x full duplex and flow control
    • IEEE 802.1D STP
    • IEEE 802.1p QoS
    • IEEE 802.1Q Tag VLANs
    • IEEE 802.1s MSTP
    • IEEE 802.1w RSTP
    • IEEE 802.1x PNAC
    • IEEE 802.1ab LLDP
    • IEEE 802.3az EEE
  • Forward/Filtering Rate
    • 14,880pps for 10Mbps
    • 148,810pps for 100Mbps
    • 1,488,100pps for 1000Mbps
    • 14,881,000pps for 10Gbps
  • Processing Type
    • Store-and-forward
    • Auto-negotiation
    • Half-duplex back-pressure and fullduplex flow control
    • Auto MDI/MDIX
  • System Memory
    • 2Gb DDR3 SDRAM
  • Flash Storage
    • 1Gb

Power

  • Input
    • 12-48VDC Redundant (Terminal block)
  • Power Consumption
    • 20W Max
  • Protection
    • Reverse Polarity Protection

Physical

  • Casing Material
    • Aluminum
  • IP Rating
    • IP30

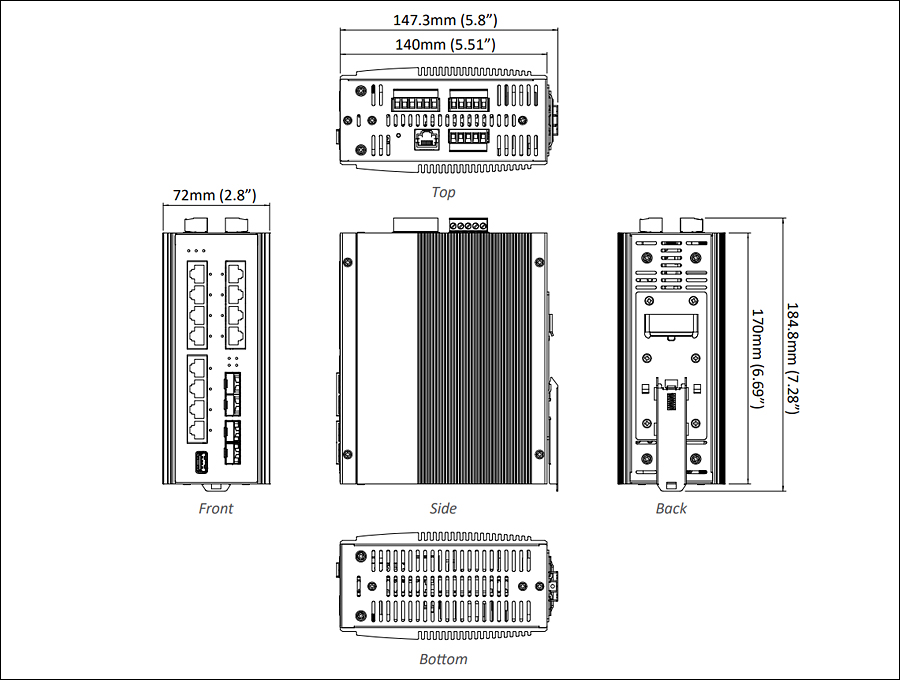

  • Dimensions
    • 72 x 140 x 170mm (W x D x H)
      2.8" x 5.5" x 6.7"
  • Weight
    • 1.4kg (3.08lbs)
  • Installation Type
    • DIN-rail mounting

Environmental

  • Operating Temp.
    • -40 to 75°C (-40 to 167°F)
  • Storage Temp.
    • -45 to 85°C (-49 to 185°F)
  • Relative Humidity
    • 5% to 95% (non-condensing)

Regulatory

  • ISO
    • Manufactured in ISO-9001 facility
  • EMI
    • FCC Part 15B Class A
    • VCCI Class A
    • EN 61000-6-4
    • EN 61000-3-2
    • EN 61000-3-3
  • EMS
    • EN 61000-4-2 (ESD)
    • EN 61000-4-3 (Radiated RFI)
    • EN 61000-4-4 (Burst)
    • EN 61000-4-5 (Surge)
    • EN 61000-4-6 (Induced RFI)
    • EN 61000-4-8 (Magnetic field)
  • Safety
    • UL 61010
  • Traffic
    • NEMA TS2
  • Rail
    • EN 50121-4
  • Power Substation
    • IEC 61850-3/IEEE 1613
  • Vibration
    • IEC 60068-2-6
  • Shock
    • IEC 60068-2-27
  • Free Fall
    • FED STD 101C Method 5007.1

Warranty

What's Included

  • Device
    • Ethernet switch
  • Cables
    • 1 Console cable
  • Installation
    • Mounting brackets, screws
  • Documentation
    • Quick install guide

Model

EX73934X-0VB 12-port 10/100/1000BASE-T(X) + 4-port 1/10G SFP+
EX73924X-0VB 8-port 10/100/1000BASE-T(X) + 4-port 1/10G SFP+
EX73922X-0VB 8-port 10/100/1000BASE-T(X) + 2-port 1/10G SFP+

Accessories

Hardened Gigabit & 10 Gigabit SFP Modules www.etherwan.com/products/sfp-fiber-transceiver
DIN-Rail Power Supplies www.etherwan.com/products/din-rail-power-supply (*)
*Recommended Power Supply EX41-145046 Power Supply 45W 12VDC with Open Wire
