ED3238

10/100BASE-TX PoE (IEEE 802.3af) 同軸ケーブル イーサネット エクステンダー

PoE_15W
UL 60950

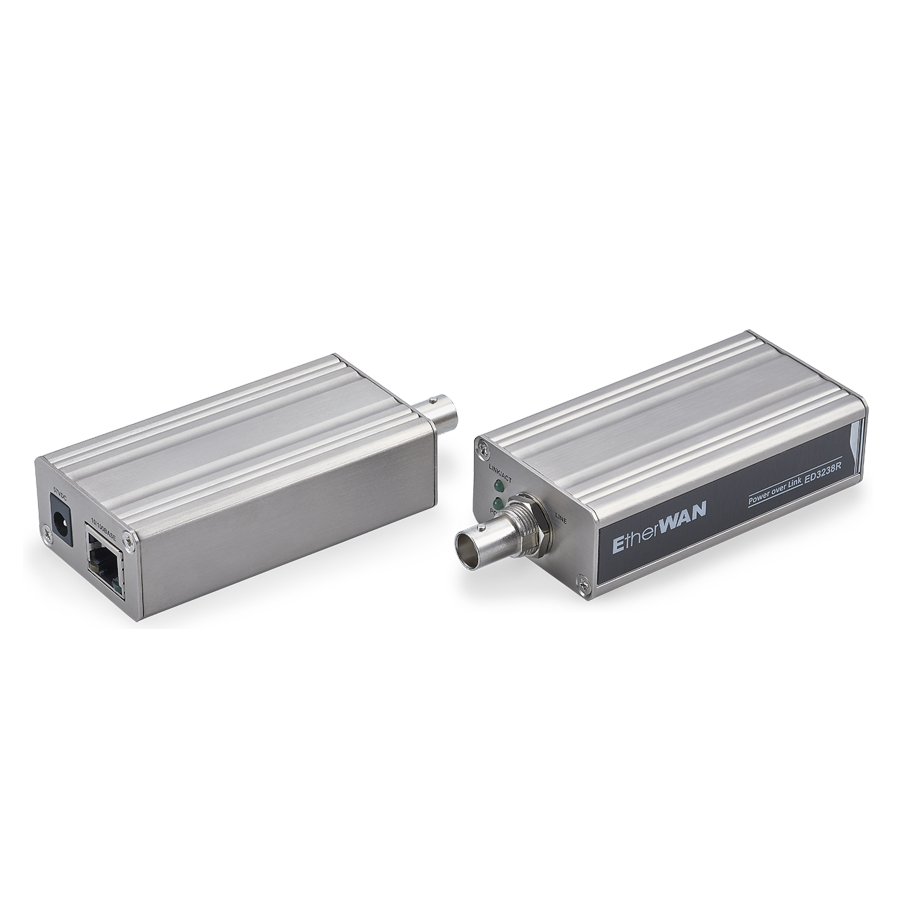

ED3238 : 10/100BASE-TX IEEE802.3af PoE Ethernet Extender over Coaxial Cable

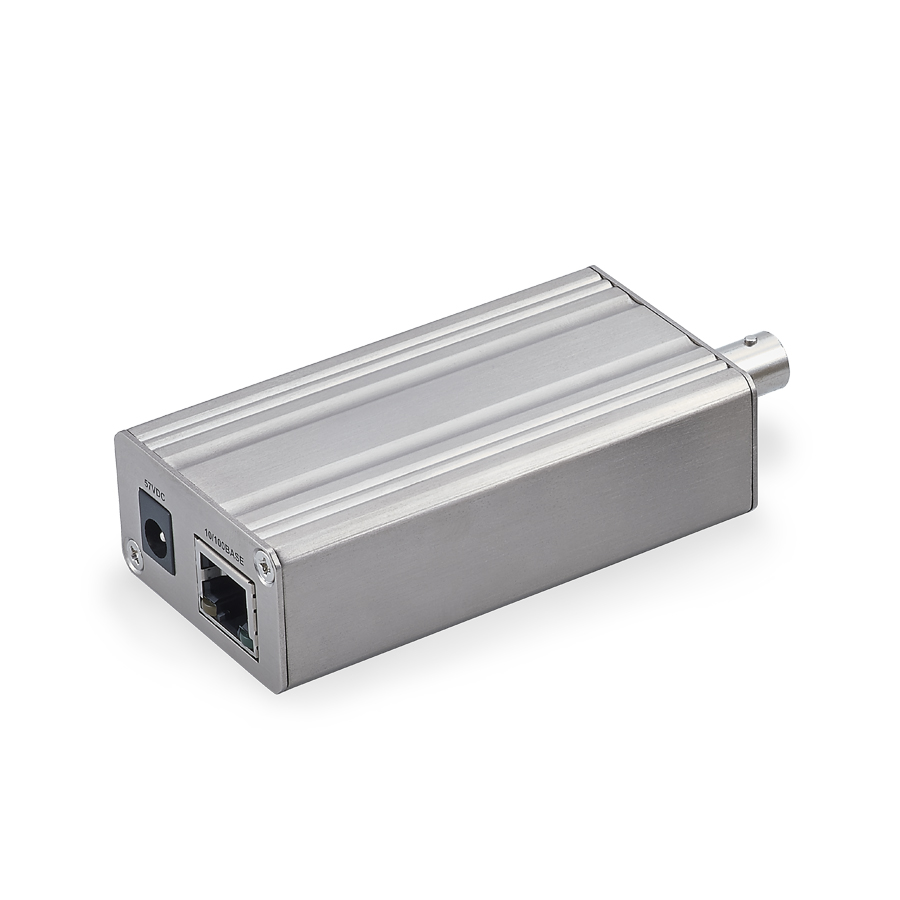

ED3238 : 10/100BASE-TX IEEE802.3af PoE Ethernet Extender over Coaxial Cable_front

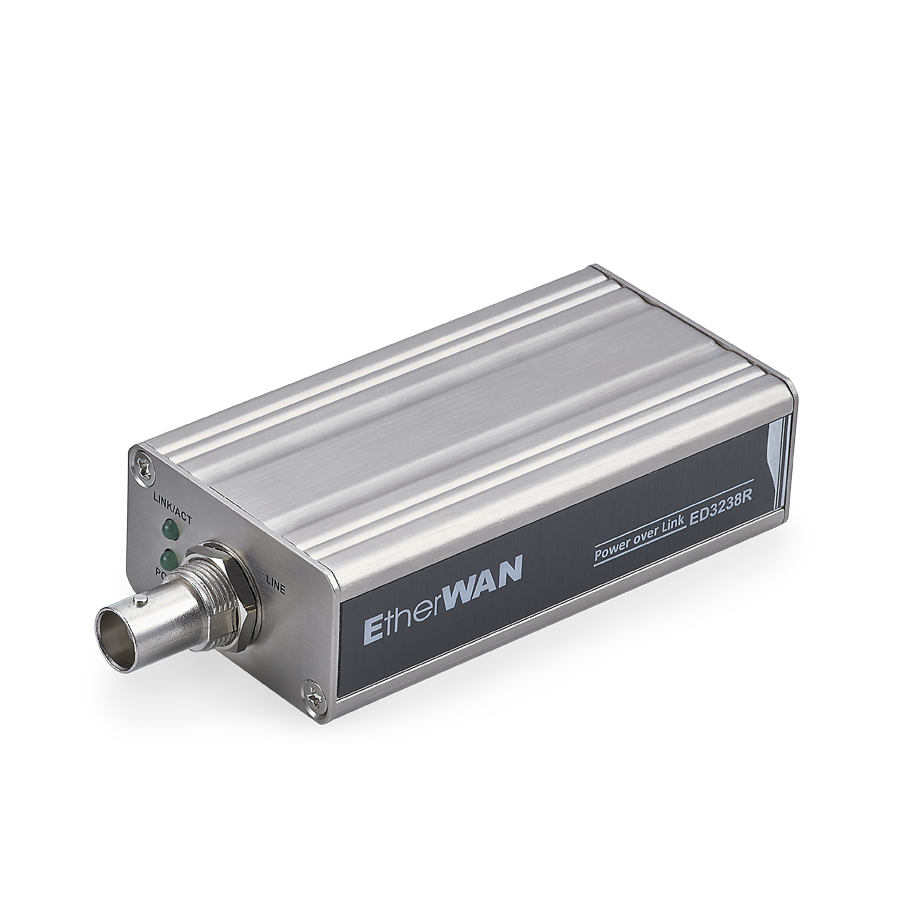

ED3238 : 10/100BASE-TX IEEE802.3af PoE Ethernet Extender over Coaxial Cable_back
PoLは同軸ケーブルで最大180m (590 ft) イーサネット データと電力を伝送できます
最大15.4W電力と 100Mbps 帯域幅まで
設置し易い手のひらサイズ
ED3238 : 10/100BASE-TX IEEE802.3af PoE Ethernet Extender over Coaxial Cable
ED3238 : 10/100BASE-TX IEEE802.3af PoE Ethernet Extender over Coaxial Cable_front
ED3238 : 10/100BASE-TX IEEE802.3af PoE Ethernet Extender over Coaxial Cable_back
概要
特長
仕様
応用例
寸法図
製品型番
紹介動画

The ED3238 Ethernet Extender utilizes EtherWAN’s exclusive Power over Link (PoL) technology to deliver both PoE power and Ethernet communications over a single legacy coaxial cable. The ED3238 PoL solution is comprised of one transmitter and one receiver working together to provide reliable communications and power to remote PoE Powered Devices such as an IP cameras, wireless access points, emergency intercoms, or VoIP phones.

When using RG6 coaxial cable, the ED3238 transmitter provides a maximum of 15.4 watts of power and a bandwidth of 100Mbps to the ED3238 receiver, at a distance of up to 180 meters. If RG11 coaxial cable is used, the maximum transmission distance is extended to 250 meters.

The ED3238 is highly resistant to electromagnetic interference, shock, and vibration, ensuring connection reliability even in harsh environments. Its compact size makes it easy to install in areas where space is limited.

EtherWAN — "When Connectivity is Crucial."

Power over Link™ up to 180 m (590 ft.)

» A superb 15.4 watts power with with 100Mbps bandwidth is delivered to the receiving side by 30m (min.) or 180m (max.) long coaxial cable.

Ethernet extension solution with high transmission data rate up to 100Mbps

» Up to 180 meters transmission distance with 100Mbps data rate

Powered by IEEE802.3at Devices

» ED3238 transmitter side can be powered either by an IEEE802.3at PoE/PSE device or a 57VDC adaptor
* Operating distance: 30 to 180m

Technology

Standards

  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX
  • • IEEE802.3af PoE/PSE

Forward and Filtering Rate
  • • 1,488,100pps for 1000Mbps

Processing Type
  • • IEEE802.3x Full-duplex flow control
  • • Auto Negotiation
  • • Auto MDI/MDIX




Power

Input

  • • DC Jack: 57VDC
  • • ED3238T PoE/PD port: 50VDC to 57VDC

Power Consumption
  • • Device: Max. 6W
  • • PoE power budget: 15.4W max. (depending on power input)

Input Voltage v.s. Output Power



DC Jack InputVoltage RG6/U 18AWG CCS ED3238R PoE/PSE OutputPower RG1114AWGCCS ED3238R PoE/PSE OutputPower
50VDC 180m 5.5W 250m 11W
51VDC 180m 7.0W 250m 13W
52VDC 180m 9.0W 250m 15W
52VDC 180m 10.5W 250m 16W
54VDC 180m 12.0W 250m 17W
55VDC 180m 14.0W 250m 17W
56VDC 180m 15.4W 250m 18W
57VDC 180m 15.4W 250m 18W

Mechanical

Casing

  • • Aluminum Case
  • • IP30

Dimensions
  • • 46x 98x 25mm (W x D x H)
      (1.81"x 3.86" x 0.98")

Weight
  • • 0.1Kg (0.221 lbs.)

Installation
  • • Panel or Rack Mounting




Interface

Ethernet Port

  • • ED3238T/R: 1 x RJ-45 port
  • • ED3238T/R: 1 x PoE/PD port
  • • Speed: 10/100Mbps
  • • Distance: 100 meters (328ft.)
  • • Cable: 100BASE-TX: UTP CAT. 5 (4-pair wire)

Ethernet Extender Port
  • • Port: One 75Ω BNC Port (with F-type connector)
  • • Cable: Coaxial Cable (5C2V / RG6/U)
  • • Distance:
    • 250m (820ft) RG11 AWG 14 CCS coaxial cable
    • 180m (590ft) RG6/U AWG 18 CCS coaxial cable
    • 120m (394ft) RG59 coaxial cable

LED Indicators
  • • Power: Power status
  • • LINK/ACT: Data transmission and power delivery
  • • PoE: PD status




Environment

Operating Temperature

  • • -10to 50°C (14to 113°F)

Storage Temperature
  • • -20to 70°C (-4to 158°F)

Ambient Relative Humidity
  • • 5% to 95% (non-condensing)




Regulatory Approvals

ISO

  • • Manufactured in an ISO 9001 facility

Safety
  • UL 60950-1 and IEC 60950-1

EMI
  • CE
  • EN 55022
  •
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
  • FCC Part 15B, Class A
  • VCCI

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)




Model

ED3238-TRU PoL/PoE Ethernet extender over coaxial cable
(including one ED3238T, one ED3238R and one 57VDC adaptor, USA type)
ED3238-TRE PoL/PoE Ethernet extender over coaxial cable
(including one ED3238T, one ED3238R and one 57VDC adaptor, Europe type)
ED3238-TRX PoL/PoE Ethernet extender over coaxial cable
(including one ED3238T and one ED3238R)
