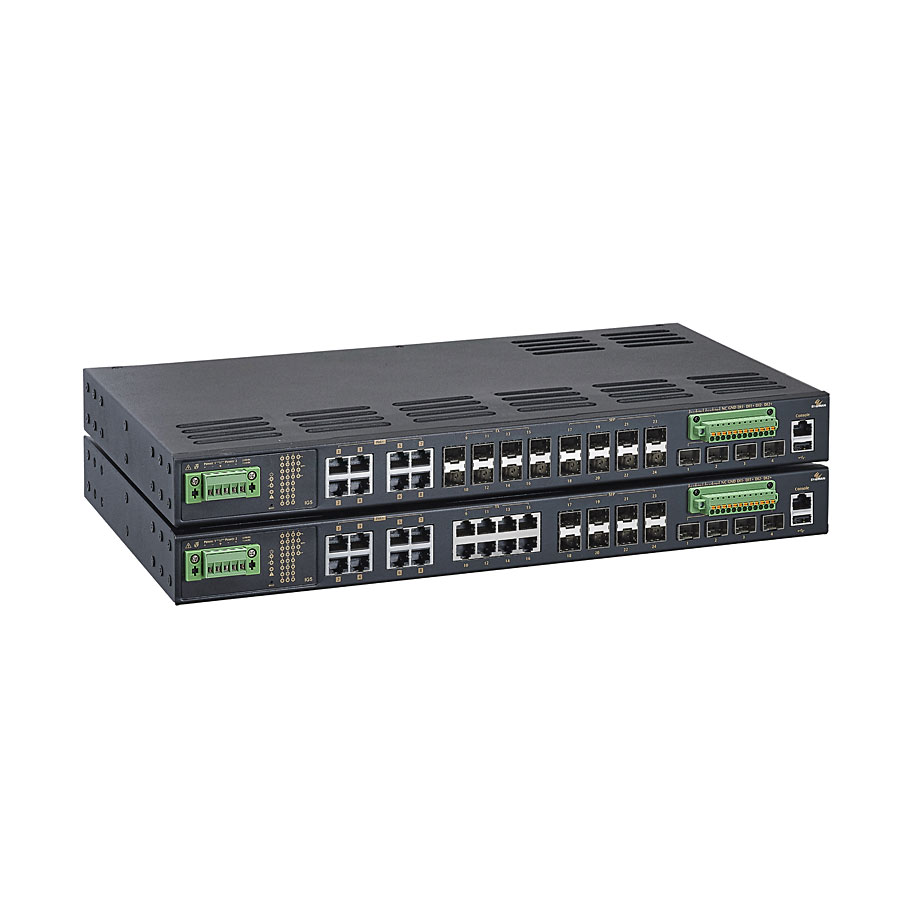

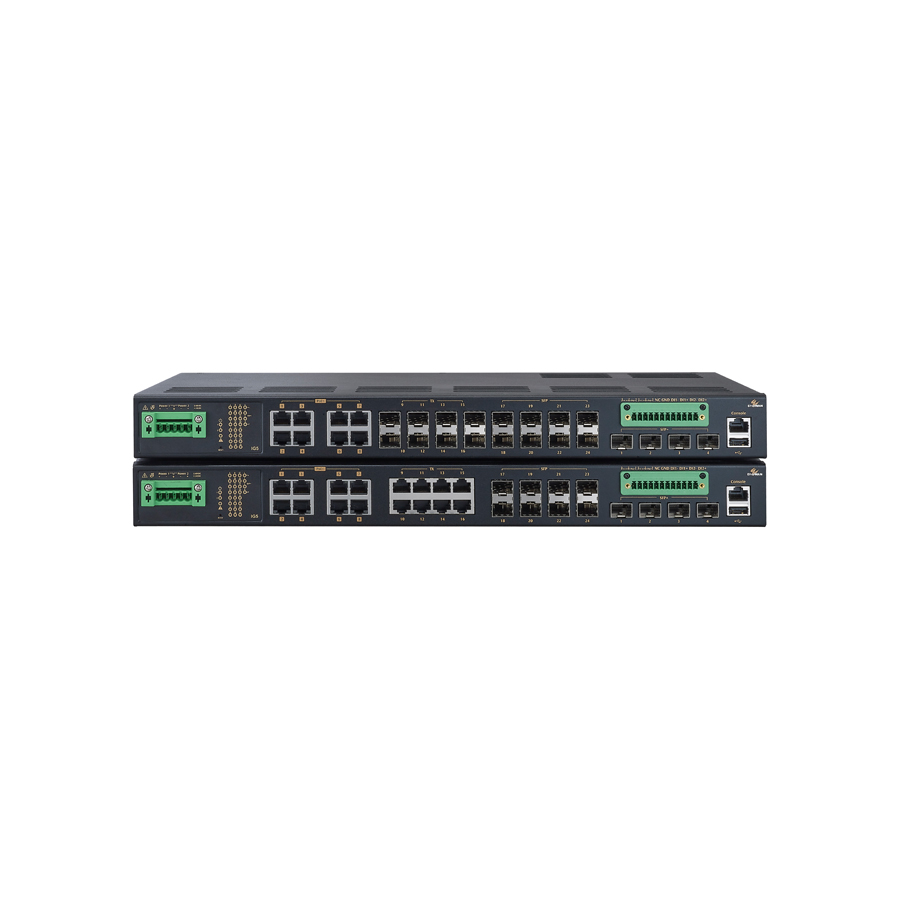

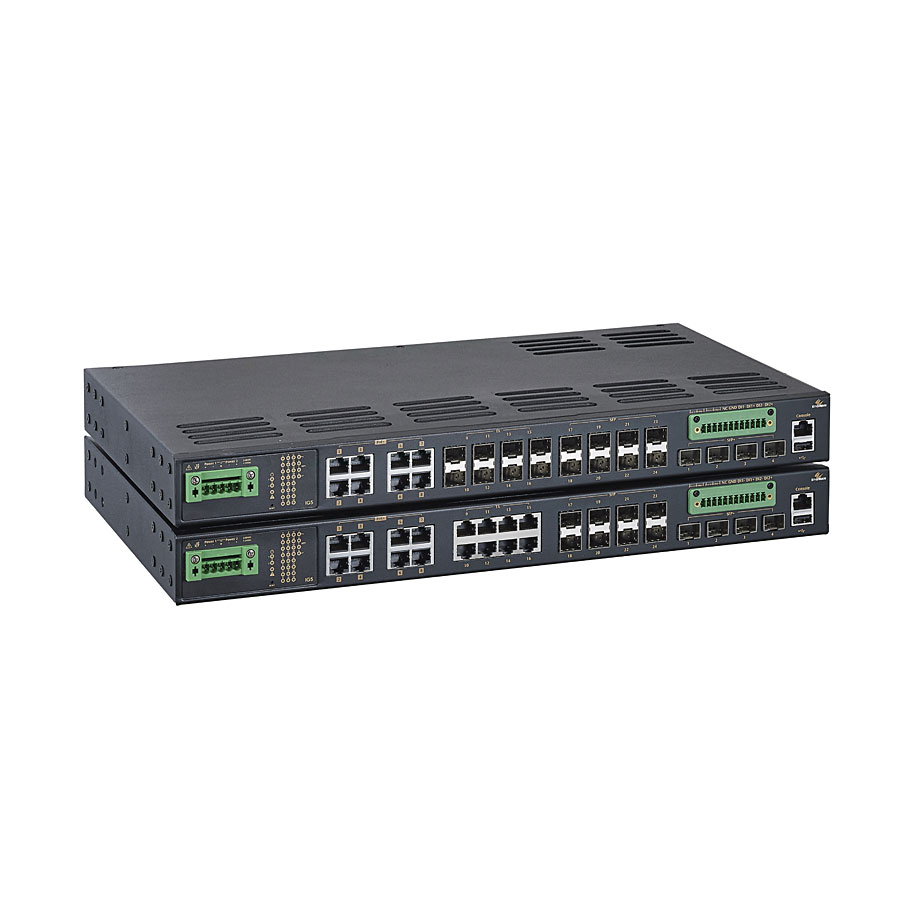

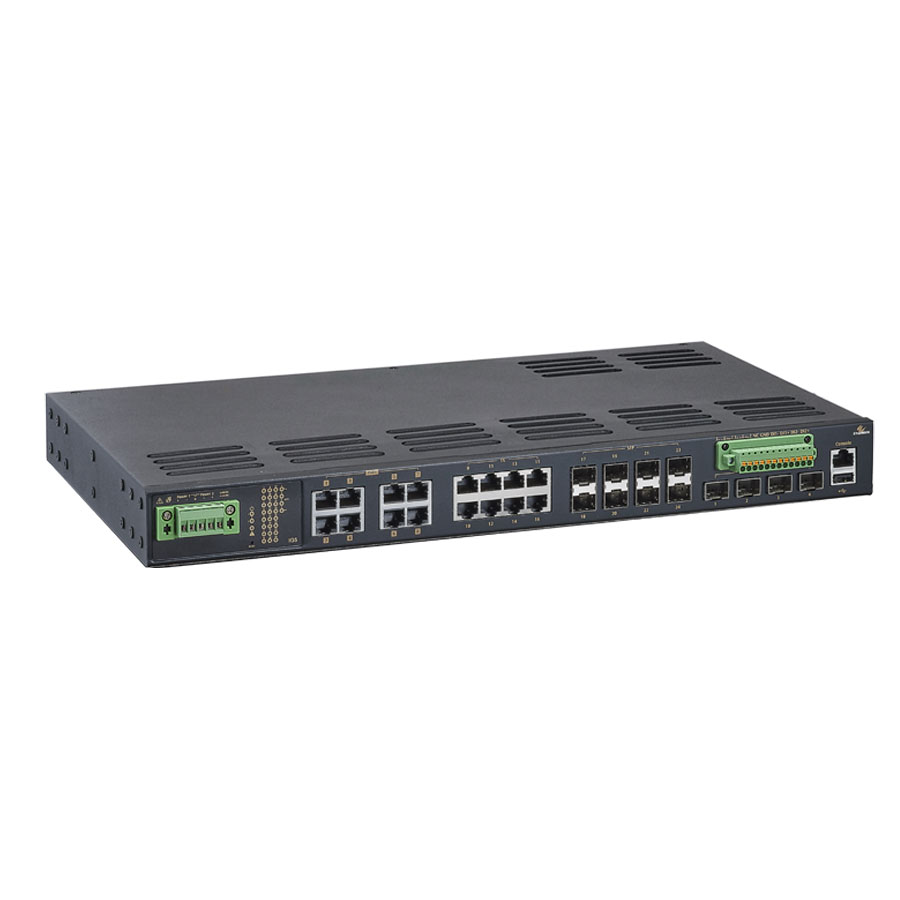

IG5 SV 系列

⾼頻寬和多介⾯配置

• • 24 埠 Full Gigabit 全千兆⾼頻寬連接
  • 4 個獨立 SFP+ 埠⽀援 1G/10G 光纖連接
  • 128Gbps 全雙工交換容量

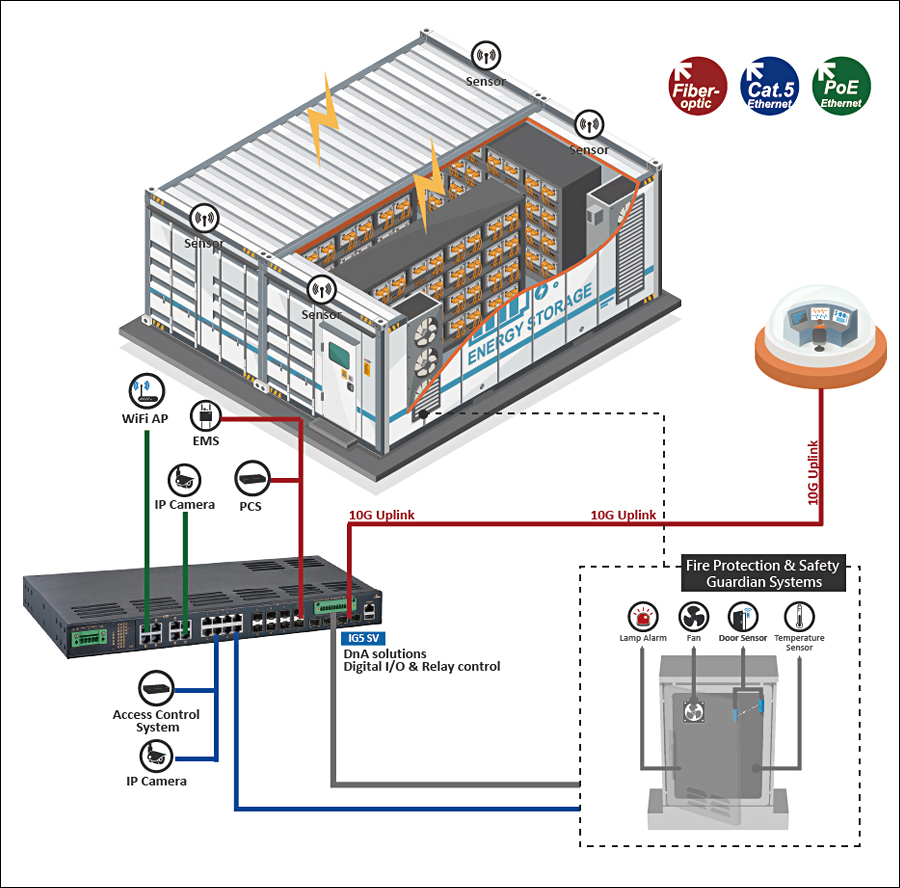

  • 內建數位 I/O 控制埠銜接偵測、告警系統

PoE 功能

• • 提供 8 個IEEE 802.3 af/at type 2 PoE 埠
  • 每埠最大 30W 輸出, 總功率預算 90W
  • 支援 PoE 看門狗 (PoE Watchdog) 監控功能

第三層網管功能

• • 靜態路由、RIP v1/v2 , 和 OSFP
  • VRRP 虛擬路由器備援協定

靈活的安裝

• • 支援機架式和面板式安裝
  • 整合式通訊狀態面板
  • 便於電纜管理

⽀援變電站通訊傳輸與時間同步

• • 符合IEC61850-90-4 GOOSE 與多播訊息傳輸
  • 所有連接埠皆⽀援IEEE 1588v2 PTP協議
  • ⽀援One-Step & Two-Step對等延遲量測機制
  • 可作為透明時鐘的網橋裝置運⾏

適⽤於不通風和惡劣環境的強固設計

• • -40⾄ 75°C（-40⾄167°F）
  • 寬⼯作溫度範圍操作符合 IEC60068-2-2 環境類型測試
  • ⾼耐溫衝擊和⾼雜訊抗噪通過 IEC 61850-3 和 IEEE 1613標準測試
  • 通過 IEC 60255-27 電氣保護安全測試

Interface

• • CLI, Telnet, Web GUI

Management

• • Firmware Upgrade
  • Configuration Backup
  • DHCP Server/Client
  • RMON (Remote Monitoring)
  • Port Mirroring
  • NTP (Network Time Protocol) Synchronization
  • LLDP (Link Layer Discovery Protocol)
  • IPv4/IPv6
  • SNMP v1/v2c/v3
  • Modbus

Security

• • MAC Address Filtering
  • Enable/Disable Port
  • Storm Control
  • System Logging
  • IEEE 802.1x LAN Access Control
  • Remote Authentication through RADIUS and TACACS+
  • Complex Password Support
  • Multi-user Login and Privileged Access Management
  • SSH for CLI and Telnet Security
  • SSL and HTTPS for Web Security
  • ACL (Access Control List, up to 4096 Entries)
  • IPSG (IP Source guard)
  • DAI (Dynamic ARP Inspection)
  • DHCP Snooping

Layer 2 Features

• Auto-negotiation for Port Speed and Duplex
  • Flow Control
  • IEEE 802.3x full duplex mode
  • Back-pressure half duplex mode
• Redundant Protocols
  • IEEE 802.1D STP
  • IEEE 802.1w RSTP
  • IEEE 802.1s MSTP
  • EtherWAN's Alpha-Ring network fault recovery
• VLANs
  • IEEE 802.1Q Tag VLANs
  • GVRP
  • GMRP
• Link Aggregation
  • Static Trunk (4 groups)
  • IEEE 802.3ad LACP
• IGMP Snooping v1/v2/v3

Layer 3 Features

• IP Packet Routing
  • Maximum number of routes in hardware: 512 entries
  • Static Routing
  • RIP v1/v2
  • OSPF v2
• Routing Redundancy
  • VRRPv2

Quality of Service (QoS)

• • Priority Queues: 8 Queues Per Port
  • Traffic Classification Based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and Strict Mode
  • Rate Limiting (Ingress/Egress)

Software Properties and Performance

• Switching Fabric
  • 128Gbps
• Forwarding Rate
  • 95.23Mpps
• Max VLANs
  • 256 (4096 VID)
• Jumbo Frame Size
  • 9KB
• MAC Table Size
  • 16K
• Packet Buffer Memory
  • 12M bits

Interface

• Ethernet
  • 10/100/1000BASE-T(X) PoE: 8 ports (PoE models)
  • 10/100/1000BASE-T(X): 0, 8, 16 or 24 ports
  • 100/1000BASE SFP: 0, 8, 16 or 24 ports
  • 1G/10G SFP+: 4 ports
• Console
  • 1 x RJ45
• Config Backup
  • 1 x USB (Type A Connector)
• Digital Input
  • 2 x Digital Input
  • Wet Contact: 0-3V for State 0; 13-30V for State 1; Max input current: 8mA
  • Dry Contact: Logic Level 1–Close to GND; Logic Level 0-Open
• Alarm Contact
  • 2 x Relay output, current capacity
    0.5A/48VDC
• LED Indicators
  • Per Unit: Power 1, Power 2 (Green)
  • Link/Activity (Green)
  • Per Port:Alarm (Red)
  • PoE Port: PoE Status (Green)

Physical

• Casing Material
  • Metal
• IP Rating
  • IP40

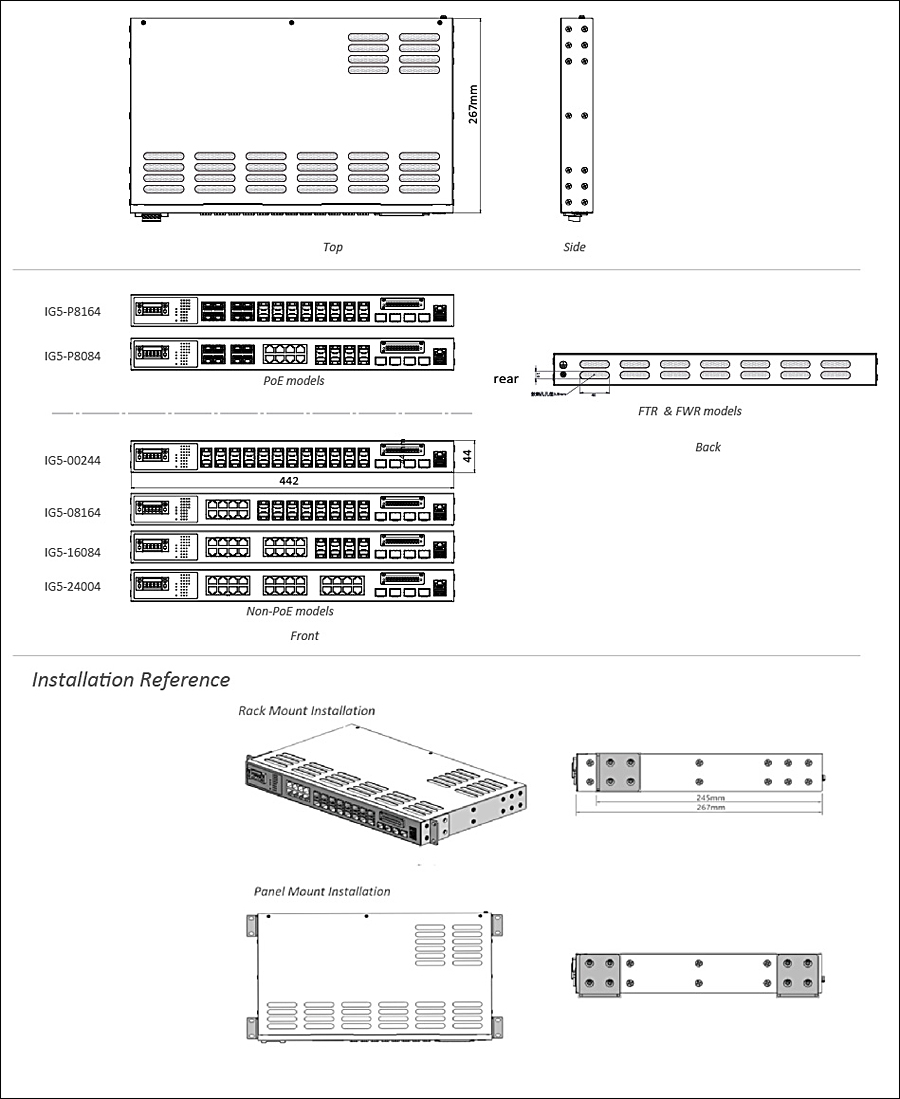

• Dimensions
  • 442 x 267 x 44mm (W x D x H)
    17.4" x 10.5" x 1.73"
• Weight
  • 4.6kg (10.14lbs) / 4.0kg (8.82lbs)
• Installation Type
  • Rack mounting / Panel mounting

Environmental

• Operating Temp.
  • -40 to 75°C (-40 to 167°F)
    (-40°C to 85°C for IEC 60068-2-2 Environmental 16 hours)
• Storage Temp.
  • -45 to 85°C (-49 to 185°F)
• Relative Humidity
  • 5% to 95% (non-condensing)
• MTBF
  • 790,907 hours

Technology

• Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3ae 10Gigabit Ethernet
  • IEEE 802.3ad link aggregation control
  • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • IEEE 802.1D STP
  • IEEE 802.1p QoS
  • IEEE 802.1Q Tag VLANs
  • IEEE 802.1s MSTP
  • IEEE 802.1w RSTP
  • IEEE 802.1x PNAC
  • IEEE 802.1ab LLDP
• Forward/Filtering Rate
  • 14,880pps for 10Mbps
  • 148,810pps for 100Mbps
  • 1,488,100pps for 1000Mbps
  • 14,881,000pps for 10Gbps
• Processing Type
  • Store-and-forward
  • Auto-negotiation
  • Half-duplex back-pressure and full-duplex flow control
  • Auto MDI/MDIX
• System Memory
  • 2Gb DDR3 SDRAM
• Flash Storage
  • 1Gb

Regulatory

• ISO
  • Manufactured in ISO-9001 facility
• EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
  • BSMI
• EMS
  • EN 61000-6-2
  • EN 61000-4-2 (ESD)
  • EN 61000-4-3 (Radiated RFI)
  • EN 61000-4-4 (Burst)
  • EN 61000-4-5 (Surge)
  • EN 61000-4-6 (Induced RFI)
  • EN 61000-4-8 (Magnetic field)
• Safety
  • UL 62368-1
• Vibration
  • IEC 60068-2-6
• Shock
  • IEC 60068-2-27
• Free Fall
  • IEC 60068-2-31
• Industrial
  • EN 50121-4
• Power Substation
  • IEC 61850-3/IEEE 1613/IEC 60255-27
  • IEC 61850-90-4

Power

• Input
  • 24VDC to 48VDC (Nominal)
  • 18 - 60VDC (Operational)
  • Redundant Power Inputs (Terminal Block)
• Power Consumption
  • 50W max. (Without PoE)
• Protection
  • Reverse Polarity Protection
  • Overload Current Protection
• PoE (Available for PoE models)
  • PoE Modes
    - 802.3af/at Mode A: Pins 1/2(-), 3/6(+)
  • Power Output
    - Ports 1-8: 15W Up to 30W/port
    - Total Power Budget: 90W
  • Complience
    - IEEE 802.3af type 1, ≤15.4W PD devices
    - IEEE 802.3at type 2, 30W PD devices.

Warranty

• Length
  • Limited Lifetime
• Details
  • www.etherwan.com/support/warranty-policy

What's Included

• Device
  • Ethernet Switch
• Cables
  • 1 Console Cable
• Installation
  • Mounting brackets, screws
