EX87000 系列

IEC 61850-3/IEEE 1613強固級網管型24埠10/100BASE+4埠Gigabit乙太網路交換器(SFP選擇組合)

SFP
Fanless
Wide Temperature
IEC 61850
EN 50121-4
NEMA-TS2
EX87000 Series IEC 61850-3/IEEE 1613 Hardened Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options
EX87000 Series IEC 61850-3/IEEE 1613 Hardened Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options
EX87000 Series IEC 61850-3/IEEE 1613 Hardened Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options
最高可達28埠多元光纖介面組合:SC/ST/WDM/SFP

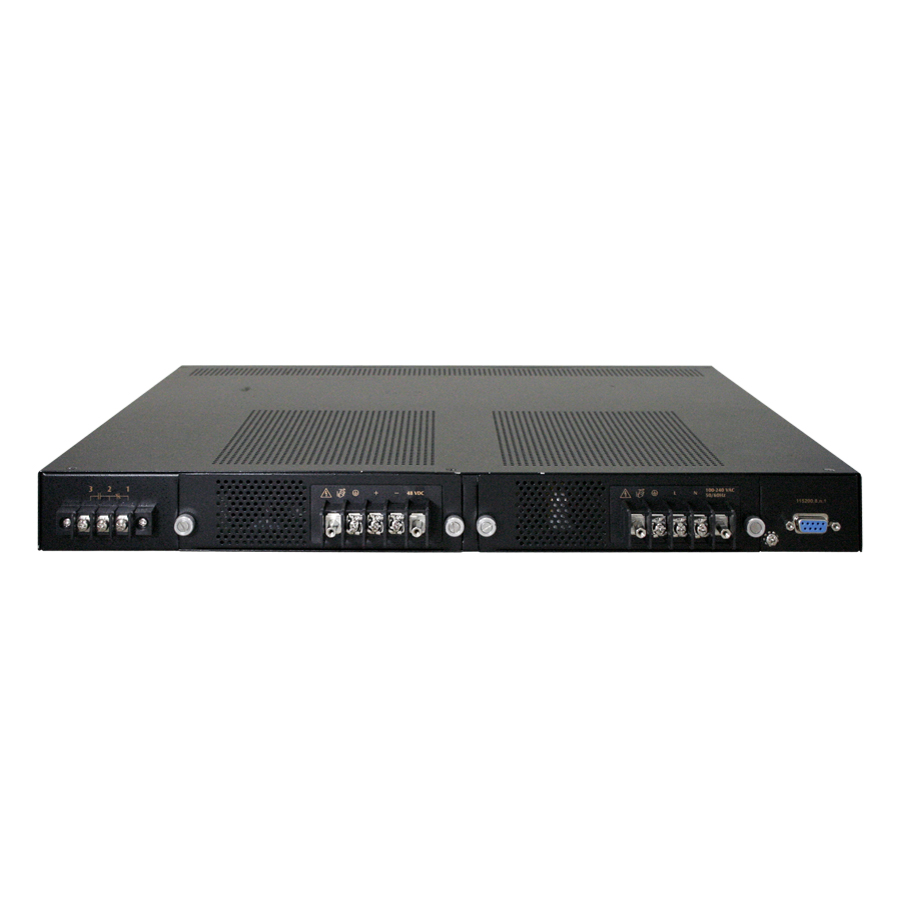

支援AC&DC雙備援電源輸入
抗ESD及電磁突波保護機制
EX87000 Series IEC 61850-3/IEEE 1613 Hardened Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options
EX87000 Series IEC 61850-3/IEEE 1613 Hardened Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options
EX87000 Series IEC 61850-3/IEEE 1613 Hardened Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options
產品介紹
產品亮點
產品特色
產品規格

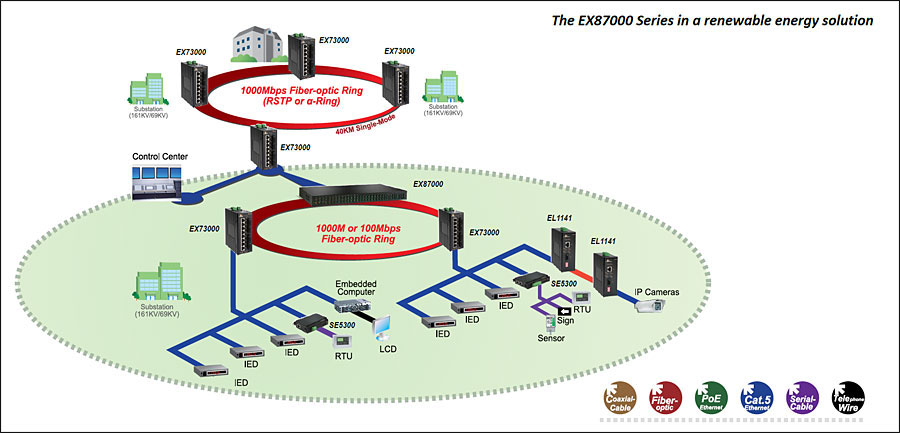

產品應用圖

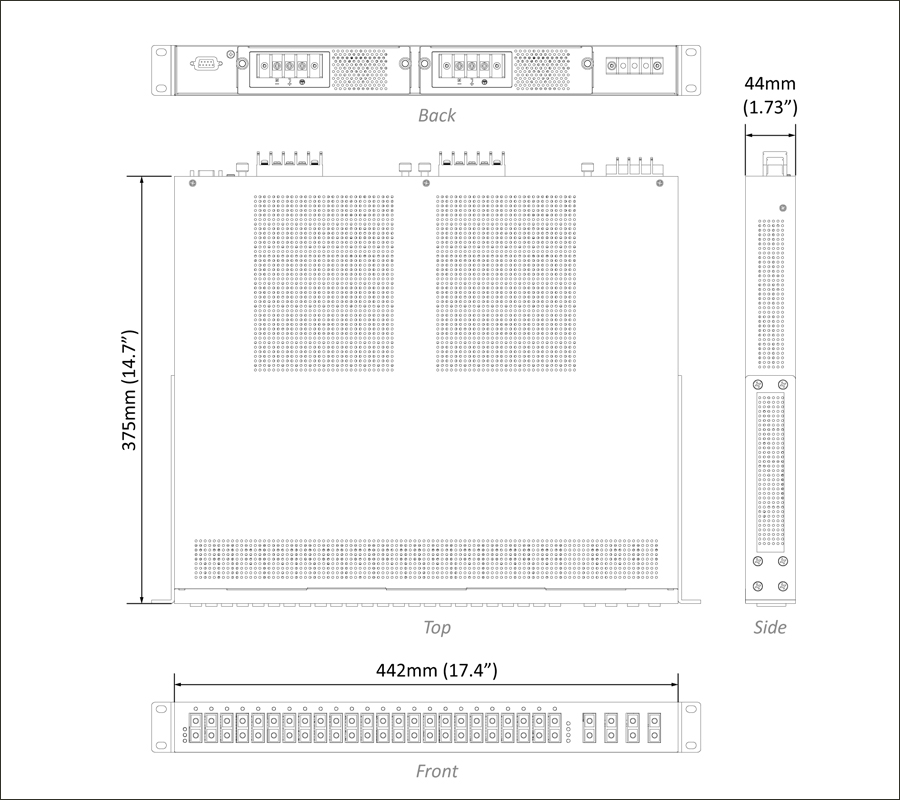

產品尺寸圖
訂購型號

EX87000系列為1U機架式安裝設計,提供24個10/100BASE乙太網路連接埠及四個Gigabit光纖埠(可彈性搭配固定式光纖或SFP光纖插槽),確保各類應用的組合需求。EX87000系列符合IEC 61850 & IEEE 1613標準,工業等級設計,可耐受高EMI干擾環境並在-40 到 75℃環境下穩定運作,與週邊各種設備相互連接,是絕佳的電力網路管理專用機。

EX87000系列可搭配益網獨家技術α-Ring環狀網路備援機制,在網路發生斷線時迅速啟動備援,於15毫秒內便可快速恢復連線通。具備完整管理功能,包含port security,IGMP snooping,VLANs,GARP 協定,LACP和GOOSE;使用者可透過網頁瀏覽,telnet,SNMP,RMON,TFTP,和RS-232 console 管理介面,使複雜的專案規劃事半功倍。

EtherWAN — "When Connectivity is Crucial."

多元彈性介面組合

» 24個10/100base-TX/FX/BX/SFP加4埠Gigabit,光纖埠-SX/LX/BX/SFP

強固等級設計

» 寬溫操作(-40 到75°C)
» 無風扇和堅固的金屬外殼設計,可有效避免高溫及高濕度環境導致材質老化
» 抗震動及抗電磁波干擾

KEMA認證

» 通過KEMA、IEC 61850-3和IEEE 1613標準測試

Management

  • » Interface
    •    • CLI, Telnet and Web Browser
    •    • SNMP v1/v2c/v3
  • » Firmware and configuration upgrade and backup via TFTP
  • » Supports DHCP Server/Client
  • » RMON (Remote monitoring)
  • » Port mirroring: TX/RX and both
  • » NTP (Network Time Protocol) time synchronization
  • » IEEE 802.1ab LLDP (Link Layer Discovery Protocol)

Security

  • » MAC address filtering
  • » Enable/disable port
  • » Storm control (broadcast and multicast types)
  • » IEEE 802.1x LAN access control
  • » Remote authentication through RADIUS
  • » SSH for CLI and Telnet security
  • » SSL for web security
  • » ACL

Quality of Service (QoS)

  • » Priority Queues: 4 queues per port
  • » Traffic classification based on IEEE 802.1p CoS, DSCP, WRR (Weighted round robin) and strict mode
  • » Rate Limiting (Ingress/Egress)

Layer 2 Features

  • » Auto-negotiation for port speed and duplex mode
  • » Flow Control
    •    • IEEE 802.3x full duplex mode
    •    • Back-Pressure half duplex mode
  • » Redundant Protocol
    •    • IEEE 802.1D Spanning Tree Protocol (STP)
    •    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    •    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    •    • EtherWAN's Alpha-Ring network fault recovery (<15ms) and Alpha-Chain
  • » VLANs
    •    • Port-based VLANs
    •    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
    •    • GVRP (GARP VLAN Registration Protocol)
    •    • GMRP (GARP Multicast Registration Protocol)
  • » Link Aggregation
    •    • Static Trunk (8 groups, support MAC base)
    •    • IEEE 802.3ad Link Aggregation Control Protocol
  • » IGMP Snooping
    •    • IGMP snooping v1/v2/v3

Performance

  • » Switching Capability: 12.8Gbps
  • » Packet Buffer Size: 3M bits
  • » MAC Address Table: 4K

技術

標準

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX/100BASE-FX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex and flow control
  • • IEEE 802.1p QoS
  • • IEEE 802.1Q Tag VLANs
  • • IEEE 802.1w RSTP
  • • IEEE 802.1x Port-based Network Access Control

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

緩衝記憶體封包
  • • 3M bits

傳輸形式
  • • Store-and-Forward
  • • Auto-Negotiation
  • • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto MDI/MDIX

MAC地址表
  • • 8192 MAC addresses


電源

輸入電壓

  • • (T): +/- 48VDC (36-75VDC) Internal Universal PSU
  • • (W): 88-370VDC and 90-264VAC Internal Universal PSU
  • • (C): 90-264VAC, 50-60Hz Internal Universal PSU

電力供耗
  • • 42.7W Max.


機構

機殼

  • • 金屬材質
  • • IP30

尺寸
  • • Single Power:
    • 442 x 284 x 44.2mm (W x D x H)
    • (17.4" x 11.1" x 1.74")
  • • Redundant Power:
    • 442 x 375 x 44.2mm (W x D x H)
    • (17.4" x 14.7" x 1.74")

重量
  • • Single Power: 5.1Kg (11.2lbs.)
  • • Redundant Power: 6.2Kg (13.7lbs.)

安裝方式
  • • Rack mounting


介面

乙太網路埠

  • • 10/100BASE-TX: 24, 16, 8 or 0 port
  • • 100BASE-FX: 0, 4, 8, 12, 16, 20 or 24 ports
  • • Gigabit: 0, 2 or 4 ports

Console Port
  • • Port: One DB9 RS-232 port

LED 指示燈號
  • • Per Unit: Power
  • • Per Port: Link/Activity (Green)
  • • Per SFP slot: Selected (Green)


環境

工作溫度

  • • -40 to 75°C (-40 to 167°F)
      Tested @ -40 to 85°C (-40 to 185°F)

儲存溫度
  • • -45 to 85°C (-49 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)


通過認證

ISO

  • • Manufactured in an ISO 9001 facility

EMI
  • FCC Part 15B Class A
  • EN 61000-6-4

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)
    • • IEC 61000-4-10 (Oscillatory wave magnetic field test)
    • • IEC 61000-4-16 (Power frequency immunity test)

Environmental Test Compliance
  • FED STD 101C Method 5007.1 (Free fall w/package)

Industrial Compliance
  • IEC 61850-3/IEEE 1613
  • EN 50121-4
  • NEMA TS2


型號

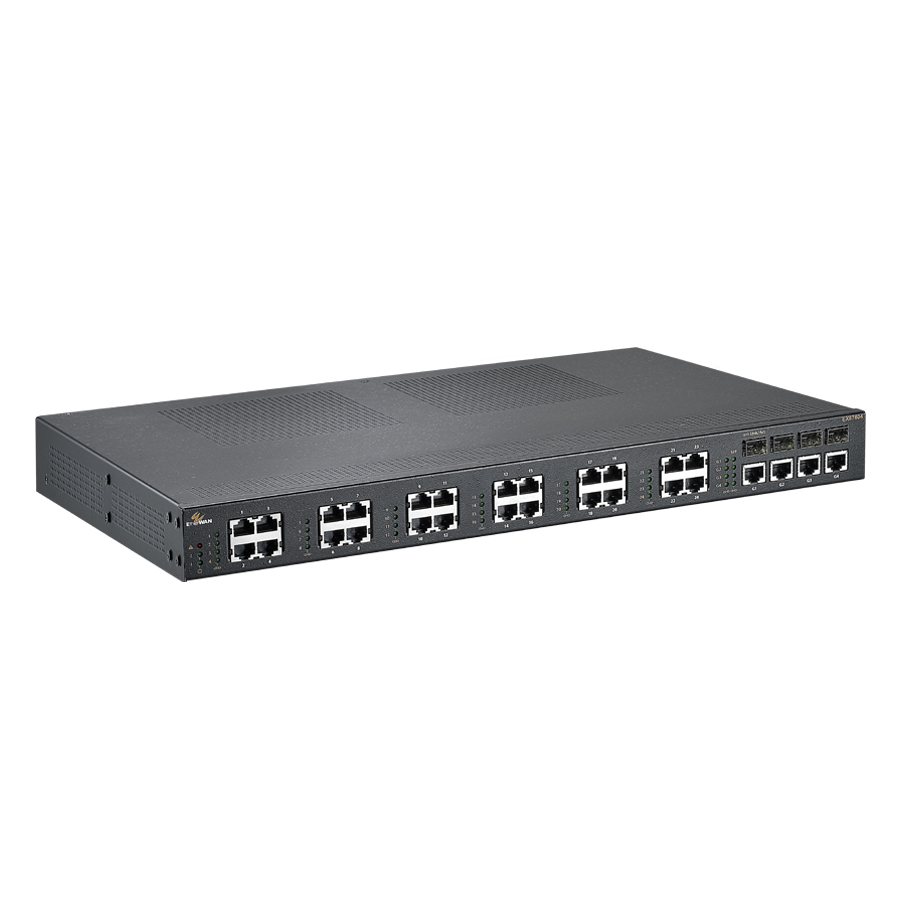

EX87604-0XYZ Hardened Managed 24-port 10/100BASE-TX +4-port Gigabit Ethernet Switch
EX87424-WXYZ Hardened Managed 16-port 10/100BASE-TX +8-port 100BASE-FX +4-port Gigabit Ethernet Switch
EX87414-WXYZ Hardened Managed 16-port 10/100BASE-TX +4-port 100BASE-FX +4-port Gigabit Ethernet Switch
EX87244-WXYZ Hardened Managed 8-port 10/100BASE-TX +16-port 100BASE-FX +4-port Gigabit Ethernet Switch

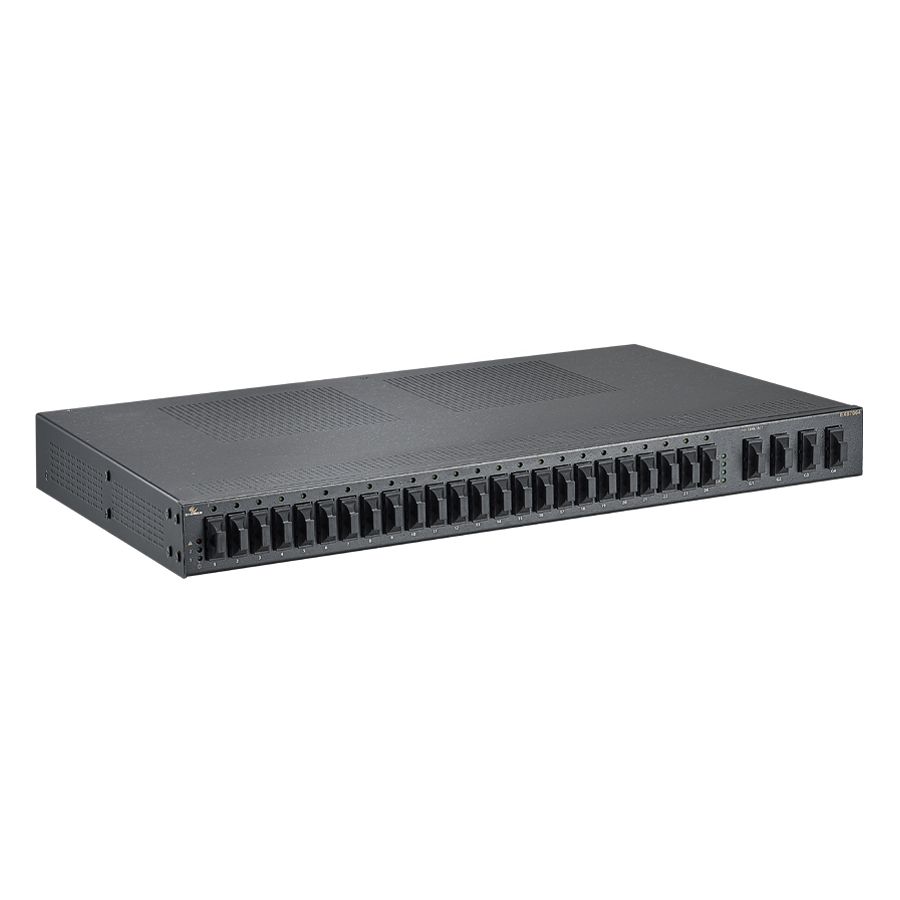

EX87064-WXYZ Hardened Managed 24-port 100BASE-FX +4-port Gigabit Ethernet Switch
EX87064-V0VZ Hardened Managed 24-port 100BASE-SFP +4-port Gigabit SFP Combo Ethernet Switch

* Rack mounting kit included.


100FX Fiber Options (W)

1 Multi Mode (SC) - 2Km
2 Multi Mode (ST) - 2Km
6 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-2Km
7 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-2Km
8 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-5Km
9 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-5Km
A Single Mode (SC) - 20Km
B Single Mode (SC) - 40Km
F Single Mode (FC) - 20Km
H Single Mode (ST) - 20Km
P Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
Q Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
R Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-40Km
S Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-40Km
V 100BASE SFP

* More 100FX Fiber options also available upon request.


Numbers of fixed Gigabit Fiber (X)

0 None
1 One Gigabit Fiber Port
2 Two Gigabit Fiber Ports
3 Three Gigabit Fiber Ports
4 Four Gigabit Fiber Ports

Gigabit Port Options (Y)

1 10/100/1000BASE-TX
3 1000BASE-SX (SC) - 550m
4 1000BASE-SX (SC) - 2Km
5 1000BASE-SX (ST) - 550m
A 1000BASE-LX (SC) - 10Km
B 1000BASE-LX (SC) - 20Km
R 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
V 4-port 1000BASE SFP Combo with 10/100/1000BASE-TX

* More Gigabit options also available upon request.


Power Input Interface (Z)

T ±48VDC (Terminal Block)
W 88-370VDC and 90-264VAC (Terminal Block)
C 90-264VAC (AC Inlet)
TR ±48VDC Redundant (Terminal Block)
WR 88-370VDC and 90- 264VAC Redundant (Terminal Block)
CR 90-264VAC Redundant (AC Inlet)

產品介紹

EX87000系列為1U機架式安裝設計,提供24個10/100BASE乙太網路連接埠及四個Gigabit光纖埠(可彈性搭配固定式光纖或SFP光纖插槽),確保各類應用的組合需求。EX87000系列符合IEC 61850 & IEEE 1613標準,工業等級設計,可耐受高EMI干擾環境並在-40 到 75℃環境下穩定運作,與週邊各種設備相互連接,是絕佳的電力網路管理專用機。

EX87000系列可搭配益網獨家技術α-Ring環狀網路備援機制,在網路發生斷線時迅速啟動備援,於15毫秒內便可快速恢復連線通。具備完整管理功能,包含port security,IGMP snooping,VLANs,GARP 協定,LACP和GOOSE;使用者可透過網頁瀏覽,telnet,SNMP,RMON,TFTP,和RS-232 console 管理介面,使複雜的專案規劃事半功倍。

EtherWAN — "When Connectivity is Crucial."

產品亮點

多元彈性介面組合

» 24個10/100base-TX/FX/BX/SFP加4埠Gigabit,光纖埠-SX/LX/BX/SFP

強固等級設計

» 寬溫操作(-40 到75°C)
» 無風扇和堅固的金屬外殼設計,可有效避免高溫及高濕度環境導致材質老化
» 抗震動及抗電磁波干擾

KEMA認證

» 通過KEMA、IEC 61850-3和IEEE 1613標準測試

產品特色

Management

  • » Interface
    •    • CLI, Telnet and Web Browser
    •    • SNMP v1/v2c/v3
  • » Firmware and configuration upgrade and backup via TFTP
  • » Supports DHCP Server/Client
  • » RMON (Remote monitoring)
  • » Port mirroring: TX/RX and both
  • » NTP (Network Time Protocol) time synchronization
  • » IEEE 802.1ab LLDP (Link Layer Discovery Protocol)

Security

  • » MAC address filtering
  • » Enable/disable port
  • » Storm control (broadcast and multicast types)
  • » IEEE 802.1x LAN access control
  • » Remote authentication through RADIUS
  • » SSH for CLI and Telnet security
  • » SSL for web security
  • » ACL

Quality of Service (QoS)

  • » Priority Queues: 4 queues per port
  • » Traffic classification based on IEEE 802.1p CoS, DSCP, WRR (Weighted round robin) and strict mode
  • » Rate Limiting (Ingress/Egress)

Layer 2 Features

  • » Auto-negotiation for port speed and duplex mode
  • » Flow Control
    •    • IEEE 802.3x full duplex mode
    •    • Back-Pressure half duplex mode
  • » Redundant Protocol
    •    • IEEE 802.1D Spanning Tree Protocol (STP)
    •    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    •    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    •    • EtherWAN's Alpha-Ring network fault recovery (<15ms) and Alpha-Chain
  • » VLANs
    •    • Port-based VLANs
    •    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
    •    • GVRP (GARP VLAN Registration Protocol)
    •    • GMRP (GARP Multicast Registration Protocol)
  • » Link Aggregation
    •    • Static Trunk (8 groups, support MAC base)
    •    • IEEE 802.3ad Link Aggregation Control Protocol
  • » IGMP Snooping
    •    • IGMP snooping v1/v2/v3

Performance

  • » Switching Capability: 12.8Gbps
  • » Packet Buffer Size: 3M bits
  • » MAC Address Table: 4K

產品規格

技術

標準

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX/100BASE-FX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex and flow control
  • • IEEE 802.1p QoS
  • • IEEE 802.1Q Tag VLANs
  • • IEEE 802.1w RSTP
  • • IEEE 802.1x Port-based Network Access Control

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

緩衝記憶體封包
  • • 3M bits

傳輸形式
  • • Store-and-Forward
  • • Auto-Negotiation
  • • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto MDI/MDIX

MAC地址表
  • • 8192 MAC addresses


電源

輸入電壓

  • • (T): +/- 48VDC (36-75VDC) Internal Universal PSU
  • • (W): 88-370VDC and 90-264VAC Internal Universal PSU
  • • (C): 90-264VAC, 50-60Hz Internal Universal PSU

電力供耗
  • • 42.7W Max.


機構

機殼

  • • 金屬材質
  • • IP30

尺寸
  • • Single Power:
    • 442 x 284 x 44.2mm (W x D x H)
    • (17.4" x 11.1" x 1.74")
  • • Redundant Power:
    • 442 x 375 x 44.2mm (W x D x H)
    • (17.4" x 14.7" x 1.74")

重量
  • • Single Power: 5.1Kg (11.2lbs.)
  • • Redundant Power: 6.2Kg (13.7lbs.)

安裝方式
  • • Rack mounting


介面

乙太網路埠

  • • 10/100BASE-TX: 24, 16, 8 or 0 port
  • • 100BASE-FX: 0, 4, 8, 12, 16, 20 or 24 ports
  • • Gigabit: 0, 2 or 4 ports

Console Port
  • • Port: One DB9 RS-232 port

LED 指示燈號
  • • Per Unit: Power
  • • Per Port: Link/Activity (Green)
  • • Per SFP slot: Selected (Green)


環境

工作溫度

  • • -40 to 75°C (-40 to 167°F)
      Tested @ -40 to 85°C (-40 to 185°F)

儲存溫度
  • • -45 to 85°C (-49 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)


通過認證

ISO

  • • Manufactured in an ISO 9001 facility

EMI
  • FCC Part 15B Class A
  • EN 61000-6-4

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)
    • • IEC 61000-4-10 (Oscillatory wave magnetic field test)
    • • IEC 61000-4-16 (Power frequency immunity test)

Environmental Test Compliance
  • FED STD 101C Method 5007.1 (Free fall w/package)

Industrial Compliance
  • IEC 61850-3/IEEE 1613
  • EN 50121-4
  • NEMA TS2


產品應用圖

產品尺寸圖

訂購型號

型號

EX87604-0XYZ Hardened Managed 24-port 10/100BASE-TX +4-port Gigabit Ethernet Switch
EX87424-WXYZ Hardened Managed 16-port 10/100BASE-TX +8-port 100BASE-FX +4-port Gigabit Ethernet Switch
EX87414-WXYZ Hardened Managed 16-port 10/100BASE-TX +4-port 100BASE-FX +4-port Gigabit Ethernet Switch
EX87244-WXYZ Hardened Managed 8-port 10/100BASE-TX +16-port 100BASE-FX +4-port Gigabit Ethernet Switch
EX87064-WXYZ Hardened Managed 24-port 100BASE-FX +4-port Gigabit Ethernet Switch
EX87064-V0VZ Hardened Managed 24-port 100BASE-SFP +4-port Gigabit SFP Combo Ethernet Switch

* Rack mounting kit included.


100FX Fiber Options (W)

1 Multi Mode (SC) - 2Km
2 Multi Mode (ST) - 2Km
6 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-2Km
7 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-2Km
8 Multi Mode (SC) WDM-TX: 1310nm/RX: 1550nm-5Km
9 Multi Mode (SC) WDM-TX: 1550nm/RX: 1310nm-5Km
A Single Mode (SC) - 20Km
B Single Mode (SC) - 40Km
F Single Mode (FC) - 20Km
H Single Mode (ST) - 20Km
P Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
Q Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
R Single Mode (SC) WDM-TX: 1310nm/RX: 1550nm-40Km
S Single Mode (SC) WDM-TX: 1550nm/RX: 1310nm-40Km
V 100BASE SFP

* More 100FX Fiber options also available upon request.


Numbers of fixed Gigabit Fiber (X)

0 None
1 One Gigabit Fiber Port
2 Two Gigabit Fiber Ports
3 Three Gigabit Fiber Ports
4 Four Gigabit Fiber Ports

Gigabit Port Options (Y)

1 10/100/1000BASE-TX
3 1000BASE-SX (SC) - 550m
4 1000BASE-SX (SC) - 2Km
5 1000BASE-SX (ST) - 550m
A 1000BASE-LX (SC) - 10Km
B 1000BASE-LX (SC) - 20Km
R 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km
V 4-port 1000BASE SFP Combo with 10/100/1000BASE-TX

* More Gigabit options also available upon request.


Power Input Interface (Z)

T ±48VDC (Terminal Block)
W 88-370VDC and 90-264VAC (Terminal Block)
C 90-264VAC (AC Inlet)
TR ±48VDC Redundant (Terminal Block)
WR 88-370VDC and 90- 264VAC Redundant (Terminal Block)
CR 90-264VAC Redundant (AC Inlet)
