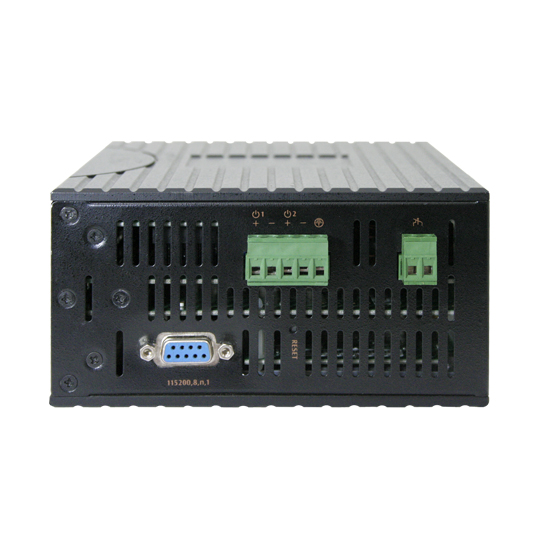

EX78162 系列

強固級網管型16埠10/100BASE PoE + 2埠Gigabit乙太網路交換器

PoE_15W
PoE_30W
Fanless
Wide Temperature
EX78162 Series Hardened Managed 16-port 10/100BASE PoE and 2-port Gigabit Ethernet Switch
EX78162 Series Hardened Managed 16-port 10/100BASE PoE and 2-port Gigabit Ethernet Switch
每埠最高支援30W PoE,總供電瓦數達240W
16個PoE連接埠,鋁軌式安裝
DDM(數位診斷監控)
EX78162 Series Hardened Managed 16-port 10/100BASE PoE and 2-port Gigabit Ethernet Switch
EX78162 Series Hardened Managed 16-port 10/100BASE PoE and 2-port Gigabit Ethernet Switch
產品介紹
產品亮點
產品特色
產品規格
產品尺寸圖
訂購型號

EX78162系列強固乙太網路交換器,採鋁軌式安裝,提供16個10/100BASE PoE連接埠及兩個Gigabit LC光纖埠。IEEE 802.3at PoE網路埠,每埠最高可支援30W,總供電瓦數為240W,可廣泛應用於許多終端受電(PD)設備,例如PTZ 球型攝影機、無線基地台及軌旁通訊設備等。

透過益網獨家技術Alpha-Ring環狀網路備援機制,可在網路斷線時迅速啟動備援機制,於15毫秒內恢復連線通訊。EX78162系列具備完整管理功能,包含port security, IGMP snooping, port-based VLAN, GARP 協定, link aggregation;使用者可透過網頁瀏覽, telnet, SSH, SNMP, RMON, TFTP,和RS-232 console 管理介面,執行各種等級的網路管理。

EX78162系列專為嚴峻戶外環境設計打造,工業等級設計,可承受強力的落摔衝擊、防震動及抗電磁波干擾,更可在 -40 到 75℃ 寬溫環境下穩定運作。

EtherWAN — "When Connectivity is Crucial."

PoE連接埠

» 1-16埠支援IEEE 802.3at /af PoE供電標準

強固等級設計

» 寬溫操作(-40 到75°C)
» 無風扇和堅固的金屬外殼設計,可有效避免高溫及高濕度環境導致材質老化
» 抗震動及抗電磁波干擾

智慧化管理功能

» 完整的網路管理效能:QoS, VLAN,ACL和支援RADIUS

Management

  • » Interface
    •    • CLI, Telnet and Web Browser
    •    • SNMP v1/v2c/v3
  • » Firmware and configuration upgrade and backup via TFTP
  • » Supports DHCP Server/Client
  • » RMON (Remote monitoring): group 1, 2, 3, 9
  • » Port mirroring: TX/RX and both
  • » SFP transceivers support Digital Diagnostics Monitoring (DDM)
  • » NTP (Network Time Protocol) time synchronization
  • » IEEE 802.1ab LLDP (Link Layer Discovery Protocol)

Security

  • » MAC address filtering
  • » Enable/disable port
  • » Storm control (broadcast and multicast types)
  • » IEEE 802.1x LAN access control
  • » Remote authentication through RADIUS
  • » SSH for CLI and Telnet security
  • » SSL for web security
  • » Multi-level user account/password against unauthorized configuration
  • » System log (remote/local)

Quality of Service (QoS)

  • » Priority Queues: 4 queues per port
  • » Traffic classification based on IEEE 802.1p CoS, DSCP, WRR (Weighted round robin) and strict mode
  • » Rate Limiting (Ingress/Egress)

Layer 2 Features

  • » Auto-negotiation for port speed and duplex mode
  • » Flow Control
    •    • IEEE 802.3x full duplex mode
    •    • Back-Pressure half duplex mode
  • » Redundant Protocol
    •    • IEEE 802.1D Spanning Tree Protocol (STP)
    •    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    •    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    •    • EtherWAN’sAlpha-Ring network fault recovery (<15ms)
  • » VLANs
    •    • Port-based VLANs
    •    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
    •    • GVRP (GARP VLAN Registration Protocol)
    •    • GMRP (GARP Multicast Registration Protocol)
  • » Link Aggregation
    •    • Static Trunk (2 groups, support MAC base)
    •    • IEEE 802.3ad Link Aggregation Control Protocol
  • » IGMP Snooping
    •    • IGMP snooping v1/v2/v3
  • » Performance
    •    • Switching Capability: 7.2Gbps
    •    • Packet Buffer Size: 2M
    •    • MAC Address Table: 8K

技術

標準

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX/100BASE-FX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex and flow control
  • • IEEE 802.1p QoS
  • • IEEE 802.1Q Tag VLANs
  • • IEEE 802.1w RSTP
  • • IEEE 802.1x Port-based Network Access Control
  • • IEEE 802.3af/at Power over Ethernet (PoE)

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

緩衝記憶體封包
  • • 2M bits

傳輸形式
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto MDI/MDIX

MAC地址表
  • • 8192 MAC addresses


電源

輸入電壓

  • • Redundant power inputs; Teminal Block: 52–57VDC

電力供耗
  • • Device: Max. 15W (without PoE)
  • • PoE power budget (depends on power input): 240W Max.

PoE Technology
  • • Alternative B, Pins 7/8(+), 4/5(-)

PoE Power Output
  • • Port 1 to 16 support PoE
  • • IEEE 802.3af: up to 15.4W/port, 47 - 57VDC
  • • IEEE 802.3at: up to 30W/port, 52 - 57VDC

Protection
  • • Reverse polarity protection


機構

機殼

  • • 金屬材質
  • • IP30

尺寸
  • • 71.4 x 140 x 170mm (W x D x H)
      (2.85" x 5.6" x 6.8")

重量
  • • 1.44 Kg (3.17lbs.)

安裝方式
  • • DIN-Rail


介面

乙太網路埠

  • • 10/100BASE-TX (PoE): 16 ports
  • • Gigabit SFP: 2 ports

Console Port
  • • Port: One DB9 RS-232 port

Alarm Contact
  • • One relay output with current 1A@250VAC

LED 指示燈號
  • • Per Unit: Power
  • • Per Port: Link/Activity (Green)
  • • Per PoE Port: PoE (Orange)


環境

工作溫度

  • • -40 to 75°C (-40 to 167°F)
  •   Tested @ -40 to 85°C (-40 to 185°F)

儲存溫度
  • • -45 to 85°C (-49 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)


通過認證

ISO

  • • Manufactured in an ISO 9001 facility

EMI
  • FCC Part 15B Class A
  • EN 61000-6-4
  • EN 61000-3-3
  • EN 61000-3-2

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • IEC 60068-2-32 Ed (Free fall)

型號

EX78162-0VB 16-port 10/100BASE-TX PoE + 2-port Gigabit SFP Hardened Managed Ethernet Switch

* DIN-Rail mounting kit included.


Optional Accessories

SDR-480-48 480W/10A DIN-Rail 48VDC Industrial Power Supply

產品介紹

EX78162系列強固乙太網路交換器,採鋁軌式安裝,提供16個10/100BASE PoE連接埠及兩個Gigabit LC光纖埠。IEEE 802.3at PoE網路埠,每埠最高可支援30W,總供電瓦數為240W,可廣泛應用於許多終端受電(PD)設備,例如PTZ 球型攝影機、無線基地台及軌旁通訊設備等。

透過益網獨家技術Alpha-Ring環狀網路備援機制,可在網路斷線時迅速啟動備援機制,於15毫秒內恢復連線通訊。EX78162系列具備完整管理功能,包含port security, IGMP snooping, port-based VLAN, GARP 協定, link aggregation;使用者可透過網頁瀏覽, telnet, SSH, SNMP, RMON, TFTP,和RS-232 console 管理介面,執行各種等級的網路管理。

EX78162系列專為嚴峻戶外環境設計打造,工業等級設計,可承受強力的落摔衝擊、防震動及抗電磁波干擾,更可在 -40 到 75℃ 寬溫環境下穩定運作。

EtherWAN — "When Connectivity is Crucial."

產品亮點

PoE連接埠

» 1-16埠支援IEEE 802.3at /af PoE供電標準

強固等級設計

» 寬溫操作(-40 到75°C)
» 無風扇和堅固的金屬外殼設計,可有效避免高溫及高濕度環境導致材質老化
» 抗震動及抗電磁波干擾

智慧化管理功能

» 完整的網路管理效能:QoS, VLAN,ACL和支援RADIUS

產品特色

Management

  • » Interface
    •    • CLI, Telnet and Web Browser
    •    • SNMP v1/v2c/v3
  • » Firmware and configuration upgrade and backup via TFTP
  • » Supports DHCP Server/Client
  • » RMON (Remote monitoring): group 1, 2, 3, 9
  • » Port mirroring: TX/RX and both
  • » SFP transceivers support Digital Diagnostics Monitoring (DDM)
  • » NTP (Network Time Protocol) time synchronization
  • » IEEE 802.1ab LLDP (Link Layer Discovery Protocol)

Security

  • » MAC address filtering
  • » Enable/disable port
  • » Storm control (broadcast and multicast types)
  • » IEEE 802.1x LAN access control
  • » Remote authentication through RADIUS
  • » SSH for CLI and Telnet security
  • » SSL for web security
  • » Multi-level user account/password against unauthorized configuration
  • » System log (remote/local)

Quality of Service (QoS)

  • » Priority Queues: 4 queues per port
  • » Traffic classification based on IEEE 802.1p CoS, DSCP, WRR (Weighted round robin) and strict mode
  • » Rate Limiting (Ingress/Egress)

Layer 2 Features

  • » Auto-negotiation for port speed and duplex mode
  • » Flow Control
    •    • IEEE 802.3x full duplex mode
    •    • Back-Pressure half duplex mode
  • » Redundant Protocol
    •    • IEEE 802.1D Spanning Tree Protocol (STP)
    •    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    •    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
    •    • EtherWAN’sAlpha-Ring network fault recovery (<15ms)
  • » VLANs
    •    • Port-based VLANs
    •    • IEEE 802.1Q Tag VLANs (128 groups, 4096 VID)
    •    • GVRP (GARP VLAN Registration Protocol)
    •    • GMRP (GARP Multicast Registration Protocol)
  • » Link Aggregation
    •    • Static Trunk (2 groups, support MAC base)
    •    • IEEE 802.3ad Link Aggregation Control Protocol
  • » IGMP Snooping
    •    • IGMP snooping v1/v2/v3
  • » Performance
    •    • Switching Capability: 7.2Gbps
    •    • Packet Buffer Size: 2M
    •    • MAC Address Table: 8K
產品規格

技術

標準

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX/100BASE-FX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex and flow control
  • • IEEE 802.1p QoS
  • • IEEE 802.1Q Tag VLANs
  • • IEEE 802.1w RSTP
  • • IEEE 802.1x Port-based Network Access Control
  • • IEEE 802.3af/at Power over Ethernet (PoE)

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

緩衝記憶體封包
  • • 2M bits

傳輸形式
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto MDI/MDIX

MAC地址表
  • • 8192 MAC addresses


電源

輸入電壓

  • • Redundant power inputs; Teminal Block: 52–57VDC

電力供耗
  • • Device: Max. 15W (without PoE)
  • • PoE power budget (depends on power input): 240W Max.

PoE Technology
  • • Alternative B, Pins 7/8(+), 4/5(-)

PoE Power Output
  • • Port 1 to 16 support PoE
  • • IEEE 802.3af: up to 15.4W/port, 47 - 57VDC
  • • IEEE 802.3at: up to 30W/port, 52 - 57VDC

Protection
  • • Reverse polarity protection


機構

機殼

  • • 金屬材質
  • • IP30

尺寸
  • • 71.4 x 140 x 170mm (W x D x H)
      (2.85" x 5.6" x 6.8")

重量
  • • 1.44 Kg (3.17lbs.)

安裝方式
  • • DIN-Rail


介面

乙太網路埠

  • • 10/100BASE-TX (PoE): 16 ports
  • • Gigabit SFP: 2 ports

Console Port
  • • Port: One DB9 RS-232 port

Alarm Contact
  • • One relay output with current 1A@250VAC

LED 指示燈號
  • • Per Unit: Power
  • • Per Port: Link/Activity (Green)
  • • Per PoE Port: PoE (Orange)


環境

工作溫度

  • • -40 to 75°C (-40 to 167°F)
  •   Tested @ -40 to 85°C (-40 to 185°F)

儲存溫度
  • • -45 to 85°C (-49 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)


通過認證

ISO

  • • Manufactured in an ISO 9001 facility

EMI
  • FCC Part 15B Class A
  • EN 61000-6-4
  • EN 61000-3-3
  • EN 61000-3-2

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • IEC 60068-2-32 Ed (Free fall)

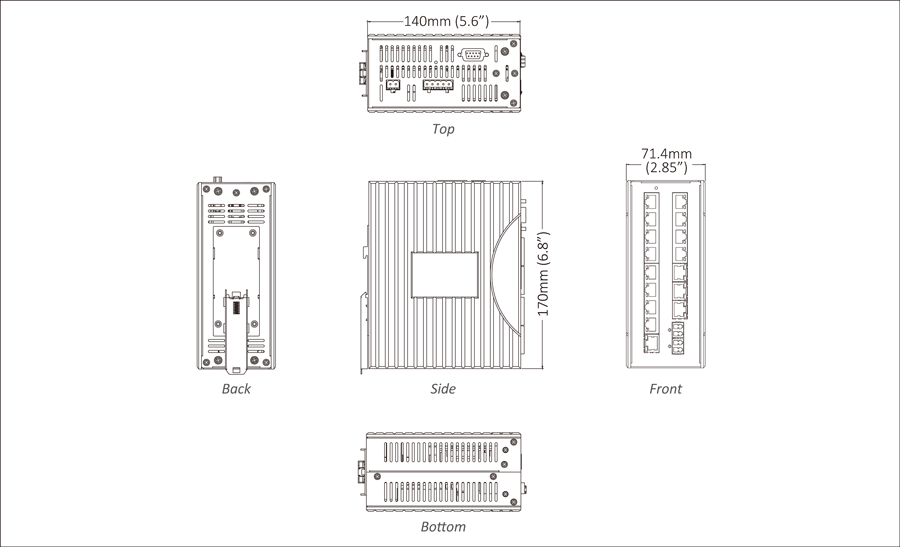

產品尺寸圖

訂購型號

型號

EX78162-0VB 16-port 10/100BASE-TX PoE + 2-port Gigabit SFP Hardened Managed Ethernet Switch

* DIN-Rail mounting kit included.


Optional Accessories

SDR-480-48 480W/10A DIN-Rail 48VDC Industrial Power Supply
