EX41-145046

45W 12VDC 強固級變壓器 (Open Wire)

UL 60950
DoeVI
EX41-145046 Power Supply 45W 12VDC with Open Wire
EX41-145046 Power Supply 45W 12VDC with Open Wire

Downloads

產品特色
產品規格
產品尺寸圖
訂購型號

Complies with NEMA TS1 & TS2 environmental requirements for traffic control equipment

電源

Input Rating

  • • 90-264VAC (47-63Hz)

Output Rating
  • • 45W, 12VDC, 0-3.7A


機構

機殼

  • • Aluminum case

工作溫度
  • • -40 to 75°C (-40 to 167°F)

Output Connector
  • • Open wire for terminal block


型號

EX41-145046-X Power Supply 45W 12VDC with Open Wire

Input Plug Options (X)

1 US
2 EU
3 UK
4 AU
5 JP
6 SA

產品特色

Complies with NEMA TS1 & TS2 environmental requirements for traffic control equipment

產品規格

電源

Input Rating

  • • 90-264VAC (47-63Hz)

Output Rating
  • • 45W, 12VDC, 0-3.7A


機構

機殼

  • • Aluminum case

工作溫度
  • • -40 to 75°C (-40 to 167°F)

Output Connector
  • • Open wire for terminal block

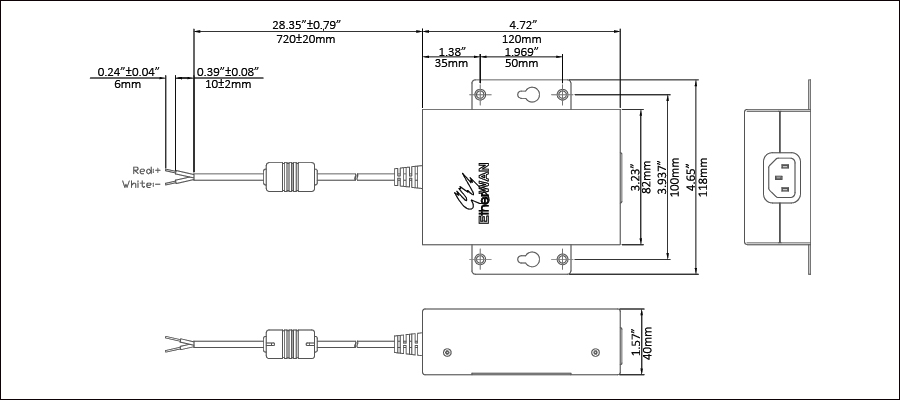

產品尺寸圖
訂購型號

型號

EX41-145046-X Power Supply 45W 12VDC with Open Wire

Input Plug Options (X)

1 US
2 EU
3 UK
4 AU
5 JP
6 SA
