EX17008A

非網管8埠10/100BASE-TX PoE (IEEE802.3at)乙太網路交換器

PoE_30W
UL 60950
Power over Ethernet
Easy to Install
產品介紹
產品亮點
產品規格

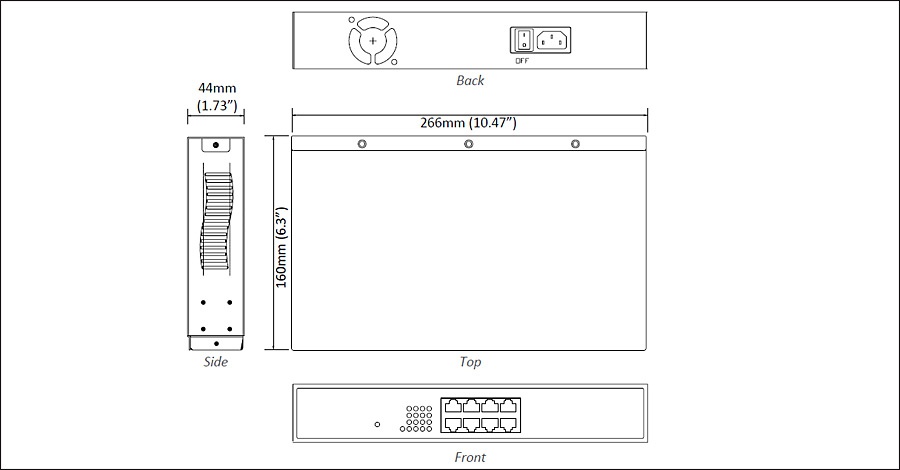

產品尺寸圖
訂購型號

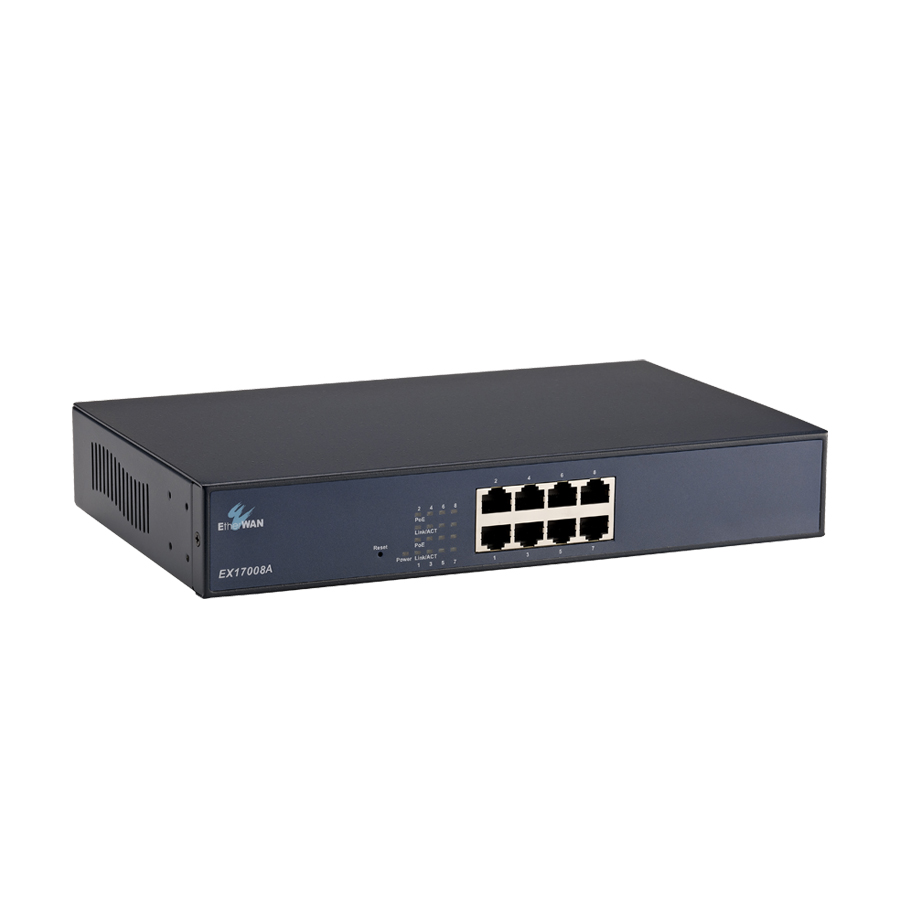

EtherWAN's EX17008A provides a 8-port switching platform supporting IEEE802.3at Power over Ethernet, high performance switching with features required for enterprise environments.

The EX17008A is equipped with 8 10/100BASE-TX PoE ports. The EX17008A is feature rich with full wire speed throughput, making the EX17008A Series a powerful network switch.

The IEEE802.3at PoE ports provide up to 30W/port with a PoE power budget of 120W, making the switch truly versatile for connecting with PoE Powered Devices (PD) with different bandwidth and power consumption requirements.

EtherWAN — "When Connectivity is Crucial."

Power over Ethernet

» Supports 8-port IEEE802.3at Power over Ethernet (PoE) and Power Sourcing Equipment (PSE)

Easy to Install

» Plug-and-play operation

Technology

Standards

  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX/100BASE-FX
  • • IEEE802.3x Full duplex and flow control
  • • IEEE802.3af/at Power over Ethernet

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps

Packet Buffer Memory
  • • 1.625Mbits

Processing Type
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE802.3x full-duplex flow control
  • • Auto MDI/MDIX

Address Table Size
  • • 4K MAC addresses




Power

Input

  • • 100 to 240VAC, 50/60Hz

Power Consumption
  • • Device: Max. 5.8W (without PoE)
  • • PoE power budget: 120W Max.

PoE Technology
  • • Alternative A, Pins 1/2(+), 3/6(-)

PoE Power Output
  • • IEEE802.3at: up to 30W/port, 50 - 57VDC, 600mA Max.




Mechanical

Casing

  • • Metal Case

Dimensions
  • • 266 x 160 x 44mm (W x D x H)
      (10.47" x 6.30" x 1.73")

Weight
  • • 1.4Kg (3.08lbs.)

Installation
  • • Desktop, Rack Mounting




Interface

Ethernet Port

  • • 10/100BASE-TX: 8 PoE ports

LED Indicators
  • • Per Unit: Power Status
  • • Per Port: Link/Activity, PoE Act/status




Environment

Operating Temperature

  • • 0 to 45°C (32 to 113°F)

Storage Temperature
  • • -10 to 70°C (14 to 158°F)

Ambient Relative Humidity
  • • 10% to 95% (non-condensing)




Regulatory Approvals

ISO

  • • Manufactured in an ISO9001 facility

Safety
  • UL 60950

Emission Compliance
  • FCC Part 15 Class A
  • CE mark Class A




Model

EX17008A 8-port 10/100BASE-TX PoE (IEEE802.3at) Unmanaged Ethernet Switch

Optional Accessories

KR-BK17 Rack mounting kit (black)
