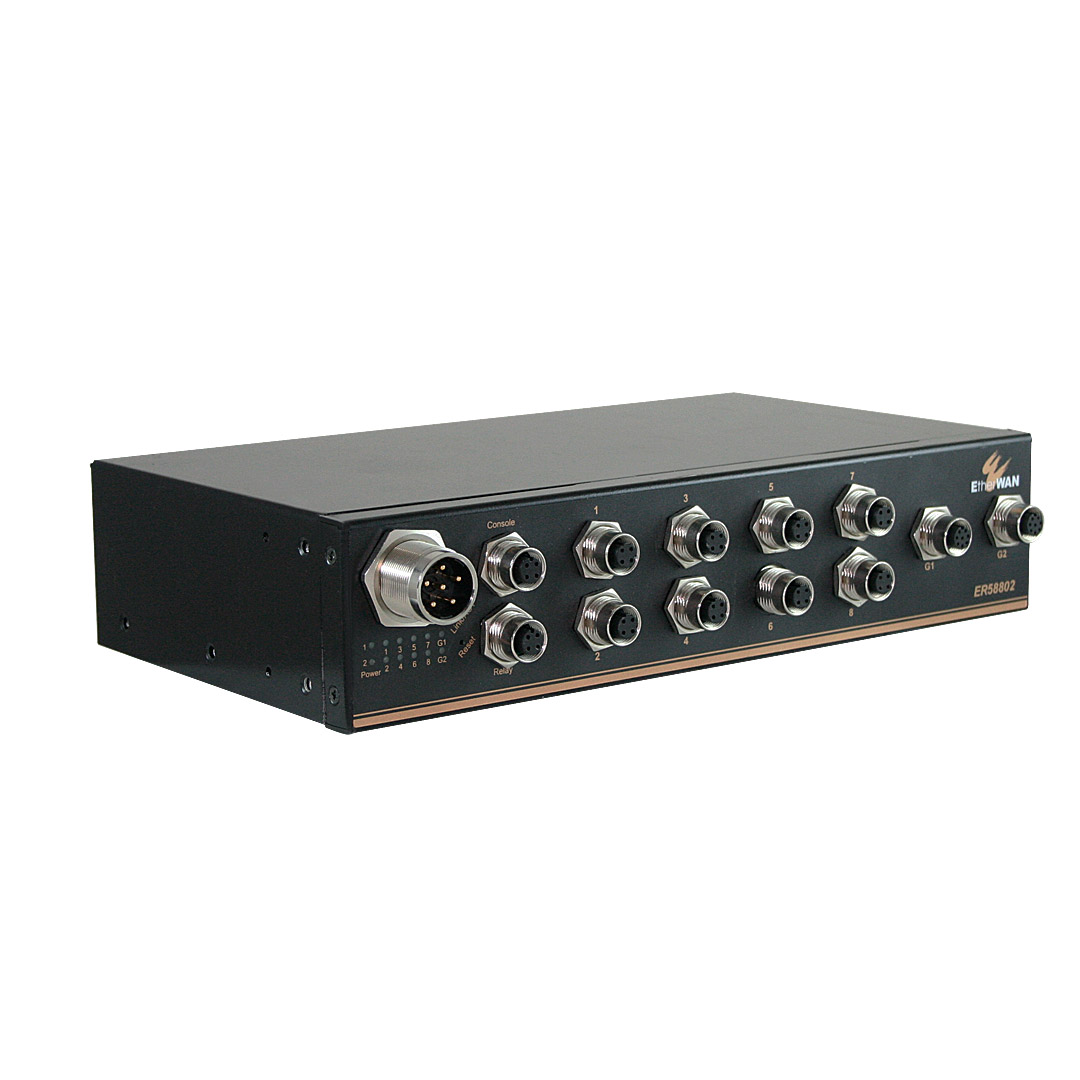

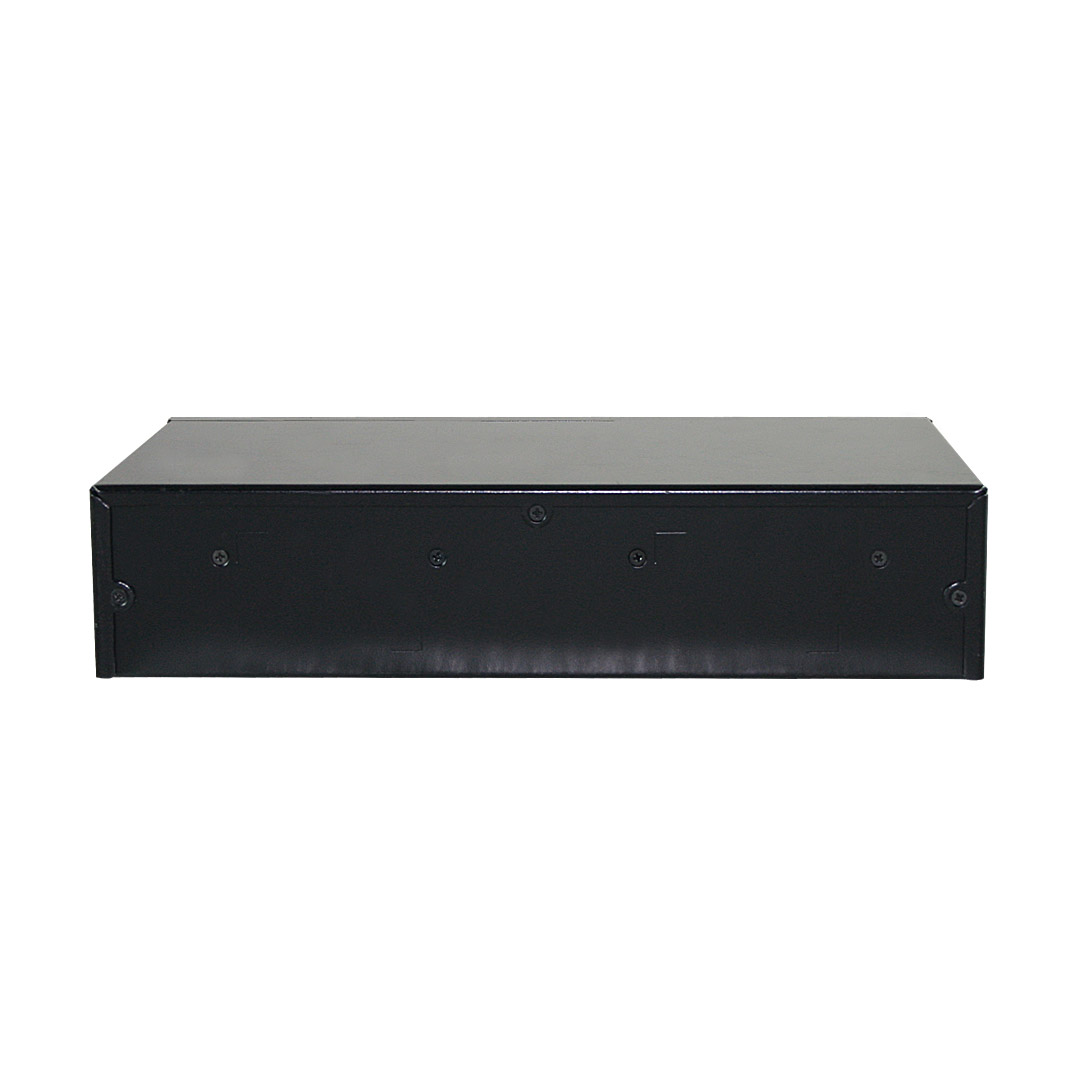

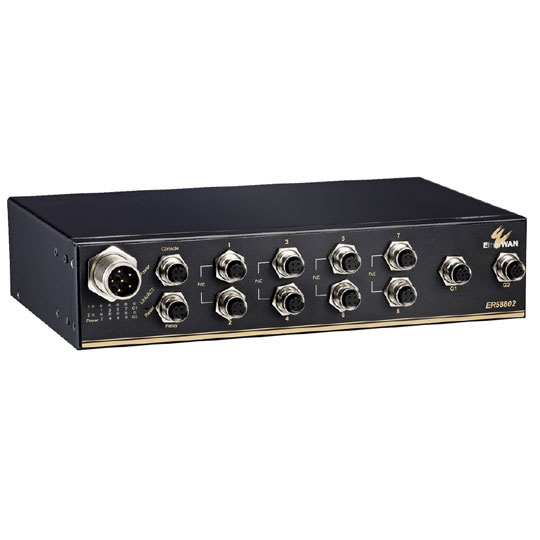

ER58000 系列

強固級網管型8埠10/100BASE M12 PoE+2埠Gigabit M12乙太網路交換器

PoE_30W
Fanless
Wide Temperature
EN 50121-4
EN 50155
EN 50121-3-2
PoE power budget up to 30W/port, total 120W
24 to 48VDC power input, with 8 ports IEEE802.3at PoE
Fully managed L2, supporting Alpha-ring and Alpha-chain redundancy protocols
產品介紹
產品亮點
產品特色
產品規格

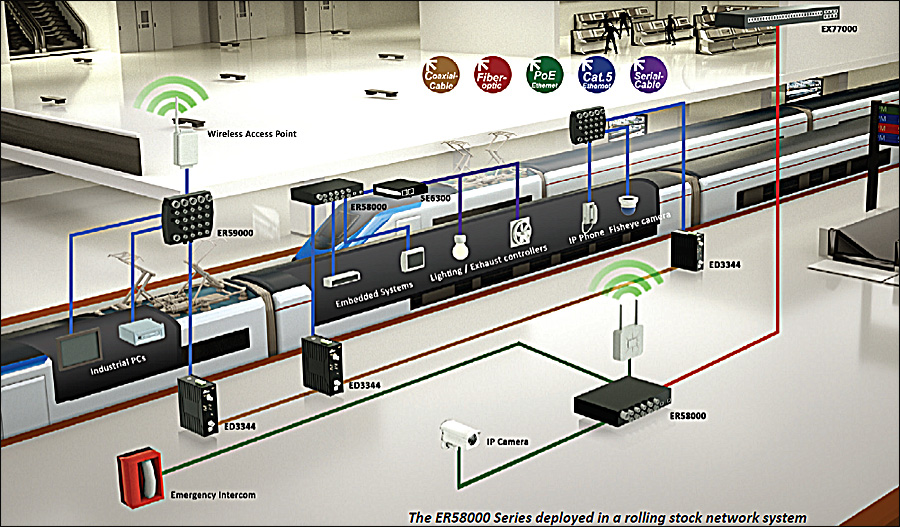

產品應用圖

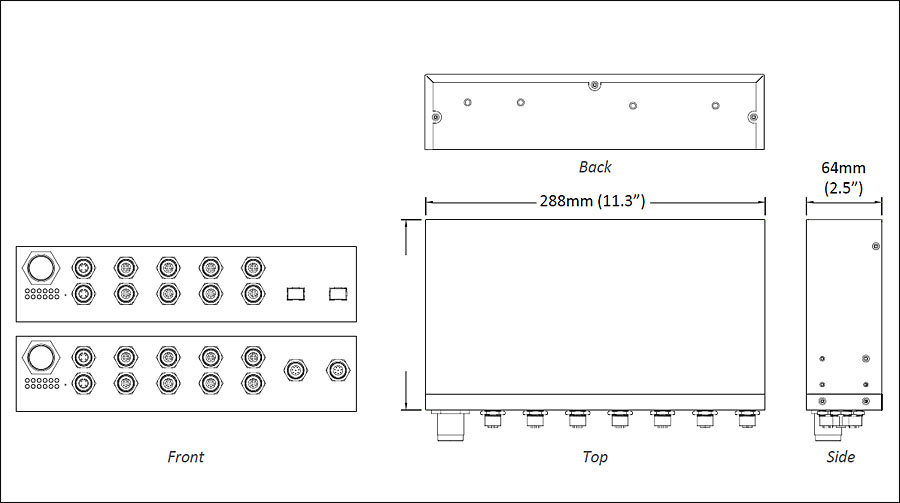

產品尺寸圖
訂購型號

EtherWAN's ER58000 Series switches are built in compliance with the EN 50155 standard, the international standard covering electronic equipment used on rolling stock. They support Power over Ethernet (PoE), and are designed for railway vehicles and wayside station applications.

The 8 x 10/100BASE-TX PoE ports are IEEE802.3at compliant, and provide up to 30 Watts per port with a total power budget of 120 Watts. This allows for stable delivery of power to PoE Powered Devices such as outdoor PTZ (Pan/Tilt/Zoom) dome cameras, wireless access points, and wayside communication devices. Two Gigabit Ethernet ports can be configured with a wide variety of connectivity options. All ports use secure M12 connectors for maximum reliability and protection against environmental interference.

Wall mountable, ER58000 Series switches support EtherWAN's Alpha-Ring self-healing ring technology, which provides a fault recovery time of under 15 milliseconds. Management features of the switch include port security, IGMP snooping, port-based VLAN, GARP protocols, link aggregation, web browser management, Telnet, SSH, SNMP, RMON, TFTP, and console interfaces. An operating temperature range of -40 to 75°C (-40 to 167°F), in conjunction with the highest resistance against power surges, electrostatic discharge, and vibration, make the ER58000 a rock-solid component for critical applications.

EtherWAN — "When Connectivity is Crucial."

Railway Oriented

» Compliant with EN 50155 / EN 50121-3-2 / EN 50121-4 standards for railway applications

M12 Connectors

» Built-in 8-port 10/100BASE M12 plus 2-port Gigabit M12/LC connectors; One M12 console port

Power over Ethernet (PoE)

» Provides 8-port IEEE802.3at PoE with up to 30 Watts per port

Management



  • » Interface
    •    • CLI, Telnet and Web Browser
    •    • SNMP v1/v2c/v3
  • » Firmware and configuration upgrade and backup via TFTP
  • » Supports DHCP Server/Client
  • » RMON (Remote monitoring): group 1, 2, 3, 9
  • » Port mirroring: TX/RX and both
  • » NTP (Network Time Protocol) time synchronization
  • » IEEE802.1ab LLDP (Link Layer Discovery Protocol)




Security



  • » MAC address filtering
  • » Enable/disable port
  • » Storm control (broadcast and multicast types)
  • » IEEE802.1x LAN access control
  • » Remote authentication through RADIUS
  • » SSH for CLI and Telnet security
  • » SSL for web security
  • » Multi-level user account/password against unauthorized configuration




Quality of Service (QoS)



  • » Priority Queues: 4 queues per port
  • » Traffic classification based on IEEE802.1p CoS, DSCP, WRR (Weighted round robin) and strict mode
  • » Rate Limiting (Ingress/Egress)




Layer 2 Features



  • » Auto-negotiation for port speed and duplex mode
  • » Flow Control
    •    • IEEE802.3x full duplex mode
    •    • Back-Pressure half duplex mode
  • » Redundant Protocol
    •    • IEEE802.1D Spanning Tree Protocol (STP)
    •    • IEEE802.1w Rapid Spanning Tree Protocol (RSTP)
    •    • IEEE802.1s Multiple Spanning Tree Protocol (MSTP)
    •    • EtherWAN’s α-Ring network fault recovery (<15ms) and α-Chain
  • » VLANs
    •    • Port-based VLANs
    •    • IEEE802.1Q Tag VLANs (128 groups, 4096 VID)
    •    • GVRP (GARP VLAN Registration Protocol)
    •    • GMRP (GARP Multicast Registration Protocol)
  • » Link Aggregation
    •    • Static Trunk (2 groups, support MAC base)
    •    • IEEE802.3ad Link Aggregation Control Protocol
  • » IGMP Snooping
    •    • IGMP snooping v1/v2/v3




Performance



  • » Switching Capability: 5.6 Gbps
  • » Packet Buffer Size: 2M bits
  • » MAC Address Table: 8K




Technology

Standards

  • • IEEE802.3 10BASE-T
  • • IEEE802.3u 100BASE-TX/100BASE-FX
  • • IEEE802.3ab 1000BASE-T
  • • IEEE802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE802.3x Full duplex and flow control
  • • IEEE802.1p QoS
  • • IEEE802.1Q Tag VLANs
  • • IEEE802.1w RSTP
  • • IEEE802.1x Port-based Network Access Control
  • • IEEE802.1s MSTP
  • • IEEE802.3ad LACP
  • • IEEE802.3af/at Power over Ethernet (PoE)

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

Packet Buffer Memory
  • • 2M bits

Processing Type
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE802.3x full-duplex flow control
  • • Auto MDI/MDIX

Address Table Size
  • • 8192 MAC addresses




Power

Input

  • • Redundant power inputs: M23: 24 - 48VDC

Power Consumption
  • • Device: Max. 11W (without PoE)
  • • PoE power budget (depends on power input): 120W Max.

Power Technology
  • • Alternative A
  •   Pins 1/2(+), 3/6(-)

PoE Power Output
  • • Port 1 to 8: IEEE802.3at, up to 30W/port

Protection
  • • Reverse polarity protection




Mechanical

Casing

  • • Metal Case
  • • IP50

Dimensions
  • • 288 x 161.5 x 64mm (W x D x H)
      (11.3" x 6.4" x 2.5")

Weight
  • • 2.3Kg (5.07lbs)

Installation
  • • Wall mounting




Interface

Ethernet Port

  • • 10/100BASE-M12 D-Code 4-pin Female: 8 ports
  • • Gigabit-M12 A-Code 8-pin Female/LC: 2 ports

Console Port
  • • One M12 port

LED Indicators
  • • Per Unit:
      Power 1 (Green)
      Power 2 (Green)
  • • Per Port: Link/Activity (Green)

Alarm Contact
  • • One relay M12 A-Code 4-Pin Female output with current 1A @ 250 VAC




Environment

Operating Temperature

  • • -40°C to 75°C (-40°F to 167°F)
    Tested @ -40°C to 85°C (-40°F to 185°F)

Storage Temperature
  • • -45°C to 85°C (-49°F to 185°F)

Ambient Relative Humidity
  • • 5% to 95% (non-condensing)




Regulatory Approvals

ISO

  • • Manufactured in an ISO 9001 facility

EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-4
  • EN 55022
  • EN 55011 (for EN50155)

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6(Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)
    • • EN 61000-4-9 (Pulsed magnetic field)

    • Environmental Test Compliance
      • IEC 61373 (Vibration) for EN 50155
      • IEC 61373 (Shock) for EN 50155
      • IEC 600680-2-32 Ed (Free fall)

      Industrial Compliance
      • EN 50155
      • EN 50121-3-2
      • EN 50121-4




Model

ER58802-20YHT 8-port 10/100BASE-M12 PoE + 2-port Gigabit Hardened Managed Ethernet Switch

* Panel mounting kit included

Gigabit Port Options (Y)

1 10/100/1000BASE-TX
E 1000BASE-SX(LC) - 550m
M 1000BASE-SX (LC) - 10Km
N 1000BASE-LX (LC) - 20Km

*More Gigabit options also available upon request


Optional Accessories

96G-S1N8A80WW  96G-S1N8A80WW M23 Power Connector
96G-1618957XX 96G-1618957XX Power cable with 6pin female M23 connector, 2-Meter cable
ER58000-RJ454P ER58000-RJ454P 4-pin M12 D-code male to 10/100BASE-TX RJ45 interface, 3-Meter cable
ER58000-RJ458P  ER58000-RJ458P 8-pin M12 A-code male to 10/100/1000BASE-TX RJ45 interface, 3-Meter cabl
