EL9100 系列

強固級 10/100/1000BASE-TX- 1000BASE-SX/LX/BX 光電轉換器

Fanless
Wide Temperature

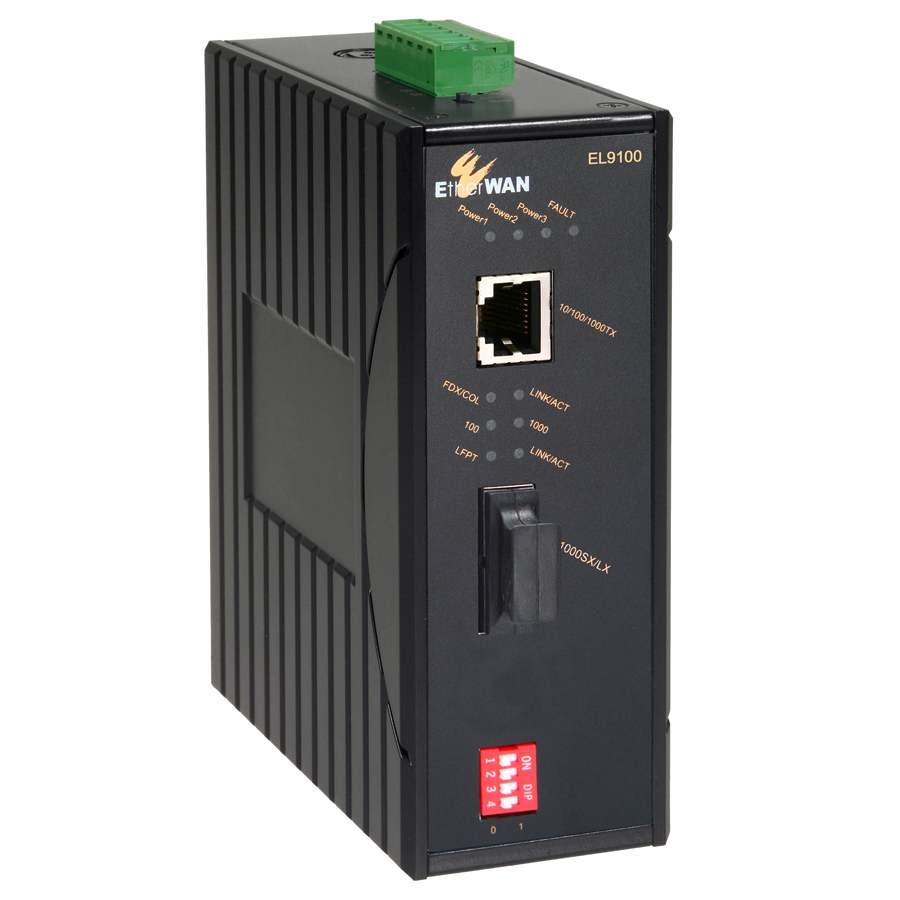

EL9100 Series Hardened 10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter
EL9100 Series Hardened 10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter
EL9100 Series Hardened 10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter
支援Link Fault Pass Through (LFPT)
支援斷線及斷電告警
鋁軌式、平面式和機架式安裝設計
EL9100 Series Hardened 10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter
EL9100 Series Hardened 10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter
EL9100 Series Hardened 10/100/1000BASE-TX to 1000BASE-SX/LX/BX Media Converter
產品介紹
產品亮點
產品規格

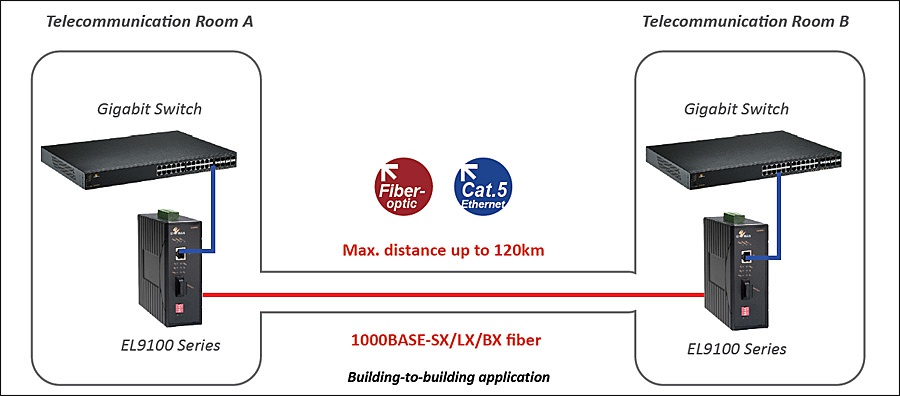

產品應用圖

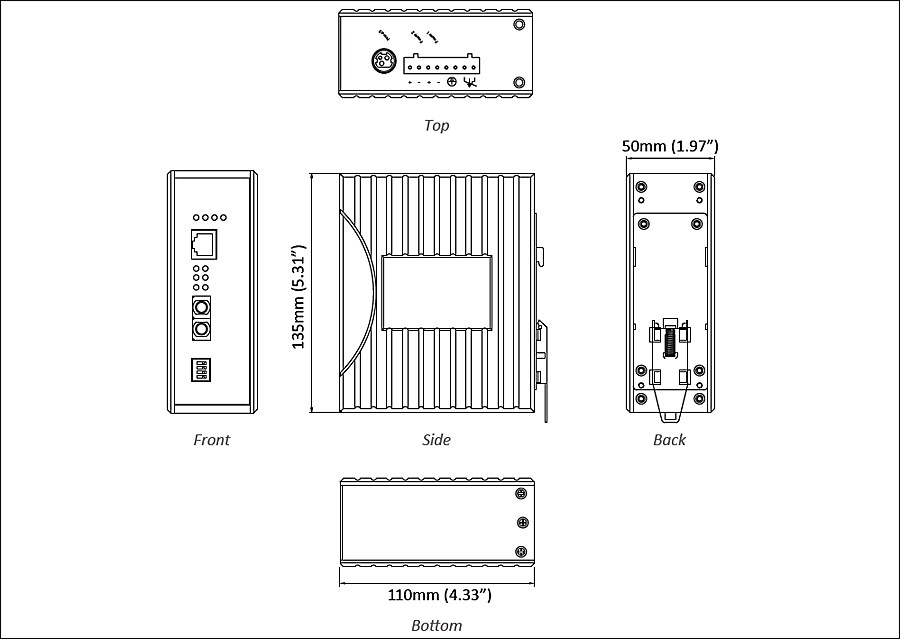

產品尺寸圖
訂購型號

EL9100系列為一款強固級10/100/1000BASE-TX轉1000BASE-SX-LX之光電轉換器,專為嚴苛環境所設計,可安裝於戶外機箱。EL9100支援三組電源輸入,內間斷線告警、Link-Fault-Pass-Through等功能,專為嚴峻戶外環境設計打造,工業等級設計可承受強力的落摔衝擊、防震動及抗電磁波干擾,更可在-40到75℃寬溫環境下穩定運作。

EtherWAN — "When Connectivity is Crucial."

支援全Gigabit頻寬

» 具備1個10/100/1000BASE-TX乙太網路連接搭配1個1000BASE-SX/LX/BX光纖埠
» 支援1000Mbps Full duplex和10/100MBps Full/Half duplex
» 支援Full wire-speed forwarding rate

符合UL 508標準

» 專業通訊應用工業等級設計,符合UL 508標準

強固等級設計

» 寬溫操作(-40到75°C)

技術

標準

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x full duplex and flow control

Forward and Filtering Rate
  • • 1,488,100pps for 1000Mbps

傳輸型式
  • • Auto Negotiation
  • • Auto-MDI/MDIX


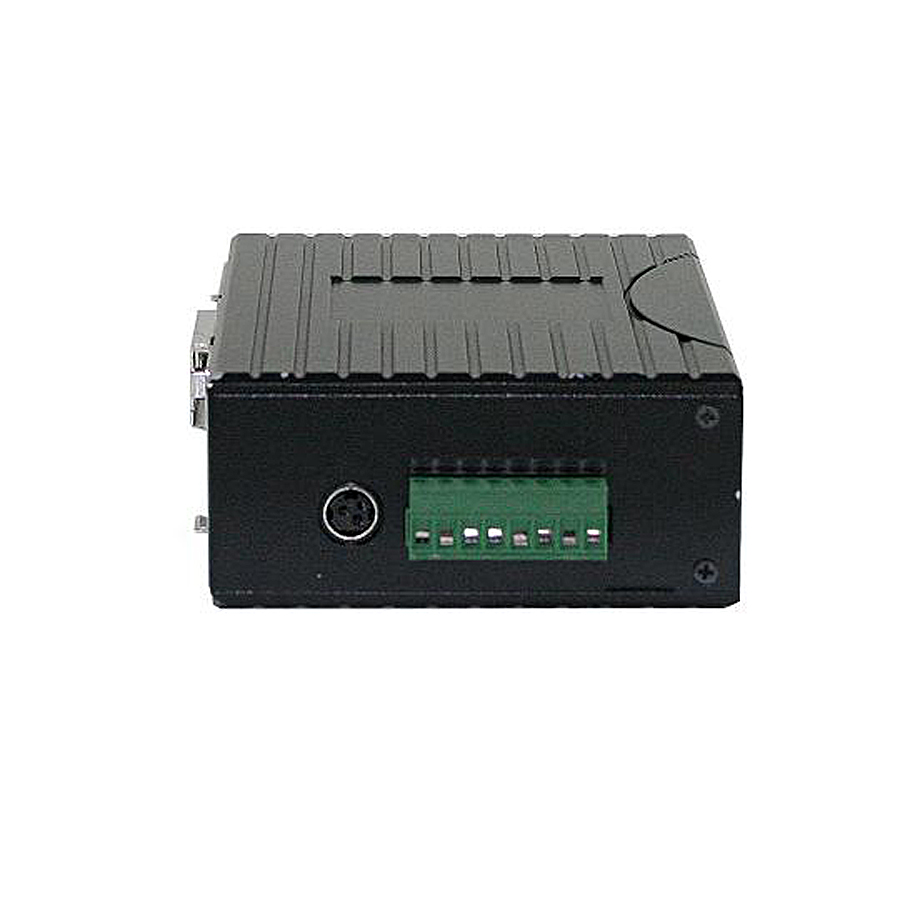

電源

輸入電壓

  • • 12-48VDC (Terminal Block)
  • • 12VDC (DC Jack)

電力功耗
Protection
  • • Overload current protection
  • • Reverse polarity protection


機構

機殼

  • • Aluminum Case
  • • IP30

尺寸
  • • 50 x 110 x 135mm (W x D x H)
      (1.97" x 4.33" x 5.31")

重量
  • • 0.8Kg (1.76lbs.)

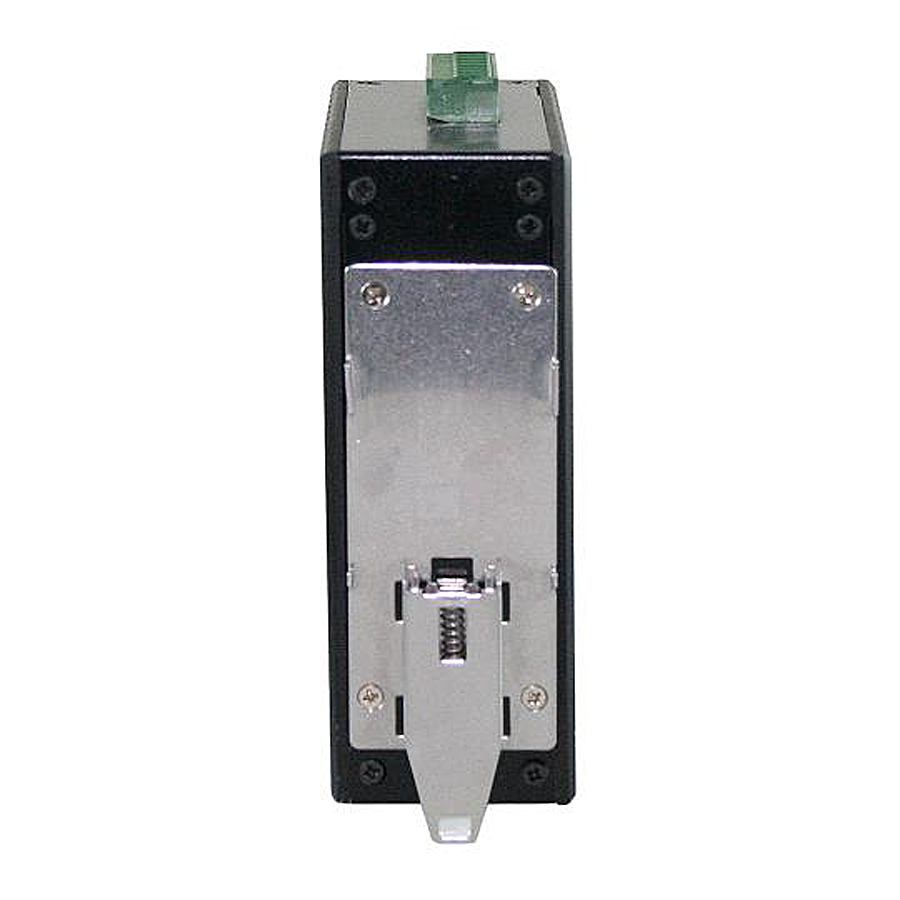

安裝方式
  • • DIN-Rail (Top hat type 35mm), Panel, or Rack mounting


介面

乙太網路埠

  • • 1000BASE-TX: 1 port
  • • 1000BASE-SX/LX/BX: 1 port

LED 指示燈號
  • • Per Unit: Power 1, Power 2, Power 3, Fault, LFPT
  • • Per 10/100/1000BASE-TX Port: Link/Activity, 1000M, Full-duplex
  • • Per 1000SX/LX/BX Port: Link/Activity

DIP Switch
  • • No.1: LFPT on/off
  • • No.2: Alarm for copper port on/off
  • • No.3: Alarm for fiber port on/off
  • • No.4: Auto-negotiation for fiber port on/off

Alarm Contact


環境

工作溫度

  • • -40 to 75°C (-40 to 167°F)
      Tested @ -40 to 85°C (-40 to 185°F)

儲存溫度
  • • -40 to 85°C (-40 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)


通過認證

ISO

  • • Manufactured in an ISO 9001 facility

EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 55022
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-4

Safety
  • UL 508

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliance
  • IEC 60068-2-6 Fc (Vibration Resistance)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)


型號

EL9100-X1B 10/100/1000BASE-TX to 1000BASE-SX/LX/BX Hardened Media Converter

Gigabit Port Options (X)

3 1000BASE-SX (SC) - 550m
4 1000BASE-SX (SC) - 2Km
5 1000BASE-SX (ST) - 550m
A 1000BASE-LX (SC) - 10Km
B 1000BASE-LX (SC) - 20Km
E 1000BASE-LX (SC) - 40Km (1310nm)
H 1000BASE-LX (ST) - 10Km (1310nm)
I 1000BASE-LX (ST) - 20Km (1310nm)
R 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km

* DIN-Rail mounting kit included.


Optional Accessories

HDR-30-24 30W/1.5A DIN-Rail 24VDC Industrial Power Supply
HDR-60-24 60W/2.5A DIN-Rail 24VDC Industrial Power Supply
EDR-75-24 75W/3.2A DIN-Rail 24VDC Industrial Power Supply
EX41-145046-X Power Supply 45W 12VDC with Open Wire
(X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA
EX41-145044-X Power Supply 45W 12VDC with Latch
(X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA
