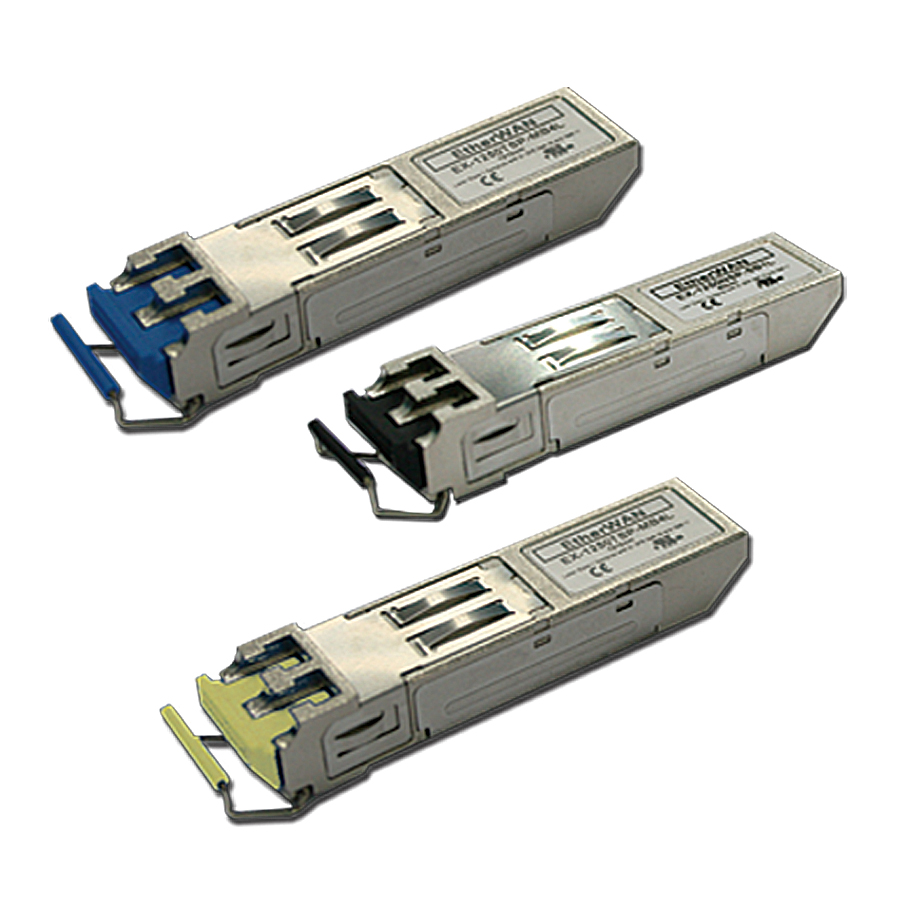

特長
仕様
Fast Ethernet
Gigabit Ethernet
10-Gigabit Ethernet

Used for wide range of fiber applications

Optimal performance on EtherWAN switches

Fast Ethernet, Gigabit Ethernet, and 10-Gigabit Ethernet options available

Multi-mode and Single-mode fiber modules available

Hot-pluggable for instant operation

Enhanced Digital Diagnostic Monitoring available for models marked "DDM" to provide real-time diagnostic information

Regulatory Compliance

  • Compliant with Multi-Sourcing Agreement (MSA) Small Form Factor Pluggable (SFP)
  • Eye Safety: Compliant with Class 1 laser safety requirements EN 60825-1
  • Environmental: RoHS compliant, lead-free
  • EMC: FCC part 15, CENELEC EN 55022

Power Supply Voltage

  • Single +3.3V

Operating Temperature

  • Hardened: -40 to 85°C (-40 to 185°F)
  • Non-Hardened: 0 to 70°C (32 to 158°F)

Warranty

100BASE SFP Series*

Non-Hardened (Operating Temperature: 0 to 70°C/32 to 158°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
EX-0155NSP-MB2L 2Km 62.5/125μm/50/125μm, MM Duplex LC 1310nm 13dBm -19 to -14dBm -32dBm
EX-LM38-A3S-TC-N-B3 2Km 62.5/125μm/50/125μm, MM Single LC TX: 1310nm/
RX: 1550nm
18dBm -10 to 0dBm -28dBm
EX-LM48-A3S-TC-N-B5 2Km 62.5/125μm/50/125μm, MM Single LC TX: 1550nm/
RX: 1310nm
18dBm -10 to 0dBm -28dBm
EX-0155TSP-MB5L 15Km 9/125μm, SM Duplex LC 1310nm 19dBm -15 to -8dBm -34dBm
EX-0155TBP-MB5L 20Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
18dBm -14 to -8dBm -32dBm
EX-0155TBP-LB5L 20Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
18dBm -14 to -8dBm -32dBm
EX-0155TSP-MB6L 40Km 9/125μm, SM Duplex LC 1310nm 30dBm -5 to 0dBm -35dBm
SFPMXT1AC 100m Cat. 5 or better RJ-45 - - - -

Hardened (Operating Temperature: -40 to 85°C/-40 to 185°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
EX-0155NSP-MB2L-A 2Km 62.5/125μm/50/125μm, MM Duplex LC 1310nm 13dBm -19 to -14dBm -32dBm
EX-LM38-A3S-TI-N-B3 2Km 62.5/125μm/50/125μm, MM Single LC TX: 1310nm/
RX: 1550nm
18dBm -10 to 0dBm -28dBm
EX-LM48-A3S-TI-N-B5 2Km 62.5/125μm/50/125μm, MM Single LC TX: 1550nm/
RX: 1310nm
18dBm -10 to 0dBm -28dBm
EX-0155TSP-MB5L-A 15Km 9/125μm, SM Duplex LC 1310nm 19dBm -15 to -8dBm -34dBm
EX-0155TBP-MB5L-A 20Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
18dBm -14 to -8dBm -32dBm
EX-0155TBP-LB5L-A 20Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
18dBm -14 to -8dBm -32dBm
EX-0155TSP-MB6L-A 40Km 9/125μm, SM Duplex LC 1310nm 29dBm -5 to 0dBm -34dBm
EX-0155TBP-MB6L-A 40Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
26dBm -8 to -3dBm -34dBm
EX-0155TBP-KB6L-A 40Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
26dBm -8 to -3dBm -34dBm

* More SFP options upon the request.
** Link Budget data is based on pair of the same SFP modules.

Gigabit SFP Series*

Non-Hardened (Operating Temperature: 0 to 70°C/32 to 158°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
EX-1250NSP-SB1LS 275m/550m 62.5/125μm/50/125μm, MM Duplex LC 850nm 7.5dBm -9.5 to -4dBm -17dBm
EX-1250TBP-MB1LS 550m 62.5/125μm/50/125μm, MM Single LC TX: 1310nm/
RX: 1550nm
7dBm -10 to -4dBm -17dBm
EX-1250TBP-LB1LS 550m 62.5/125μm/50/125μm, MM Single LC TX: 1550nm/
RX: 1310nm
7dBm -10 to -4dBm -17dBm
EX-1250TSP-MB2LS 2Km 62.5/125μm, MM Duplex LC 1310nm 13.5dBm -9.5 to -3dBm -23dBm
EX-1250TSP-MB4LS 10Km 9/125μm, SM Duplex LC 1310nm 11.5dBm -9.5 to -3dBm -21dBm
EX-1250TBP-MB4LS 10Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
12dBm -9 to -3dBm -21dBm
EX-1250TBP-KB4LS 10Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
12dBm -9 to -3dBm -21dBm
EX-1250TSP-MB5LS 20Km 9/125μm, SM Duplex LC 1310nm 15dBm -9 to -3dBm -24dBm
EX-1250TBP-MB5LS 20Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
15dBm -8 to -3dBm -23dBm
EX-1250TBP-KB5LS 20Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
15dBm -8 to -3dBm -23dBm
EX-LS38-C3L-TC-N-EB (DDM) 40Km 9/125μm, SM Duplex LC 1310nm 20dBm -3 to +2dBm -23dBm
EX-LS38-C3L-TC-N-CE (DDM) 40Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
20dBm -3 to +2dBm -23dBm
EX-LS48-C3L-TC-N-CE (DDM) 40Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
20dBm -3 to +2dBm -23dBm
EX-LS38-C3U-TC-N-CE (DDM) 60Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
24dBm 0 to +5dBm -24dBm
EX-LS48-C3U-TC-N-CE (DDM) 60Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
23dBm -2 to +4dBm -25dBm
EX-LS48-C3U-TC-N-EB (DDM) 70Km 9/125μm, SM Duplex LC 1550nm 23dBm 0 to +5dBm -23dBm
EX-LS48-C3U-TC-N51-CE (1510nm) (DDM) 80Km 9/125μm, SM Single LC TX: 1510nm/
RX: 1570nm
24dBm -2 to +3dBm -26dBm
EX-LS48-C3U-TC-N57-CE (1570nm) (DDM) 80Km 9/125μm, SM Single LC TX: 1570nm/
RX: 1510nm
24dBm -2 to +3dBm -26dBm
SFPGIS90C (DDM) 90Km 9/125μm, SM Duplex LC 1550nm 27dBm 0 to +5dBm -27dBm

Hardened (Operating Temperature: -40 to 85°C/-40 to 185°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
SFPGXT1AM 100m Cat. 5 or better RJ-45 - - - -
EX-1250NSP-SB1L-AS 275m/550m 62.5/125μm/50/125μm, MM Duplex LC 850nm 7.5dBm -9.5 to -4dBm -17dBm
EX-1250TBP-MB1L-AS 550m 62.5/125μm/50/125μm, MM Single LC TX: 1310nm/
RX: 1550nm
7dBm -10 to -4dBm -17dBm
EX-1250TBP-LB1L-AS 550m 62.5/125μm/50/125μm, MM Single LC TX: 1550nm/
RX: 1310nm
7dBm -10 to -4dBm -17dBm
EX-LM38-C3S-TI-N-CE (DDM) 550m 62.5/125μm, MM Single LC TX: 1310nm/
RX: 1550nm
8dBm -10 to +2dBm -18dBm
EX-LM48-C3S-TI-N-CE (DDM) 550m 62.5/125μm, MM Single LC TX: 1550nm/
RX: 1310nm
10dBm -8 to 0dBm -18dBm
EX-1250TSP-MB2L-AS 2Km 62.5/125μm, MM Duplex LC 1310nm 13.5dBm -9.5 to -3dBm -23dBm
EX-1250TSP-MB4L-AS 10Km 9/125μm, SM Duplex LC 1310nm 11.5dBm -9.5 to -3dBm -21dBm
EX-1250TBP-MB4L-AS 10Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
12dBm -9 to -3dBm -21dBm
EX-1250TBP-KB4L-AS 10Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
12dBm -9 to -3dBm -21dBm
EX-1250TSP-MB5L-AS 20Km 9/125μm, SM Duplex LC 1310nm 15dBm -9 to -3dBm -24dBm
EX-1250TBP-MB5L-AS 20Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
15dBm -8 to -3dBm -23dBm
EX-1250TBP-KB5L-AS 20Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
15dBm -8 to -3dBm -23dBm
SFPGYS20M (DDM) 20Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
15dBm -8 to -2dBm -23dBm
SFPGZS20M (DDM) 20Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
15dBm -8 to -2dBm -23dBm
EX-LS38-C3L-TI-N-CE (DDM) 40Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
20dBm -3 to +2dBm -23dBm
EX-LS48-C3L-TI-N-CE (DDM) 40Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
20dBm -3 to +2dBm -23dBm
EX-LS38-C3U-TI-N-CE (DDM) 60Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
24dBm 0 to +5dBm -24dBm
EX-LS48-C3U-TI-N-CE (DDM) 60Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
23dBm -2 to +4dBm -25dBm
EX-LS38-C3L-TI-N-EB (DDM) 40Km 9/125μm, SM Duplex LC 1310nm 20dBm -3 to +2dBm -23dBm
EX-LS48-C3U-TI-N-EB (DDM) 70Km 9/125μm, SM Duplex LC 1550nm 23dBm 0 to +5dBm -23dBm

* More SFP options upon the request.
** Link Budget data is based on pair of the same SFP modules.

10GBASE SFP Series*

Non-Hardened (Operating Temperature: 0 to 70°C/32 to 158°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
SFPTIM3AE (DDM) 300m 62.5/125μm/50/125μm, MM Duplex LC 850nm 2.8dBm -7.1 to -1dBm -9.9dBm
SFPTIS10E (DDM) 10Km 9/125μm, SM Duplex LC 1310nm 8.4dBm -6 to +0.5dBm -14.4dBm
SFPTIS20C (DDM) 20Km 9/125μm, SM Duplex LC 1310nm 9.4dBm -5 to +1dBm -14.4dBm
SFPTIS40C (DDM) 40Km 9/125μm, SM Duplex LC 1310nm 15dBm -0.5 to +5dBm -15.5dBm

Hardened (Operating Temperature: -40 to 85°C/-40 to 185°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
SFPTIM3AM (DDM) 300m 62.5/125μm/50/125μm, MM Duplex LC 850nm 2.8dBm -7 to -1dBm -9.9dBm
SFPTIS10M (DDM) 10Km 9/125μm, SM Duplex LC 1310nm 6.4dBm -8 to +0.5dBm -14.4dBm
SFPTIS20M (DDM) 20Km 9/125μm, SM Duplex LC 1310nm 9.4dBm -5 to +1dBm -14.4dBm
SFPTIS40M (DDM) 40Km 9/125μm, SM Duplex LC 1310nm 15dBm 0.5 to +5dBm -15.5dBm

* More SFP options upon the request.
** Link Budget data is based on pair of the same SFP modules.

GIGABIT ETHERNET (1000Mbps)

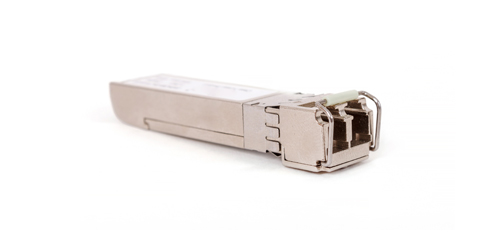

Duplex LC

GIGABIT ETHERNET_100Mbps: DuplexLC



Part Number Mode Distance Operating Temperature Wavelength DDM
EX-1250NSP-SB1LS Multi 275m/550m 0 to 70°C 850nm -
EX-1250NSP-SB1L-AS Multi 275m/550m -40 to 85°C 850nm -
EX-1250TSP-MB2LS Multi 2km 0 to 70°C 1310nm -
EX-1250TSP-MB2L-AS Multi 2km -40 to 85°C 1310nm -
EX-1250TSP-MB4LS Single 10km 0 to 70°C 1310nm -
EX-1250TSP-MB4L-AS Single 10km -40 to 85°C 1310nm -
EX-1250TSP-MB5LS Single 20km 0 to 70°C 1310nm -
EX-1250TSP-MB5L-AS Single 20km -40 to 85°C 1310nm -
EX-LS38-C3L-TC-N-EB Single 40km 0 to 70°C 1310nm
EX-LS38-C3L-TI-N-EB Single 40km -40 to 85°C 1310nm
EX-LS48-C3U-TC-N-EB Single 70km 0 to 70°C 1310nm
EX-LS48-C3U-TI-N-EB Single 70km -40 to 85°C 1310nm
SFPGIS90C Single 90km 0 to 70°C 1310nm

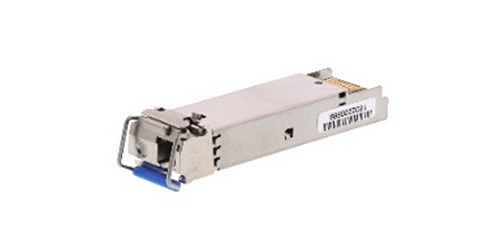

Single LC (used in pairs)

FAST ETHERNET (100Mbps): Single LC (used in pairs)

Part Number Mode Distance Operating Temperature Wavelength DDM
EX-1250TBP-MB1LS Multi 550m 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-LB1LS Multi 550m 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-MB1L-AS Multi 550m -40 to 85°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-LB1L-AS Multi 550m -40 to 85°C TX: 1550nm/
RX: 1310nm
-
EX-LM38-C3S-TI-N-CE Multi 550m -40 to 85°C TX: 1310nm/
RX: 1550nm
EX-LM48-C3S-TI-N-CE Multi 550m -40 to 85°C TX: 1550nm/
RX: 1310nm
EX-1250TBP-MB4LS Single 10km 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-KB4LS Single 10km 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-MB4L-AS Single 10km -40 to 85°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-KB4L-AS Single 10km -40 to 85°C TX: 1550nm/
RX: 1310nm
-
EX-1250TBP-MB5LS Single 20km 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-KB5LS Single 20km 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-MB5L-AS Single 20km -40 to 85°C TX: 1550nm/
RX: 1310nm
-
EX-1250TBP-KB5L-AS Single 20km -40 to 85°C TX: 1310nm/
RX: 1550nm
-
SFPGYS20M Single 20km -40 to 85°C TX: 1550nm/
RX: 1310nm
SFPGZS20M Single 20km -40 to 85°C TX: 1310nm/
RX: 1550nm
EX-LS38-C3L-TC-N-CE Single 40km 0 to 70°C TX: 1550nm/
RX: 1310nm
EX-LS48-C3L-TC-N-CE Single 40km 0 to 70°C TX: 1310nm/
RX: 1550nm
EX-LS38-C3L-TI-N-CE Single 40km -40 to 85°C TX: 1550nm/
RX: 1310nm
EX-LS48-C3L-TI-N-CE Single 40km -40 to 85°C TX: 1310nm/
RX: 1550nm
EX-LS38-C3U-TC-N-CE Single 60km 0 to 70°C TX: 1310nm/
RX: 1550nm
EX-LS48-C3U-TC-N-CE Single 60km 0 to 70°C TX: 1310nm/
RX: 1550nm
EX-LS38-C3U-TI-N-CE Single 60km -40 to 85°C TX: 1310nm/
RX: 1550nm
EX-LS48-C3U-TI-N-CE Single 60km -40 to 85°C TX: 1310nm/
RX: 1550nm
EX-LS48-C3U-TC-N51-CE Single 80km 0 to 70°C TX: 1310nm/
RX: 1550nm
EX-LS48-C3U-TC-N57-CE Single 80km 0 to 70°C TX: 1310nm/
RX: 1550nm

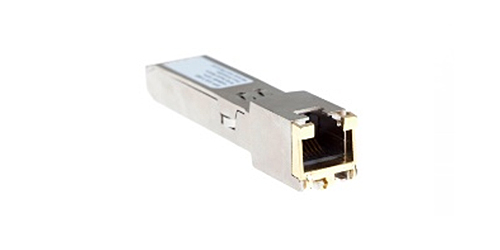

RJ45

FAST ETHERNET (100Mbps): RJ45

Part Number Cable Type Distance Operating Temperature
SFPGXT1AM Cat 5 or better 100m -40 to 85°C



EtherWAN's SFP modules are rigorously tested, 100% and are interoperable with all MSA compliant networking devices. EtherWAN offers a variety of options for both commercial and hardened environments, which provides flexible connectivity solutions.


For detailed SFP specifications, please download the datasheet.

10-GIGABIT ETHERNET (10Gbps)

Duplex LC

10-GIGABIT ETHERNET_100Mbps: DuplexLC

Part Number Mode Distance Operating Temperature Wavelength DDM
SFPTIM3AE Multi 300m 0 to 70°C 850nm
SFPTIM3AM Multi 300m -40 to 85°C 850nm
SFPTIS10E Single 10km 0 to 70°C 1310nm
SFPTIS10M Single 10km -40 to 85°C 1310nm
SFPTIS20C Single 20km 0 to 70°C 1310nm
SFPTIS20M Single 20km -40 to 85°C 1310nm
SFPTIS40C Single 40km 0 to 70°C 1310nm
SFPTIS40M Single 40km -40 to 85°C 1310nm



EtherWAN's SFP modules are rigorously tested, 100% and are interoperable with all MSA compliant networking devices. EtherWAN offers a variety of options for both commercial and hardened environments, which provides flexible connectivity solutions.


For detailed SFP specifications, please download the datasheet.

特長

Used for wide range of fiber applications

Optimal performance on EtherWAN switches

Fast Ethernet, Gigabit Ethernet, and 10-Gigabit Ethernet options available

Multi-mode and Single-mode fiber modules available

Hot-pluggable for instant operation

Enhanced Digital Diagnostic Monitoring available for models marked "DDM" to provide real-time diagnostic information

仕様

Regulatory Compliance

  • Compliant with Multi-Sourcing Agreement (MSA) Small Form Factor Pluggable (SFP)
  • Eye Safety: Compliant with Class 1 laser safety requirements EN 60825-1
  • Environmental: RoHS compliant, lead-free
  • EMC: FCC part 15, CENELEC EN 55022

Power Supply Voltage

  • Single +3.3V

Operating Temperature

  • Hardened: -40 to 85°C (-40 to 185°F)
  • Non-Hardened: 0 to 70°C (32 to 158°F)

Warranty

Fast Ethernet

100BASE SFP Series*

Non-Hardened (Operating Temperature: 0 to 70°C/32 to 158°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
EX-0155NSP-MB2L 2Km 62.5/125μm/50/125μm, MM Duplex LC 1310nm 13dBm -19 to -14dBm -32dBm
EX-LM38-A3S-TC-N-B3 2Km 62.5/125μm/50/125μm, MM Single LC TX: 1310nm/
RX: 1550nm
18dBm -10 to 0dBm -28dBm
EX-LM48-A3S-TC-N-B5 2Km 62.5/125μm/50/125μm, MM Single LC TX: 1550nm/
RX: 1310nm
18dBm -10 to 0dBm -28dBm
EX-0155TSP-MB5L 15Km 9/125μm, SM Duplex LC 1310nm 19dBm -15 to -8dBm -34dBm
EX-0155TBP-MB5L 20Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
18dBm -14 to -8dBm -32dBm
EX-0155TBP-LB5L 20Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
18dBm -14 to -8dBm -32dBm
EX-0155TSP-MB6L 40Km 9/125μm, SM Duplex LC 1310nm 30dBm -5 to 0dBm -35dBm
SFPMXT1AC 100m Cat. 5 or better RJ-45 - - - -

Hardened (Operating Temperature: -40 to 85°C/-40 to 185°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
EX-0155NSP-MB2L-A 2Km 62.5/125μm/50/125μm, MM Duplex LC 1310nm 13dBm -19 to -14dBm -32dBm
EX-LM38-A3S-TI-N-B3 2Km 62.5/125μm/50/125μm, MM Single LC TX: 1310nm/
RX: 1550nm
18dBm -10 to 0dBm -28dBm
EX-LM48-A3S-TI-N-B5 2Km 62.5/125μm/50/125μm, MM Single LC TX: 1550nm/
RX: 1310nm
18dBm -10 to 0dBm -28dBm
EX-0155TSP-MB5L-A 15Km 9/125μm, SM Duplex LC 1310nm 19dBm -15 to -8dBm -34dBm
EX-0155TBP-MB5L-A 20Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
18dBm -14 to -8dBm -32dBm
EX-0155TBP-LB5L-A 20Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
18dBm -14 to -8dBm -32dBm
EX-0155TSP-MB6L-A 40Km 9/125μm, SM Duplex LC 1310nm 29dBm -5 to 0dBm -34dBm
EX-0155TBP-MB6L-A 40Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
26dBm -8 to -3dBm -34dBm
EX-0155TBP-KB6L-A 40Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
26dBm -8 to -3dBm -34dBm

* More SFP options upon the request.
** Link Budget data is based on pair of the same SFP modules.

Gigabit SFP Series*

Non-Hardened (Operating Temperature: 0 to 70°C/32 to 158°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
EX-1250NSP-SB1LS 275m/550m 62.5/125μm/50/125μm, MM Duplex LC 850nm 7.5dBm -9.5 to -4dBm -17dBm
EX-1250TBP-MB1LS 550m 62.5/125μm/50/125μm, MM Single LC TX: 1310nm/
RX: 1550nm
7dBm -10 to -4dBm -17dBm
EX-1250TBP-LB1LS 550m 62.5/125μm/50/125μm, MM Single LC TX: 1550nm/
RX: 1310nm
7dBm -10 to -4dBm -17dBm
EX-1250TSP-MB2LS 2Km 62.5/125μm, MM Duplex LC 1310nm 13.5dBm -9.5 to -3dBm -23dBm
EX-1250TSP-MB4LS 10Km 9/125μm, SM Duplex LC 1310nm 11.5dBm -9.5 to -3dBm -21dBm
EX-1250TBP-MB4LS 10Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
12dBm -9 to -3dBm -21dBm
EX-1250TBP-KB4LS 10Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
12dBm -9 to -3dBm -21dBm
EX-1250TSP-MB5LS 20Km 9/125μm, SM Duplex LC 1310nm 15dBm -9 to -3dBm -24dBm
EX-1250TBP-MB5LS 20Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
15dBm -8 to -3dBm -23dBm
EX-1250TBP-KB5LS 20Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
15dBm -8 to -3dBm -23dBm
EX-LS38-C3L-TC-N-EB (DDM) 40Km 9/125μm, SM Duplex LC 1310nm 20dBm -3 to +2dBm -23dBm
EX-LS38-C3L-TC-N-CE (DDM) 40Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
20dBm -3 to +2dBm -23dBm
EX-LS48-C3L-TC-N-CE (DDM) 40Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
20dBm -3 to +2dBm -23dBm
EX-LS38-C3U-TC-N-CE (DDM) 60Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
24dBm 0 to +5dBm -24dBm
EX-LS48-C3U-TC-N-CE (DDM) 60Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
23dBm -2 to +4dBm -25dBm
EX-LS48-C3U-TC-N-EB (DDM) 70Km 9/125μm, SM Duplex LC 1550nm 23dBm 0 to +5dBm -23dBm
EX-LS48-C3U-TC-N51-CE (1510nm) (DDM) 80Km 9/125μm, SM Single LC TX: 1510nm/
RX: 1570nm
24dBm -2 to +3dBm -26dBm
EX-LS48-C3U-TC-N57-CE (1570nm) (DDM) 80Km 9/125μm, SM Single LC TX: 1570nm/
RX: 1510nm
24dBm -2 to +3dBm -26dBm
SFPGIS90C (DDM) 90Km 9/125μm, SM Duplex LC 1550nm 27dBm 0 to +5dBm -27dBm

Hardened (Operating Temperature: -40 to 85°C/-40 to 185°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
SFPGXT1AM 100m Cat. 5 or better RJ-45 - - - -
EX-1250NSP-SB1L-AS 275m/550m 62.5/125μm/50/125μm, MM Duplex LC 850nm 7.5dBm -9.5 to -4dBm -17dBm
EX-1250TBP-MB1L-AS 550m 62.5/125μm/50/125μm, MM Single LC TX: 1310nm/
RX: 1550nm
7dBm -10 to -4dBm -17dBm
EX-1250TBP-LB1L-AS 550m 62.5/125μm/50/125μm, MM Single LC TX: 1550nm/
RX: 1310nm
7dBm -10 to -4dBm -17dBm
EX-LM38-C3S-TI-N-CE (DDM) 550m 62.5/125μm, MM Single LC TX: 1310nm/
RX: 1550nm
8dBm -10 to +2dBm -18dBm
EX-LM48-C3S-TI-N-CE (DDM) 550m 62.5/125μm, MM Single LC TX: 1550nm/
RX: 1310nm
10dBm -8 to 0dBm -18dBm
EX-1250TSP-MB2L-AS 2Km 62.5/125μm, MM Duplex LC 1310nm 13.5dBm -9.5 to -3dBm -23dBm
EX-1250TSP-MB4L-AS 10Km 9/125μm, SM Duplex LC 1310nm 11.5dBm -9.5 to -3dBm -21dBm
EX-1250TBP-MB4L-AS 10Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
12dBm -9 to -3dBm -21dBm
EX-1250TBP-KB4L-AS 10Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
12dBm -9 to -3dBm -21dBm
EX-1250TSP-MB5L-AS 20Km 9/125μm, SM Duplex LC 1310nm 15dBm -9 to -3dBm -24dBm
EX-1250TBP-MB5L-AS 20Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
15dBm -8 to -3dBm -23dBm
EX-1250TBP-KB5L-AS 20Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
15dBm -8 to -3dBm -23dBm
SFPGYS20M (DDM) 20Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
15dBm -8 to -2dBm -23dBm
SFPGZS20M (DDM) 20Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
15dBm -8 to -2dBm -23dBm
EX-LS38-C3L-TI-N-CE (DDM) 40Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
20dBm -3 to +2dBm -23dBm
EX-LS48-C3L-TI-N-CE (DDM) 40Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
20dBm -3 to +2dBm -23dBm
EX-LS38-C3U-TI-N-CE (DDM) 60Km 9/125μm, SM Single LC TX: 1310nm/
RX: 1550nm
24dBm 0 to +5dBm -24dBm
EX-LS48-C3U-TI-N-CE (DDM) 60Km 9/125μm, SM Single LC TX: 1550nm/
RX: 1310nm
23dBm -2 to +4dBm -25dBm
EX-LS38-C3L-TI-N-EB (DDM) 40Km 9/125μm, SM Duplex LC 1310nm 20dBm -3 to +2dBm -23dBm
EX-LS48-C3U-TI-N-EB (DDM) 70Km 9/125μm, SM Duplex LC 1550nm 23dBm 0 to +5dBm -23dBm

* More SFP options upon the request.
** Link Budget data is based on pair of the same SFP modules.

10GBASE SFP Series*

Non-Hardened (Operating Temperature: 0 to 70°C/32 to 158°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
SFPTIM3AE (DDM) 300m 62.5/125μm/50/125μm, MM Duplex LC 850nm 2.8dBm -7.1 to -1dBm -9.9dBm
SFPTIS10E (DDM) 10Km 9/125μm, SM Duplex LC 1310nm 8.4dBm -6 to +0.5dBm -14.4dBm
SFPTIS20C (DDM) 20Km 9/125μm, SM Duplex LC 1310nm 9.4dBm -5 to +1dBm -14.4dBm
SFPTIS40C (DDM) 40Km 9/125μm, SM Duplex LC 1310nm 15dBm -0.5 to +5dBm -15.5dBm

Hardened (Operating Temperature: -40 to 85°C/-40 to 185°F)

Model Name Distance Cable Type Connector Type Wavelength Link Budget** Optical Output Power Sensitivity
SFPTIM3AM (DDM) 300m 62.5/125μm/50/125μm, MM Duplex LC 850nm 2.8dBm -7 to -1dBm -9.9dBm
SFPTIS10M (DDM) 10Km 9/125μm, SM Duplex LC 1310nm 6.4dBm -8 to +0.5dBm -14.4dBm
SFPTIS20M (DDM) 20Km 9/125μm, SM Duplex LC 1310nm 9.4dBm -5 to +1dBm -14.4dBm
SFPTIS40M (DDM) 40Km 9/125μm, SM Duplex LC 1310nm 15dBm 0.5 to +5dBm -15.5dBm

* More SFP options upon the request.
** Link Budget data is based on pair of the same SFP modules.

Gigabit Ethernet

GIGABIT ETHERNET (1000Mbps)

Duplex LC

GIGABIT ETHERNET_100Mbps: DuplexLC



Part Number Mode Distance Operating Temperature Wavelength DDM
EX-1250NSP-SB1LS Multi 275m/550m 0 to 70°C 850nm -
EX-1250NSP-SB1L-AS Multi 275m/550m -40 to 85°C 850nm -
EX-1250TSP-MB2LS Multi 2km 0 to 70°C 1310nm -
EX-1250TSP-MB2L-AS Multi 2km -40 to 85°C 1310nm -
EX-1250TSP-MB4LS Single 10km 0 to 70°C 1310nm -
EX-1250TSP-MB4L-AS Single 10km -40 to 85°C 1310nm -
EX-1250TSP-MB5LS Single 20km 0 to 70°C 1310nm -
EX-1250TSP-MB5L-AS Single 20km -40 to 85°C 1310nm -
EX-LS38-C3L-TC-N-EB Single 40km 0 to 70°C 1310nm
EX-LS38-C3L-TI-N-EB Single 40km -40 to 85°C 1310nm
EX-LS48-C3U-TC-N-EB Single 70km 0 to 70°C 1310nm
EX-LS48-C3U-TI-N-EB Single 70km -40 to 85°C 1310nm
SFPGIS90C Single 90km 0 to 70°C 1310nm

Single LC (used in pairs)

FAST ETHERNET (100Mbps): Single LC (used in pairs)

Part Number Mode Distance Operating Temperature Wavelength DDM
EX-1250TBP-MB1LS Multi 550m 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-LB1LS Multi 550m 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-MB1L-AS Multi 550m -40 to 85°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-LB1L-AS Multi 550m -40 to 85°C TX: 1550nm/
RX: 1310nm
-
EX-LM38-C3S-TI-N-CE Multi 550m -40 to 85°C TX: 1310nm/
RX: 1550nm
EX-LM48-C3S-TI-N-CE Multi 550m -40 to 85°C TX: 1550nm/
RX: 1310nm
EX-1250TBP-MB4LS Single 10km 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-KB4LS Single 10km 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-MB4L-AS Single 10km -40 to 85°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-KB4L-AS Single 10km -40 to 85°C TX: 1550nm/
RX: 1310nm
-
EX-1250TBP-MB5LS Single 20km 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-KB5LS Single 20km 0 to 70°C TX: 1310nm/
RX: 1550nm
-
EX-1250TBP-MB5L-AS Single 20km -40 to 85°C TX: 1550nm/
RX: 1310nm
-
EX-1250TBP-KB5L-AS Single 20km -40 to 85°C TX: 1310nm/
RX: 1550nm
-
SFPGYS20M Single 20km -40 to 85°C TX: 1550nm/
RX: 1310nm
SFPGZS20M Single 20km -40 to 85°C TX: 1310nm/
RX: 1550nm
EX-LS38-C3L-TC-N-CE Single 40km 0 to 70°C TX: 1550nm/
RX: 1310nm
EX-LS48-C3L-TC-N-CE Single 40km 0 to 70°C TX: 1310nm/
RX: 1550nm
EX-LS38-C3L-TI-N-CE Single 40km -40 to 85°C TX: 1550nm/
RX: 1310nm
EX-LS48-C3L-TI-N-CE Single 40km -40 to 85°C TX: 1310nm/
RX: 1550nm
EX-LS38-C3U-TC-N-CE Single 60km 0 to 70°C TX: 1310nm/
RX: 1550nm
EX-LS48-C3U-TC-N-CE Single 60km 0 to 70°C TX: 1310nm/
RX: 1550nm
EX-LS38-C3U-TI-N-CE Single 60km -40 to 85°C TX: 1310nm/
RX: 1550nm
EX-LS48-C3U-TI-N-CE Single 60km -40 to 85°C TX: 1310nm/
RX: 1550nm
EX-LS48-C3U-TC-N51-CE Single 80km 0 to 70°C TX: 1310nm/
RX: 1550nm
EX-LS48-C3U-TC-N57-CE Single 80km 0 to 70°C TX: 1310nm/
RX: 1550nm

RJ45

FAST ETHERNET (100Mbps): RJ45

Part Number Cable Type Distance Operating Temperature
SFPGXT1AM Cat 5 or better 100m -40 to 85°C



EtherWAN's SFP modules are rigorously tested, 100% and are interoperable with all MSA compliant networking devices. EtherWAN offers a variety of options for both commercial and hardened environments, which provides flexible connectivity solutions.


For detailed SFP specifications, please download the datasheet.

10-Gigabit Ethernet

10-GIGABIT ETHERNET (10Gbps)

Duplex LC

10-GIGABIT ETHERNET_100Mbps: DuplexLC

Part Number Mode Distance Operating Temperature Wavelength DDM
SFPTIM3AE Multi 300m 0 to 70°C 850nm
SFPTIM3AM Multi 300m -40 to 85°C 850nm
SFPTIS10E Single 10km 0 to 70°C 1310nm
SFPTIS10M Single 10km -40 to 85°C 1310nm
SFPTIS20C Single 20km 0 to 70°C 1310nm
SFPTIS20M Single 20km -40 to 85°C 1310nm
SFPTIS40C Single 40km 0 to 70°C 1310nm
SFPTIS40M Single 40km -40 to 85°C 1310nm



EtherWAN's SFP modules are rigorously tested, 100% and are interoperable with all MSA compliant networking devices. EtherWAN offers a variety of options for both commercial and hardened environments, which provides flexible connectivity solutions.


For detailed SFP specifications, please download the datasheet.
