PD1041

広範囲動作温度対応 サージ保護デバイスーRJ45

Wide Temperature
RJ45コネクタにより、pair-to-pairの保護を提供
10/100/1000BASE-T と PoE製品とも適合

Downloads

概要
特長
仕様

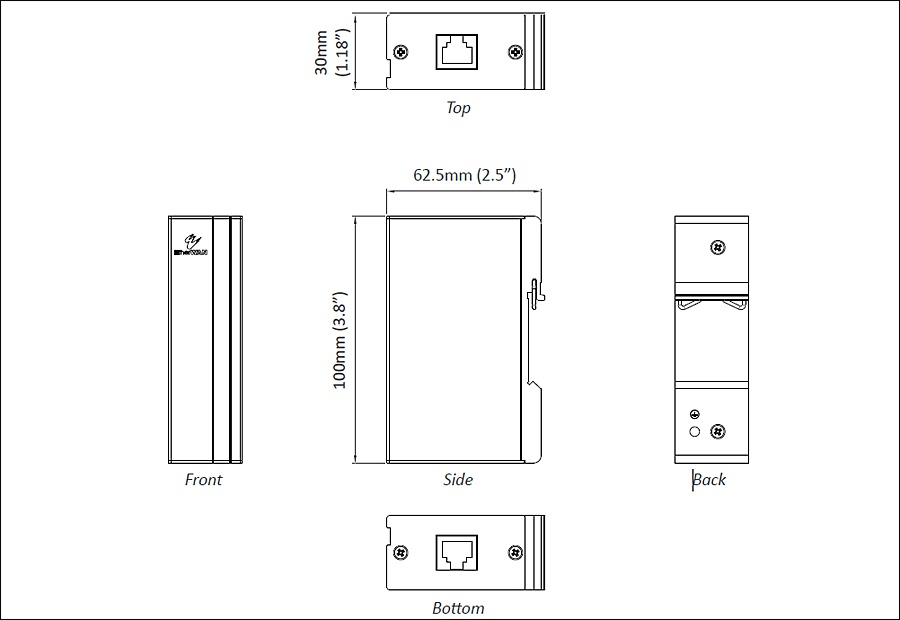

寸法図
製品型番
紹介動画

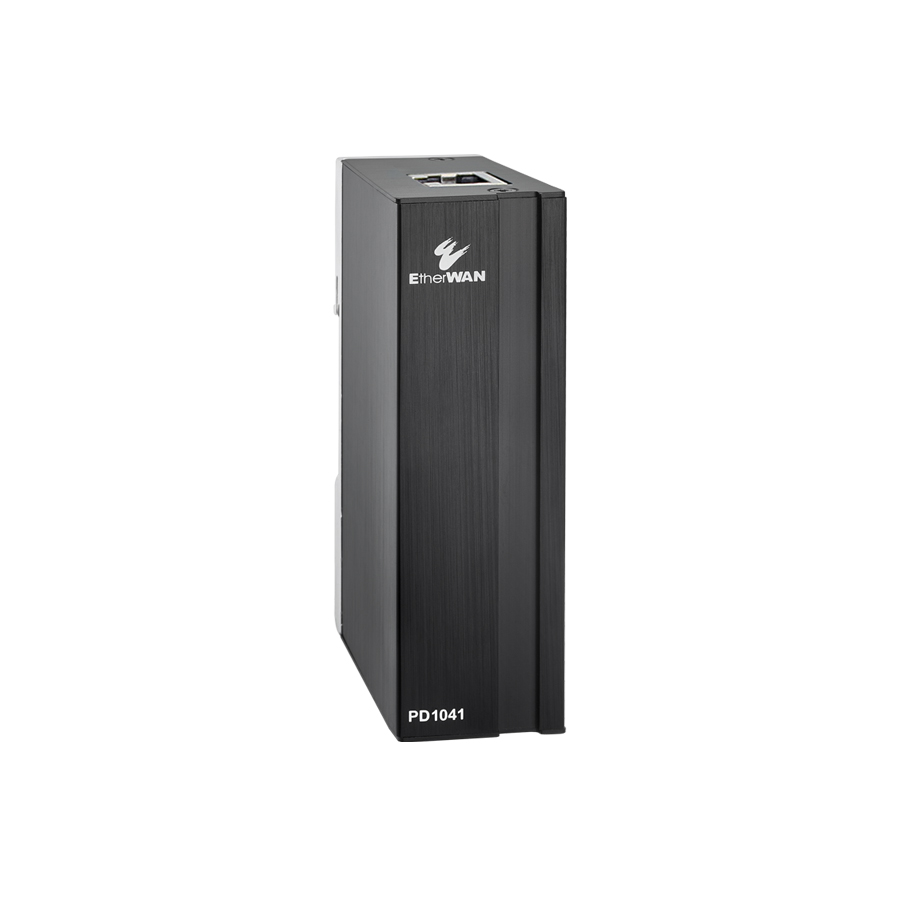

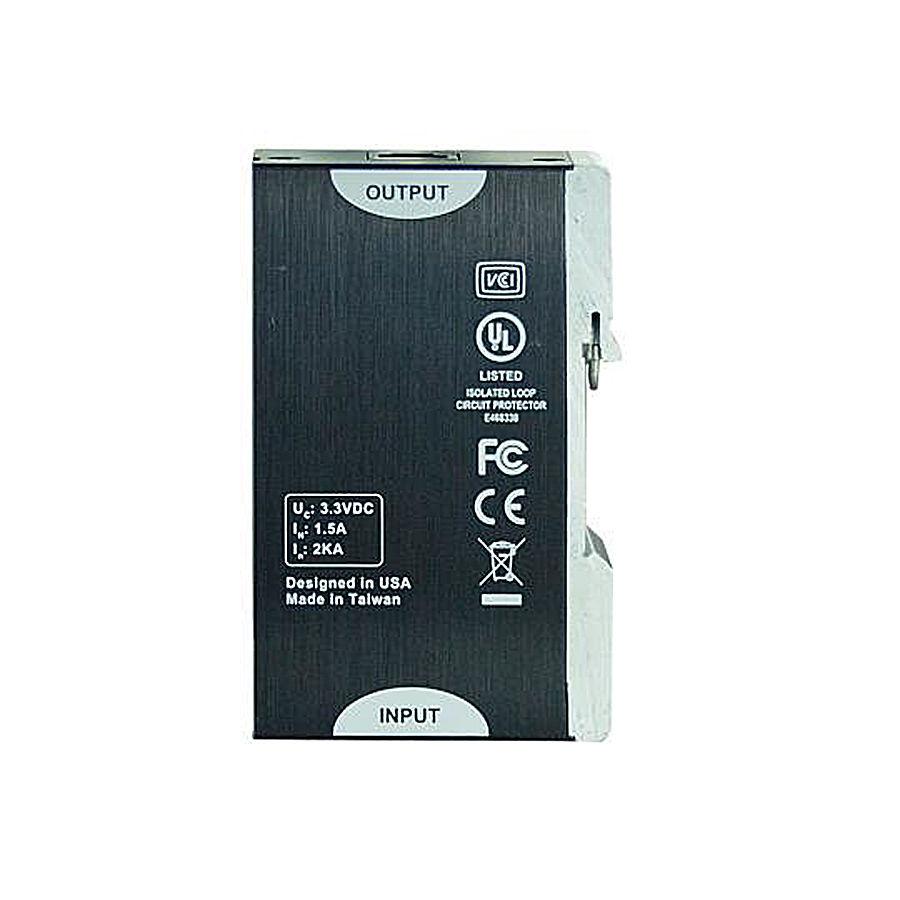

EtherWAN's PD1041 Hardened Surge Protection Device is designed to protect your EtherWAN Switch investment; however any Ethernet network device can be protected from dangerous electrical surges. Designed for harsh environments, the PD1041 can be placed where you need it to protect your valuable network equipment.

EtherWAN — "When Connectivity is Crucial."

Protection Solution Against Voltage Surge

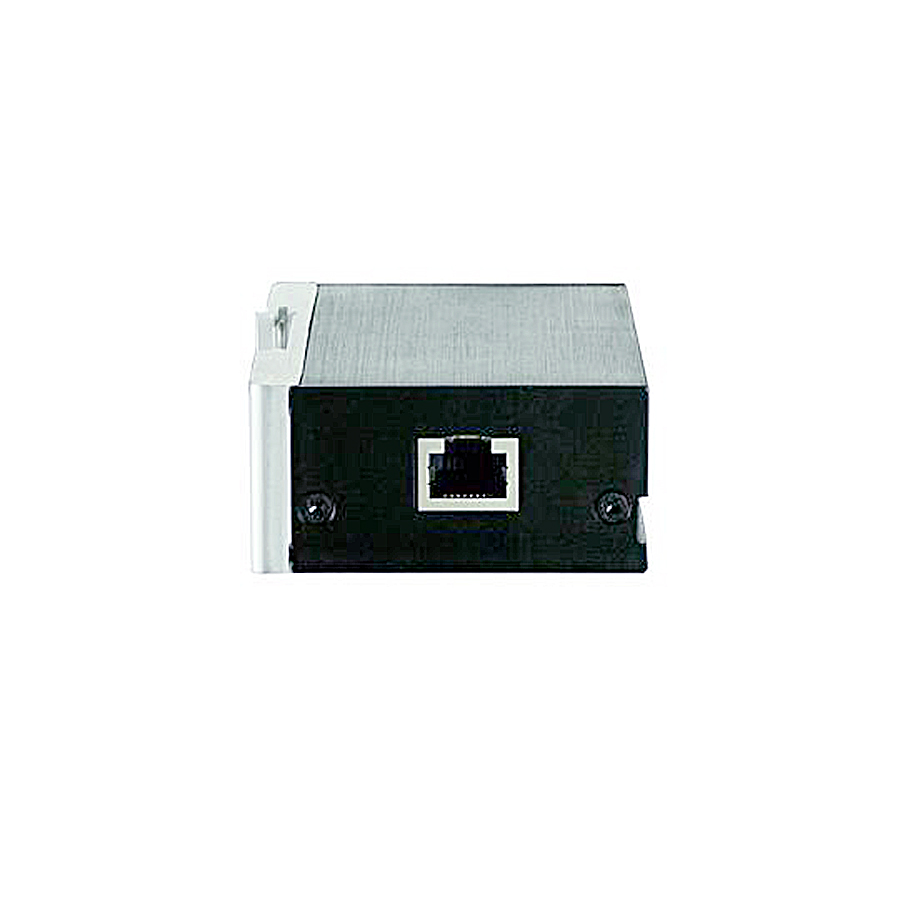

» Provides pair-to-pair protection through RJ45 connector

Flexible Installation

» Supports DIN-rail or desktop installation

Wide Temperature Range

» Provides -40°C to 75°C operating temperature range for extreme environments

Compatible with 10/100BASE-T, Gigabit and PoE products

» Pass-through Data and PoE Power

Electrical

Maximum continuous operating voltage UC

  • • ≤ 3.3V DC

Maximum continuous voltage UC (wire-wire)
  • • ≤ 3.3 V DC (± 60 V DC/PoE+)

Maximum continuous voltage UC (wire-ground)
  • • ≤ 180 V DC

Nominal current IN
  • • ≤ 1.5 A (25 °C)

Operating effective current IC at UC
  • • ≤ 1 μA

Residual current IPE
  • • ≤ 8 μA

Nominal discharge surge current In (8/20) μs (Core-Core)
  • • 100 A

Nominal discharge surge current In (8/20) μs (Core-Earth)
  • • 2 kA (per signal pair)

Total surge current (8/20) μs
  • • 10 kA

Nominal pulse current Ian (10/700) μs (Core-Core)
  • • ≤ 40 A

Nominal pulse current Ian (10/700) μs (Core-Earth)
  • • ≤ 160 A

Output voltage limitation at 1 kV/μs (Core-Core) spike
  • • ≤ 85 V (PoE)

Output voltage limitation at 1 kV/μs (Core-Earth) spike
  • • ≤ 700 V

Output voltage limitation at 1 kV/μs (Core-Core) static
  • • ≤ 9 V

Output voltage limitation at 1 kV/μs (Core-Earth) static
  • • ≤ 700 V

Output voltage limitation at 100V/s (Core-Core)
  • • ≤ 9 V

Output voltage limitation at 100V/s (Core-Earth)
  • • ≤ 300 V

Output voltage limitation at 100V/μs (Core-Core)
  • • ≤ 9 V

Output voltage limitation at 100V/μs (Core-Earth)
  • • ≤ 600 V

Residual voltage at IN, (conductor-conductor)
  • • ≤ 15 V
  • • ≤ 100 V (PoE)

Voltage protection level Up (Core-Core)
  • • ≤ 9 V (B2 - 1 kV/25 A
  • • ≤ 100 V (B2 - 1 kV/25 A - PoE)
  • • ≤ 15 V (500 V/100 A)

Voltage protection level Up (Core-Earth)
  • • ≤ 600 V
  • • ≤ 700 V (C2 - 4 kV/2 kA)

Response time tA (Core-Core)
  • • ≤ 1 ns

Response time tA (Core-Earth)
  • • ≤ 100 ns

Input attenuation aE, sym.
  • • 1 dB (≤ 250 MHz)

Near-end crosstalk attenuation
  • • ≤ 35 dB (At 250 MHz / 100 Ω)

Cut-off frequency fg (3 dB), sym. in 100 Ohm system
  • • > 500 MHz

Capacity (Core-Core)
  • • typ. 5 pF (f= 1 MHz / VR= 0 V)

Capacity (Core-Earth)
  • • typ. 2 pF (f= 1 MHz / VR= 0 V)

Surge carrying capacity in acc. with IEC 61643-21 (Core-Core)
  • • B2 (1 kV/25 A)

Surge carrying capacity in acc. with IEC 61643-21 (Core-Earth)
  • • B2 (4 kV / 100 A)
  • • C2 (4 kV / 2 kA)
  • • D1 (1 kA)




Mechanical

Casing

  • • Aluminum case
  • • IP20

Dimensions
  • • 62.5 x 100 x 30mm (W x D x H)
      (2.5” x 3.8” x 1.18”)

Weight
  • • 184g ± 5%

Installation
  • • DIN-Rail

Connection (input / output)
  • • RJ45 connector / RJ45 connector




Environment

Operating Temperature

  • • -40 to 75°C (-40 to 167°F)

Storage Temperature
  • • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
  • • 5% to 95%, non-condensation




Regulatory Approvals

ISO

  • • Manufactured in an ISO 9001 facility

EMI
  • CE
  • FCC Part 15 Class B
  • VCCI

TUV
  • • IEC 61643-21

UL
  • • UL 497B




Model

PD1041 Hardened Surge Protection Device – RJ45

* NOTE: CAT6 cable is recommended.
