DIN-Rail 電源装置

産業用 電源装置 シリーズ

DIN-Rail Power Supply
DIN-Rail Power Supply

Downloads

概要
製品型番

Stable Performance under Difficult Environments

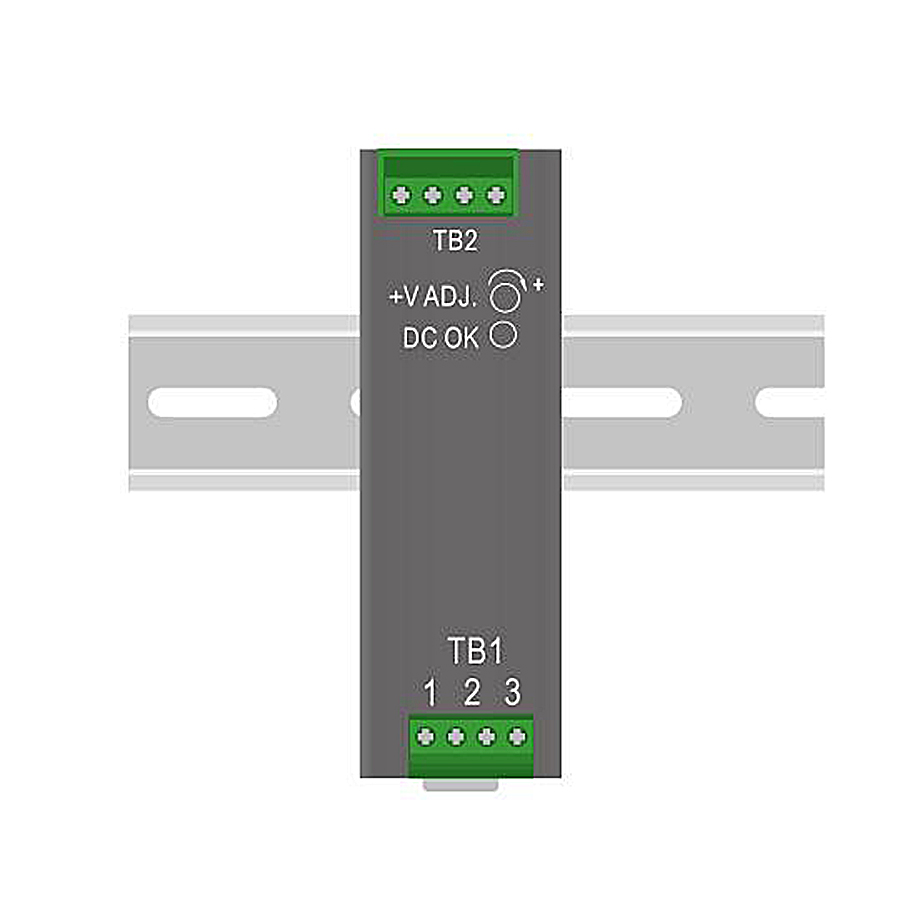

EtherWAN provides DC single output industrial DIN rail power supply units come with such protection features as short circuit, overload, over voltage and over temperature for the stable operation of industrial Ethernet equipment. It uses the free air convection cooling system to prevent operating temperature from rising. Being able to operate under the temperature range from -20 to 70 degrees C (maximum), the DC single output industrial DIN rail power supply units can be placed in almost any difficult environments.

EtherWAN — "When Connectivity is Crucial."



Model

Model number Working Temperature Input Voltage Output Voltage Description datasheet
HDR-30-12 -30 ~ +70℃ 85-264VAC 12VDC 30W/ 2A DIN Rail 12VDC Industrial Power Supply datasheet
HDR-30-24 -30 ~ +70℃ 85-264VAC 24VDC 30W/1.5A DIN-Rail 24VDC Industrial Power Supply datasheet
HDR-60-24 -30 ~ +70℃ 85-264VAC 24VDC 60W/2.5A DIN-Rail 24VDC Industrial Power Supply datasheet
EDR-75-24 -20 ~ +60℃ 90-264VAC 24VDC 75W/3.2A DIN-Rail 24VDC Industrial Power Supply datasheet
EDR-75-48 -20 ~ +60℃ 90-264VAC 48VDC 75W/1.6A DIN-Rail 48VDC Industrial Power Supply datasheet
EDR-120-24 -20 ~ +60℃ 90-264VAC 24VDC 120W/5A DIN-Rail 24VDC Industrial Power Supply datasheet
EDR-120-48 -20 ~ +60℃ 90-264VAC 48VDC 120W/2.5A DIN-Rail 48VDC Industrial Power Supply datasheet
NDR-120-48 -20 ~ +70℃ 90-264VAC 48VDC 120W/2.5A DIN-Rail 48VDC Industrial Power Supply datasheet
NDR-240-48 -20 ~ +70℃ 90-264VAC 48VDC 240W/5A DIN-Rail 48VDC Industrial Power Supply datasheet
NDR-480-48 -20 ~ +70℃ 90-264VAC 48VDC 480W/10A DIN-Rail 48VDC Industrial Power Supply datasheet
SDR-120-48 -25 ~ +70℃ 88-264VAC 48VDC 120W/2.5A DIN-Rail 48VDC Industrial Power Supply datasheet
SDR-240-48 -25 ~ +70℃ 88-264VAC 48VDC 240W/5A DIN-Rail 48VDC Industrial Power Supply datasheet
SDR-480-48 -25 ~ +70℃ 88-264VAC 48VDC 480W/10A DIN-Rail 48VDC Industrial Power Supply datasheet
DDR-120A-48 -40 ~ +70℃ 9-18VDC 48VDC 120W/2.1A DIN-Rail 48VDC Industrial Power Supply datasheet
DDR-120B-48 -40 ~ +70℃ 16.8-33.6VDC 48VDC 120W/2.5A DIN-Rail 48VDC Industrial Power Supply datasheet
