OttoE H 系列
NEW

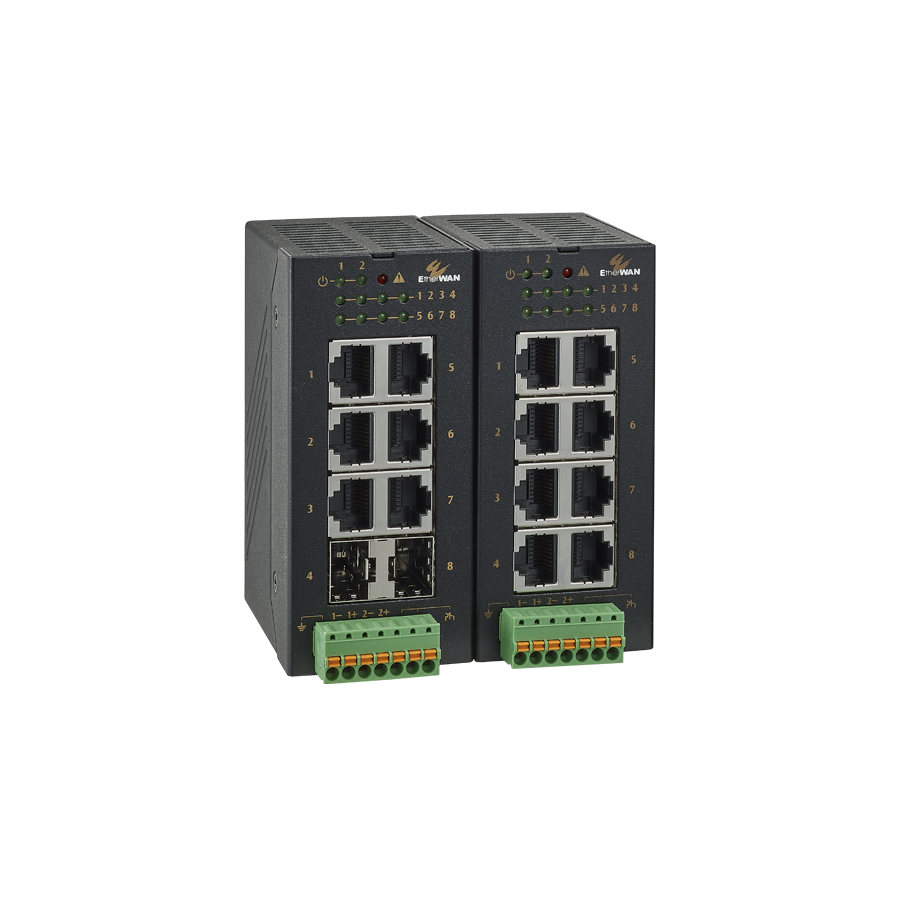

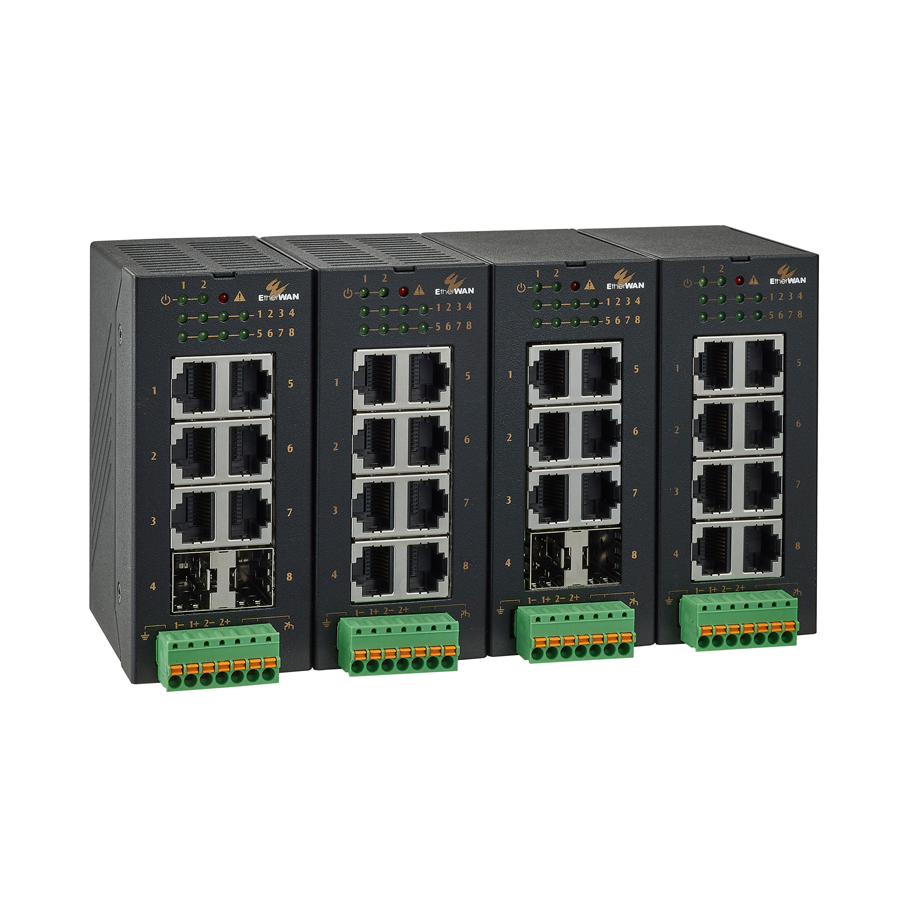

強固級非網管型 8 埠乙太網路交換器
強固等級
SFP 連接埠
高可靠性
QoS 封包排程
Downloads
工作溫度範圍
- 支援強固等級
SFP 連接埠
- 最多可支援達兩個 100/1000BASE SFP
高可靠性
- 無風扇設計
QoS 封包排程
- PROFINET (TG100H), EtherNet/IP

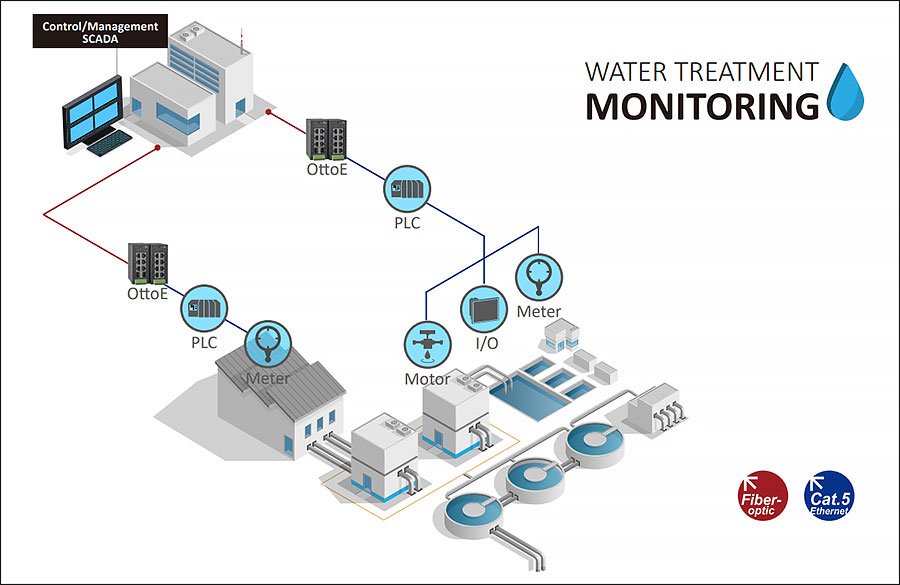

益網科技 OttoE 系列強固級非網管型 Gigabit 網路交換器， 專門為部署於空間有限的惡劣環境中而設計。簡單易用經濟實惠的 OttoE 系列， 提供工業乙太網路的基本所需的功能。
支援 9 至 55 VDC 備援電力輸入，並提供斷電中繼警報。OttoE 配備八個 Fast / Gigabit 網路埠，或 Fast / Gigabit RJ45 網路埠混合兩個 100 或 100/1000 Mbps 雙速率 SFP 埠的組合，用於長距離串連使用。
這款多功能交換器具備有全/半雙工自動偵測傳輸速率（Auto Negotiation）和自動 MDI / MDIX 操作功能，能方便地連接各種網絡設備。QoS 封包排程容許流量優先排序和高效資源管理。堅固耐用的導軌安裝型金屬外殼提供安全簡易的安裝方式 （包裝內含安裝套件）。
益網科技 — "連結， 致勝的關鍵"
Interface
- Ethernet
- 10/100BASE-TX: 8 or 6ports
- 10/100/1000BASE-TX: 8 or 6 ports
- 100BASE-SFP: 0 or 2 ports
- 100/1000BASE-SFP: 0 or 2 ports
- Alarm Contact
- One relay output with current [email protected]
- LED Indicators
- Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red)
- Per Port: Link/Activity (Green)
Technology
- Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/FX
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.1p Quality of Service (QoS)
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
- Forward/Filtering Rate
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
- Packet Buffer Memory
- 768K bits (TF100H)
- 1.5M bits (TG100H)
- Processing Type
- Store-and-Forward
- Auto Negotiation
- Half-duplex back-pressure and IEEE
- 802.3x full-duplex flow control
- Auto MDI/MDIX
- Address Table Size
- 2K MAC (TF100H)
- 4K MAC (TG100H)
Power
- Input
- 12-48VDC (9-55VDC) (Terminal Block)
- Power Consumption
- 3.4W max. (TF100H)
- 5.55W max. (TG100H)
- Protection
- Reverse Polarity Protection
Physical
- Casing Material
- Metal
- IP Rating
- IP30

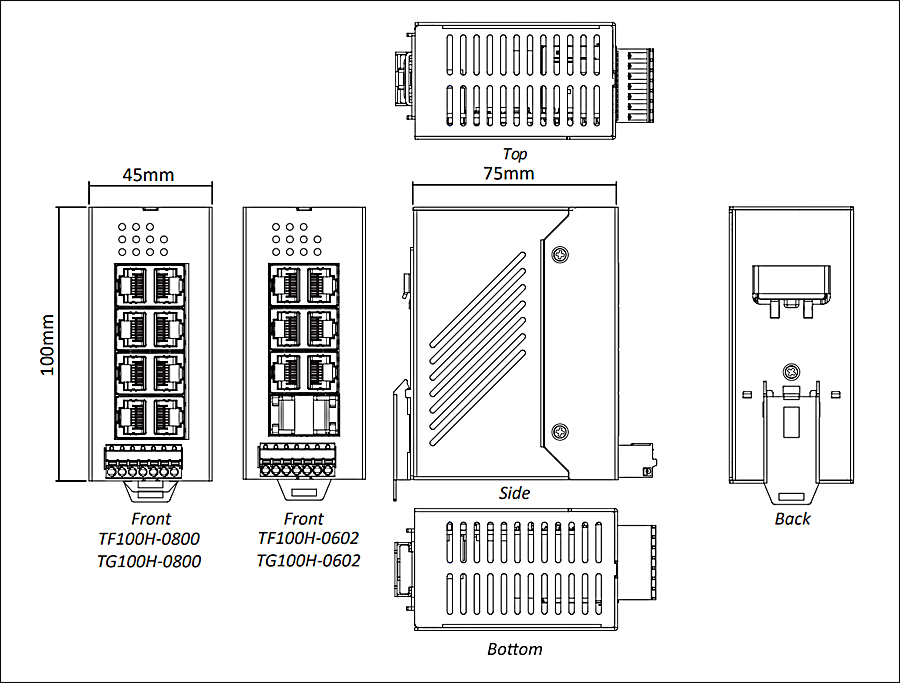

- Dimensions
- 45 x 75 x 100mm (W x D x H) (1.77" x 2.95" x 3.94")
- Weight
- 336g (0.74lbs)
- Installation Type
- DIN-Rail (Top hat type 35mm) mounting
Environmental
- Operating Temp.
- -40 to 75°C (-40 to 167°F)
- Storage Temp.
- -40 to 85°C (-40 to 185°F)
- Relative Humidity
- 5% to 95% (non-condensing)
Regulatory
- ISO
- Manufactured in ISO-9001 facility
- EMI
- FCC Part 15 Class A
- VCCI Class A
- EN 61000-6-4
- ICES-003
- EN 55032
- EMS
- EN 61000-6-2
- - EN 61000-4-2 (ESD)
- - EN 61000-4-3 (Radiated RFI)
- - EN 61000-4-4 (Burst)
- - EN 61000-4-5 (Surge)
- - EN 61000-4-6 (Induced RFI)
- - EN 61000-4-8 (Magnetic field)
- EN 61000-6-2
- Safety
- UL 61010
- Environmental Test Compliance
- IEC 60068-2-6 Fc (Vibration)
- IEC 60068-2-27 Ea (Shock)
- FED STD 101C Method 5007.1 (Free fall w/package)
- Industrial
- EN 50121-4
- Traffic
- NEMA TS2
Warranty
- Length
- Limited Lifetime
- Details
What's Included
- Device
- Ethernet switch
- Installation
- Mounting brackets, screws
- Documentation
- Quick install guide
