EX42900系列為輕巧型強固級非網管鋁軌式安裝之機型,具備五或八個Gigabit乙太網路連接埠或Gigabit RJ45網路埠搭配1個Gigabit光纖埠之組合以支援長距離傳輸,適合使用於工廠工業自動化、IP影像監控、802.11n WiFi 無線網路連線等需要高頻寬同時也需節能減碳之應用環境。

EX42900系列雖屬非網管機型,但支援Jumbo Frame、full wire speed Gigabit throughput、QoS support,並符合eco-friendly IEEE 802.3az EEE (Energy Efficient Ethernet)標準。薄型化的設計支援軌道式(DIN-rail)安裝,十分適合安裝於有限的空間。前面板的LED指示燈可讓使用者清楚地檢視連線狀態以及電源狀態。

EtherWAN — "When Connectivity is Crucial."

強固等級設計

» 寬溫操作(-40到75°C)

支援Jumbo Frame

» 最高支援10K bytes (EX42905/EX42914系列)
» 最高支援9720 bytes (EX42908/EX42917系列)

光纖介面連接

» 最高支援1個1000BASE-FX埠,彈性搭配SC、ST組合

高可靠性能

» 無風扇設計
» 全機體固定設計,無可活動零件

技術

標準

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX/100BASE-FX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex flow control
  • • IEEE 802.3az Energy Efficient Ethernet
  • • IEEE 802.1p Quality of Service (QoS)

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

緩衝記憶體封包
  • • EX42905/EX42914: 1M bits
  • • EX42908/EX42917: 192KB

傳輸型式
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto MDI/MDIX

巨大封包
  • • EX42905/EX42914: 10K bytes
  • • EX42908/EX42917: 9720 bytes

MAC地址表
  • • EX42905/EX42914: 8K MAC addresses
  • • EX42908/EX42917: 4K MAC addresses

Broadcast Storm Protection Threshold (EX42908/EX42917 only)

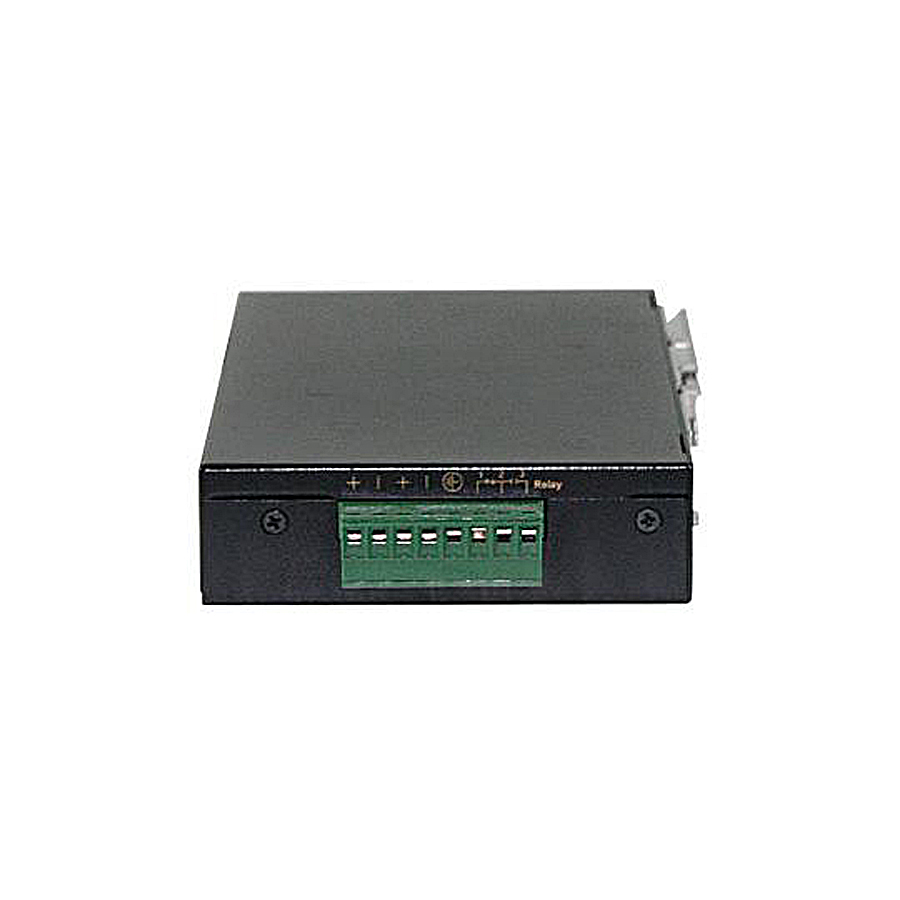

電源

輸入電壓

  • • 12-48VDC

電力功耗
Protection
  • • Reverse polarity protection


機構

機殼

  • • 金屬材質
  • • IP30

尺寸
  • • EX42905/EX42914:
      30 x 76.3 x 110mm (W x D x H)
      (1.18" x 3.05" x 4.4")
  • • EX42908/EX42917:
      30 x 100 x 149mm (W x D x H)
      (1.18" x 4" x 5.96")

重量
  • • EX42905/EX42914: 0.34Kg (0.75lb.)
  • • EX42908/EX42817: 0.39Kg (0.841lb.)

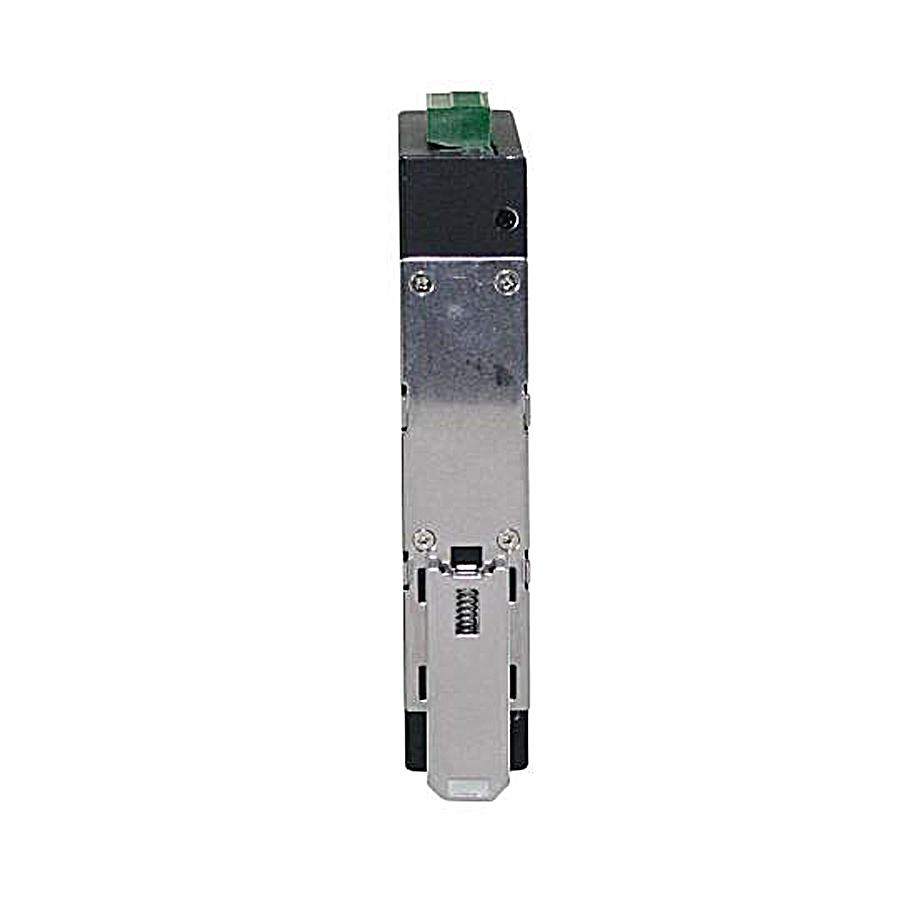

安裝方式
  • • DIN-Rail (Top hat type 35mm)


介面

乙太網路埠

  • • EX42905/EX42914:
      10/100/1000BASE-T: 5 or 4 ports
      1000BASE-X: 0 or 1 ports
  • • EX42908/EX42917:
      10/100/1000BASE-T: 8 or 7 ports
      1000BASE-X: 0 or 1 ports

LED 指示燈號
  • • EX42905/EX42914:
      Per Unit: Power (Green)
      Per Port: 10/100M (Green), 1000M (Yellow)
  • • EX42908/EX42917:
      Per Unit: Power 1 (Green), Power 2 (Green), Alarm (Red)
      Per Port: 10/100M (Green), 1000M (Yellow)

Alarm Contact (EX42908/EX42917 only)
  • • One relay output with current [email protected]
  • • Supports normal close and normal open

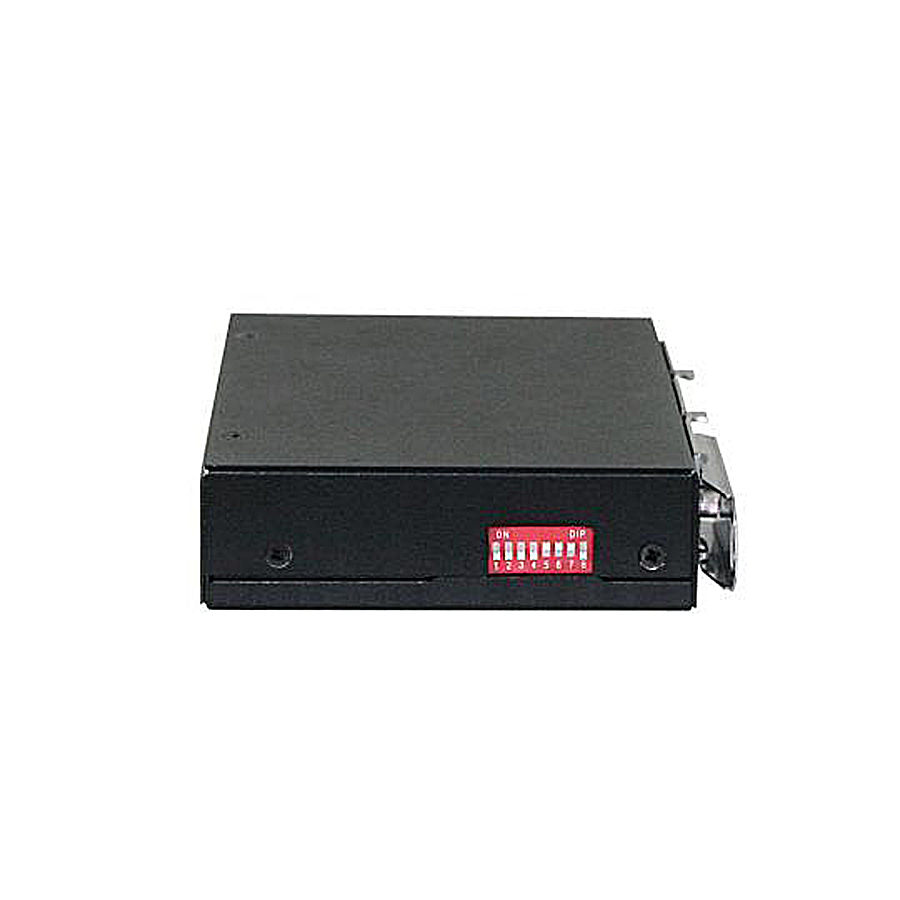

DIP Switches (EX42908/EX42917 only)
  • • Enable/Disable Port fault alarm


環境

工作溫度

  • • -40 to 75°C (-40 to 167°F)
      Tested @ -40 to 85°C (-40 to 185°F)

儲存溫度
  • • -40 to 85°C (-40 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)


通過認證

ISO

  • • Manufactured in an ISO 9001 facility

Safety
  • UL 60950 (EX42905/EX42914 Series only)
  • UL 62368 (EX42908/EX42917 Series only)
  • UL ISA 12.12.01 Class I Div. 2/ATEX Zone 2 (EX42908/EX42917 Series only)

EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 55022 Class A

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliances
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)


型號

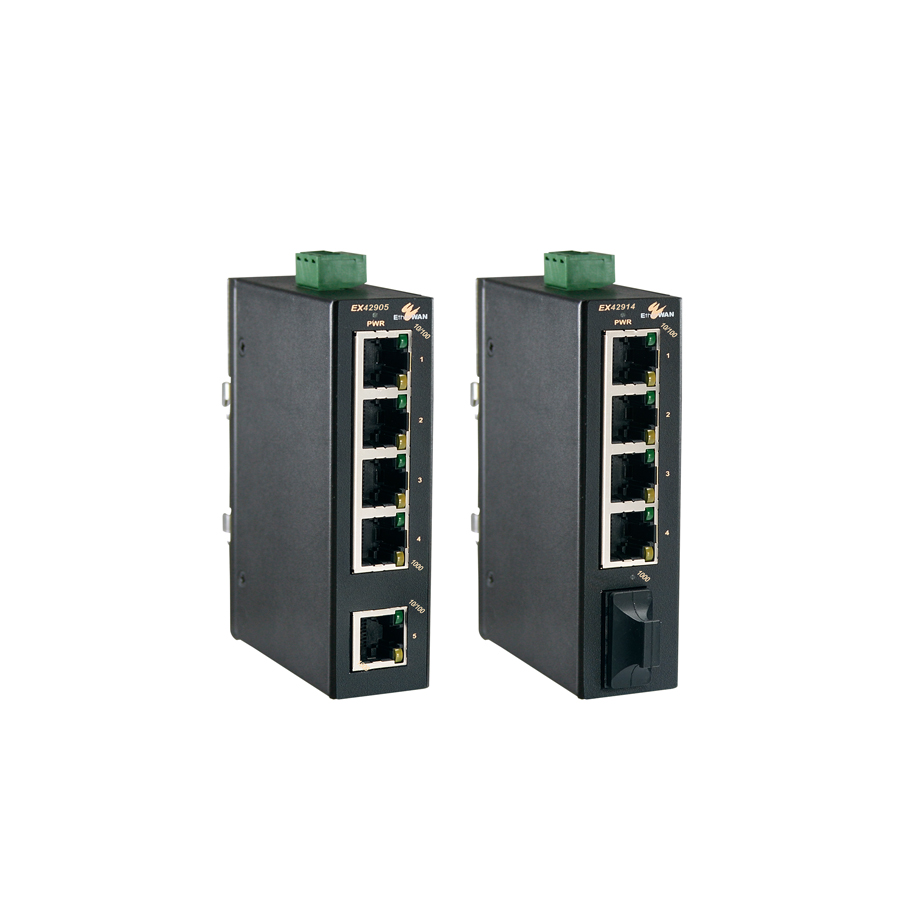

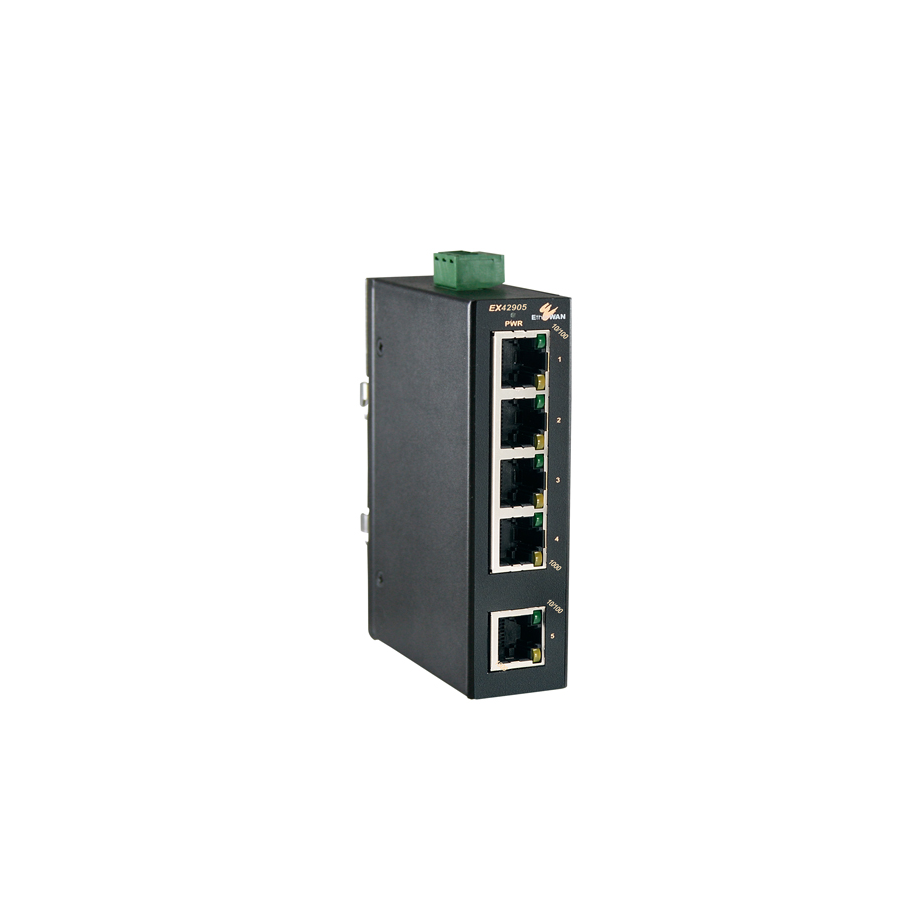

EX42905 5-port 10/100/1000BASE-T Gigabit Hardened Unmanaged Ethernet Switch
EX42914-X 4-port 10/100/1000BASE-T +1-port 1000BASE-X Gigabit Hardened Unmanaged Ethernet Switch
EX42908 8-port 10/100/1000BASE-T Gigabit Hardened Unmanaged Ethernet Switch
EX42917-X 7-port 10/100/1000BASE-T +1-port 1000BASE-X Gigabit Hardened Unmanaged Ethernet Switch

* DIN-Rail mounting kit included.


Optical Port Options (X)

3 1000BASE-SX (SC) - 550m
5 1000BASE-SX (ST) - 550m
A 1000BASE-LX (SC) - 10km
R 1000BASE-BX (SC) WDM-TX: 1310nm/RX: 1550nm-20Km
S 1000BASE-BX (SC) WDM-TX: 1550nm/RX: 1310nm-20Km

Optional Accessories

HDR-30-24 30W/1.5A DIN-Rail 24VDC Industrial Power Supply
HDR-60-24 60W/2.5A DIN-Rail 24VDC Industrial Power Supply
EDR-75-24 75W/3.2A DIN-Rail 24VDC Industrial Power Supply
EX41-145046-X Power Supply 45W 12VDC with Open Wire
(X) = 1: US, 2: EU, 3: UK, 4: AU, 5: JP, 6: SA

產品介紹

EX42900系列為輕巧型強固級非網管鋁軌式安裝之機型,具備五或八個Gigabit乙太網路連接埠或Gigabit RJ45網路埠搭配1個Gigabit光纖埠之組合以支援長距離傳輸,適合使用於工廠工業自動化、IP影像監控、802.11n WiFi 無線網路連線等需要高頻寬同時也需節能減碳之應用環境。

EX42900系列雖屬非網管機型,但支援Jumbo Frame、full wire speed Gigabit throughput、QoS support,並符合eco-friendly IEEE 802.3az EEE (Energy Efficient Ethernet)標準。薄型化的設計支援軌道式(DIN-rail)安裝,十分適合安裝於有限的空間。前面板的LED指示燈可讓使用者清楚地檢視連線狀態以及電源狀態。

EtherWAN — "When Connectivity is Crucial."

產品亮點

強固等級設計

» 寬溫操作(-40到75°C)

支援Jumbo Frame

» 最高支援10K bytes (EX42905/EX42914系列)
» 最高支援9720 bytes (EX42908/EX42917系列)

光纖介面連接

» 最高支援1個1000BASE-FX埠,彈性搭配SC、ST組合

高可靠性能

» 無風扇設計
» 全機體固定設計,無可活動零件

產品規格

技術

標準

  • • IEEE 802.3 10BASE-T
  • • IEEE 802.3u 100BASE-TX/100BASE-FX
  • • IEEE 802.3ab 1000BASE-T
  • • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • • IEEE 802.3x Full duplex flow control
  • • IEEE 802.3az Energy Efficient Ethernet
  • • IEEE 802.1p Quality of Service (QoS)

Forward and Filtering Rate
  • • 14,880pps for 10Mbps
  • • 148,810pps for 100Mbps
  • • 1,488,100pps for 1000Mbps

緩衝記憶體封包
  • • EX42905/EX42914: 1M bits
  • • EX42908/EX42917: 192KB

傳輸型式
  • • Store-and-Forward
  • • Auto Negotiation
  • • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • • Auto MDI/MDIX

巨大封包
  • • EX42905/EX42914: 10K bytes
  • • EX42908/EX42917: 9720 bytes

MAC地址表
  • • EX42905/EX42914: 8K MAC addresses
  • • EX42908/EX42917: 4K MAC addresses

Broadcast Storm Protection Threshold (EX42908/EX42917 only)


電源

輸入電壓

  • • 12-48VDC

電力功耗
Protection
  • • Reverse polarity protection


機構

機殼

  • • 金屬材質
  • • IP30

尺寸
  • • EX42905/EX42914:
      30 x 76.3 x 110mm (W x D x H)
      (1.18" x 3.05" x 4.4")
  • • EX42908/EX42917:
      30 x 100 x 149mm (W x D x H)
      (1.18" x 4" x 5.96")

重量
  • • EX42905/EX42914: 0.34Kg (0.75lb.)
  • • EX42908/EX42817: 0.39Kg (0.841lb.)

安裝方式
  • • DIN-Rail (Top hat type 35mm)


介面

乙太網路埠

  • • EX42905/EX42914:
      10/100/1000BASE-T: 5 or 4 ports
      1000BASE-X: 0 or 1 ports
  • • EX42908/EX42917:
      10/100/1000BASE-T: 8 or 7 ports
      1000BASE-X: 0 or 1 ports

LED 指示燈號
  • • EX42905/EX42914:
      Per Unit: Power (Green)
      Per Port: 10/100M (Green), 1000M (Yellow)
  • • EX42908/EX42917:
      Per Unit: Power 1 (Green), Power 2 (Green), Alarm (Red)
      Per Port: 10/100M (Green), 1000M (Yellow)

Alarm Contact (EX42908/EX42917 only)
  • • One relay output with current [email protected]
  • • Supports normal close and normal open

DIP Switches (EX42908/EX42917 only)
  • • Enable/Disable Port fault alarm


環境

工作溫度

  • • -40 to 75°C (-40 to 167°F)
      Tested @ -40 to 85°C (-40 to 185°F)

儲存溫度
  • • -40 to 85°C (-40 to 185°F)

工作濕度
  • • 5% to 95% (無凝結)


通過認證

ISO

  • • Manufactured in an ISO 9001 facility

Safety
  • UL 60950 (EX42905/EX42914 Series only)
  • UL 62368 (EX42908/EX42917 Series only)
  • UL ISA 12.12.01 Class I Div. 2/ATEX Zone 2 (EX42908/EX42917 Series only)

EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 55022 Class A

EMS
  • EN 61000-6-2
    • • EN 61000-4-2 (ESD Standards)
    • • EN 61000-4-3 (Radiated RFI Standards)
    • • EN 61000-4-4 (Burst Standards)
    • • EN 61000-4-5 (Surge Standards)
    • • EN 61000-4-6 (Induced RFI Standards)
    • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliances
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)

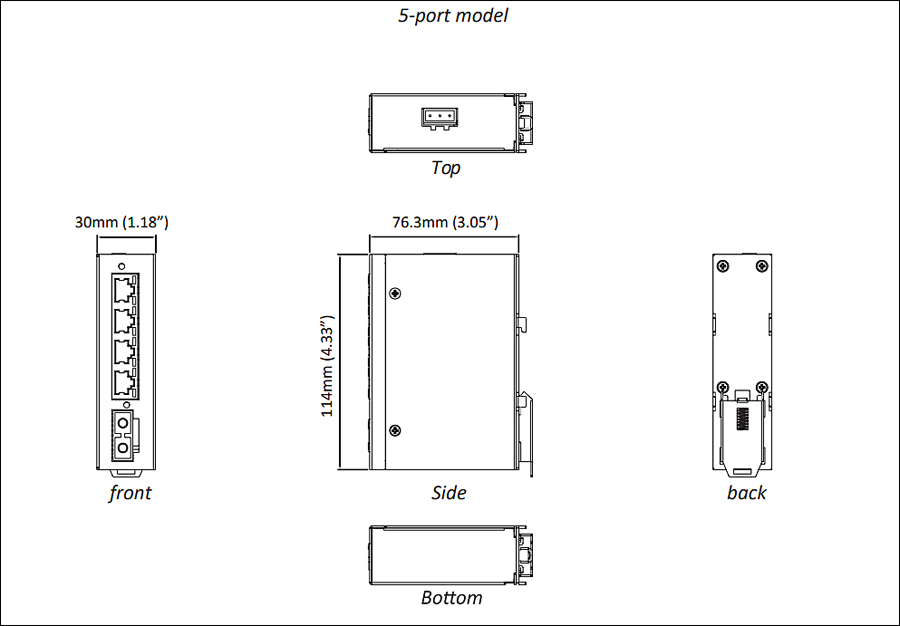

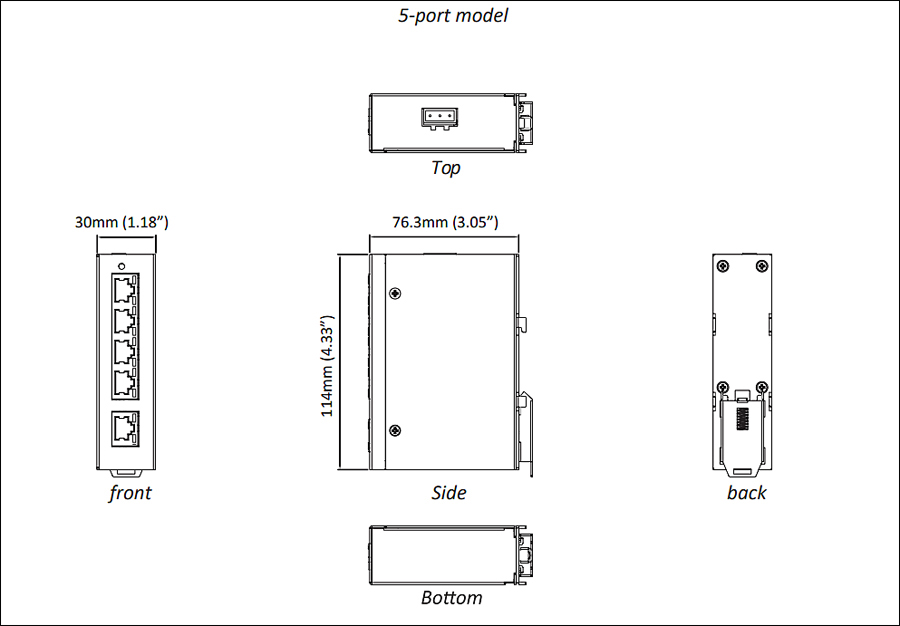

產品尺寸圖
