EW50 シリーズ

多種の取付方法を選択可能

• • イーサネット、ディジタル入力/出力、
    Modbus TCPなど通信プロトコルにサポート。

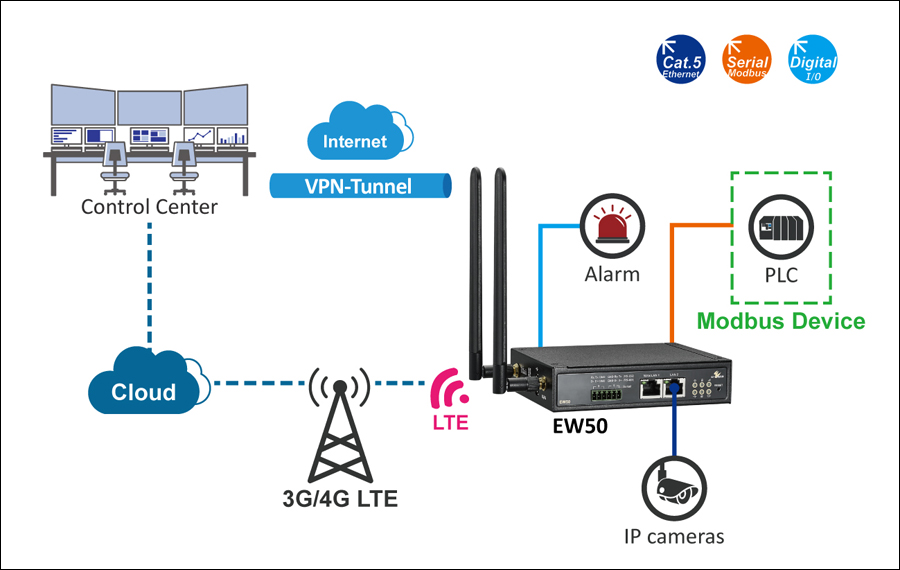

  • M2MとIIoTに向けるアプリケーション。

全面的なデータセキュリティ

• • IPSec、OpenVPN、PPTP、L2TPとVPNにサポートし、同時に16個通信トンネルと接続し、最大70Mbps (IPSec)帯域幅までも可能。

高度な接続信頼性

• • デュアルSIM設計により冗長化技術。
  • フェイルオーバ管理で通信伝送の安定を提供。
  • 中断しない4G LTEインターネット接続/IPパススルー モード。

産業用筐体デザイン

• • IP30、ファンレスで堅牢な筐体。
  • -30～70°C (-22～158°F)広範囲温度に対応。

Cellular Interface

• Standards
  • Cellular Frequency Bands: (Please check Frequency Bands Region Codes)
  • LTE Cat. 4: FDD-LTE, TDD-LTE, Transfer rate (max):
      LTE FDD: 150Mbps down; 50Mbps up
      LTE TDD: 130Mbps down; 35Mbps up
  • 3G: WCDMA, Transfer rate (max): 42Mbps down; 5.76Mbps up
  • 2G: GSM/EDGE, Edge Transfer rate (max): 236.8Kbps down & up
• Antenna connector
  • 2 x SMA Female
• SIM Slot
  • 2

Cloud Development Platform

• Support Microsoft Azure

Field Communication

• Virtual COM
  • RFC2217, TCP Client, TCP Server, UDP
• Modbus
  • Gateway for Modbus TCP, Modbus RTU/ASCII Master/Slave Access
  • Slave for Device Status/Information Access
• Data Logging
  • Sniffer, Off-line/Full-time Proxy, Mixed modes
• Data Interchange
  • MQTT Broker, MQTT Client

Ethernet

• Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
• Ports
  • 2 x RJ45 GE
• Physical Layer
  • 10/100/1000BASE-T

Serial

• Ports
  • 2 x RS-232/RS-485

Power

• Input
  • DC 9V-36V
• Power consumption
  • 7.0W Max.

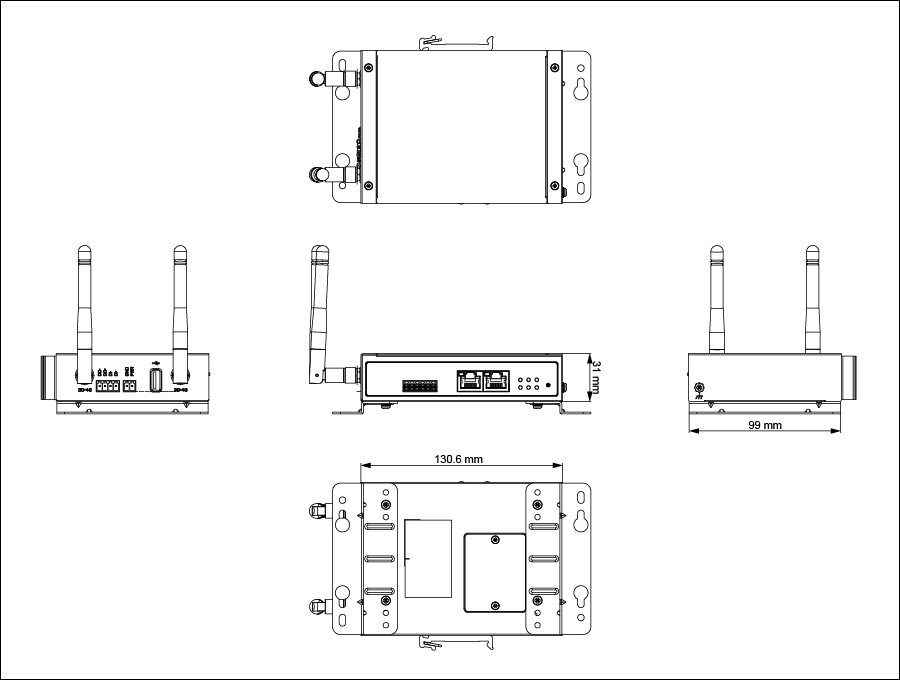

Mechanical

• Dimension
  • 31 x 99 x 130.6mm (w/o mounting brackets)
• Weight
  • 0.9Kg (1.98lb)
• Installation
  • DIN-Rail

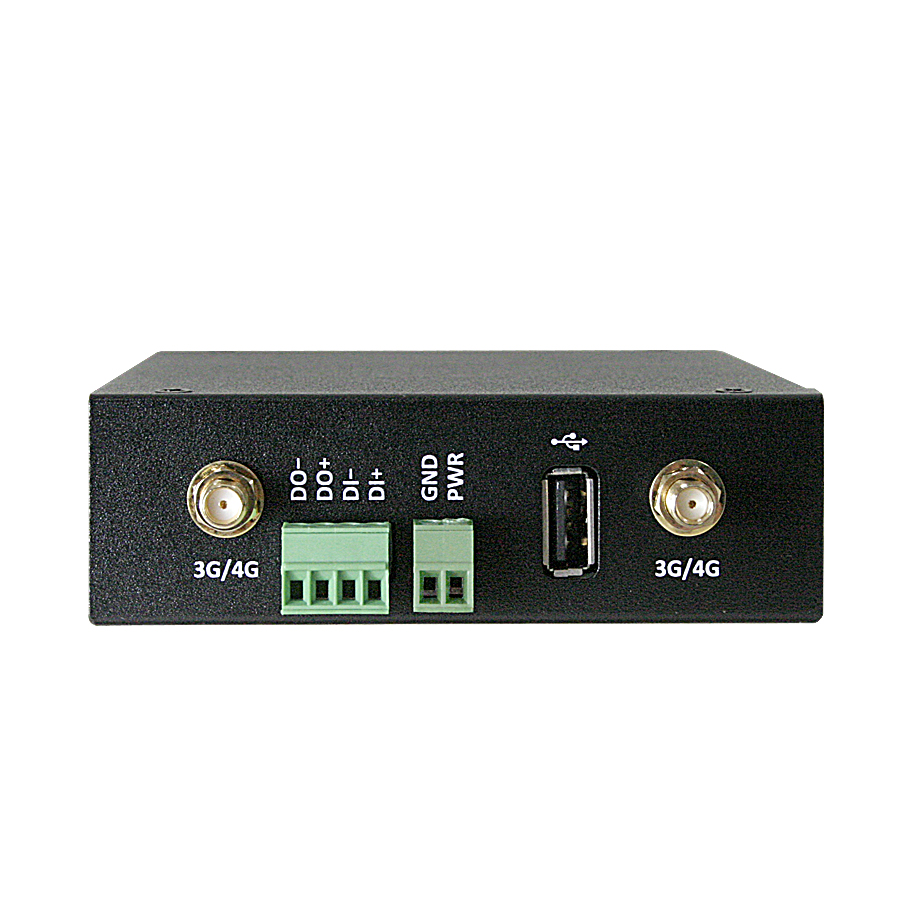

I/O

• DI/DO
  • 1 x Digital In ("Logic 0": 0-2V, "Logic 1": 5V-30V)
      1 x Digital Out (Relay Mode, up to 30V/1A)

USB

• Standards
  • USB 2.0
• Ports
  • 1 x USB Type A

Micro SD

• Capacity
  • Max. Storage of 64GB

Functions

• VLAN
  • Port-based, Tag-based VLAN
• Port Forwarding
  • Virtual Server/Computer (1-1), DMZ Host, PPTP/L2TP/IPSec Pass-through
• Routing
  • Static, Dynamic: RIP1/RIP2, OSPF, BGP
• VPN
  • IPSec, OpenVPN, PPTP, L2TP, GRE
• Firewall
  • SPI Firewall with Stealth Mode, IPS
• Event Engine/Event Handling
  • Managing/Notifying Events: DI, DO, Modbus, SMS, Syslog, SNMP Trap, Email Alert, Reboot

Environment

• Operating Temperature
  • -30 to 70°C (-22 to 158°F)
• Storage Temperature
  • -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity
  • 5% to 95%

Regulatory Approvals

• Safety
  • EN 60950-1
  • EN 62368-1: 2014
• Emissions/Immunity
  • EW50-TA FCC/NCC/RCM
  • EW50-EUS FCC/CE/NBTC/NTC/KC*/SDPPI**
  • EW50-JP VCCI/JATE

    Note:
    KC*: EW50 doesn't support SKT SIM card, suggest to use Global SIM card or Non-SKT SIM Card.
    SDPPI**: Indonesia Radio Type Approval
    78410/SDPPI/2021
